ESP2 3965U
Intel® Celeron 3965U 2-core 2-Thread CPU, 15W
1x up to 16 GB RAM
Extended power supply range from 9V to 36V
2x LAN Intel® Gigabit Ethernet
6x Serial COM (1x RS232/422/485)
6x USB port (4x USB 3.0 + 2x USB 2.0)
2x Video interface (HDMI – VGA)
2x PCI/PCIe slots with three configuration options available:
1xPCI + 1PCIe or 2x PCI or 2xPCIe -
ESP2 i5 7360u
Intel® Core i5 7360U, 2-core 4-Thread CPU, 15W
1x up to 16 GB RAM
Extended power supply range from 9V to 36V
2x LAN Intel® Gigabit Ethernet
6x Serial COM (1x RS232/422/485)
6x USB port (4x USB 3.0 + 2x USB 2.0)
2x Video interface (HDMI – VGA)
2x PCI/PCIe slots with three configuration options available:
1xPCI + 1PCIe or 2x PCI or 2xPCIe -
ESP2 i7 7660U
Intel® i7 7660U, 2-core 4-Thread CPU, 15W
1x up to 16 GB RAM
Extended power supply range from 9V to 36V
2x LAN Intel® Gigabit Ethernet
6x Serial COM (1x RS232/422/485)
6x USB port (4x USB 3.0 + 2x USB 2.0)
2x Video interface (HDMI – VGA)
2x PCI/PCIe slots with three configuration options available:
1xPCI + 1PCIe or 2x PCI or 2xPCIe -
APOLLO 485GPIO
Intel® Apollo Lake x5 – E3940 Quad-Core 1.6GHz (1.8 GHz Turbo), 9,5W
1x DDR3L 1866 MHz 8GB RAM
Extended power supply range from 9V to 36V DC
Extended Temperature range -40°C to 70°C
2x LAN Intel® Gigabit Ethernet
2x COM RS232/422/485 (COM1 w/power 5V/12V) (DP9)
2x COM RS485 (Isolation Protection 2,5kVDC)
16 GPIO (Isolation Protection 2,5kVDC) (8in – 8out) Out Voltage 5~20VDC
-
METEOR
Intel® Meteor Lake U (Up to 28W)
Support DDR5 SO-DIMM (Up to 32GB)
Dual display 1x DP + 1x HDMI,
4 x i226LM 2.5G LAN
4 x COM & 8 bit GPIO
8~26V Wide Power Range
-
TIGER
11st Gen. Intel® Tiger Lake – UP3 ULV CPU
Core i7/i5/i3 / Celeron, 15W
Intel® Iris Xe Graphics
up to 32GB RAM
Wide Power Range 8V ~ 24V DC-in
Up to 4x Intel® Ethernet LAN
(1x 2.5GbE + 1x 1GbE + Optional 2x 1GbE )
4x Video interface (2x HDMI 2.0b – 2x DP 1.4)
-
TIGER EXP
11st Gen. Intel® Tiger Lake – UP3 ULV CPU
Core i7/i5/i3 / Celeron, 15W/28WIntel® Iris Xe Graphics
up to 32GB RAM
Multiple Interface options
(Up to 12xLAN, Up to 8xPoE, Up to 12xCOM, Up to 16xGPIO, Up to 2xCANbus)Wide Power Range 12V ~ 36V DC-in
Up to 4x Intel® Ethernet LAN
(1x 2.5GbE + 1x 1GbE + 2x 1GbE (on request))WIFI and/or 4G/5G connettivity (optional)
4x Video interface (2x HDMI 2.0b – 2x DP 1.4)
-
MIL4
Intel® 8th Gen Whiskey Lake U Processor,
Default i5-8265U, 15WUp to 32GB RAM
TPM 2.0 support
Power In 9-36 VDC and w/ 12VDC to 220VAC Power Adapter
4x LAN Intel® Gigabit Ethernet
4x Serial COM (2x RS232/422/485)
2x Video interface (HDMI + VGA)
-
BULL N97
Intel® Processor (N97)
1x DDR5 4800 MHz up to 32GB RAM
12-28V, DC-in w/ 220VAC Power Adapter
6x USB 2.0 + 1x USB 3.2 + 1x USB Type-C 3.2
2x Intel 2.5 Gigabit Ethernet LAN
WIFI and 4G/5G connectivity (Optional)
3x 4K Video interface (2xHDMI + 1x Type-C DP)
Desktop, Wall and DIN-Rail mount Kit
-
BULL 6305e
Intel® Celeron 6305e, 2 Core / 2 Thread 1.80 GHz,15W [Tiger Lake]
2x DDR4 3200 MHz up to 64GB RAM
Power supply range from 12V to 24V, DC
2x LAN Intel® Gigabit Ethernet (1x 2.5GbE + 1x 1GbE)
4x 4K HDR Video interface (HDMI+DP) or 1x 8K SDR Display (DP)
-
ES-A08F1-PU
Unmanaged Industrial Automation Ethernet Switch
8x 10/100BaseT(X) (RJ45)
Broadcast storm protection
Supports IEEE 802.3/ 802.3u/ 802.3x
QoS and packet prioritization according to 802.1p and Profinet CC-A requirements
10/100M, Full/Half-Duplex, MDI/MDI-X auto-detection
Redundant dual DC power inputs 9~48 VDC (5.4W)
Operating temperature ranges from 0˚ ~ +60˚C
Rugged plastic housing
DIN-Rail or wall mounting ability
-
ES-A08G1-PU
Unmanaged Industrial Automation Ethernet Switch
8x 10/100/1000BaseT(X) (RJ45)
Broadcast storm protection
Supports IEEE 802.3/ 802.3u/ 802.3x / 802.3ab
QoS and packet prioritization according to 802.1p and Profinet CC-A requirements
10/100M, Full/Half-Duplex, MDI/MDI-X auto-detection
Redundant dual DC power inputs 9~48 VDC (5.4W)
Operating temperature ranges from 0˚ ~ +60˚C
Rugged plastic housing
DIN-Rail or wall mounting ability
-

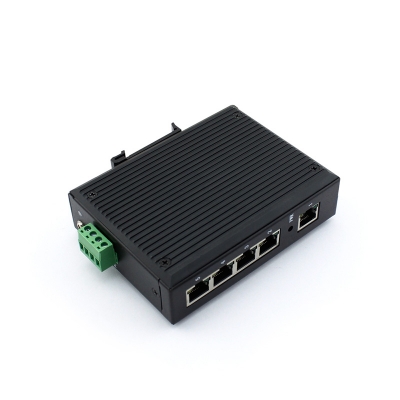

ES-I05F2-MU
Unmanaged Industrial Ethernet Switch
5x 10/100BaseT(X) (RJ45)
Supports IEEE 802.3/ 802.3u/ 802.3x
10/100M, Full/Half-Duplex, MDI/MDI-X auto-detection
Redundant dual DC power inputs 9~36 VDC (< 3W)
Operating temperature ranges from –40˚ ~ +85˚C
Aluminum aloy + sheet metal housing
DIN-Rail or wall mounting ability
-
ES-I08F2-MU
Unmanaged Industrial Ethernet Switch
8x 10/100BaseT(X) (RJ45)
Broadcast storm protection
Supports IEEE 802.3/ 802.3u
10/100 Full/Half-Duplex, MDI/MDI-X auto-detection
Redundant dual DC power inputs 10~58 VDC (6W)
Operating temperature ranges from –40˚ ~ +85˚C
Metal housing
DIN-Rail
-

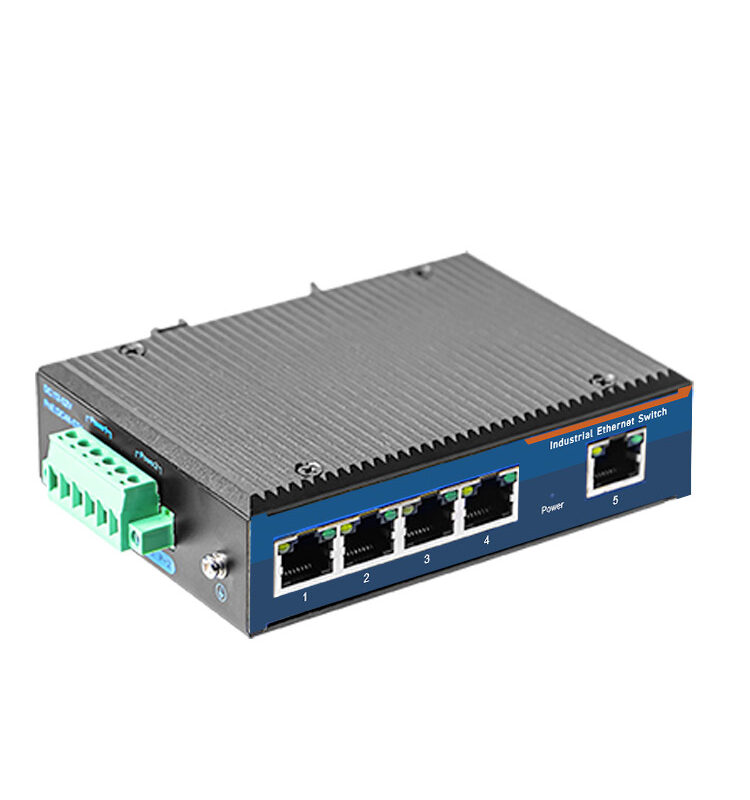

ES-I05G2-MU
Unmanaged Industrial Ethernet Switch
5x 10/100/1000BaseT(X) (RJ45)
Supports IEEE 802.3 /ab /i /u /x /z
10/100/1000 Full/Half-Duplex, MDI/MDI-X auto-detection
Redundant dual DC power inputs 12~52 VDC (<3W)
Operating temperature ranges from –40˚ ~ +85˚C
IP40, Metal housing
DIN-Rail Mounting
-
ES-I08G2-MU
Unmanaged Industrial Ethernet Switch
8x 10/100/1000BaseT(X) (RJ45)
Supports IEEE 802.3 /ab /i /u /x /z
10/100/1000 Full/Half-Duplex, MDI/MDI-X auto-detection
Redundant dual DC power inputs 12~52 VDC (<3W)
Operating temperature ranges from –40˚ ~ +85˚C
IP40, Metal housing
DIN-Rail Mounting
-
ES-I08G2-MUP
Unmanaged Industrial PoE/PoE+ Ethernet Switch
8x 10/100/1000BaseT(X) PoE/PoE+ (RJ45)
Supports IEEE 802.3 /ab /i /u /x /z
Supports IEEE 802.3af /at (PoE/PoE+)
10/100/1000 Full/Half-Duplex, MDI/MDI-X auto-detection
Redundant dual DC power inputs 12~52 VDC (<3W no PoE)
48~57 VDC for PoE/PoE+
Operating temperature ranges from –40˚ ~ +85˚C
IP40, Metal housing
DIN-Rail Mounting
-

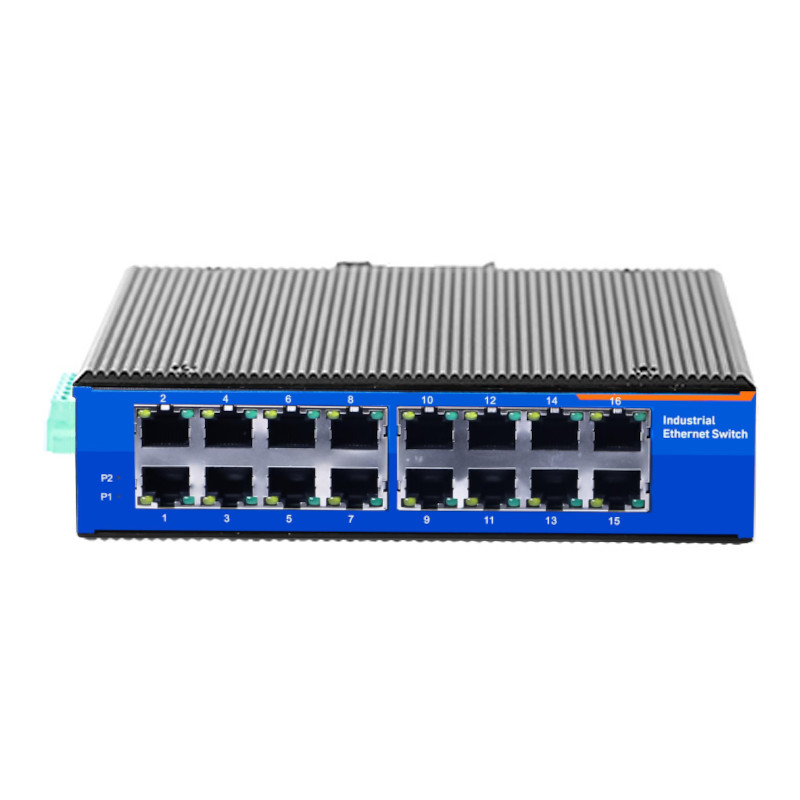

ES-I16G2-MU
Unmanaged Industrial Ethernet Switch
16x 10/100/1000BaseT(X) (RJ45)
Supports IEEE 802.3 /ab /i /u /x /z
10/100/1000 Full/Half-Duplex, MDI/MDI-X auto-detection
Redundant dual DC power inputs 12~52 VDC (<15W)
Operating temperature ranges from –40˚ ~ +85˚C
IP40, Metal housing
DIN-Rail Mounting
-
ES-A08F1-MU
Unmanaged Industrial Automation Ethernet Switch
8x 10/100BaseT(X) (RJ45)
Broadcast storm protection
Supports IEEE 802.3/ 802.3u/ 802.3x
QoS and packet prioritization according to 802.1p and Profinet CC-A requirements
10/100M, Full/Half-Duplex, MDI/MDI-X auto-detection
Redundant dual DC power inputs 9~48 VDC (4.05W)
Operating temperature ranges from -10˚ ~ +70˚C
Metal – Rugged high-strenght housing
DIN-Rail or wall mounting ability
-

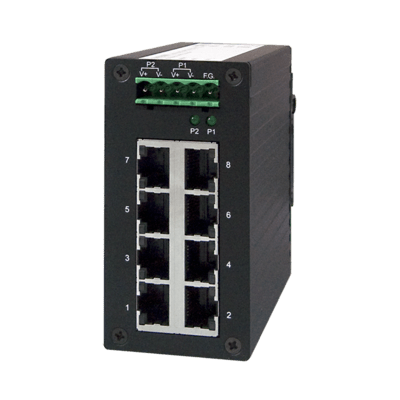

ES-A08G1-MU
Unmanaged Industrial Automation Ethernet Switch
8x 10/100/1000BaseT(X) (RJ45)
Broadcast storm protection
Supports IEEE 802.3/ 802.3u/ 802.3x / 802.3ab
QoS and packet prioritization according to 802.1p and Profinet CC-A requirements
10/100/1000M, Full/Half-Duplex, MDI/MDI-X auto-detection
Redundant dual DC power inputs 9~48 VDC (4.05W)
Operating temperature ranges from -10˚ ~ +70˚C
Metal – Rugged high-strenght housing
DIN-Rail or wall mounting ability
-
BRICK E3940/J3455
Intel® Apollo Lake SoC Processor (J3455/E3940)
1x DDR3 1866 MHz up to 8 GB RAM
Extended power supply range from 9V to 36V
2x Intel® 2.5 Gigabit Ethernet
1x 4K Video interface (HDMI)
-
BRICK J6412
Intel® Elkhart Lake SoC Processor (J6412)
2x DDR4 3200 MHz up to 32GB RAM
32GB Onboard eMMC (Storage)
Extended power supply range from 12V to 24V
2x LAN Intel® Gigabit Ethernet
2x 4K Video interface (HDMI)
-
BACH i5 8365UE
Intel® Core i5 8365UE 4-core 8-Thread 1.6 GHz (Base) / 4.1 GHz (Turbo), 15W
2x DDR4 2400 MHz up to 32 GB RAM
9-24V, DC-in w/ 220VAC Power Adapter
2x LAN Intel® Gigabit Ethernet
2x 4K Video interface (HDMI – DP)
-

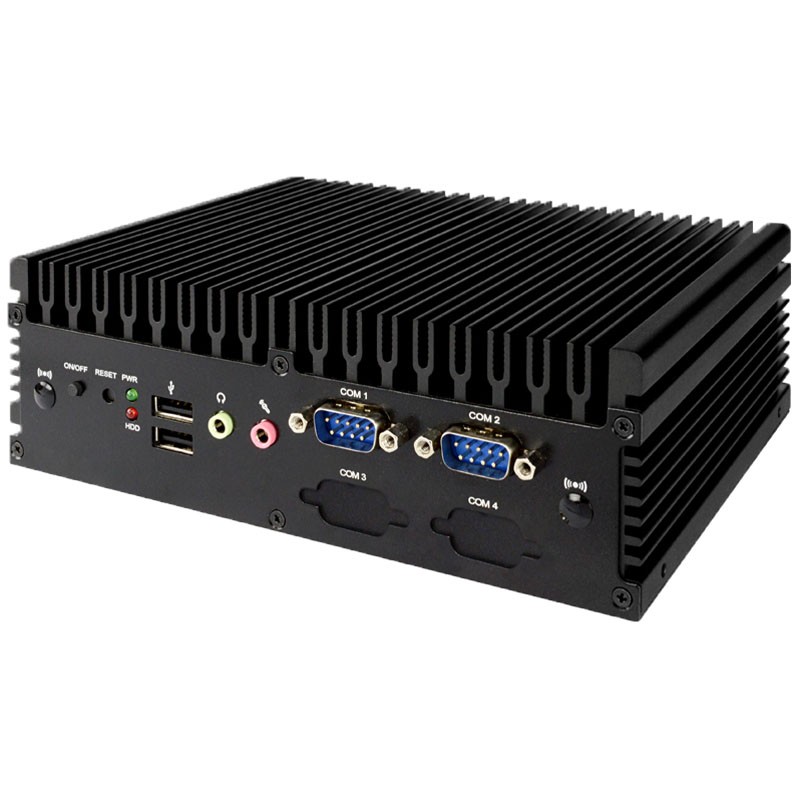

BOLT i5 7200U
Intel® Core i5 7200U 2-core 4-Thread
2.50-3.10Hz Burst, 15W
2x DDR3L 2133 MHz up to 32 GB RAM
Extended power supply range from 9V to 24VDC
4x COM (1xRS232/442/485 + 3x RS232)
2x LAN Intel® Gigabit Ethernet
2x 4K Video interface (HDMI – DP)
-

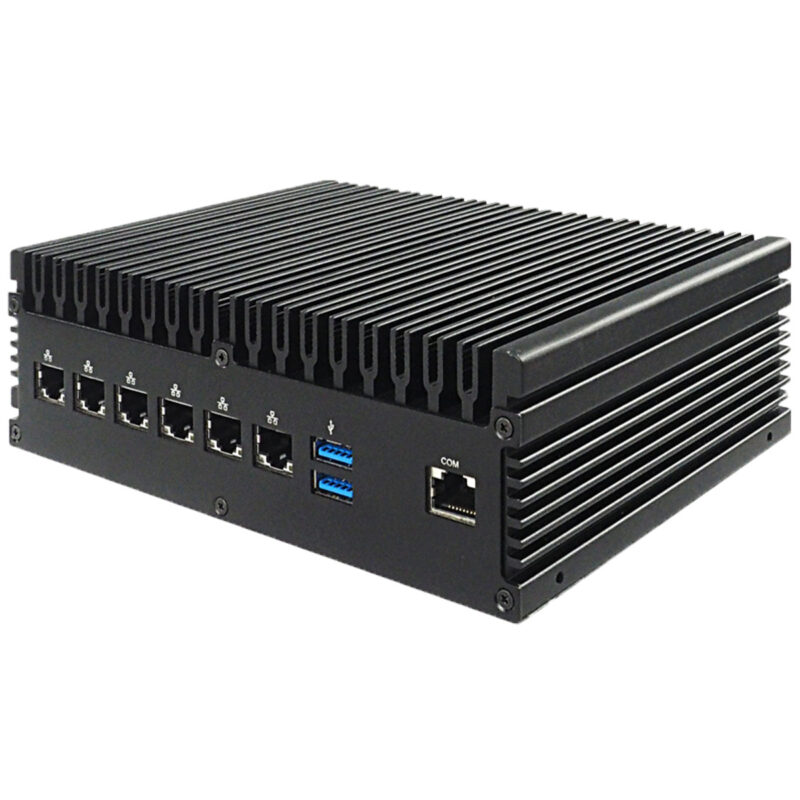

BOLT 6ETH
Intel® Core i5 7300U 2-core 4-Thread
2.6-3.5 GHz Burst, 15W
2x DDR4 2133 MHz up to 32GB RAM
Extended power supply range from 9V to 24V
6x LAN Intel® Gigabit Ethernet
2x 4K Video interface (DP)
-

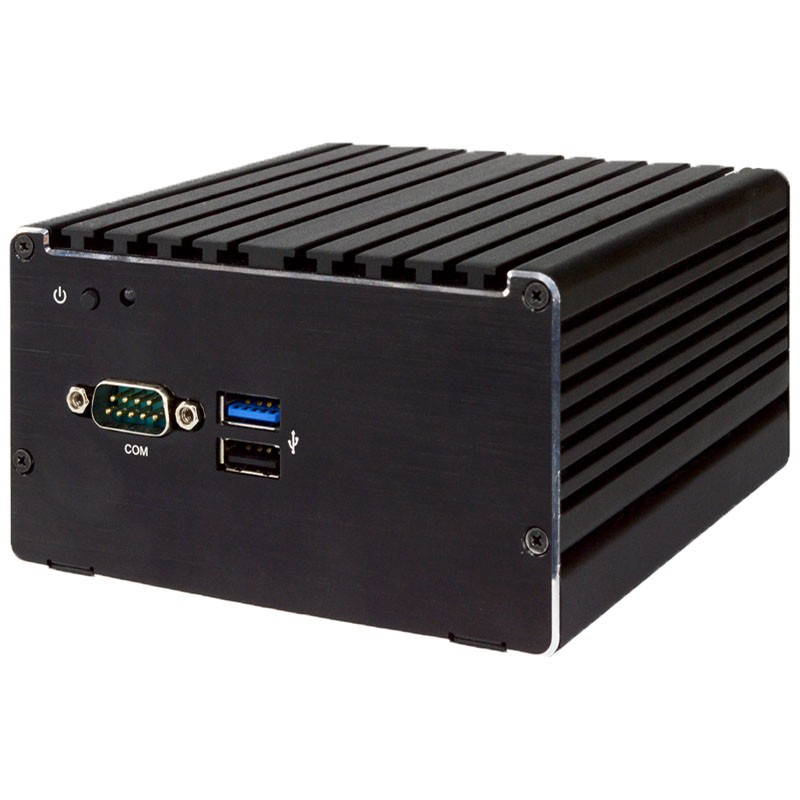

CUBO N2930
INTEL® N2930 SoC Processor 1.83GHz, Quad-Core, 7.5W
1x DDR3L 1333 MHz 8GB RAM
Extended power supply range from 9V to 24V and 20W max Power consumption
2x LAN Intel® 82583V Gigabit Ethernet
Compact format (L)116x(W)110x(H)65mm
-
IndustrialPAD 156
Intel® Core i5 8265UE
Up to 32 GB RAM
Extended power supply range from 9V to 24V
2x LAN Intel® Gigabit Ethernet
2x 4K Video interface (HDMI – DP)
Fully customizable push button panel
High quality anodized aluminum
Full-IP65 & Fanless cooling
Integrated SuperCAPS UPS (on request)
Flexible VESA mounting for any mounting system
-
IndustrialPAD 156K
Intel® Core i5 8265UE
Up to 32 GB RAM
Extended power supply range from 9V to 24V
2x LAN Intel® Gigabit Ethernet
2x 4K Video interface (HDMI – DP)
Fully customizable push button panel
High quality anodized aluminum
Full-IP65 & Fanless cooling
Integrated SuperCAPS UPS (on request)
Flexible VESA mounting for any mounting system
-
IndustrialPAD 185
Intel® Core i5 10210U
Up to 64 GB RAM
Extended power supply range from 9V to 24V
2x LAN Intel® Gigabit Ethernet
2x 4K Video interface (HDMI – DP)
Fully customizable push button panel
High quality anodized aluminum
Full-IP65 & Fanless cooling
Integrated SuperCAPS UPS (on request)
Flexible VESA mounting for any mounting system
-
CYBER 185
Intel® Core i5 1135G7E
Up to 64 GB RAM
Extended power supply range from 12V to 24V
2x LAN Intel® Gigabit Ethernet
4x 4K Video interface (2xHDMI – 2xDP)
Fully customizable push button panel
High quality anodized aluminum
Full-IP65 & Fanless cooling
Integrated SuperCAPS UPS (on request)
Flexible VESA mounting for any mounting system
-

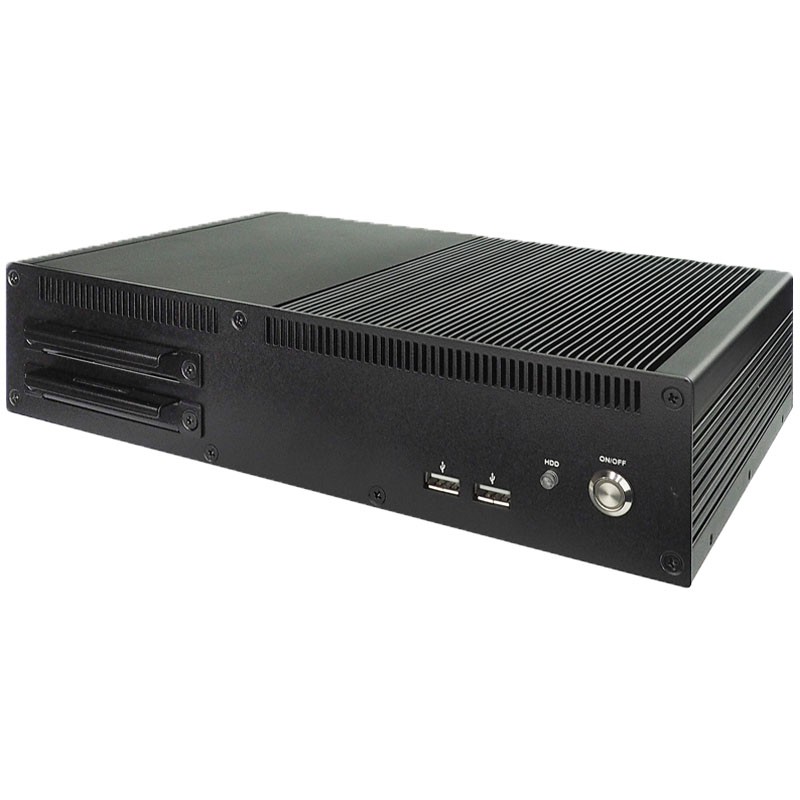

MP3
Intel® 6th & 7th Gen. i7/i5/i3 CPU 35W LGA 1151 — Q170 chipset
2x DDR4 2133 MHz up to 32 GB RAM
Extended power supply range from 9V to 24V
2x 2.5” SSD tray slots with RAID 0.1 support
2x LAN Intel® Gigabit Ethernet
3x 4K Video interface (HDMI)
