BRICK E3940/J3455
Intel® Apollo Lake SoC Processor (J3455/E3940)
1x DDR3 1866 MHz up to 8 GB RAM
Extended power supply range from 9V to 36V
2x Intel® 2.5 Gigabit Ethernet
1x 4K Video interface (HDMI)

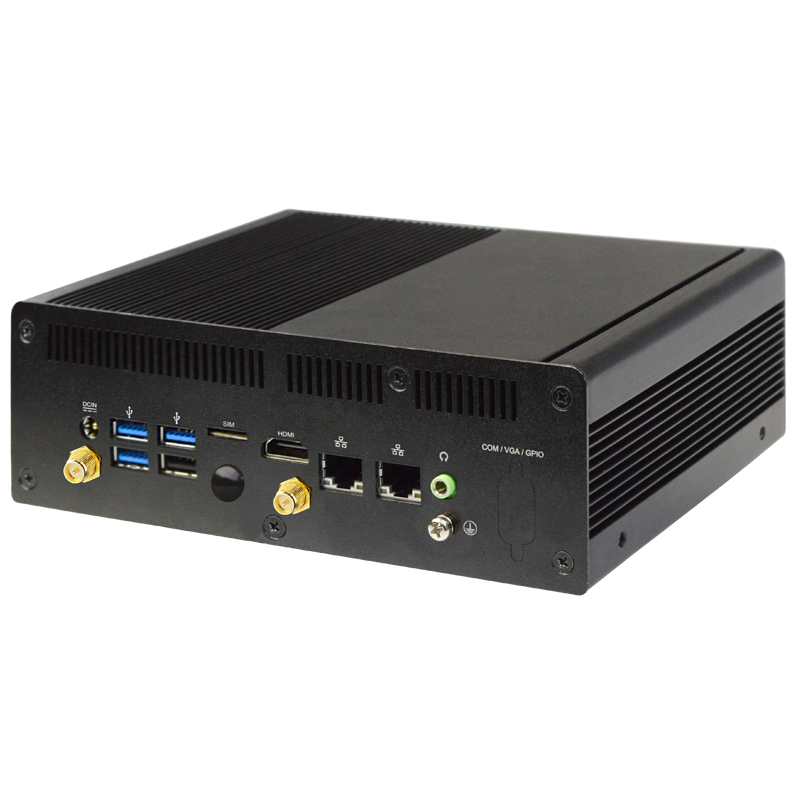

INDATECH Industrial PC Brick E3940/J3455
Specifiche tecniche
| MAINBOARD | |
| CPU: | Intel® Celeron J3455
(4C/4T) 1.5GHz-2.3GHz, 10W Intel® Celeron E3940 (4C/4T) 1.6GHz-1.8GHz, 10W |

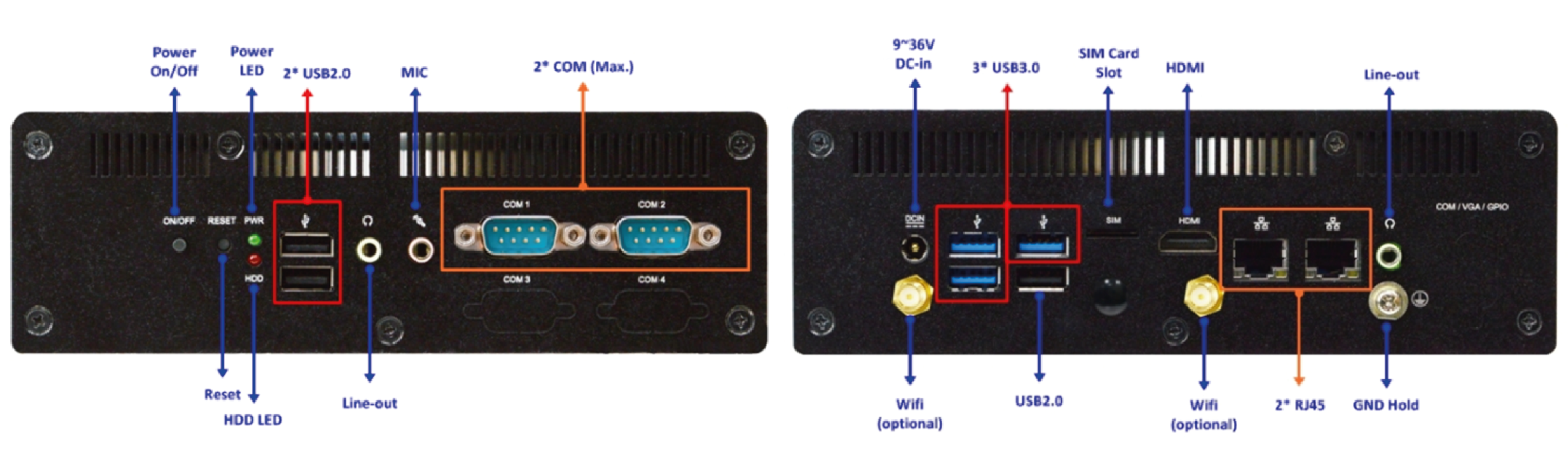

| MEMORY | |
| Capacity: | 8GB |
| Frequency: | 1866 MHz |
| Type: | 1x SO-DIMM DDR3L |
| STORAGE | |
| SATA: | 1x SATA3 |
| M.2 | 1x M.2 M-Key (2242) |
| Storage Bay: | 1x Internal 2.5” SSD Bay |
| I/O INTERFACE | |
| Serial ports: | 1x COM RS232/422/485
1x COM RS232 |
| USB ports: | 3x USB 3.1,
3x USB 2.0 |
| Mini-PCIe: | 1x Full size (USB 2.0/PCIe X1) |
| M.2: | 1x M.2 B-Key (3042) (USB 3.0/PCIe X1) |
| AUDIO: | 1x Headphone Jack,
1x MIC Jack 1x Line-out Jack |
| Optional: | 1x COM or GPIO |
| VIDEO | |
| GPU: | Intel® HD Graphics |
| Interface: | 1x HDMI 1.4 (Up to 3840×2160 @30Hz) |
| ETHERNET | |
| LAN: | 2x Intel® i225V 2.5 GbE |
| POWER | |
| Power in: | 9 to 36V, DC-in |
| Max Power: | 60W max |
| Adapter: | AC_90~240V / DC_12V_5A/60W |
| MECHANICAL | |
| Material: | Lightweight aluminum alloy with extruded aluminum IO panel |
| Dimensions: | (W)193x(D)142.4x(H)62mm |
| Weight: | 2.2Kg |
| Mounting: | WallMount + DIN Rail |
| ENVIRONMENT | |
| Operating temp.: | 0°C to 50°C (w/J3455)
-40°C to 70°C (w/ E3940) |
| Storage temp.: | -20°C to 85C |
| Humidity: | 10% to 90% RH @40°C, non-condensing |
| EMC: | CE, FCC, RoHS, LVD, ErP Ready |
| OPERATIVE SYSTEM | |
| MS Windows: | Windows 10, Windows 10 Enterprise LTSC,
Windows 11, Windows 11 Enterprise LTSC |
| Linux*: | Ubuntu 20.04 LTS, CentOS 8, Debian 10,
Fedora 34, pfSence 2.4.4, FreeNAS 11.2, Android x86 8.1_rc2 |
| * Linux distributions tested with the IPC. |
Codici di ordinazione
| IPC | |||
| MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
| BRICK E3940/J3455 | 10005376 | B04-23C-BRICK-J3455/E3940–R08–SSDXXX | IPC + 8GB RAM + M2 256GB SSD + WIFI6 |
| STORAGE | SSD (2,5”) | M2D/SSD128 |
| M2D (M.2) | Other on Request |
| ACCESSORIES | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| HDMI to VGA converter | 10003577 | HDMI to VGA converter | |

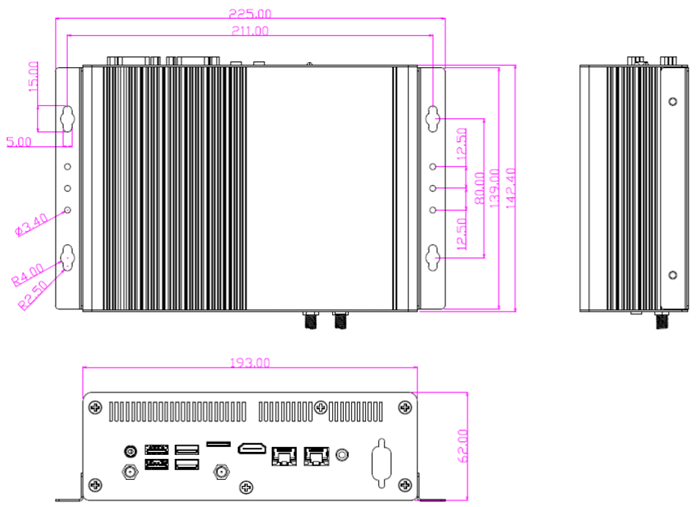

Disegni tecnici
File scaricabili
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| BRICK | v1.0 | 2023-06-01 | 869 KB |  |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| BRICK manual | v1.0 | 2023-06-01 | 5.99 MB | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| BRICK HIG | v1.0 | 2023-06-01 | 5.99 MB | |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| BRICK drivers | v1.0 | 2023-06-01 | 4.3 GB | |
