Edge IoT

NEW

EdgeGate

Multifunctional Industrial EdgePC & IoT Gateway:
Open Linux Ubuntu Platform with Integrated SCADA

Industrial Logic & Automation:
Node-RED and OpenPLC (Comply with IEC61131-3 standard)

Network & I/O Interfaces:
4G/LTE Cat. 4 Global + GNSS + WIFI 2.4/5 GHz, 1x WAN/LAN (10/100/1000 Mbps) + 1x LAN (10/100 Mbps), 1x RS232, 2x RS485, 1x CAN , 3x USB, 1x HDMI

Industrial Grade Design:
12~36 VDC, -20°C~+70°C, EMC Level 3, 79.6x 58 x110 mm, DIN Rail & Wall Mount

Multi-Protocol Bridge:
Modbus RTU/TCP, OPC-UA, BACnet, DNP3, IEC104, IEC61850, MQTT, JSON and more coming soon

PLC & CNC Integration:
SIEMENS (S7 series), MITSUBISHI (FX/Q series), OMRON (FINS-TCP/COM), DELTA(DVP_RTU), FATEK and more coming soon

Modular Expansion:
Supports 5 SmartlOs(SIO) module variants and allows direct connection of up to 6 expansion modules.
NEW

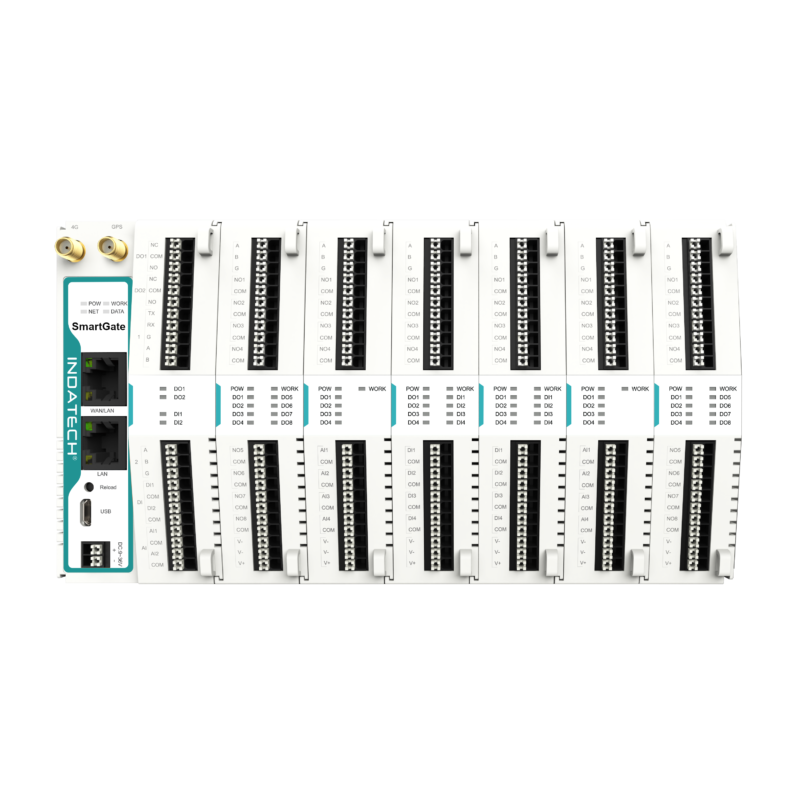

SmartGate

Multifunctional Industrial Edge IoT Gateway

Graphical Programming PLC with Node-RED

LTE Cat. 4 Global connectivity and GNSS (-G version)

1x WAN/LAN (10/100) + 1x LAN (10/100)

1x RS232/485, 1x RS485, 2DI, 2DO, 2AI(4~20mA)

9~36 VDC, -25~75°C, EMC Level 3, 79.6x 58 x110 mm

Multi Protocols: Modbus RTU/TCP, OPC-UA, BACnet, MQTT, JSON and more coming soon

Supports 5* variants of SmartIO (SIO) module as expansion: 4DI+4DO, 4AI+4DO, 4AI+4AO, 8DI, 8DO.

Up to 6* SmartIO expansion modules can be connected
NEW

SmartIOs

Modular and Extendable I/O Controller

It can be used standalone or with INDATECH SmartGate / EdgeGate

RS485 interface with Modbus RTU communication

5* INDATECH SIO module variants are available:

# SIO-4ID4UD | 4x Digital Input + 4x Digital Output
# SIO-4IA4UD | 4x Analog Input (4~20mA) + 4x Digital Output
# SIO-4IA4UA | 4x Analog Input (4~20mA) + 4x Analog Output (4~20mA / 0~10V)
# SIO-8ID | 8x Digital Input
# SIO-8UD | 8x Digital Output

12~24 VDC, -25~75°C,

EMC Level 3, 79.6x 28 x110 mm
