Coming soon!

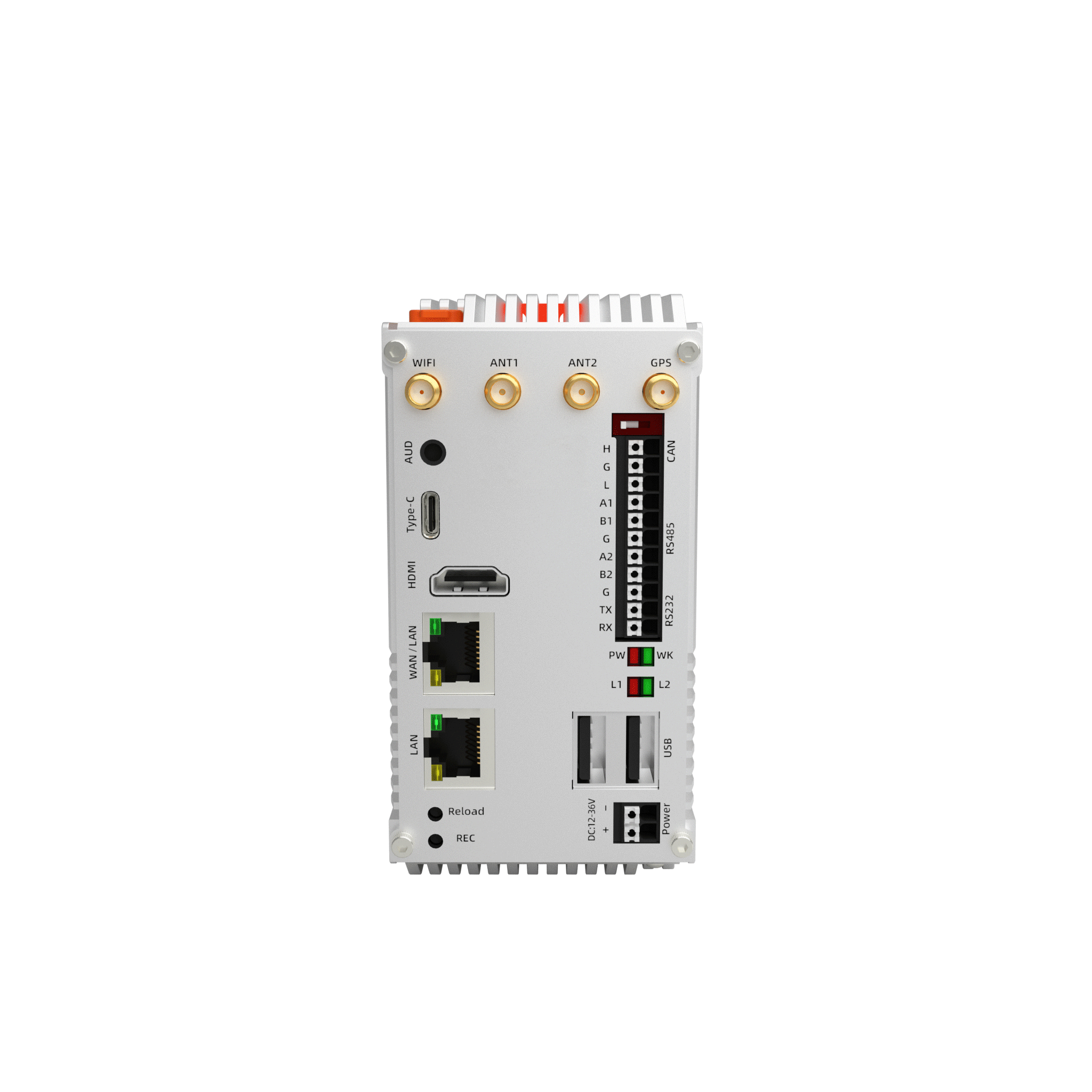

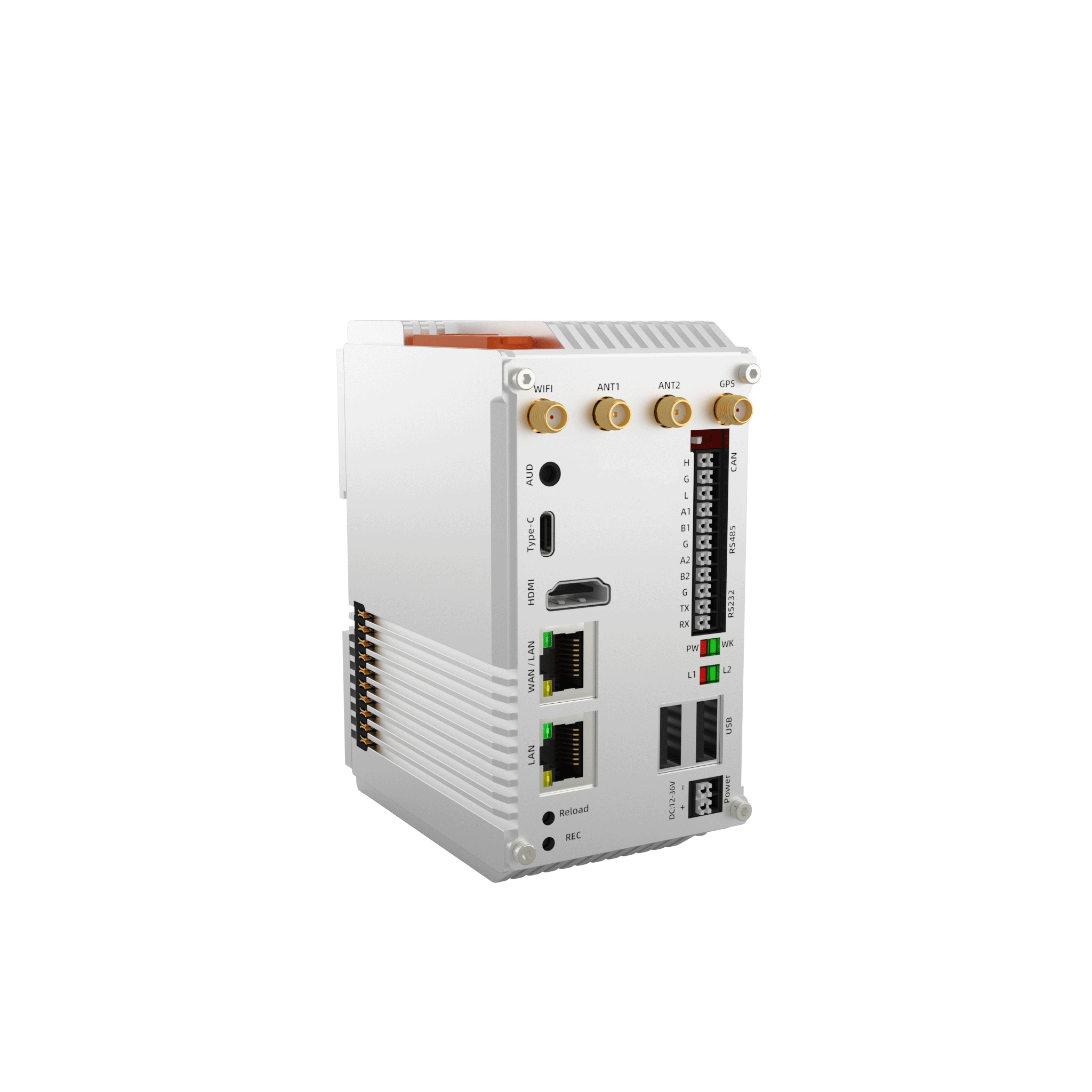

EdgeGate
Multifunctional Industrial EdgePC & IoT Gateway:
Open Ubuntu Platform with Integrated SCADA
Node-RED and OpenPLC (Comply with IEC61131-3 standard)
4G/LTE Cat. 4 Global + GNSS + WIFI 2.4 / 5 GHz
1x WAN/LAN (10/100/1000 Mbps) + 1x LAN (10/100 Mbps)
1x RS232, 2x RS485, 1x CAN , 3x USB, 1x HDMI
12~36 VDC, -20°C~70°C, EMC Level 3, 79.6x 58 x110 mm
Multi Protocols: Modbus RTU/TCP, OPC-UA, BACnet, IEC104,
IEC61850, MQTT, JSON and more coming soon
Supports 5* variants of SmartIOs (SIO) module as expansion
Up to 6* SmartIOs expansion modules can be connected
| HPU | |
| CPU: | ARM Cortex-A53, Quad-Core, 2.0 GHz |
| GPU: | Mali-G52-2EE, 1Core |
| NPU: | 1 TOPS, Support TensorFlow, TF-lite, Pytorch, caffe, ONNX, MXNet, Keras, Darknet |
| MEMORY | |
| Capacity: | 4GB |
| Frequency: | 2666 MHz |
| Type: | LPDDR4 |
| STORAGE | |
| eMMC: | 1x eMMC 32GB |
| microSD: | 1x microSD slot (up to 128GB) |
| I/O INTERFACE | |
| USB ports: | 2x USB 2.0, 1x USB 3.0 Type-C |
| COM: | 1x RS232, 2x RS485, 1x CAN |
| HDMI: | 1x HDMI 2.0 |
| AUDIO: | 1x Audio-output Jack |
| I/O expansion: | up to 6x SmartIOs via I/O expansion port |
| ETHERNET | |
| WAN/LAN: | 1x WAN/LAN (10/100/1000 Mbps) 1x LAN (10/100 Mbps) |
| WIRELESS | |
| WIFI: | Dual-band WIFI 2.4 / 5 GHz (SMA-M) IEEE 802.11a/b/g/n/ac/ax |
| CELLULAR + GNSS | |
| 4G/LTE: | 4G/LTE Cat. 4 Global (SMA-F) |
| Frequency | TDD-LTE: B34/38/39/40/41 FDD-LTE: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66 WCDMA: B1/2/4/5/6/8/19 GSM/EDGE: B2/3/5/8 |
| SIM: | 2x Nano SIM or 1x Nano SIM + 1x eSIM |
| GNSS: | GPS, GLONASS, BeiDou/Compass,Galileo and QZSS (SMA-F) |
| POWER | |
| Power in: | 12~36V, DC-in |
| Max Power: | ~1A @12V (w/o SmartIOs expansion modules) |
| MECHANICAL | |
| Material: | Aluminum 6063, Silver anodized |
| IP Protection: | IP50 |

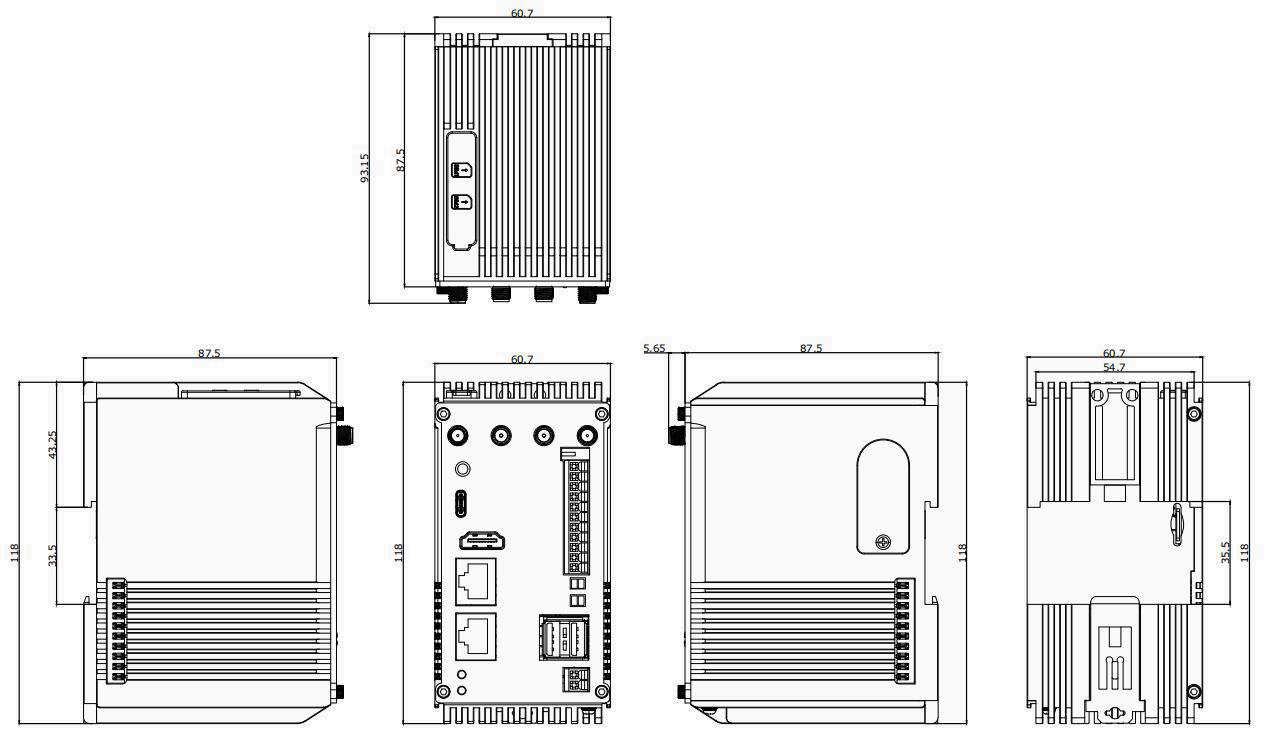

| Dimensions: | (W)60x(D)87x(H)118mm |
| Weight: | < 600g |
| Mounting: | Wall/Book and DIN Rail Mount |
| ENVIRONMENT | |
| Operating temp.: | -20~70°C |
| Storage temp.: | -20°C to 80°C |
| Humidity: | 10% to 90% RH @40°C, non-condensing |
| EMC: | CE, RoHS, |
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| EdgeGate | V.1.1 | 01/07/2025 | 728 KB |  |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| EdgeGate Manual | TBD | TBD | TBD | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| EdgeGate HIG | TBD | TBD | TBD | |
| EDGE IOT | |||
| PART NUMBER | MODEL NAME | DESCRIPTION | |
| 10007285 | EdgeGate-WIFI-4G-GPS | Ethernet + WIFI + 4G/LTE + GNSS version | |
| SmartIOs | |||
| PART NUMBER | MODEL NAME | DESCRIPTION | |
| 10006849 | SIO-4ID4UD | 4x Digital Input + 4x Digital Output | |
| 10006850 | SIO-4IA4UD | 4x Analog Input (4~20mA) + 4x Digital Output | |
| 10006851 | SIO-4IA4UA | 4x Analog Input (4~20mA) + 4x Analog Output (4~20mA / 0~10V) | |
| 10006852 | SIO-8ID | 8x Digital Input | |
| 10006853 | SIO-8UD | 8x Digital Output (3A) | |
