NEW
SmartGate
Multifunctional Industrial Edge IoT Gateway
Graphical Programming PLC with Node-RED
LTE Cat. 4 Global connectivity and GNSS (-G version)
1x WAN/LAN (10/100) + 1x LAN (10/100)
1x RS232/485, 1x RS485, 2DI, 2DO, 2AI(4~20mA)
9~36 VDC, -25~75°C, EMC Level 3, 79.6x 58 x110 mm
Multi Protocols: Modbus RTU/TCP, OPC-UA, BACnet, MQTT, JSON and more coming soon

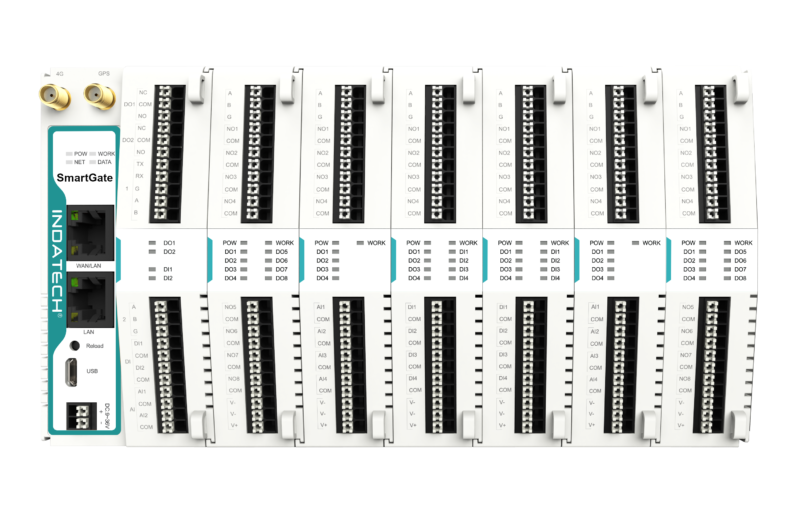

Supports 5* variants of SmartIO (SIO) module as expansion: 4DI+4DO, 4AI+4DO, 4AI+4AO, 8DI, 8DO.
Up to 6* SmartIO expansion modules can be connected
| CPU | |
| Main Core: | 2 Core / 4 Thread, 1.2 GHz |
| RT Core: | 1 Core, 240 MHz |
| MEMORY | |
| Capacity: | 512MB |
| Frequency: | 800 MHz |
| Type: | LPDDR3 |
| STORAGE | |
| eMMC: | 1x eMMC 2GB |
| I/O INTERFACE | |
| USB ports: | 1x USB Micro B |
| COM: | 1x RS232/485 1x RS485 |
| I/O | 2x DI (0~2 Low, 9~36 High logic) 2x AI (4~20mA) 2x DO (10A / 28V DC, 10A / 277V AC-NO, 5A / 250V AC-NC) |
| ETHERNET | |
| LAN: | 1x WAN/LAN (10/100 Mbps)
1x LAN (10/100 Mbps) |
| WIRELESS | (only w/ -WIFI version) |
| WIFI: | Dual-band WIFI 2.4 / 5 GHz (SMA-M) IEEE 802.11a/b/g/n/ac |
| CELLULAR + GNSS | (only w/ -4G version) |
| 4G/LTE: | 4G/LTE Cat. 4 Global (SMA-F) |
| Frequency | TDD-LTE: B34/38/39/40/41 FDD-LTE: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66 WCDMA: B1/2/4/5/6/8/19 GSM/EDGE: B2/3/5/8 |
| SIM: | 1x Micro SIM 1x eSIM (optional) |
| GNSS: | GPS, GLONASS, BeiDou/Compass,Galileo and QZSS (SMA-F) |
| POWER | |
| Power in: | 9~36V, DC-in |
| Max Power: | 240mA @12V |
| Adapter: | AC_90~240V / DC_12V_1A/12W |
| MECHANICAL | |
| Material: | ABS housing, IP30 |
| Dimensions: | (W)58x(D)79.6x(H)110mm |
| Weight: | <0.3 Kg |
| Mounting: | Wall/Book and DIN Rail Mount |
| ENVIRONMENT | |
| Operating temp.: | -25~75°C |
| Storage temp.: | -30°C to 85°C |
| Humidity: | 10% to 90% RH @40°C, non-condensing |
| EMC: | CE, RoHS, |
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| SmartGate | TBD | TBD | TBD |  |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| SmartGate Manual | v. 1.2 | 13/01/2025 | 2.93 MB | |
| Application Note SmartGate AWS | v. 1.0 | 20/11/2024 | 3.22 MB | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| SmartGate HIG | TBD | TBD | TBD | |
| EDGE IOT | |||
| PART NUMBER | MODEL NAME | DESCRIPTION | |
| 10006847 | SmartGate-ETH | Ethernet version | |
| 10007753 | SmartGate-WIFI | Ethernet + WIFI version | |
| 10006848 | SmartGate-4G | Ethernet + 4G/LTE + GNSS version | |
| SmartIOs | |||
| PART NUMBER | MODEL NAME | DESCRIPTION | |
| 10006849 | SIO-4ID4UD | 4x Digital Input + 4x Digital Output | |
| 10006850 | SIO-4IA4UD | 4x Analog Input (4~20mA) + 4x Digital Output | |
| 10006851 | SIO-4IA4UA | 4x Analog Input (4~20mA) + 4x Analog Output (4~20mA / 0~10V) | |
| 10006852 | SIO-8ID | 8x Digital Input | |
| 10006853 | SIO-8UD | 8x Digital Output (3A) | |
