E2V3
Intel® Celeron J3455
Quad-Core 1.5GHz – 2.3GHz (10W)
1x DDR3L 1866 MHz 8 GB RAM
1x Full Size mSATA for storage
2x Gigabit Ethernet LAN
3x Video interface (2x HDMI,1x VGA)
1x Serial COM RS232/422/485

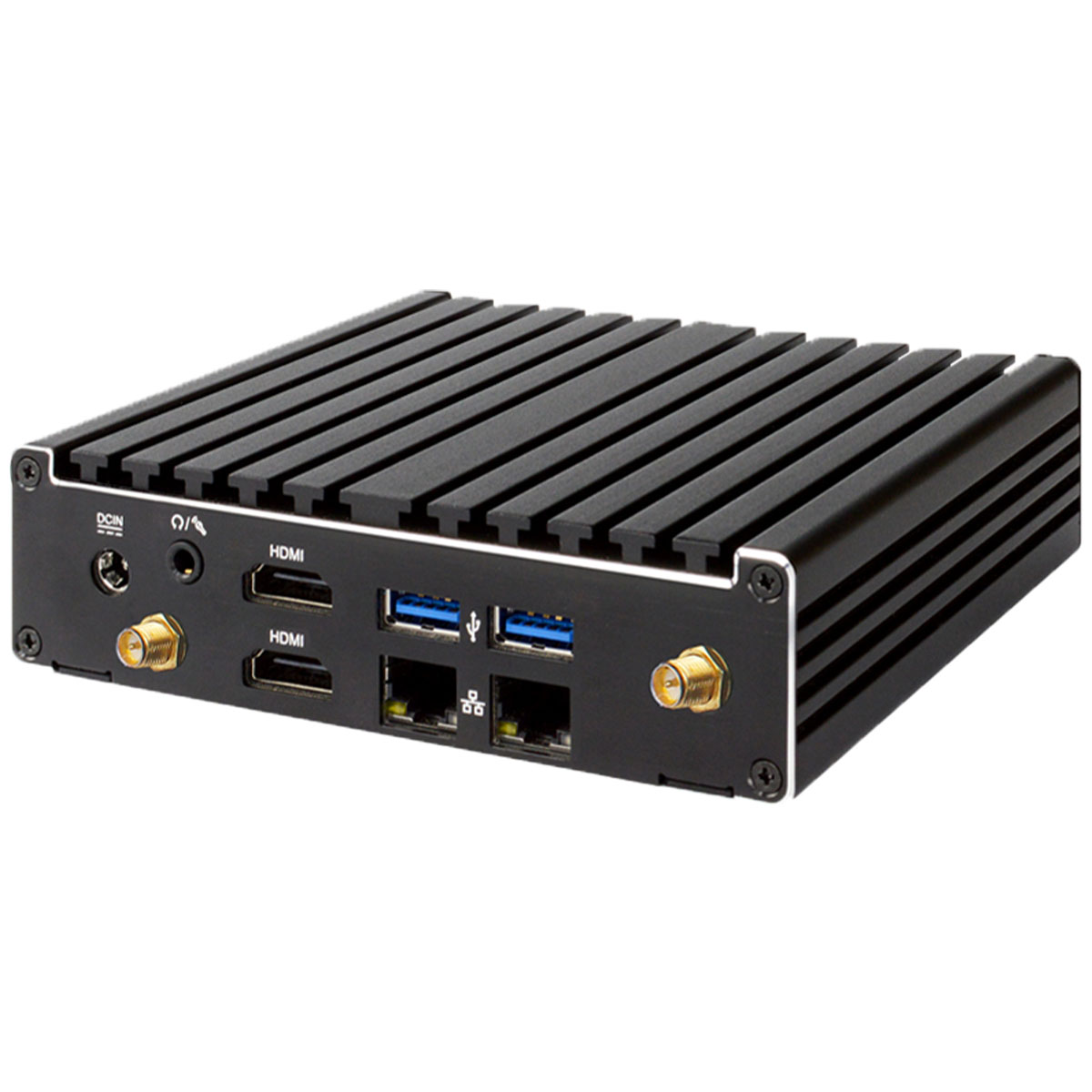

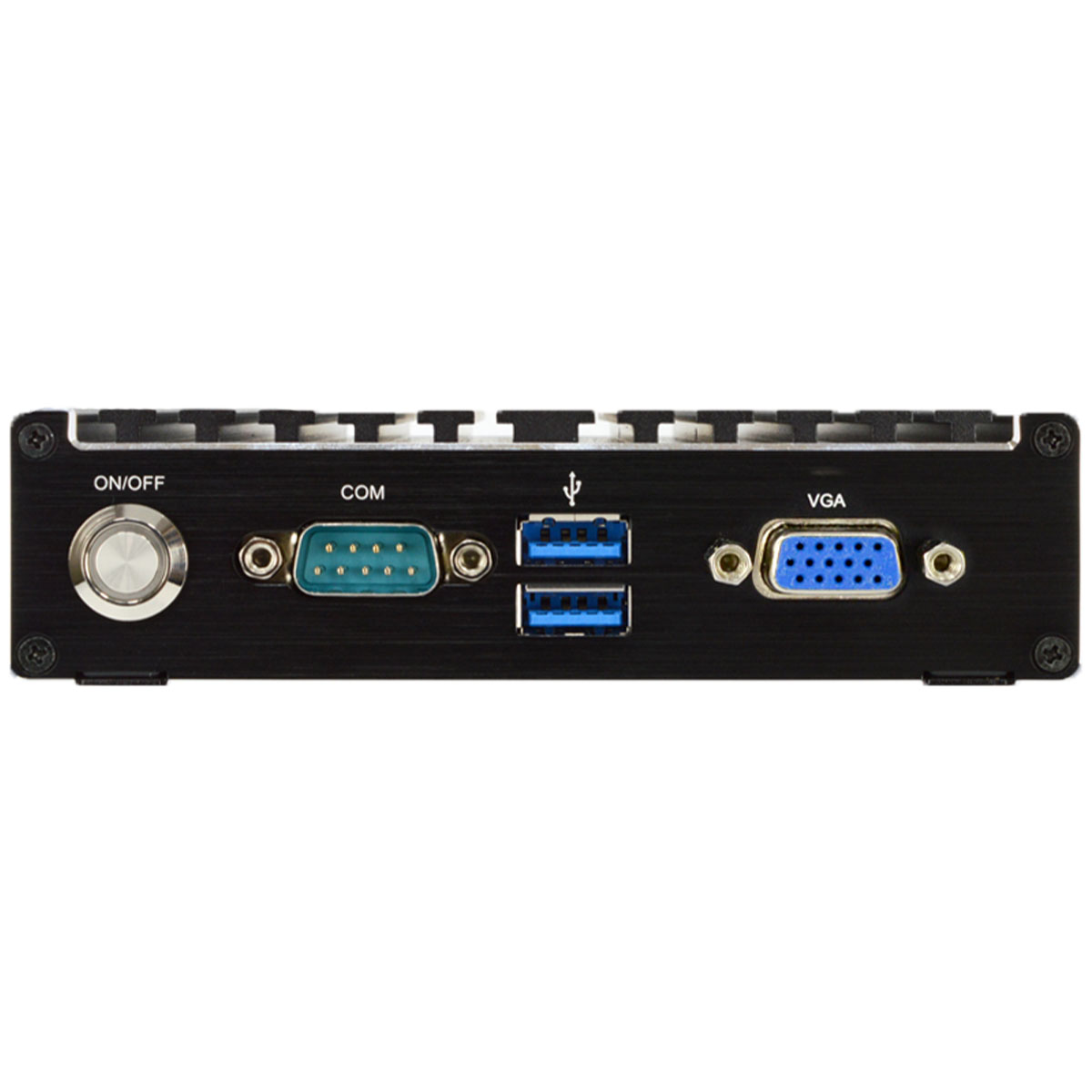

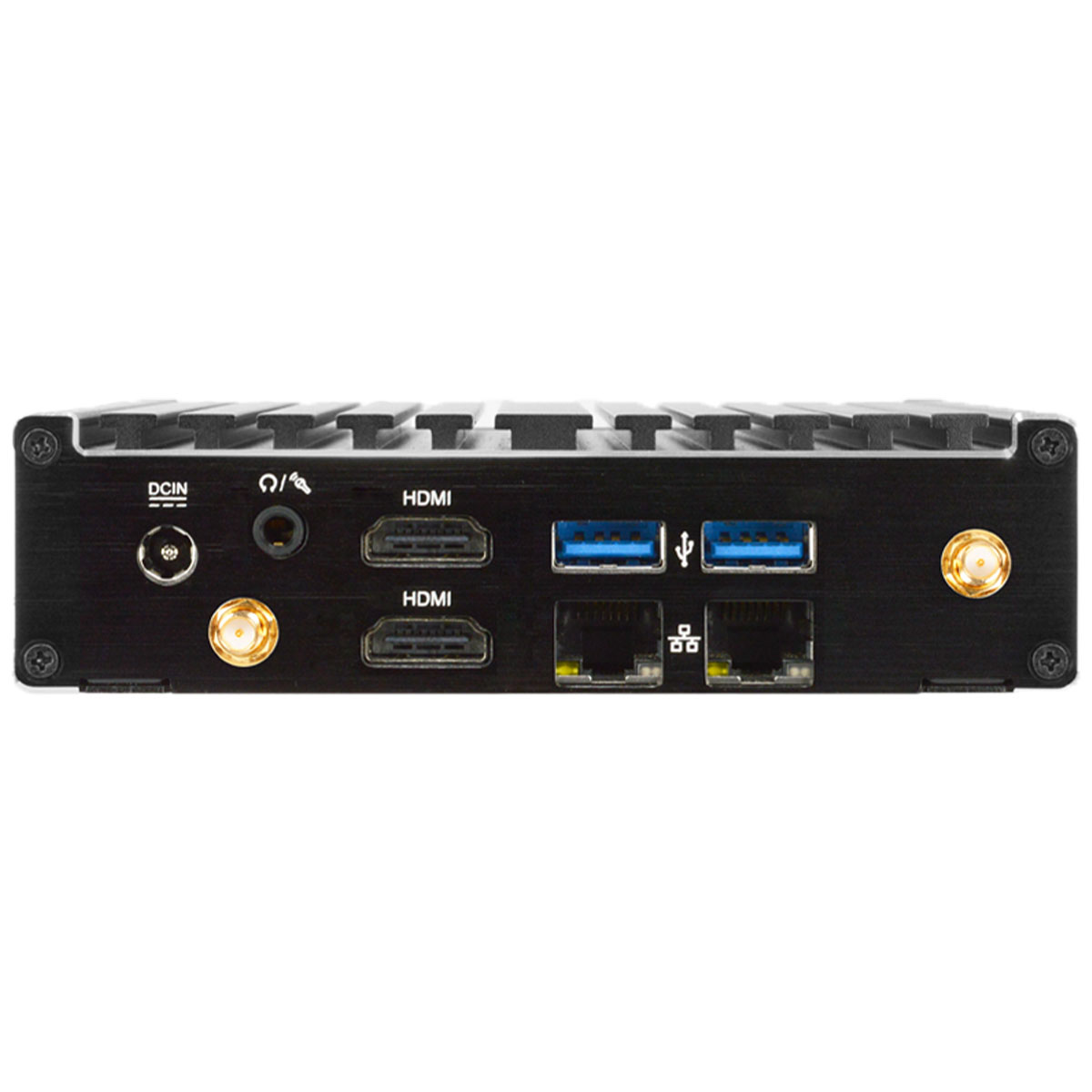

INDATECH Industrial PC E2V3
Specifiche tecniche
MAINBOARD | |
CPU: | Intel® Celeron J3455
Quad-Core 1.5GHz-2.3GHz (10W) |
MEMORY | |
Capacity: | 8GB |
Frequency: | 1866 MHz |
Type: | 1x SO-DIMM DDR3L |
STORAGE | |
mSATA: | 1x Full Size mSATA Slot |
I/O INTERFACE | |
USB ports: | 4x USB 3.0 |
COM: | 1x RS232/422/485 |
Mini-PCIe: | 1x Mini-PCIe (Half-size) for WIFI module (Standard) |
SIM: | 1x Micro SIM Card slot (Internal) |
Audio: | 1x Line out/MIC Combo Jack |
VIDEO | |
GPU: | Intel® HD Graphics |
Interface: | 2x HDMI 1.4 (Up to 3840×2160 @30Hz)
1x VGA (Up to 1920×1200 @60Hz) |
ETHERNET | |
LAN: | 2x Realtek RTL8111H Gigabit LAN |
POWER | |
Power in: | 12V, DC-in |
Max Power: | 20W max |
Adapter: | AC90~240V to DC12V3.3A/40W |
MECHANICAL | |
Material: | Lightweight aluminum alloy with extruded aluminum IO panel |
Dimensions: | (W)129x(D)109.4x(H)34mm |
Weight: | 0.6Kg |
Mounting: | WallMount + VESA + DIN Rail |
ENVIRONMENT | |
Operating temp.: | 0°C to 40°C |
Storage temp.: | -20°C to 80°C |
Humidity: | 90% Humidity, non-condensing |
EMC: | CE, FCC, RoHS, LVD, ErP ready |
OPERATIVE SYSTEM | |
MS Windows: | Windows 10, Windows 10 Enterprise LTSC,
Windows 11, Windows 11 Enterprise LTSC |
Linux*: | Ubuntu 18.04 LTS, CentOS 8, Debian 10,
Fedora 34, pfSence 2.4.4, FreeNAS 11.2 |
* Linux distributions tested with the IPC. |
Codici di ordinazione
IPC | |||
MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
E2V3 | 10005376 | B04-20C-E2V3-J3455–R08–MSDXXX | IPC + 8GB RAM + M2 256GB SSD + WIFI6 |
STORAGE | MSDXXX | 64GB to 1TB, mSATA type |
ACCESSORIES | |||
MODEL NAME | PART NUMBER | DESCRIPTION | |
HDMI to VGA converter | 10003577 | HDMI to VGA converter |
File scaricabili
DATASHEET | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
TRUD E2V3 | v1.0 | 2023-06-01 | 798 KB |
MANUAL | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
TRUD E2V3 manual | v1.0 | 2023-06-01 | 5.99 MB |
HARDWARE INSTALLATION GUIDE | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
TRUD E2V3 HIG | v1.0 | 2023-06-01 | 5.99 MB |
DRIVERS | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
TRUD E2V3 drivers | v1.0 | 2023-06-01 | 4.3 GB |
