![CUBOT E3940 [EOL]](https://www.indatech.it/wp-content/uploads/2022/03/Cubot.jpg)
End of Life
![CUBOT E3940 [EOL]](https://www.indatech.it/wp-content/uploads/2022/03/Cubot_2.jpg)
![CUBOT E3940 [EOL]](https://www.indatech.it/wp-content/uploads/2022/03/Cubot_3.jpg)
![CUBOT E3940 [EOL]](https://www.indatech.it/wp-content/uploads/2022/03/Cubot_4.jpg)

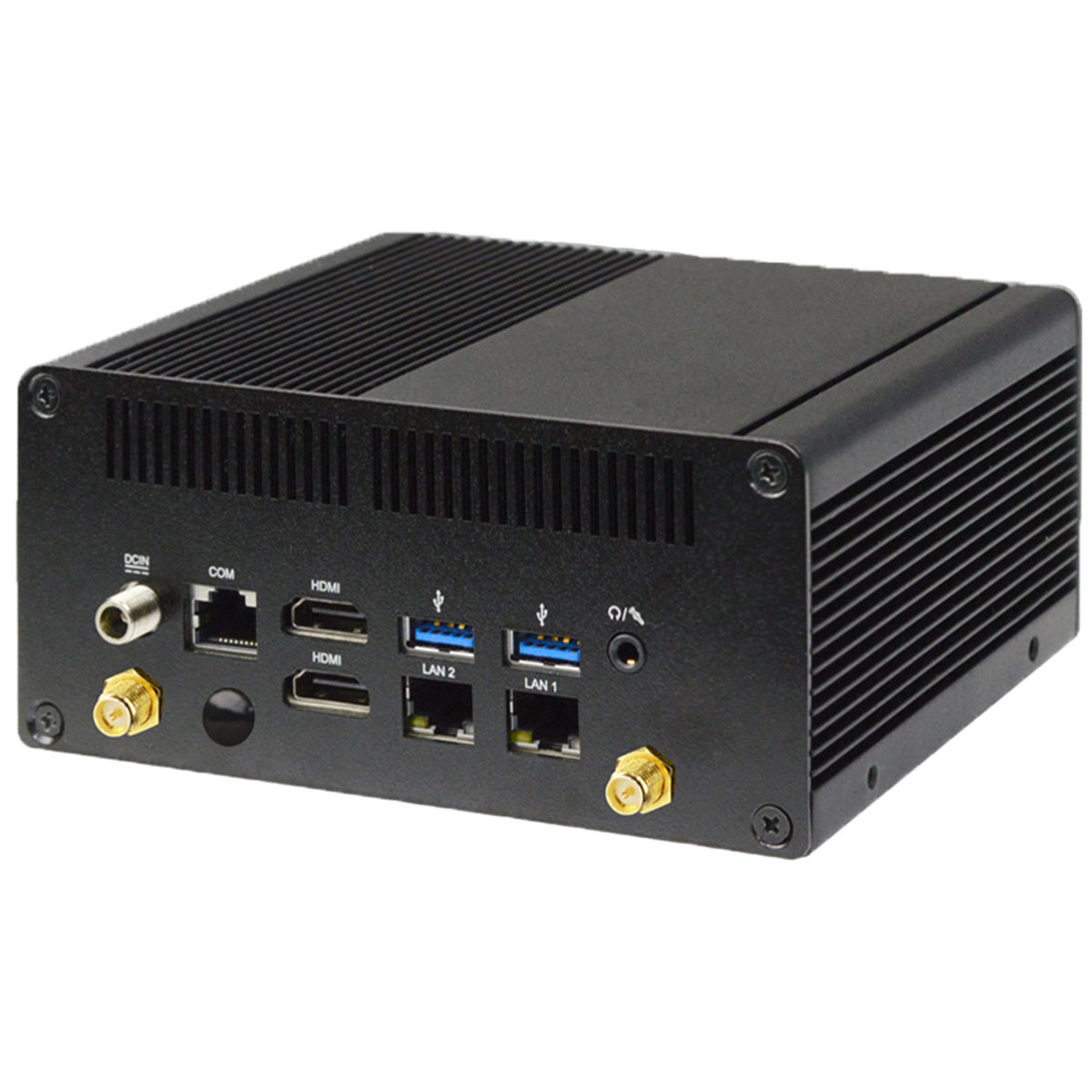

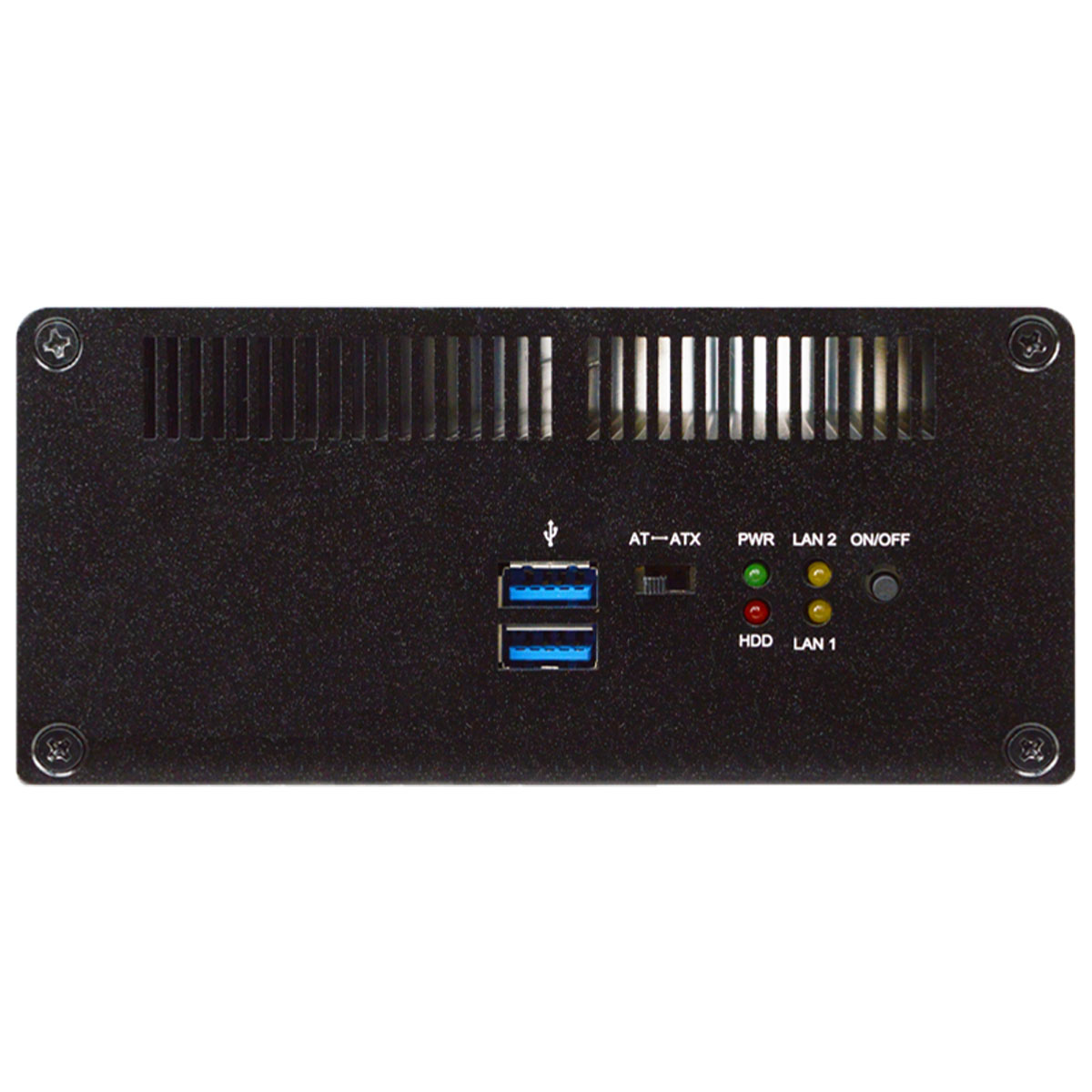

CUBOT E3940 [EOL]
Intel® E3940 Quad-core
1x DDR3L 1866 MHz 8 GB RAM
Extended Temperature range: -40 ~ 70° C
2x LAN Intel® Gigabit Ethernet
2x 4K Video interface (HDMI)
Onboard 32GB eMMC + 1x M.2 (2242) + SATA3 – 2.5” SSD Bay
Power in 12V, DC-in
| MAINBOARD | |
| CPU: | Intel® Celeron E3940
Quad-Core 1.83 GHz 7.5W |
| MEMORY | |
| Capacity: | 8GB |
| Frequency: | 1866 MHz |
| Type: | 1x SO-DIMM DDR3L |
| STORAGE | |
| SATA: | 1x SATA3 + Internal 2.5” SSD Bay |
| M.2: | 1x M.2 M-Key (2242) |
| eMMC: | 1x Onboard 32GB |
| WiFi/SIM: | 1x M.2 E-Key (2230) for Wifi (Standard)
1x M.2 B-Key (3042) for 3G/4G + SIM (on request 4G Module) |

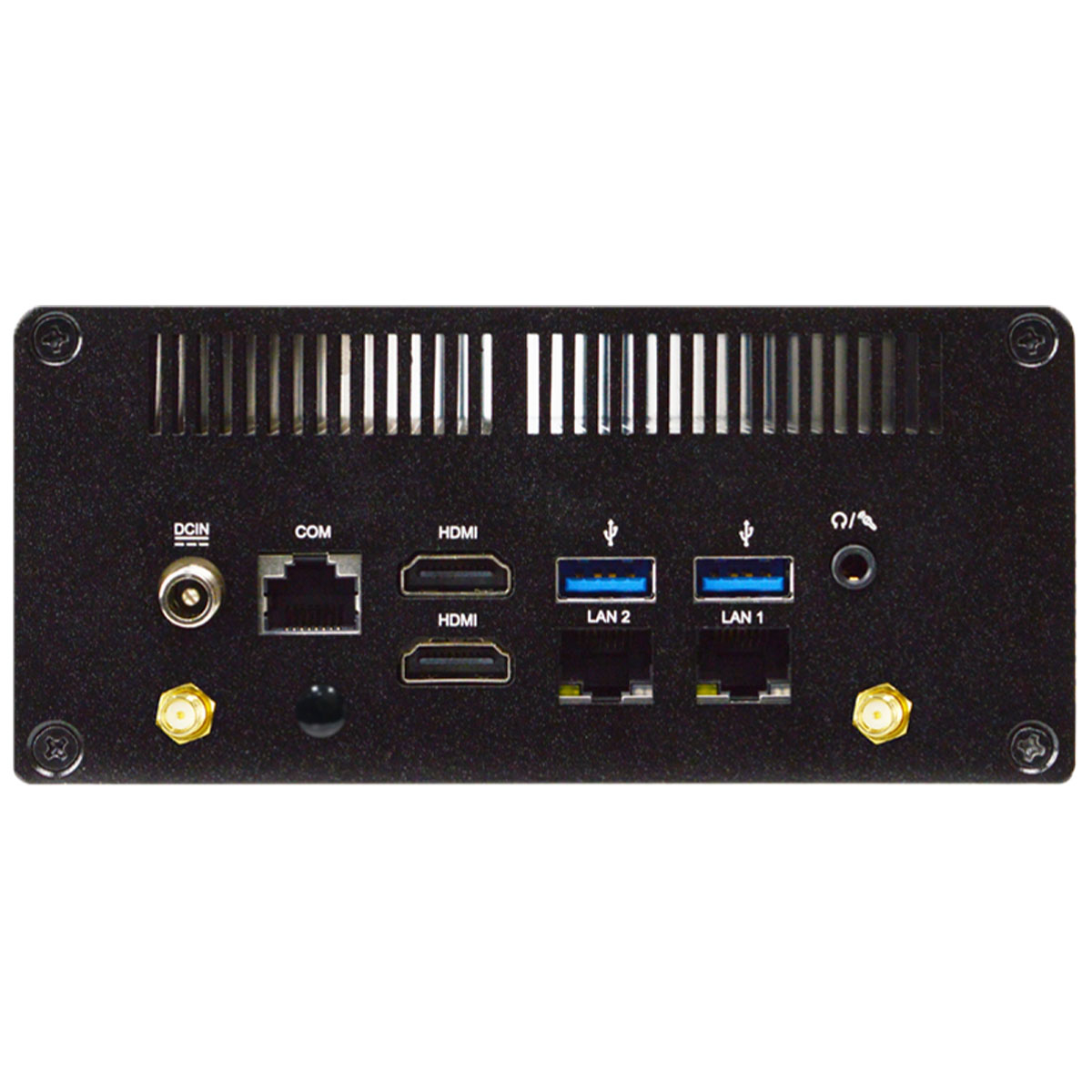

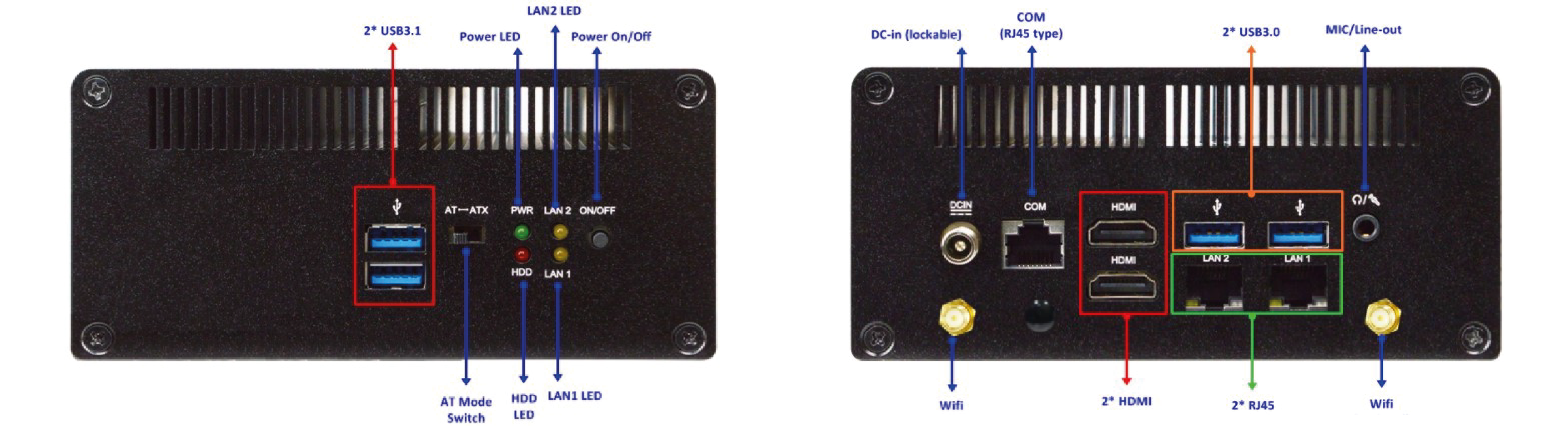

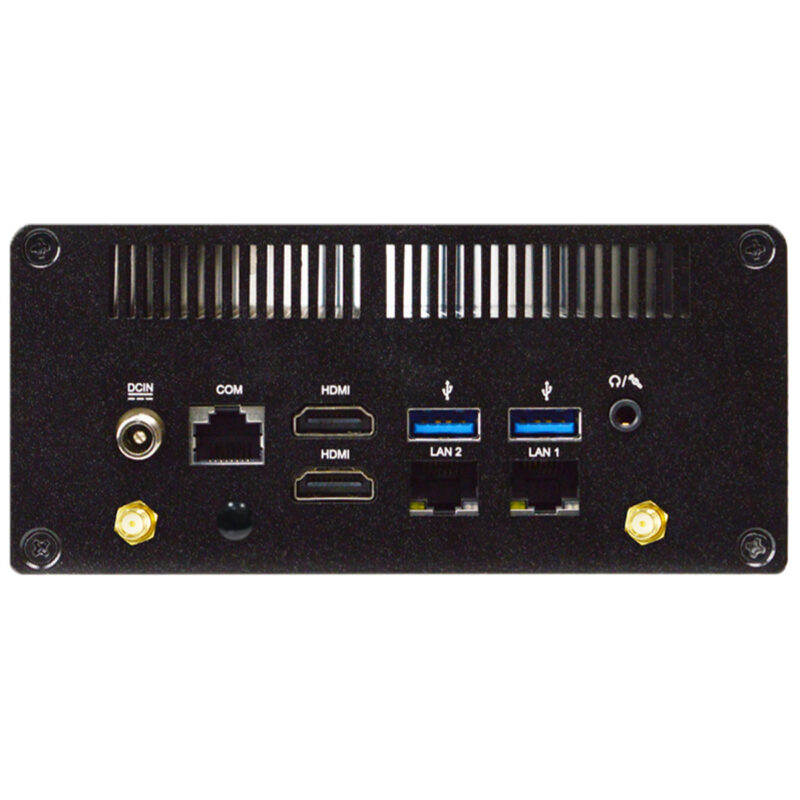

| I/O INTERFACE | |
| Serial ports: | 1x COM RS232 (RJ45) |
| USB ports: | 4x USB 3.2 (Gen 1,5Gbps) |
| AUDIO: | 1x MIC IN / Line-out Combo Jack |
| VIDEO | |
| GPU: | Intel® HD Graphics |
| Interface: | 2x HDMI 1.4b (Up to 3840×2160 @30Hz) |
| ETHERNET | |
| LAN: | 2x Intel® i210IT Gigabit LAN |
| POWER | |
| Power in: | 12V, DC-in |
| Max Power: | 60W max |
| Adapter: | AC_90~240V / DC_12V_5A/60W |
| MECHANICAL | |
| Material: | Lightweight aluminum alloy with extruded aluminum IO panel |

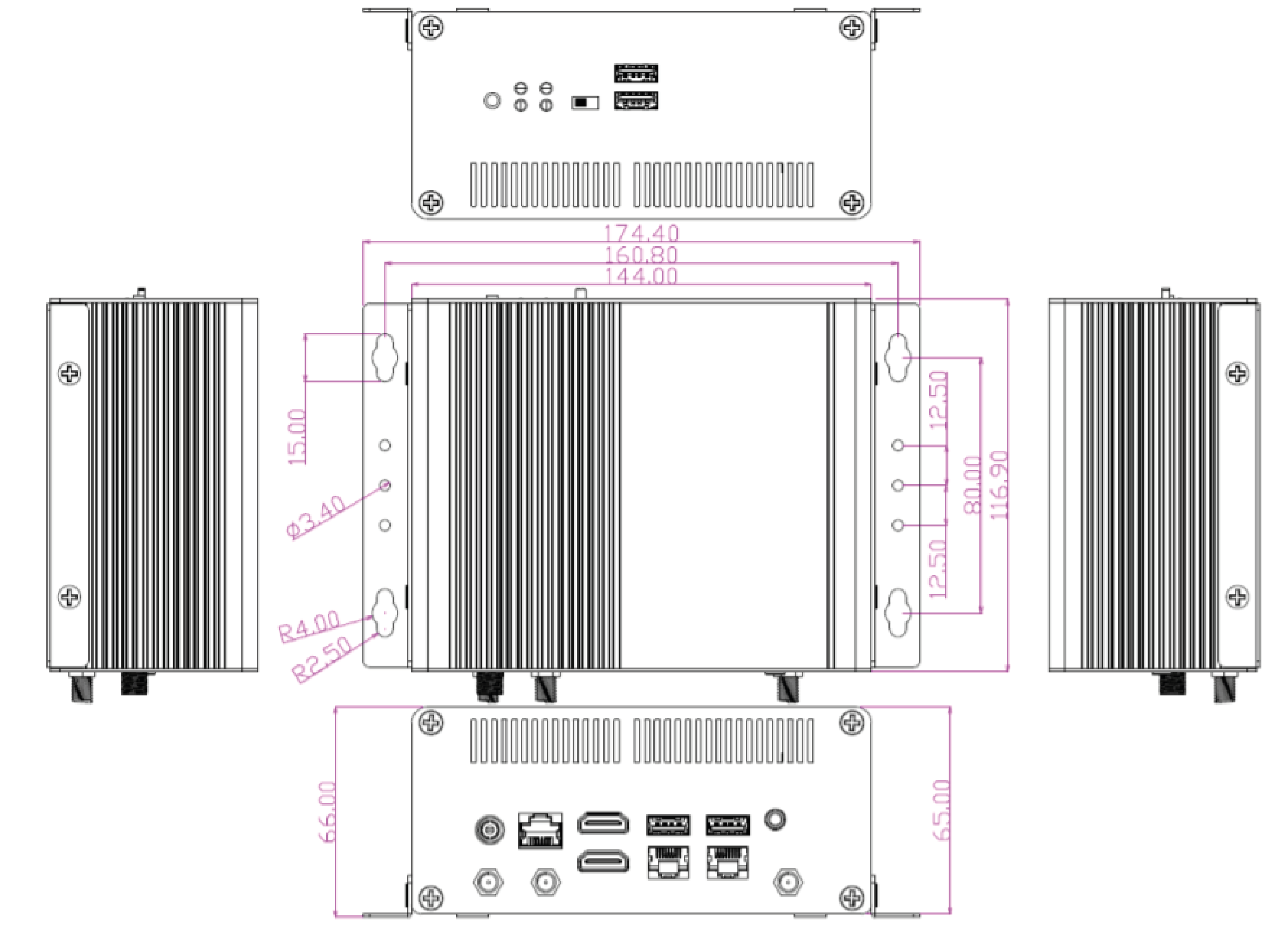

| Dimensions: | (W)144x(D)116.9x(H)65mm |
| Weight: | 1.8Kg |
| Mounting: | WallMount + DIN Rail |
| ENVIRONMENT | |
| Operating temp.: | -40°C to 70°C |
| Storage temp.: | -40°C to 80°C |
| Humidity: | 10% to 90% @40°C Humidity, non-condensing |
| EMC: | CE, FCC, RoHS, LVD |
| OPERATIVE SYSTEM | |
| MS Windows: | Windows 10, Windows 10 Enterprise LTSC,
Windows 11, Windows 11 Enterprise LTSC |
| Linux*: | Ubuntu 20.04 LTS, CentOS 8, Debian 10,
Fedora 34, pfSence 2.4.4, FreeNAS 11.2 |
| * Linux distributions tested with the IPC. |
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| CUBOT E3940 | v1.0 | 2023-06-01 | 888 KB |  |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| CUBOT E3940 manual | v1.0 | 2023-06-01 | 5.99 MB | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| CUBOT E3940 HIG | v1.0 | 2023-06-01 | 5.99 MB | |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| CUBOT E3940 drivers | v1.0 | 2023-06-01 | 4.3 GB | |
| IPC | |||
| MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
| CUBOT E3940 [EOL] | 10005376 | B04-24C-CUBOT-E3940–R08–SSDXXX | IPC + 8GB RAM + M2 256GB SSD + WIFI6 |
| STORAGE | SSD (2,5”) | M2D/SSD128 |
| MSD (mSATA) | M2D/SSD256 | |
| M2D (M.2) | Other on Request |
| ACCESSORIES | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| HDMI to VGA converter | 10003577 | HDMI to VGA converter | |
— END OF LIFE —
