TRUD J4125
Intel® Celeron J4125
Quad-Core 1.5GHz – 2.5GHz (10W)
1x DDR4 2400 MHz 8GB RAM
32GB eMMC + M.2 SATA
1x Gigabit Ethernet LAN
WIFI (Standard) or 4G/LTE (on request)
2x 4K Video interface (HDMI)

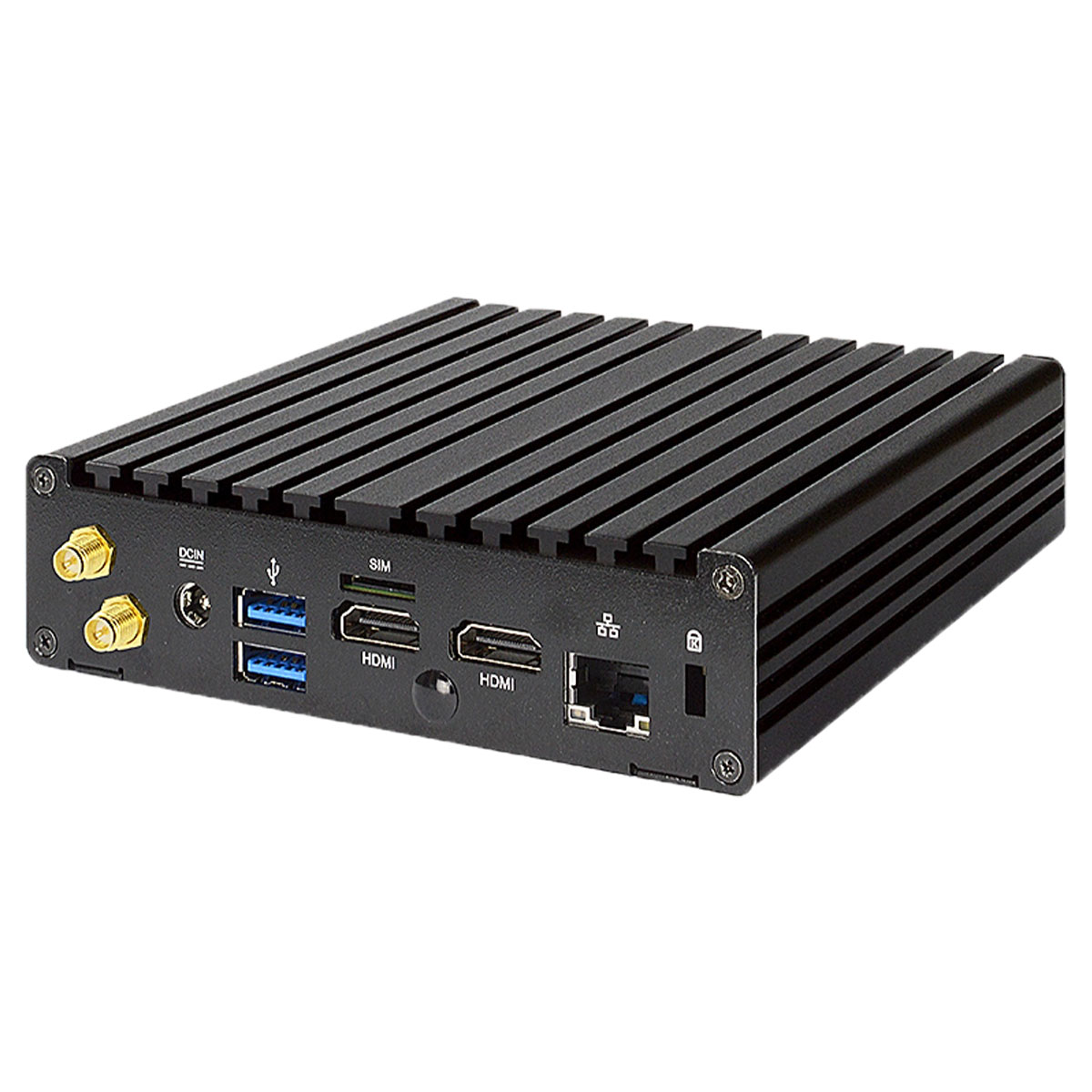

INDATECH Industrial PC Trud J4125
Specifiche tecniche
MAINBOARD | |
CPU: | Intel® Celeron J4125
Quad-Core 1.5GHz-2.5GHz (10W) |
MEMORY | |
Capacity: | 8GB |
Frequency: | 2400 MHz |
Type: | 1x SO-DIMM DDR4 |
STORAGE | |
eMMC: | 1x 32GB eMMC |
M.2: | 1x M.2 SATA (2242) |
I/O INTERFACE | |
USB ports: | 2x USB 3.0,
2x USB 2.0 |
Mini-PCIe: | 1x Mini-PCIe for WIFI (Standard) or 4G/LTE (on request) |
SIM: | 1x Micro SIM Card slot |
VIDEO | |
GPU: | Intel® HD 620 Graphics |
Interface: | 2x HDMI 1.4 (Up to 4096×2304 @60Hz) |
ETHERNET | |
LAN: | 1x Realtek RTL8111H Gigabit LAN |
POWER | |
Power in: | 12V, DC-in |
Max Power: | 25W max |
Adapter: | AC90~240V to DC12V 3.3A /40W |
MECHANICAL | |
Material: | Lightweight aluminum alloy with extruded aluminum IO panel |

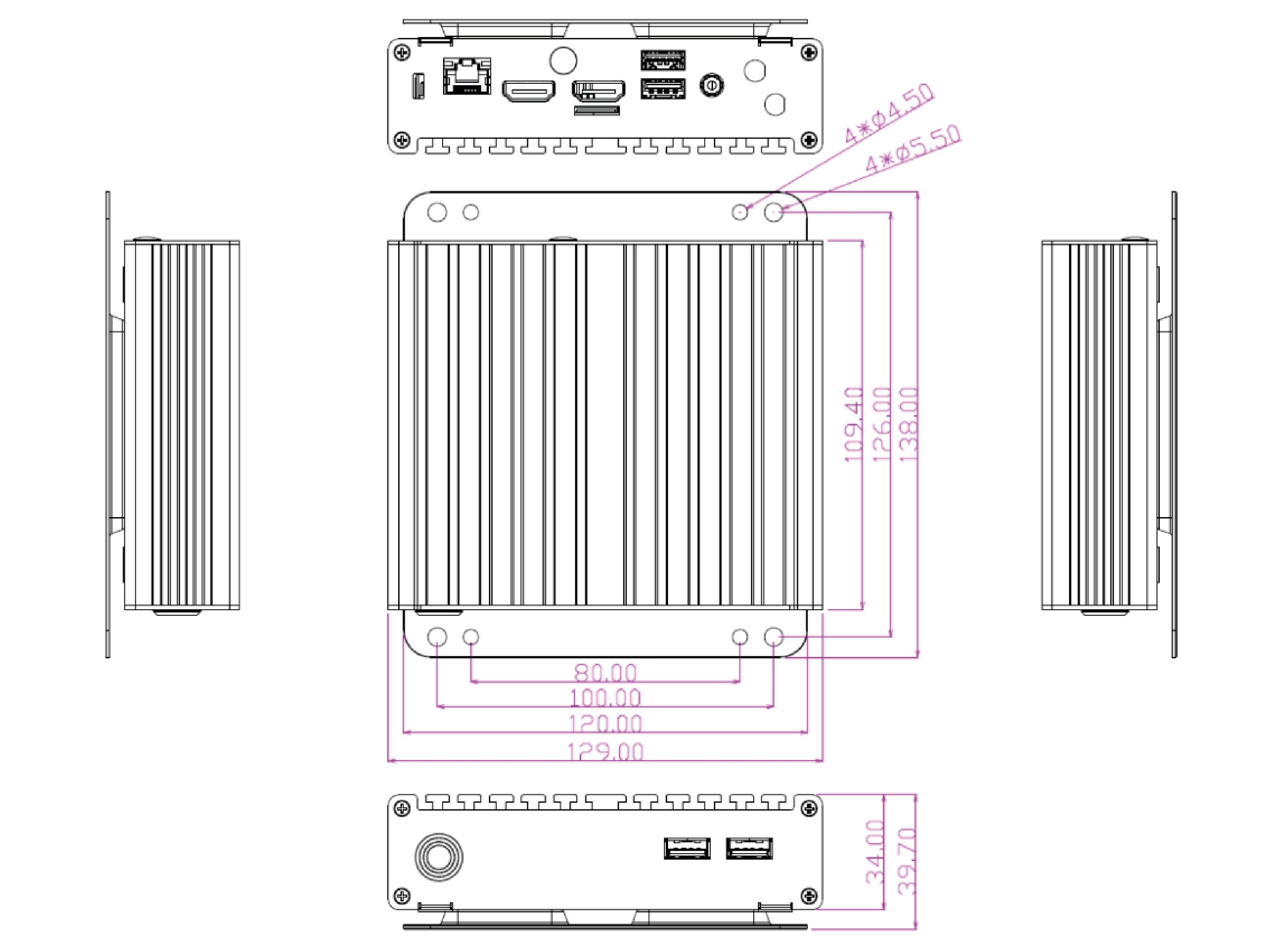

Dimensions: | (W)129x(D)109.4x(H)34mm |
Weight: | 0.6Kg |
Mounting: | WallMount + VESA + DIN Rail |
ENVIRONMENT | |
Operating temp.: | -10°C to 60°C with air flow |
Storage temp.: | -20°C to 70°C |
Humidity: | 90% Humidity, non-condensing |
EMC: | CE, FCC, RoHS, LVD ErP ready |
OPERATIVE SYSTEM | |
MS Windows: | Windows 10, Windows 10 Enterprise LTSC,
Windows 11, Windows 11 Enterprise LTSC |
Linux*: | Ubuntu 20.04 LTS, CentOS 8, Debian 10,
Fedora 34, pfSence 2.4.4, FreeNAS 11.2 |
* Linux distributions tested with the IPC. |
Codici di ordinazione
IPC | |||
MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
TRUD J4125 | 10005376 | B04-20C-TRUD-J4105–R08–M2D128 | IPC + 8GB RAM + M2 256GB SSD + WIFI6 |
STORAGE | M2DXXX | 128GB to 1TB, M.2 type |
ACCESSORIES | |||
MODEL NAME | PART NUMBER | DESCRIPTION | |
HDMI to VGA converter | 10003577 | HDMI to VGA converter |
File scaricabili
DATASHEET | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
TRUD J4125 | v1.0 | 2023-06-01 | 842 KB |
MANUAL | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
TRUD J4125 manual | v1.0 | 2023-06-01 | 5.99 MB |
HARDWARE INSTALLATION GUIDE | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
TRUD J4125 HIG | v1.0 | 2023-06-01 | 5.99 MB |
DRIVERS | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
TRUD J4125 drivers | v1.0 | 2023-06-01 | 4.3 GB |
