APOLLO 485GPIO
Intel® Apollo Lake x5 – E3940 Quad-Core 1.6GHz (1.8 GHz Turbo), 9,5W
1x DDR3L 1866 MHz 8GB RAM
Extended power supply range from 9V to 36V DC
Extended Temperature range -40°C to 70°C
2x LAN Intel® Gigabit Ethernet
2x COM RS232/422/485 (COM1 w/power 5V/12V) (DP9)
2x COM RS485 (Isolation Protection 2,5kVDC)
16 GPIO (Isolation Protection 2,5kVDC) (8in – 8out) Out Voltage 5~20VDC

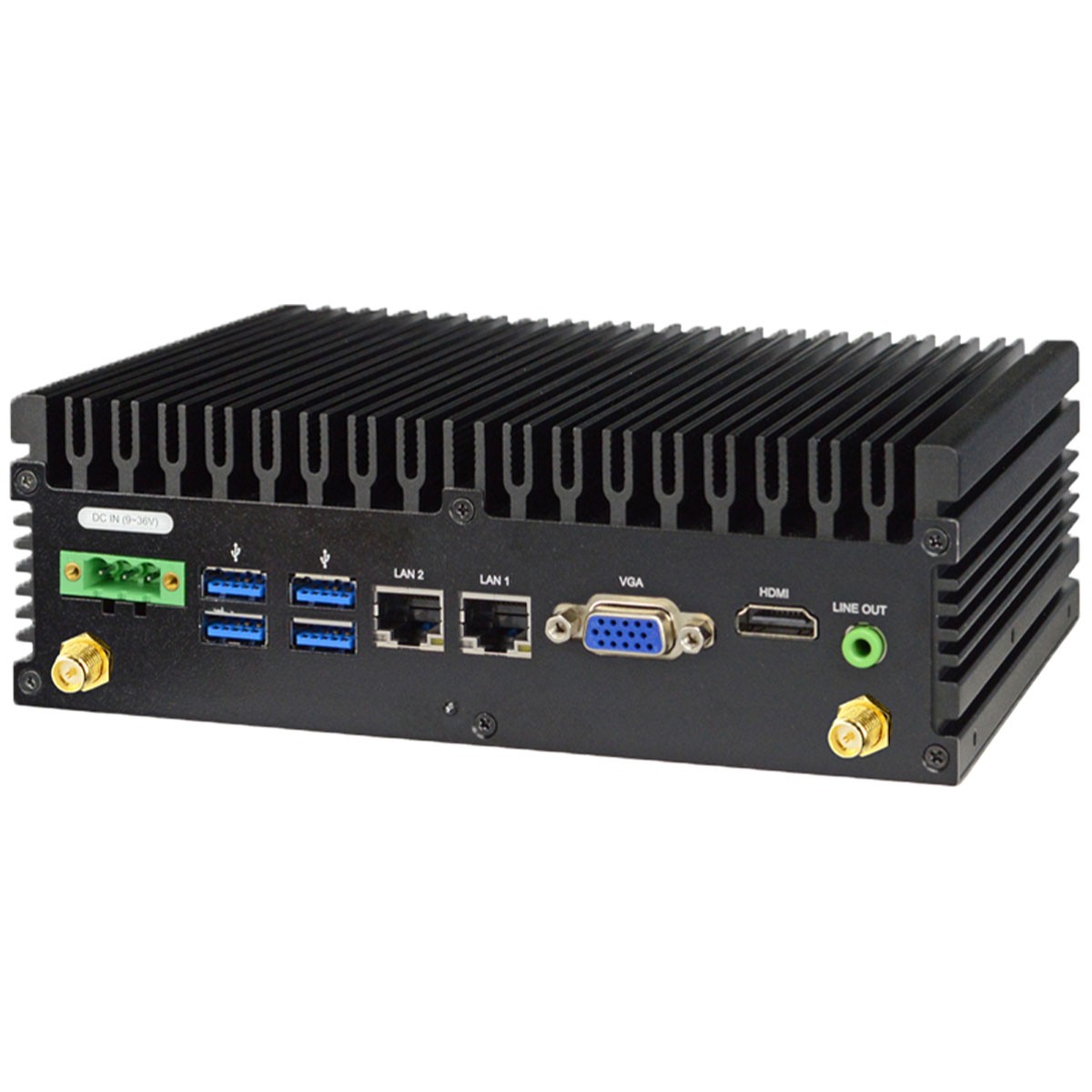

INDATECH Industrial PC Apollo 485GPIO
Specifiche tecniche
MAINBOARD | |
CPU: | Intel® Apollo Lake x5-E3940
Quad-Core 1.6 GHz (1.8 GHz Turbo), 9,5 W |
MEMORY | |
Capacity: | 8GB |
Frequency: | 1866 MHz |
Type: | 1x SO-DIMM DDR3L |
STORAGE | |
M.2 | 1x M.2 (M-Key 2242/2260/2280) |
I/O INTERFACE | |

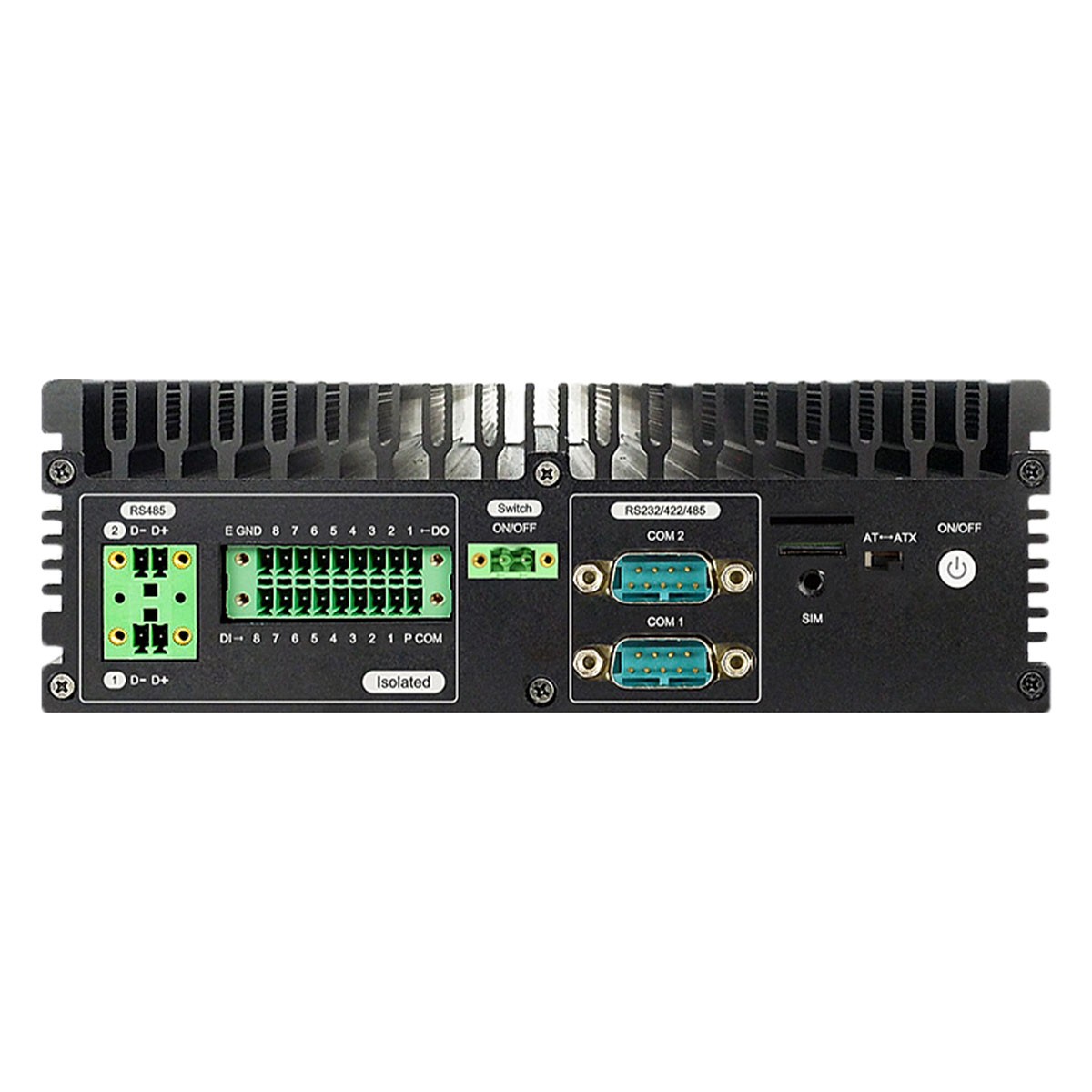

Serial ports: | 2x COM RS232/422/485 (COM1 w/power 5V/12V)
2x COM RS485 (Isolation Protection 2,5kVDC) |

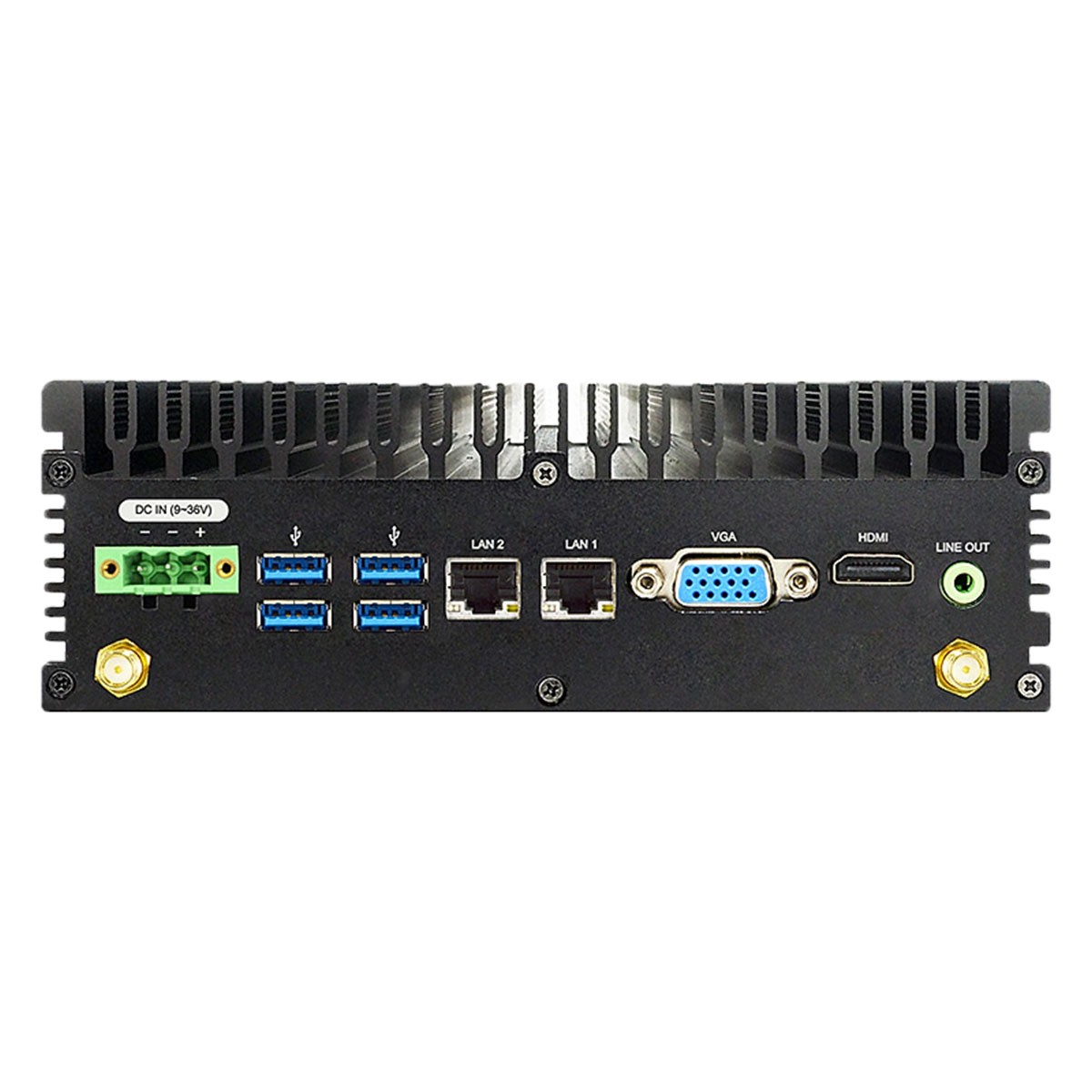

USB ports: | 4x USB 3.0 |
Mini-PCIe: | 1x Mini-PCIe (Half size) for WIFI or LTE |
SIM: | 1x SIM Card Slot |
AUDIO: | 1x Line-out |
GPIO: | 16 GPIO (Isolation Protection 2,5kVDC) (8in-8out) Out Voltage 5~20VDC |
VIDEO | |
GPU: | Intel® HD Graphics |
Interface: | 1x HDMI 1.4b (Up to 3840×2160 @30Hz)
1x VGA (Up to 1920×1200 @60Hz) |
ETHERNET | |
LAN: | 2x Intel® i210-IT Gigabit LAN |
POWER | |
Power in: | 9 to 36V, DC-in |
Max Power: | 60W max |
Power SW: | Remote Power ON/OFF (2 Pin) |
Other: | 1x AT/ATX mode switch |
Adapter: | AC_90~240V / DC_12V_3A/60W |
MECHANICAL | |
Material: | Lightweight aluminum alloy with extruded aluminum IO panel |

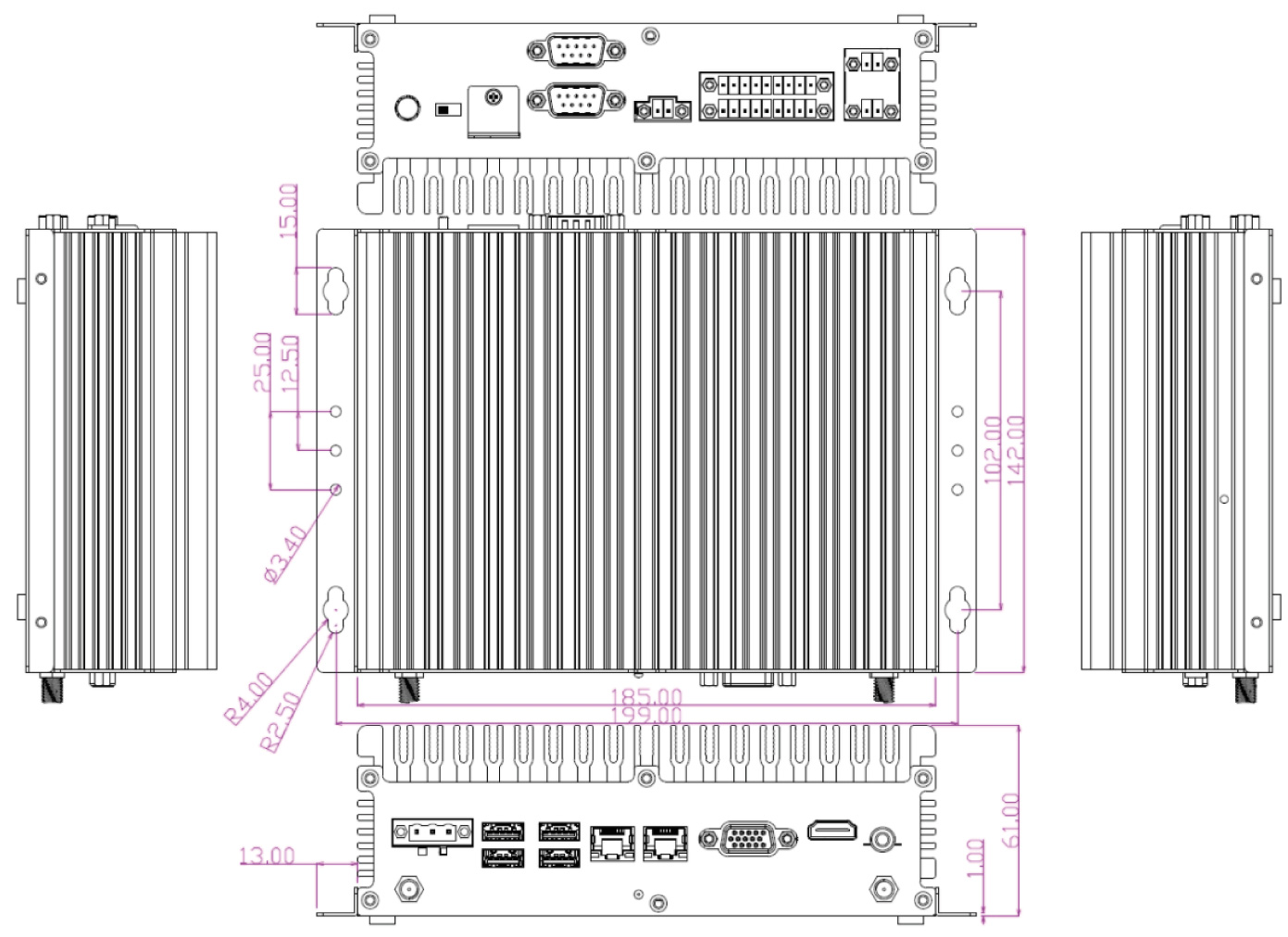

Dimensions: | (L)185x(W)142x(H)60mm |
Weight: | 2.2Kg |
Mounting: | WallMount + DIN Rail |
ENVIRONMENT | |
Operating temp.: | -40°C to 70°C |
Storage temp.: | -40°C to 80°C |
Humidity: | 10% to 95% RH @40°C, non-condensing |
EMC: | CE, FCC, RoHS, ErP Ready |
OPERATIVE SYSTEM | |
MS Windows: | Windows 10, Windows 10 Enterprise LTSC,
Windows 11, Windows 11 Enterprise LTSC |
Linux*: | Ubuntu 20.04 LTS, CentOS 8, Debian 10,
Fedora 34, pfSence 2.4.4, Android x86 8.1_rc2, FreeNAS 11.2 |
* Linux distributions tested with the IPC. |
Codici di ordinazione
IPC | |||
MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
APOLLO 485GPIO | 10005033 | B04-23C-APOLLO-E3940–R08–M2D256 | IPC + 8GB RAM + M2 256GB SSD + WIFI |
STORAGE | M2DXXX | 128GB to 1TB, M.2 type |
ACCESSORIES | |||
MODEL NAME | PART NUMBER | DESCRIPTION | |
HDMI to VGA converter | 10003577 | HDMI to VGA converter |
File scaricabili
DATASHEET | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
APOLLO 485GPIO | TBD | TBD | TBD |
DRIVERS | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
APOLLO 485GPIO drivers | TBD | TBD | TBD |
MANUAL | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
APOLLO 485GPIO manual | TBD | TBD | TBD |
HARDWARE INSTALLATION GUIDE | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
APOLLO 485GPIO HIG | TBD | TBD | TBD |
