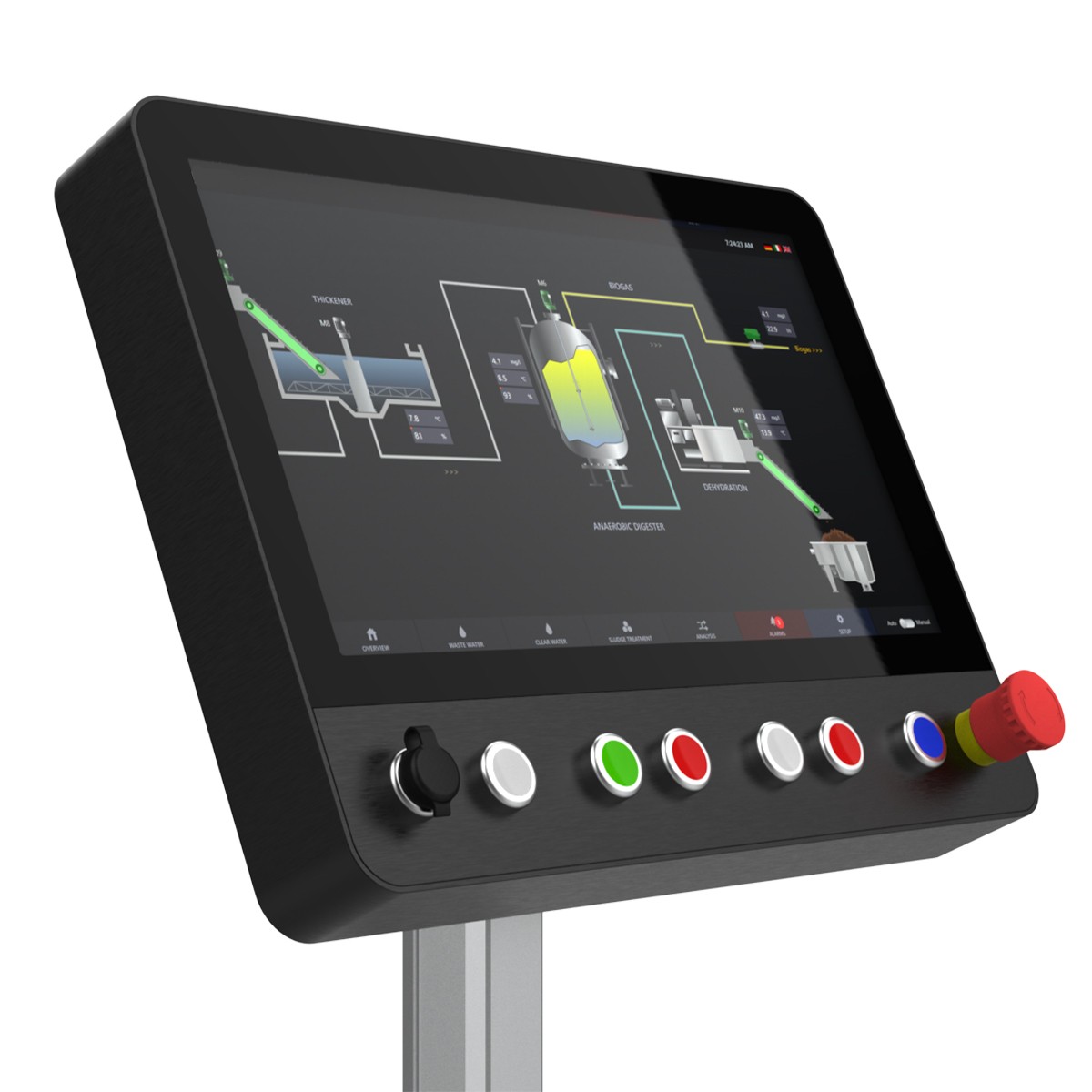

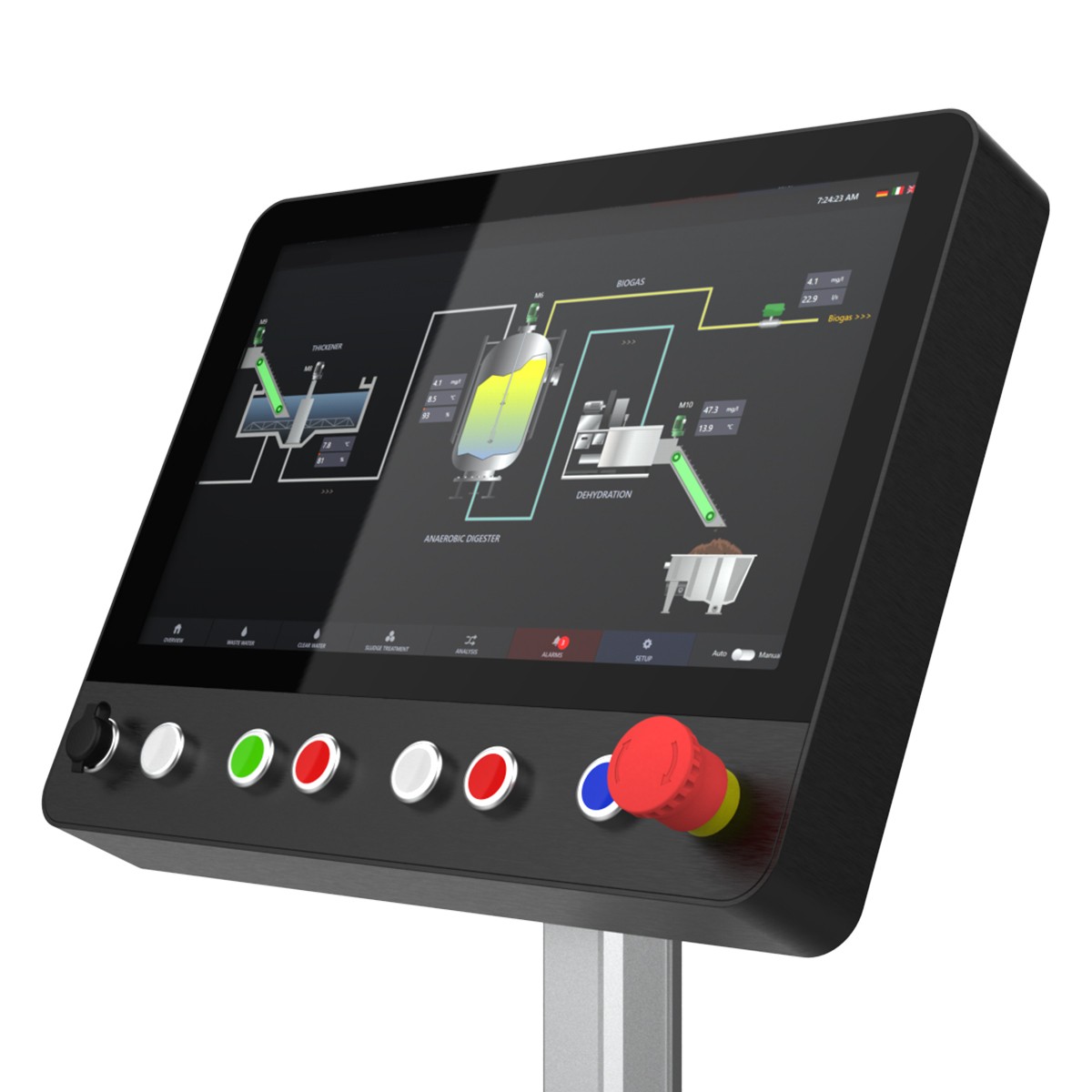

IndustrialPAD 185
Intel® Core i5 1135G7
Up to 64 GB RAM
Extended power supply range from 12V to 24V
2x LAN Intel® Gigabit Ethernet
4x 4K Video interface (2x HDMI – 2xDP)

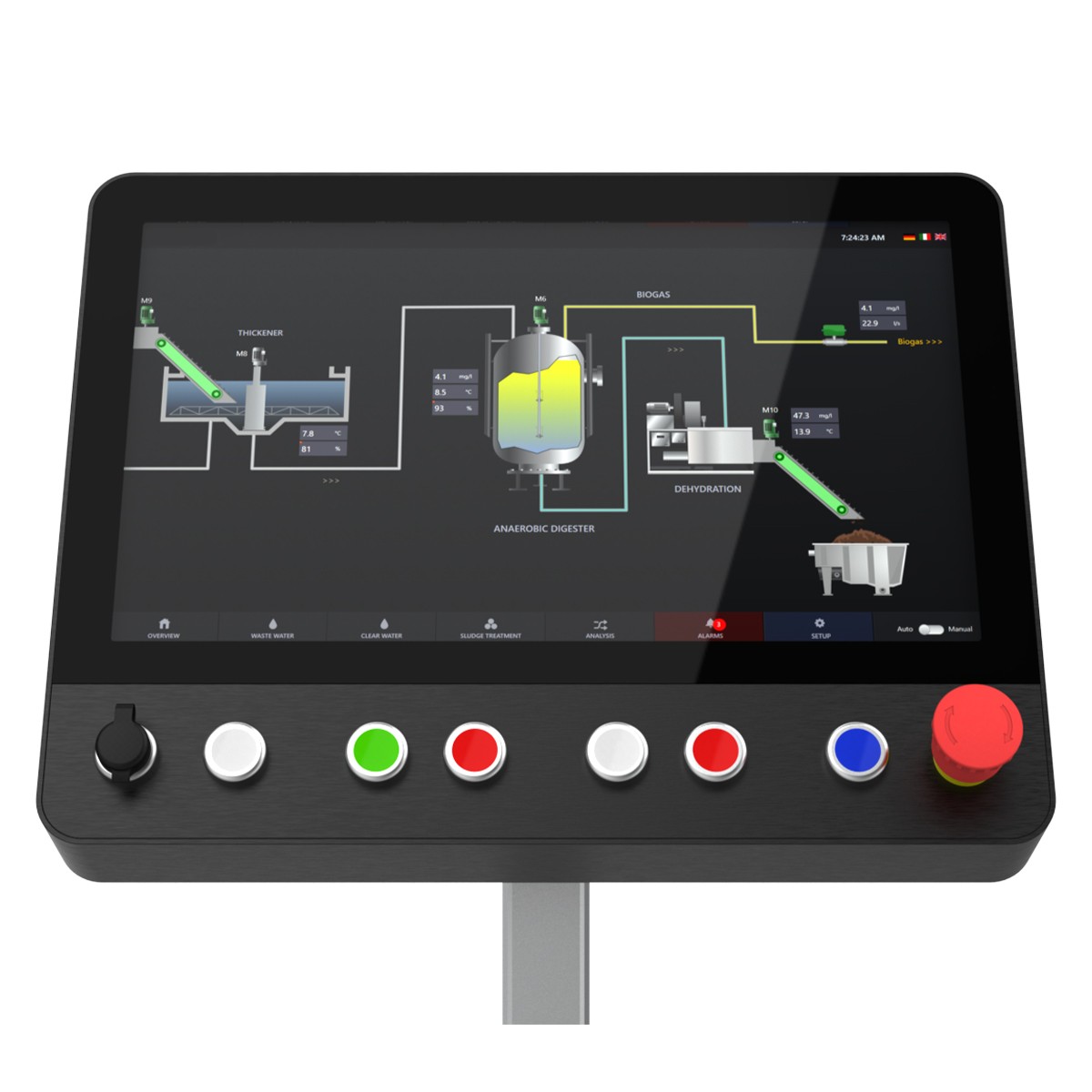

Fully customizable push button panel
High quality anodized aluminum
Full-IP65 & Fanless cooling
Integrated SuperCAPS UPS (on request)

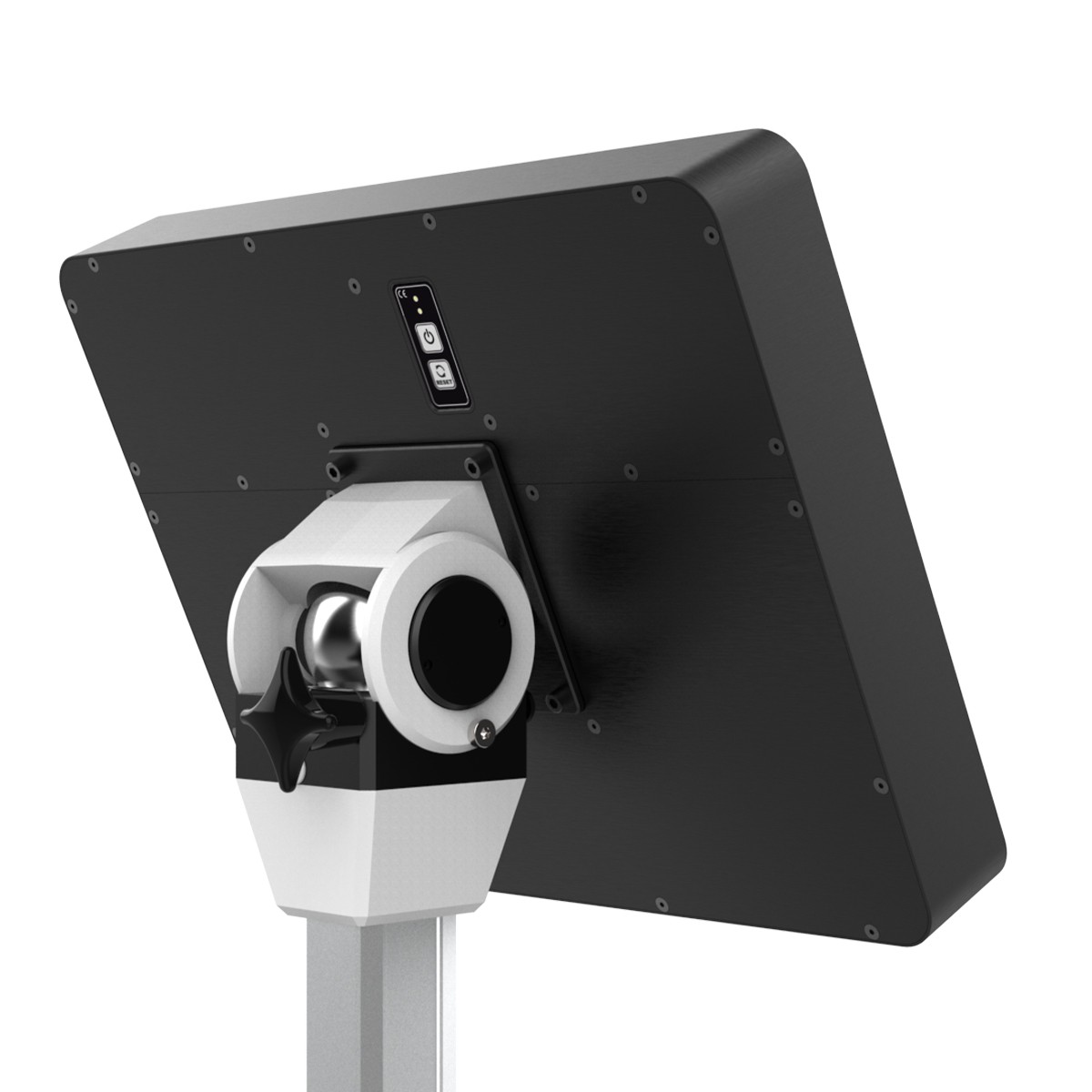

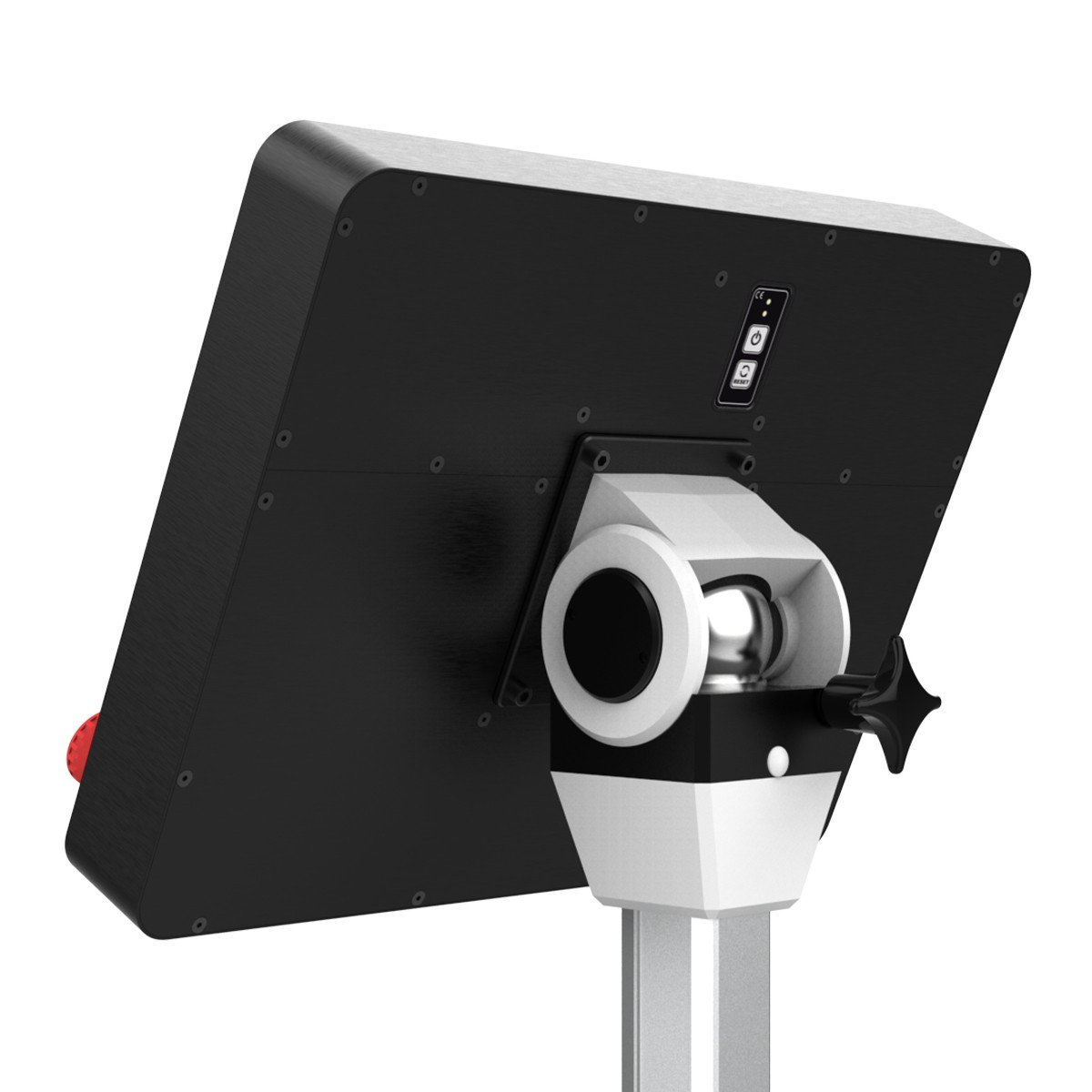

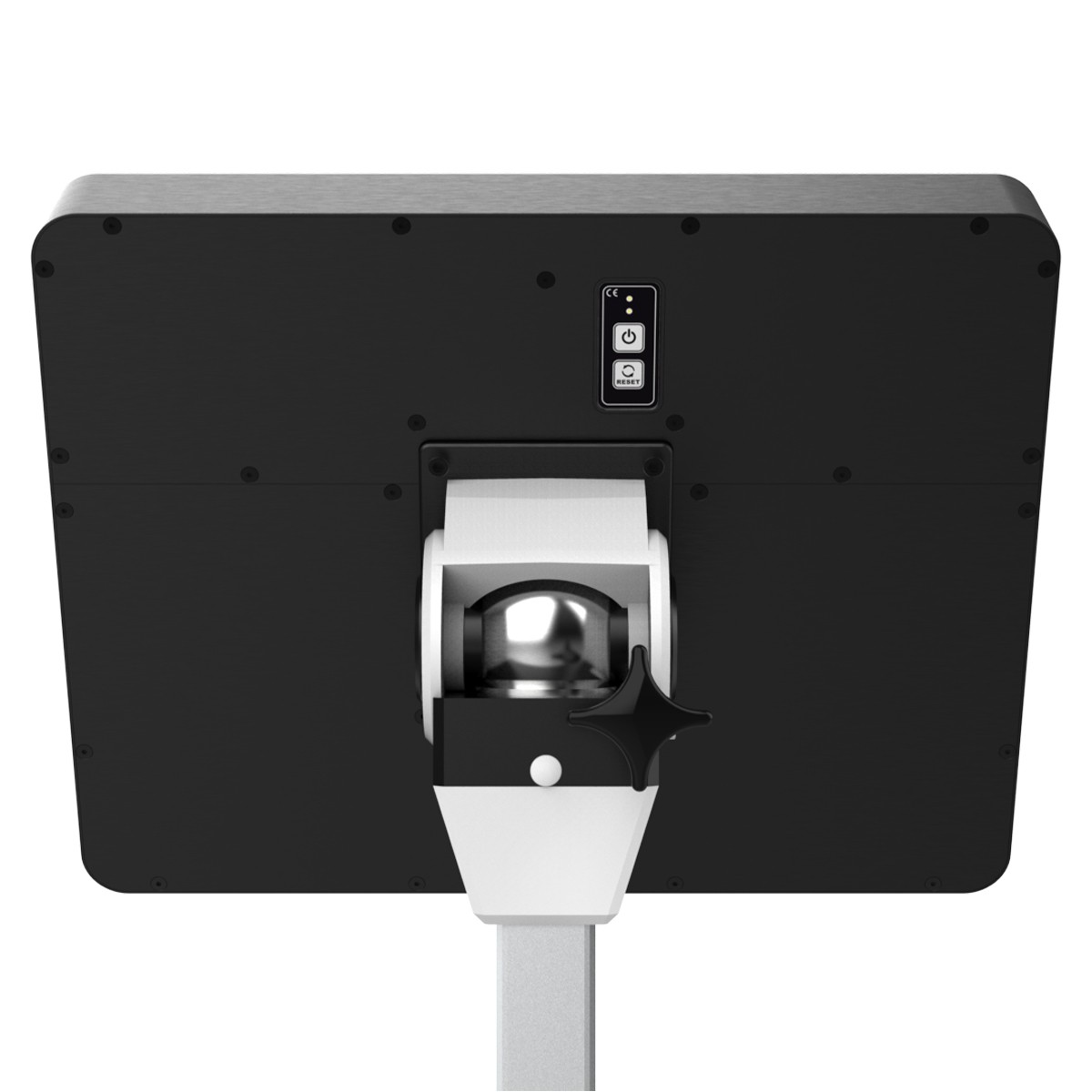

Flexible VESA mounting for any mounting system
| MAINBOARD | |
| CPU: | Intel® Core i5 1135G7
4 Core / 8 Thread 1.6 GHz (Base) / 4.2GHz (Turbo) 15W |
| MEMORY | |
| Capacity: | up to 64GB |
| Frequency: | 3200 MHz |
| Type | 2x SO-DIMM DDR4 |
| STORAGE | |
| SATA: | 1x SATA3 |
| M.2 | 1x M.2 M-Key (2242/2260/2280) Support PCIe x4 (NVMe) |
| Storage Bay: | 1x Internal 2.5” SSD Bay (optional) |
| I/O INTERFACE | |
| Serial ports: | 2x COM RS232/422/485 |
| USB ports: | 4x USB 3.2 |
| M.2: | 1x M.2 E-Key (2230) CNVi WIFI module (optional) |
| AUDIO: | 1x Combo Line-Out / Mic-In Jack |
| VIDEO | |
| GPU: | Intel® Iris® Xe Graphics |
| Interface: | 2x HDMI 2.0b (Up to 4096×2304 @60Hz)
2x DP 1.2 (Up to 4096×2304 @60Hz) |
| DISPLAY | |
| Size: | 18.5” |
| Resolution: | FullHD (1920×1080) |
| Aspect Ratio: | 16:9 |
| Backlight: | Led |
| Bright and Contrast: | 300 cd/mq 5000:1 |
| TOUCH SCREEN | |
| Glass Thickness: | 3 mm |
| Technology: | Projective Capacitive Multitouch – 10 point |
| ETHERNET | |
| LAN: | 1x Intel i219-LM Gigabit LAN 1x Intel i226-V 2.5 Gigabit LAN |
| MECHANICAL | |
| Material: | Anodized aluminium |

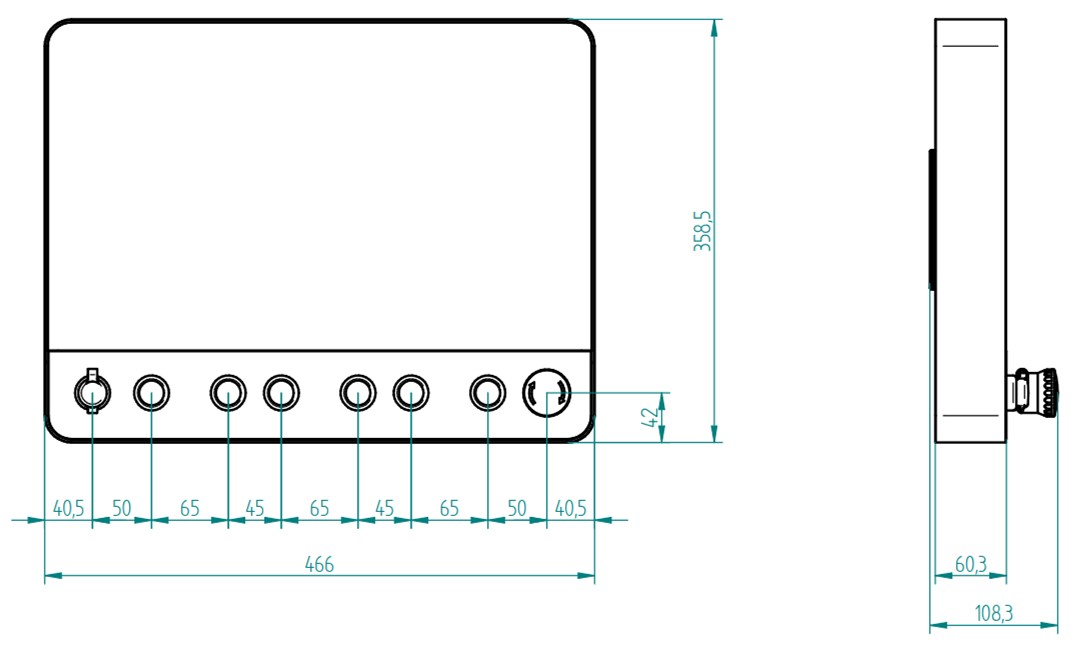

| Dimensions: | (W)466x(D)358,5x(H)60,3mm |
| Weight: | 10 Kg |
| Mounting: | VESA Mounting |
| POWER | |
| Power in: | 12 to 24V, DC-in |
| Max Power: | 40W max |
| Integrated UPS: | On request Feature
SuperCAPS type battery <60 sec charging time Backup time 30 ~ 50 sec |
| ENVIRONMENT | |
| Operating temp.: | -20°C to 60°C |
| Storage temp.: | -20°C ~ 70°C |
| Humidity: | 40% to 60% Humidity, non-condensing |
| EMC: | CE, RoHS |
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| IndustrialPAD 185 | 3.0 | 23/05/2025 | 825KB |  |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| IndustrialPAD 185 drivers | TBD | TBD | TBD | |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| IndustrialPAD 185 manual | TBD | TBD | TBD | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| IndustrialPAD 185 HIG | TBD | TBD | TBD | |
| IPC | |||
| MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
| IndustrialPAD 185 | 10007217 | Standard | IndustrialPAD 185 – FANLESS PC ALL-IN-ONE, 18,5″ WXGA (1366 x 768), CPU Intel Core i5-1135G7, 8GB RAM, M2 NVME 256GB, 6 PULSANTI + FUNGO + USB, ALIM. 24 VDC, |
| IndustrialPAD 185 | TBD | Custom | Contact your sales representative for configuration |
INDATECH Industrial Machine Control Station
