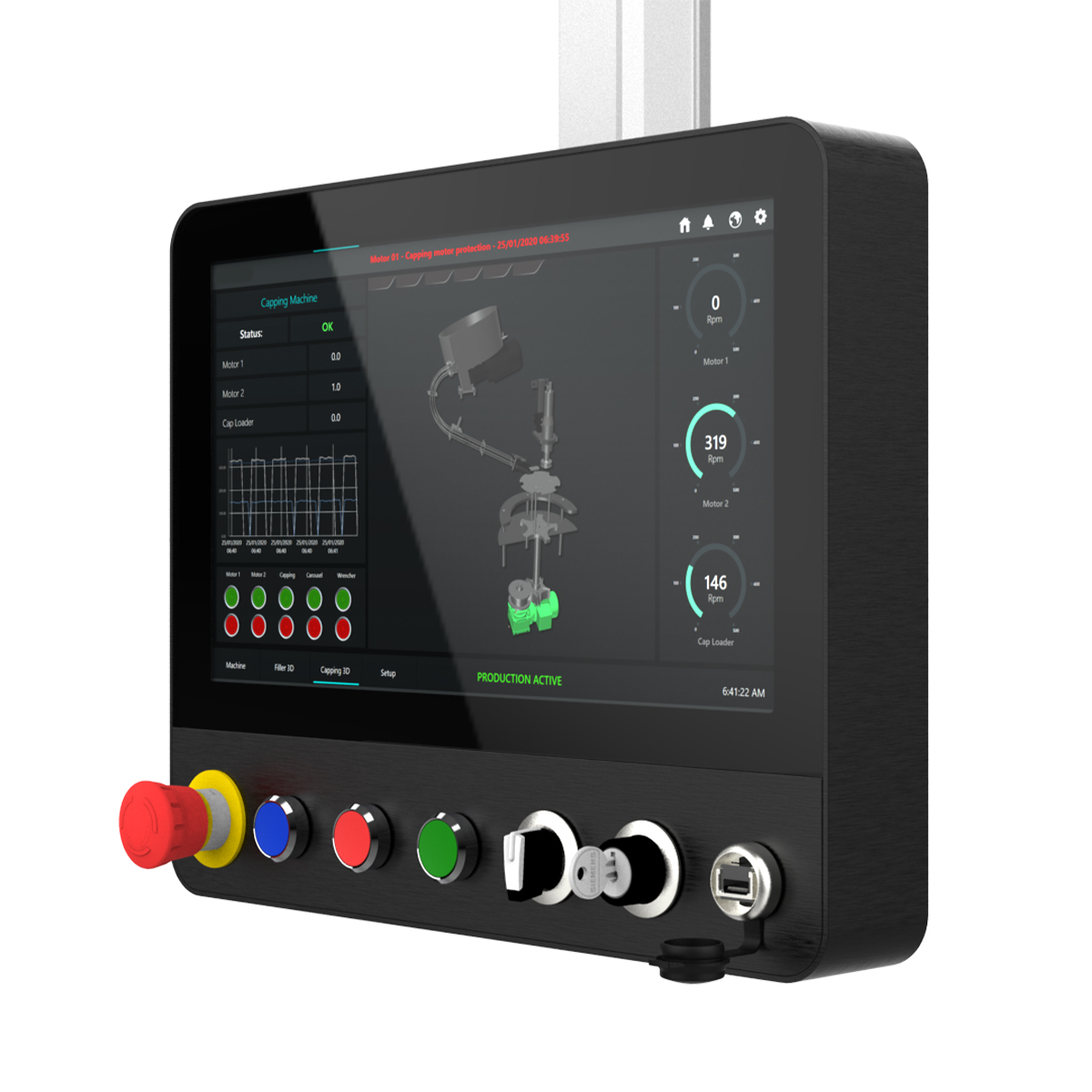

IndustrialPAD 156
Intel® Core i5 8265UE
Up to 32 GB RAM
Extended power supply range from 9V to 24V
2x LAN Intel® Gigabit Ethernet
2x 4K Video interface (HDMI – DP)

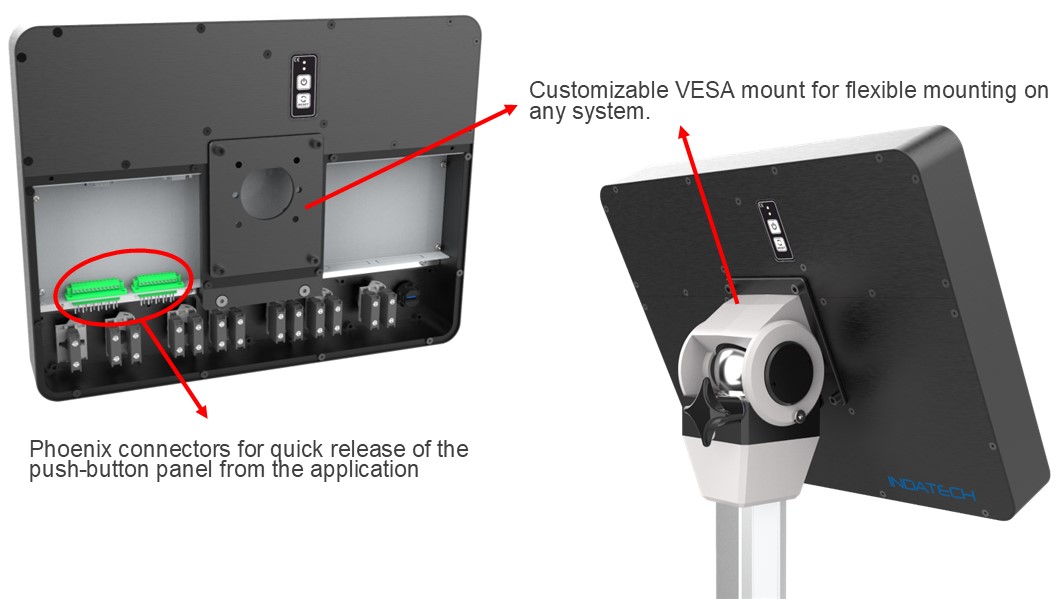

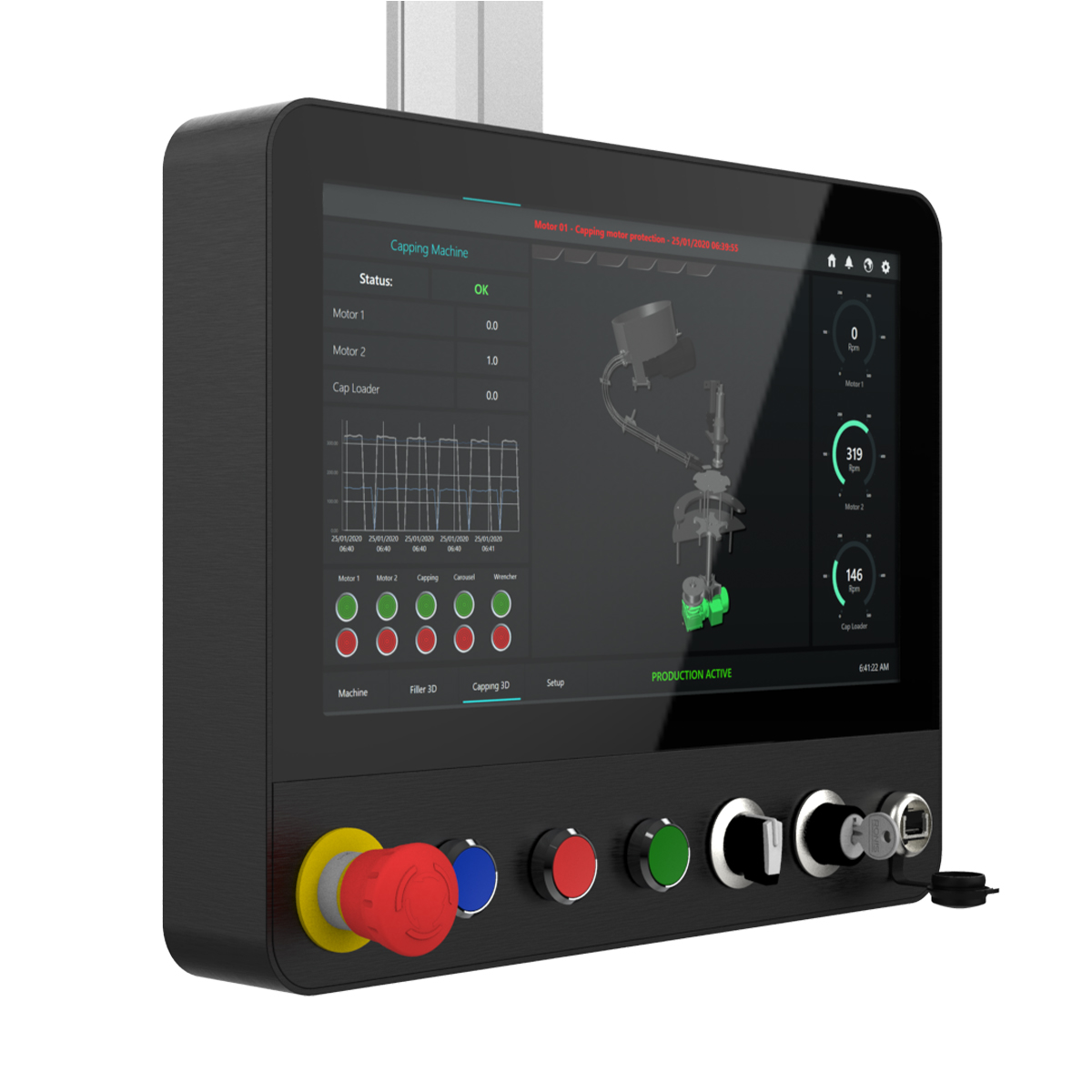

Fully customizable push button panel
High quality anodized aluminum
Full-IP65 & Fanless cooling
Integrated SuperCAPS UPS (on request)

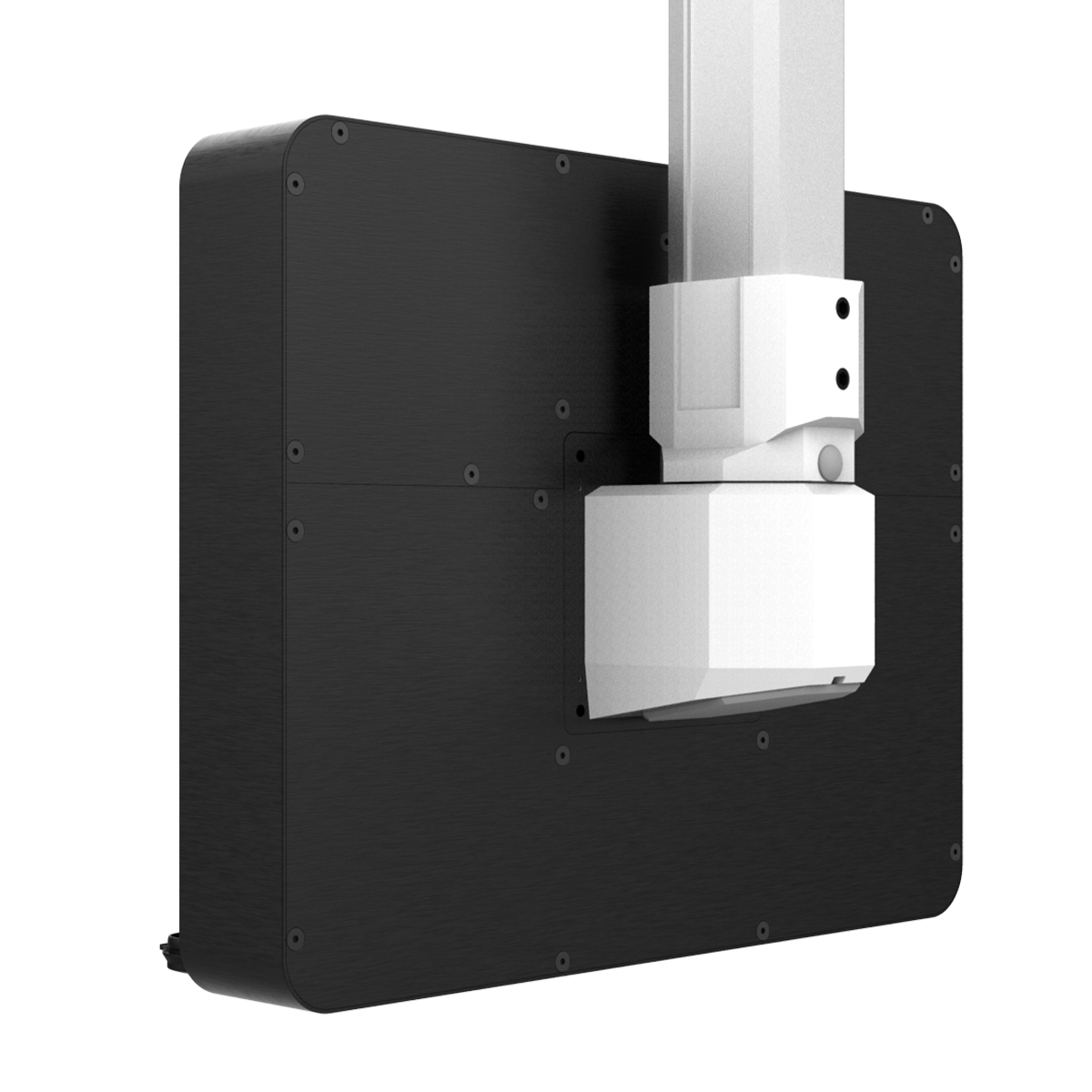

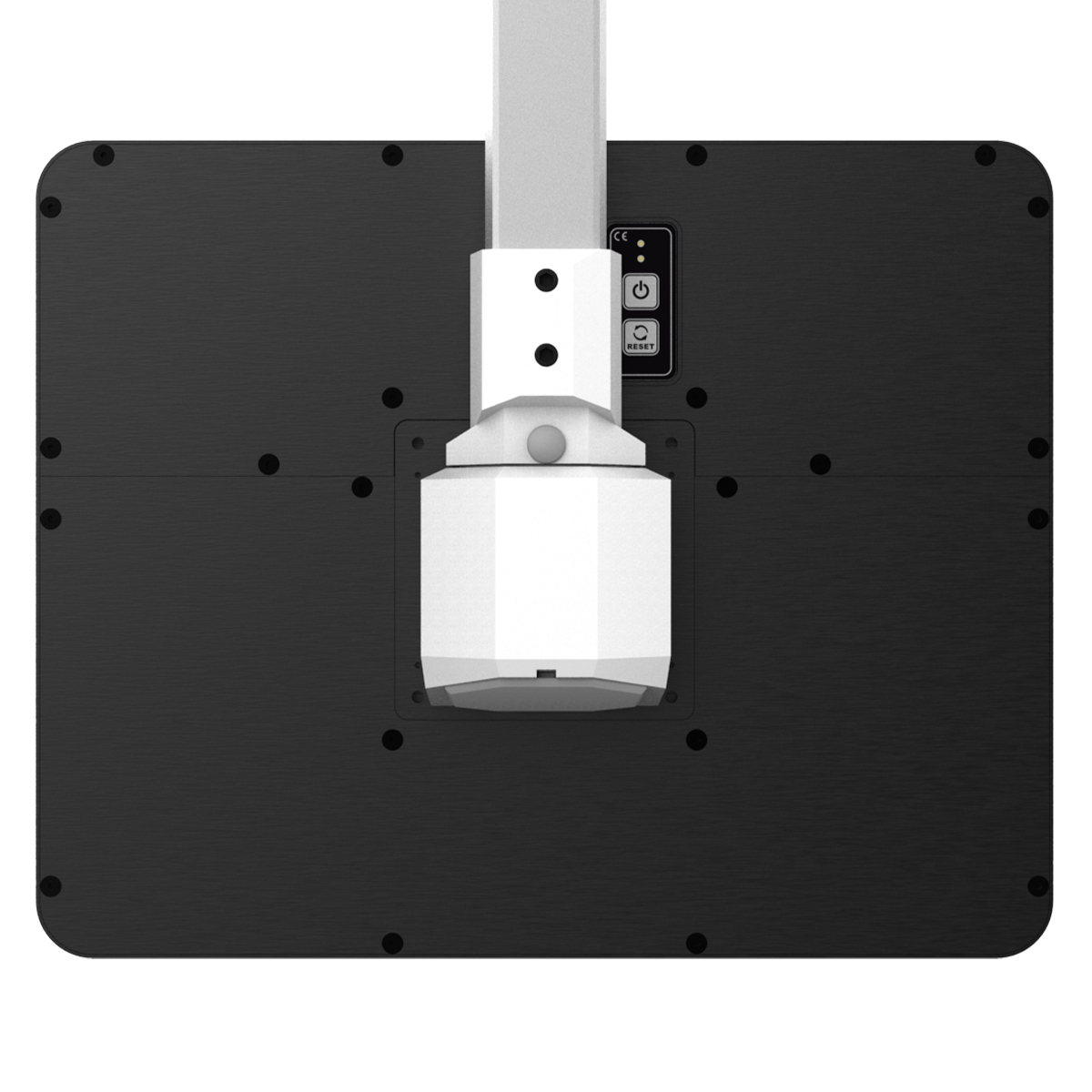

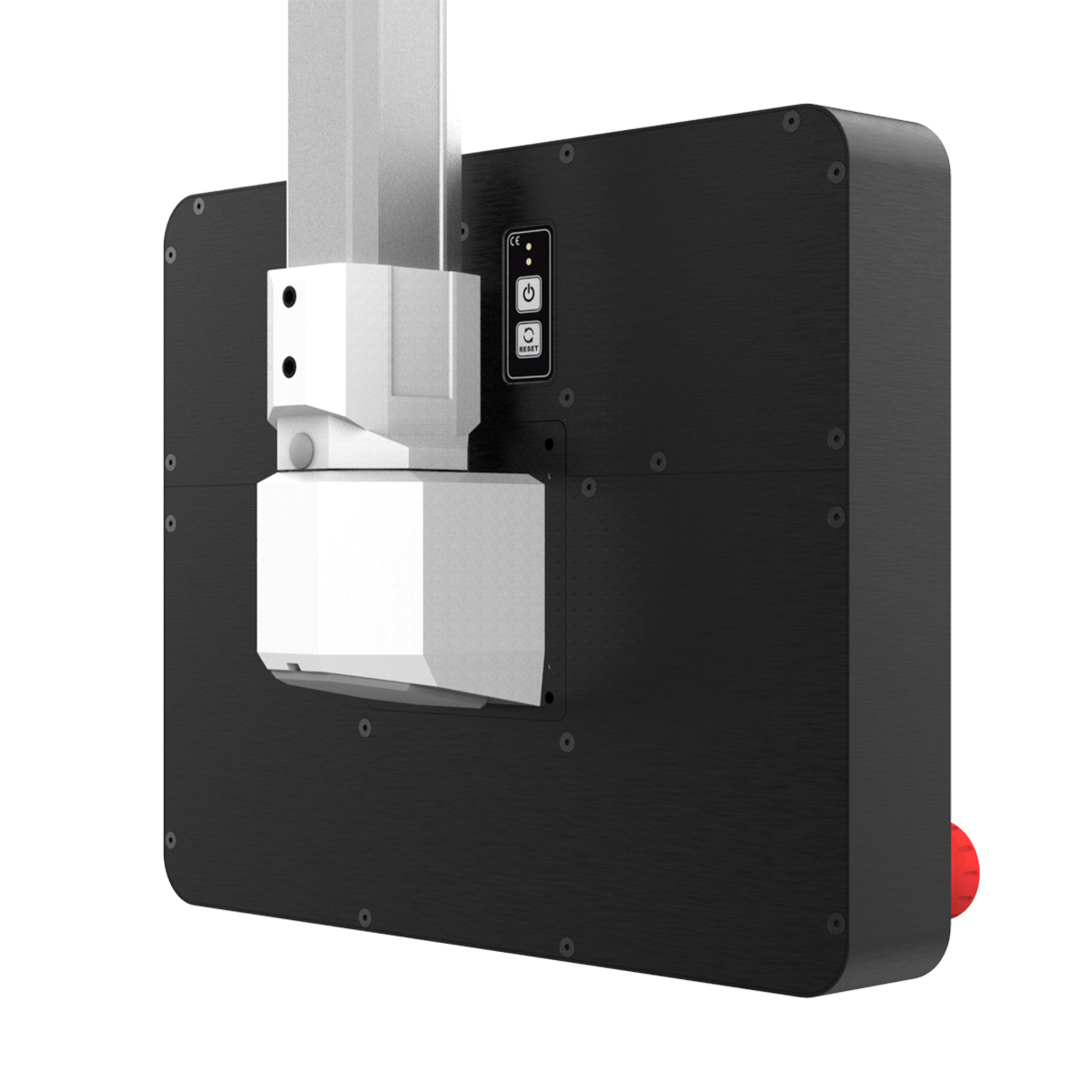

Flexible VESA mounting for any mounting system
| MAINBOARD | |
| CPU: | Intel® Core i5 8265UE
4 Core / 8 Thread 1.6 GHz (Base) / 4.1GHz (Turbo) 15W |
| MEMORY | |
| Capacity: | up to 32GB |
| Frequency: | 2400 MHz |
| Type | 1x SO-DIMM DDR4L |
| STORAGE | |
| SATA: | 1x SATA3 |
| M.2 | 1x M.2 M-Key (2242/2260/2280) Support PCIe x4 (NVMe) & SATA |
| Storage Bay: | 1x Internal 2.5” SSD Bay |

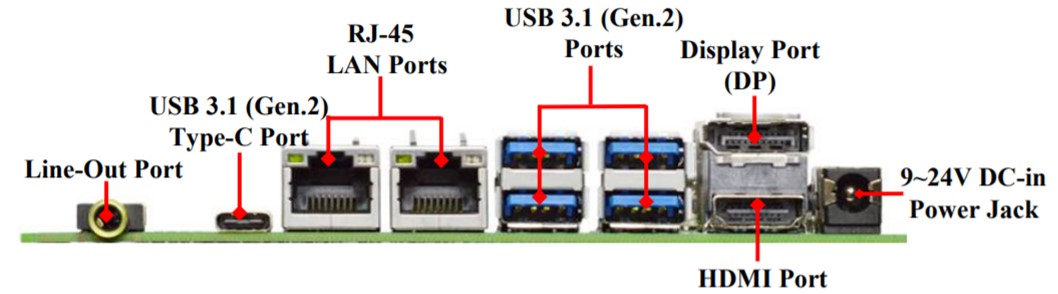

| I/O INTERFACE | |
| Serial ports: | 1x COM RS232/422/485 1x COM RS232 |
| USB ports: | 4x USB 3.1 1x USB Type C (3.1 Gen 2) (Only for DATA) |
| M.2: | 1x M.2 E-Key (2230) CNVi WIFI module (optional) |
| AUDIO: | 1x Headphone Jack, 1x MIC Jack, 1x Line-out Jack |
| VIDEO | |
| GPU: | Intel® UHD Graphics |
| Interface: | 1x HDMI 1.4 (Up to 4096×2304 @30Hz)
1x DP 1.2 (Up to 4096×2304 @60Hz) |
| DISPLAY | |
| Size: | 15.6” |
| Resolution: | FullHD (1920×1080) |
| Aspect Ratio: | 16:9 |
| Backlight: | Led |
| Bright and Contrast: | 300 cd/mq 5000:1 |
| TOUCH SCREEN | |
| Glass Thickness: | 3 mm |
| Technology: | Projective Capacitive Multitouch – 10 point |
| ETHERNET | |
| LAN: | 1x Intel® i219LM PHY Gigabit LAN (iAMT 11.0)
1x Intel® i211AT Gigabit LAN |
| MECHANICAL | |
| Material: | Anodized aluminium |

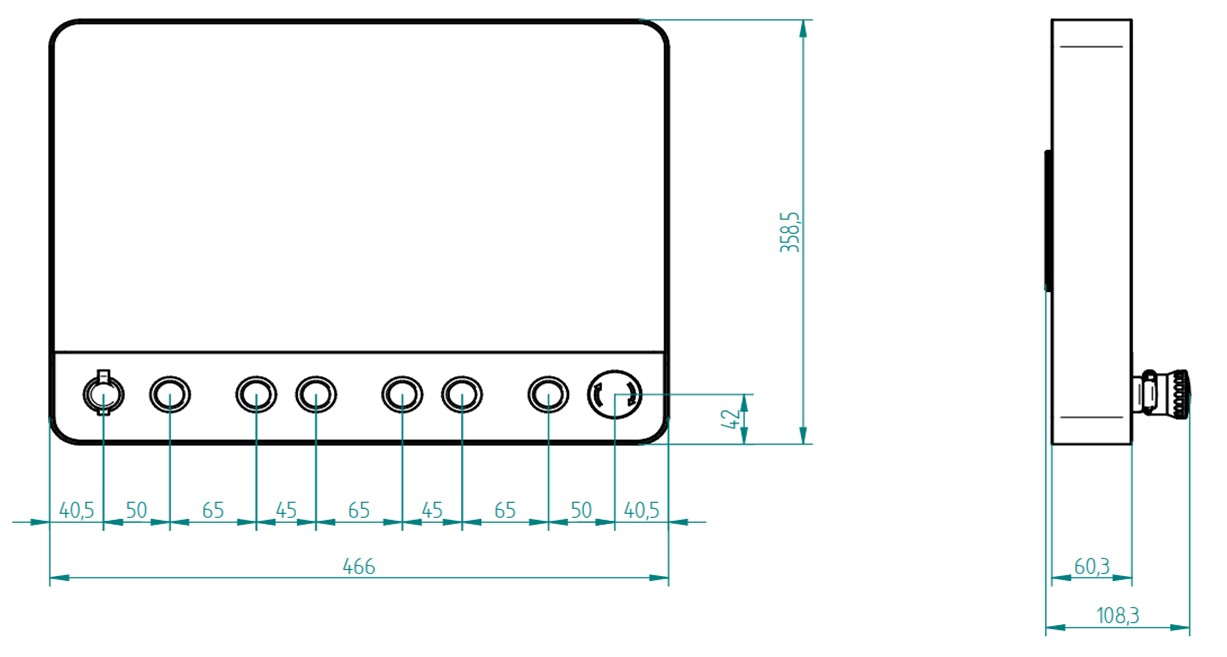

| Dimensions: | (W)466x(D)358,5x(H)60,3mm |
| Weight: | 10 Kg |
| Mounting: | VESA Mounting |
| POWER | |
| Power in: | 9 to 24V, DC-in |
| Max Power: | 40W max |
| Integrated UPS: | On request Feature
SuperCAPS type battery < 60 sec charging time Backup time 30 ~ 50 sec |
| ENVIRONMENT | |
| Operating temp.: | -20°C to 60°C |
| Storage temp.: | -20°C ~ 70°C |
| Humidity: | 40% to 60% Humidity, non-condensing |
| EMC: | CE, FCC, RoHS, LVD |
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| IndustrialPAD 156 | TBD | TBD | TBD |  |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| IndustrialPAD 156 drivers | TBD | TBD | TBD | |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| IndustrialPAD 156 manual | TBD | TBD | TBD | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| IndustrialPAD 156 HIG | TBD | TBD | TBD | |
| IPC | |||
| MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
| IndustrialPAD 156 | 10005376 | B04-23C-BACH-I58365U-R08-M2D256 | IPC + 8GB RAM + M2 256GB SSD + WIFI6 |
| ACCESSORIES | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| HDMI to VGA converter | 10003577 | HDMI to VGA converter | |
