IndustrialPAD 116
11.6” Windows® Tablet
Extra Light (<900g)
Full Rugged – IP65 + MIL-STD-810G
Battery for Hot-Swap
Honeywell Software Decode Scanner 1D/2D (Optional) WiFi ac/a/b/g/n, NFC Module
HW TPM2.0 FIPS 140-2 Level 2 Compliance
A variety of accessories available (DOCK DESK, DOCK VESA, BATTERY CHARGER)
INDATECH Industrial Mobile PC
Specifiche tecniche
| MAINBOARD | |
| CPU: | Intel® Apollo Lake N4200E
1.1GHz, 2.5GHz with Turbo, 6W |
| MEMORY | |
| Capacity: | 8GB |
| Frequency: | 1600 MHz |
| Type | 1x LPDDR4 |
| STORAGE | |
| M.2 | SSD M.2 64GB (on request 256GB) |
| I/O INTERFACE | |
| USB ports: | 1x USB 3.0 Type A |
| SIM: | 1x Nano-SIM w/LTE module only for DOCK VESA LTE&GPS KIT (on request) |
| Audio: | 1x Audio Jack |
| Power: | 1x DC Jack |
| POGO: | 1x POGO connector |
| VIDEO and DISPLAY | |
| GPU: | Intel® HD Graphics |
| Size: | 11.6” TFT-LCD |
| Max Resolution: | 1920×1080 |
| Luminance: | 500nits (cd/m2) |
| Glass type: | Gorilla® Glass 3 and Direct Bonding |
| TOUCH SCREEN | |
| Type: | P-CAP |
| Touch: | 10 point capacitive multi-touchscreen supporting glove mode and rain mode |
| WIRELESS and LTE/GPS | |
| Wifi: | IEEE 802.11ac/a/b/g/n(2.4GHz/5GHz) |
| Bluetooth: | BT v4.2 |
| LTE/GPS: | GPS & LTE CAT6 for DOCK VESA LTE&GPS KIT (on request) |
| OTHER FEATURES | |
| NFC: | NFC Reader |
| Rear Camera: | 8MP Auto-Focus + Flash LED |
| Sensors: | Ambient Light Sensor, Gyro Sensor & G-sensor |
| Barcode Scanner: | 1D/2D Barcode reader (on request) |
| POWER and BATTERY | |
| Power in: | 19V, DC-in |
| Adapter: | AC to DC, DC 19V 65W Adaptor |
| Main Battery: | 19.53Whr (2570mAh, 7.6V) |
| Battery for Hot-Swap: | 2.66Whr (700mAh, 3.8V) |
| MECHANICAL | |
| Material: | High quality plastic case |
| Dimensions: | (W)299x(D)199(H)17,7mm |
| Weight: | 0,9 Kg |
| Rugged: | IP65 + MIL-STD-810G |
| ENVIRONMENT | |
| Operating temp.: | -10°C to 50°C |
| Storage temp.: | -20°C ~ 60°C |
| Humidity: | 10% to 90% @40°C, non-condensing |
| EMC: | CE, FCC, VCCI, RoHS |
| OPERATIVE SYSTEM | |
| MS Windows: | Windows 10, Windows 10 Enterprise LTSC, |
| Linux*: | Ubuntu 22.04 LTS, CentOS 8, Debian 10, |
| * Linux distributions tested with the IPC. |
Codici di ordinazione
| IPC | |||
| MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
| IndustrialPAD 116 | |||
| ACCESSORIES | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| HDMI to VGA converter | 10003577 | HDMI to VGA converter | |

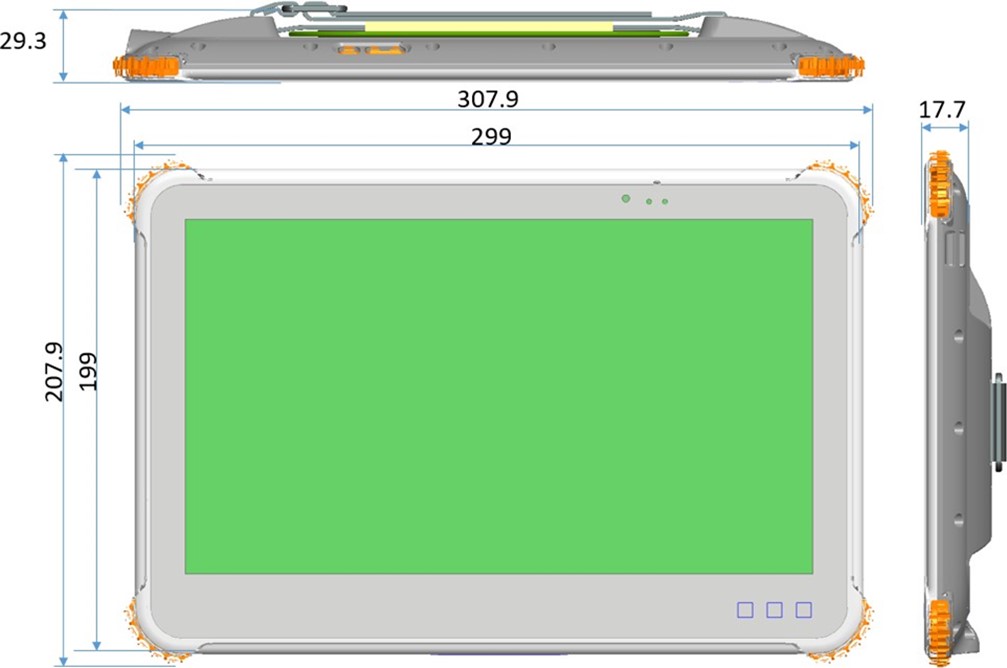

Disegni tecnici
File scaricabili
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| IndusrialPAD 116 | TBD | TBD | TBD |  |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| IndusrialPAD 116 drivers | TBD | TBD | TBD | |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| IndusrialPAD 116 manual | TBD | TBD | TBD | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| IndusrialPAD 116 HIG | TBD | TBD | TBD | |
Prodotti Correlati
-

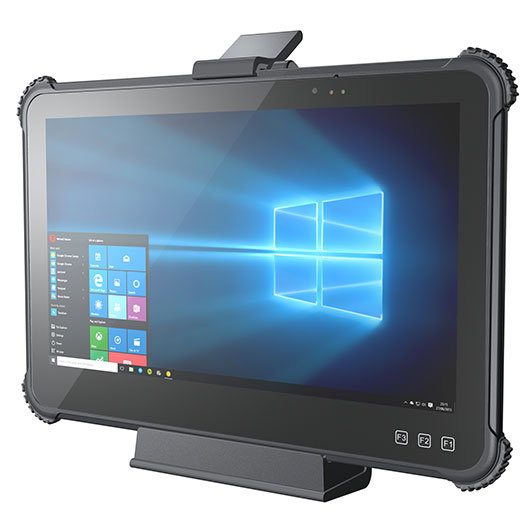

DOCK VESA
DOCK VESA KIT
- VESA DOCK for Vehicle \ Wall \ Pole Mounting
- Power Adapter 24V @180W + Power Cable
DOCK VESA LTE&GPS KIT
- VESA DOCK for Vehicle \ Wall \ Pole Mounting
- Power Adapter 24V @180W + Power Cable
- 3x Antennas (2x LTE & 1 GPS)
-

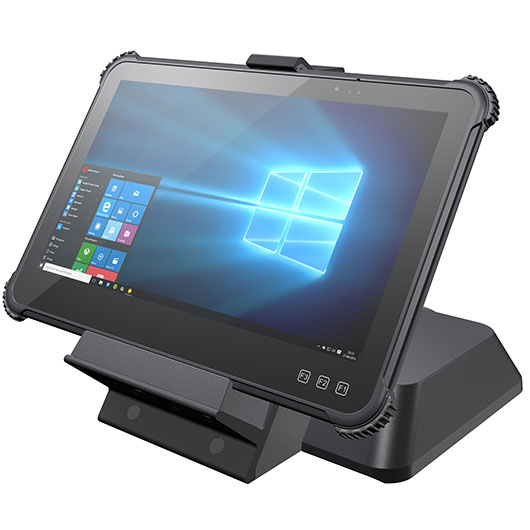

DOCK DESK
DOCK DESK KIT
- Docking Station + Cable Cover
- Power Adapter 24V @180W + Power Cable
- Removable Main Battery for IndustrialPAD 116 (Mounted on the dock charging slot)
- Screw + rubber pads pack
-
Battery charger
BATTERY CHARGER KIT 1
- Battery Charger Station
- 1x Removable Main Battery for IndustrialPAD 116
BATTERY CHARGER KIT 2
- Battery Charger Station
- 2x Removable Main Battery for IndustrialPAD 116
