QUANTUM i5-1235U
Intel® Core™ 12th Processor (i5-1235U)
1x DDR4 3200 MHz up to 32GB RAM
12V, DC-in w/ 220VAC Power Adapter
4x USB 3.1 + 2x USB 2.0
2x COM (RS232)
2x Gigabit Ethernet LAN
WIFI and/or 4G/5G connectivity (Optional)
2x 4K Video interface (2x HDMI)
-
QUANTUM EVO i5-1235U
Intel® Core™ 12th Processor (i5-1235U)
1x DDR5 4800 MHz up to 32GB RAM
12V, DC-in w/ 220VAC Power Adapter
4x USB 3.1 + 2x COM (RS232/485)
3x 2.5 Gigabit Ethernet LAN
WIFI and/or 4G/5G connectivity (Optional)
3x 4K Video interface (HDMI)
External FAN integrated into the heatsink
-
SILVER i5-1235U
Intel® Core™ 12th Processor (i5-1235U)
1x DDR5 4800 MHz up to 32GB RAM
12VDC JACK or 9-36VDC TB w/ 220VAC Power Adapter
4x USB 3.1 + 2x COM (RS232/485)
3x 2.5 Gigabit Ethernet LAN
WIFI and/or 4G/5G connectivity (Optional)
3x 4K Video interface (HDMI)
External FAN integrated into the heatsink
-
QUANTUM EVO+ i5-1235U
Intel® Core™ 12th Processor (i5-1235U)
1x DDR5 4800 MHz up to 32GB RAM
12V, DC-in w/ 220VAC Power Adapter
4x USB 3.1 + 2x COM (RS232/485)
3x 2.5 Gigabit Ethernet LAN
WIFI and/or 4G/5G connectivity (Optional)
3x 4K Video interface (HDMI)
External FAN integrated into the heatsink
-
QUANTUM ULTRA 5 125U
Intel® Core™ 14th Ultra 5 125U Processor
1x DDR5 5600 MHz up to 32GB RAM
12V, DC-in w/ 220VAC Power Adapter
4x USB 3.1 + 1x Type C + 2x COM (RS232/485)
3x 2.5 Gigabit Ethernet LAN (vPRO optional)
WIFI and/or 4G/5G connectivity (Optional)
4x 4K Video interface (HDMI + Type C)
-
QUANTUM ULTRA 7 155U
Intel® Core™ 14th Ultra 5 125U Processor
1x DDR5 5600 MHz up to 32GB RAM
12V, DC-in w/ 220VAC Power Adapter
4x USB 3.1 + 1x Type C + 2x COM (RS232/485)
3x 2.5 Gigabit Ethernet LAN (vPRO optional)
WIFI and/or 4G/5G connectivity (Optional)
4x 4K Video interface (HDMI + Type C)
-
WALLDIN-Slim i5-1235U
Intel® Core™ 12th Processor (i5-1235U)
2x DDR5 4800 MHz up to 64GB RAM
12-24V, DC-in w/ 220VAC Power Adapter
4x USB 3.0
4x Gigabit Ethernet LAN
WIFI or 4G/5G connectivity (Optional)
2x 8K Video interface (DP)
Desktop, Wall, Book and DIN-Rail mount options
-
WALLDIN-E i5-1235U
Intel® Core™ 12th Processor (i5-1235U)
2x DDR5 4800 MHz up to 64GB RAM
12-24V, DC-in w/ 220VAC Power Adapter
4x USB 3.0 + 2x COM (RS232/485)
4x Gigabit Ethernet LAN + 2x LAN port with GbE or 2.5GbE
WIFI or 4G/5G connectivity (Optional)
2x 8K Video interface (DP)
Desktop, Wall, Book and DIN-Rail mount options
-
WALLDIN-F i5-1235U
Intel® Core™ 12th Processor (i5-1235U)
2x DDR5 4800 MHz up to 64GB RAM
12-24V, DC-in w/ 220VAC Power Adapter
4x USB 3.0 + 2x COM (RS232/485) + 2x GPIO 12Bit
4x Gigabit Ethernet LAN + 2x GbE or 2.5GbE or PoE option
WIFI or 4G/5G connectivity (Optional)
2x 8K Video interface (DP)
Desktop, Wall, Book and DIN-Rail mount options
-
WALLDIN-H i5-1235U
Intel® Core™ 12th Processor (i5-1235U)
2x DDR5 4800 MHz up to 64GB RAM
12-24V, DC-in w/ 220VAC Power Adapter
4x USB 3.0 + 1/2x COM (RS232/485) + 1x Fieldbus ports (on request)
4x Gigabit Ethernet LAN + 2x Industrial Ethernet Protocol (on request)
WIFI or 4G/5G connectivity (Optional)
2x 8K Video interface (DP)
Desktop, Wall, Book and DIN-Rail mount options
-
WALLDIN-SCK-12G
Intel® Core™ 12th Gen. Processor
2x DDR5 4800 MHz up to 64GB RAM
12-24V, DC-in w/ 220VAC Power Adapter
6x USB 3.0, 2x RS485
4x Gigabit Ethernet LAN
WIFI or 4G/5G connectivity (Optional)
2x 4K Video interface (DP + HDMI)
Desktop, Wall, Book and DIN-Rail mount options
-
WALLDIN-SCK-13G
Intel® Core™ 13th Gen. Processor
2x DDR5 4800 MHz up to 64GB RAM
12-24V, DC-in w/ 220VAC Power Adapter
6x USB 3.0, 2x RS485
4x Gigabit Ethernet LAN
WIFI or 4G/5G connectivity (Optional)
2x 4K Video interface (DP + HDMI)
Desktop, Wall, Book and DIN-Rail mount options
-
WALLDIN-SCK-14G
Intel® Core™ 14th Gen. Processor
2x DDR5 4800 MHz up to 64GB RAM
12-24V, DC-in w/ 220VAC Power Adapter
6x USB 3.0, 2x RS485
4x Gigabit Ethernet LAN
WIFI or 4G/5G connectivity (Optional)
2x 4K Video interface (DP + HDMI)
Desktop, Wall, Book and DIN-Rail mount options
-
ESP2 i5 7360u
Intel® Core i5 7360U, 2-core 4-Thread CPU, 15W
1x up to 16 GB RAM
Extended power supply range from 9V to 36V
2x LAN Intel® Gigabit Ethernet
6x Serial COM (1x RS232/422/485)
6x USB port (4x USB 3.0 + 2x USB 2.0)
2x Video interface (HDMI – VGA)
2x PCI/PCIe slots with three configuration options available:
1xPCI + 1PCIe or 2x PCI or 2xPCIe -
MIL4
Intel® 8th Gen Whiskey Lake U Processor,
Default i5-8265U, 15WUp to 32GB RAM
TPM 2.0 support
Power In 9-36 VDC and w/ 12VDC to 220VAC Power Adapter
4x LAN Intel® Gigabit Ethernet
4x Serial COM (2x RS232/422/485)
2x Video interface (HDMI + VGA)
-
BACH i5 8365UE
Intel® Core i5 8365UE 4-core 8-Thread 1.6 GHz (Base) / 4.1 GHz (Turbo), 15W
2x DDR4 2400 MHz up to 32 GB RAM
9-24V, DC-in w/ 220VAC Power Adapter
2x LAN Intel® Gigabit Ethernet
2x 4K Video interface (HDMI – DP)
-

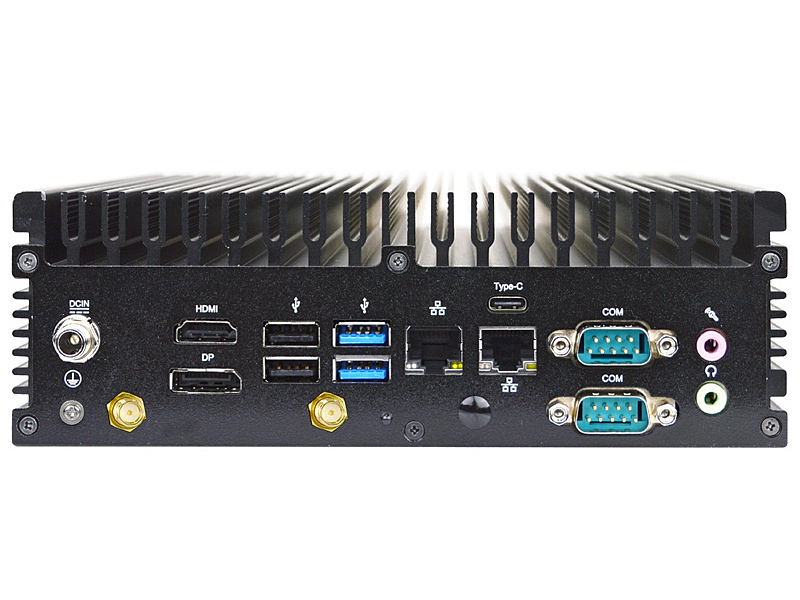

JOLLY 11G
Intel® Tiger lake-UP3 SoC Processor
Up to 64GB RAM
Multiple variants of front panel I/O available (up to 8x GbE / up to 8x COM / up to 32bit GPIO / + 8x USB3.0)
WallMount + DIN Rail kit
Power IN +12 – 24VDC
2x Intel® Gigabit Ethernet LAN
2x 4K Video interface (HDMI)
-
BOLT i5 7200U
Intel® Core i5 7200U 2-core 4-Thread
2.50-3.10Hz Burst, 15W
2x DDR3L 2133 MHz up to 32 GB RAM
Extended power supply range from 9V to 24VDC
4x COM (1xRS232/442/485 + 3x RS232)
2x LAN Intel® Gigabit Ethernet
2x 4K Video interface (HDMI – DP)
-
BOLT 6ETH
Intel® Core i5 7300U 2-core 4-Thread
2.6-3.5 GHz Burst, 15W
2x DDR4 2133 MHz up to 32GB RAM
Extended power supply range from 9V to 24V
6x LAN Intel® Gigabit Ethernet
2x 4K Video interface (DP)
-
IndustrialPAD 185
Intel® Core i5 1135G7
Up to 64 GB RAM
Extended power supply range from 12V to 24V
2x LAN Intel® Gigabit Ethernet
4x 4K Video interface (2x HDMI – 2xDP)
Fully customizable push button panel
High quality anodized aluminum
Full-IP65 & Fanless cooling
Integrated SuperCAPS UPS (on request)
Flexible VESA mounting for any mounting system
-

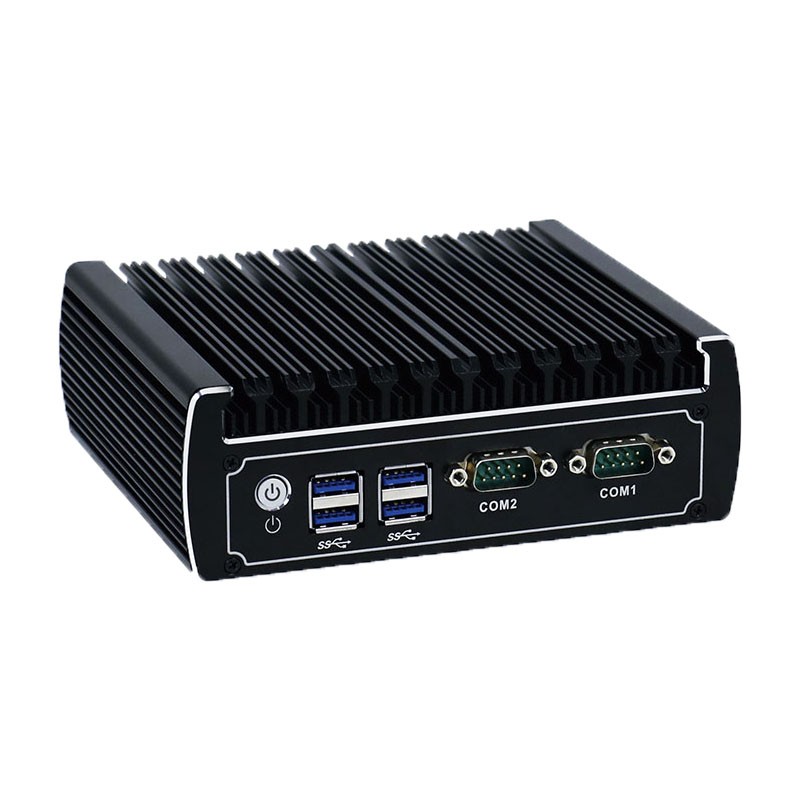

BAT i5 7200U [EOL]
Intel® Core i5 7200U 2-core 4-Thread
2.50-3.10Hz Burst, 15W
1x DDR4L 2133 MHz up to 16 GB RAM
Power In 12VDC
2x COM RS232
2x LAN Intel® Gigabit Ethernet
2x 4K Video interface (HDMI – DP)
-

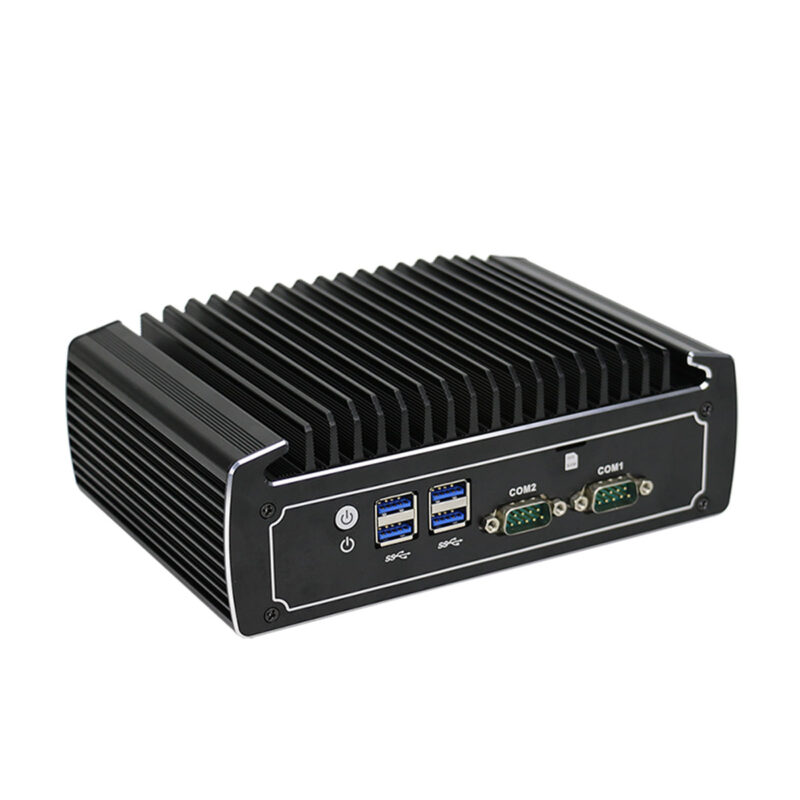

BAT i5 10310U
Intel® Core i5 10310U, 4-Core 8-Thread, 1.7GHz (4.4 GHz Burst), 15W
Up to 32GB RAM
TPM 2.0 support
Power In 12VDC
2x LAN Intel® Gigabit Ethernet
2x 4K Video interface (HDMI + DP)
-
MP3
Intel® 6th & 7th Gen. i7/i5/i3 CPU 35W LGA 1151 — Q170 chipset
2x DDR4 2133 MHz up to 32 GB RAM
Extended power supply range from 9V to 24V
2x 2.5” SSD tray slots with RAID 0.1 support
2x LAN Intel® Gigabit Ethernet
3x 4K Video interface (HDMI)
