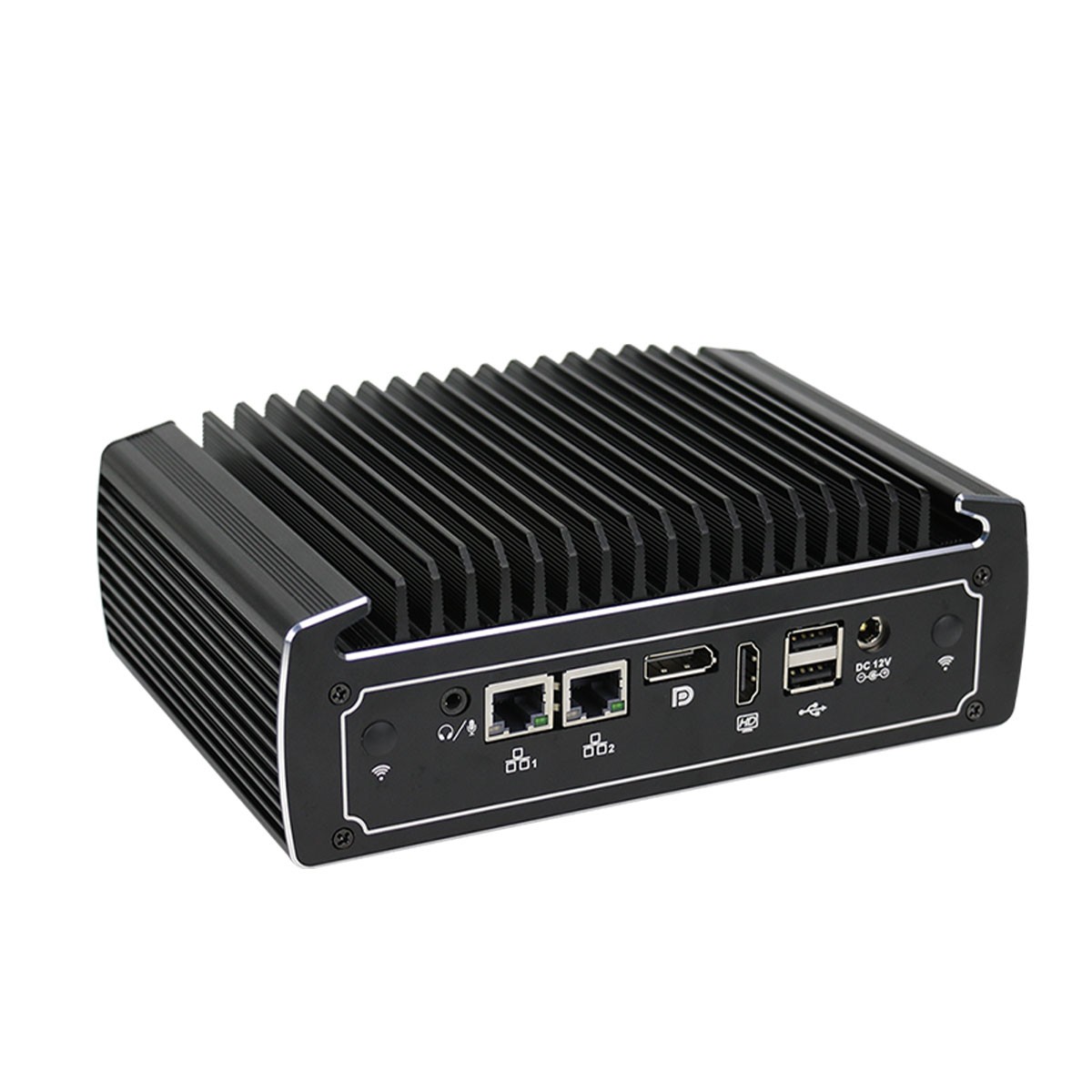

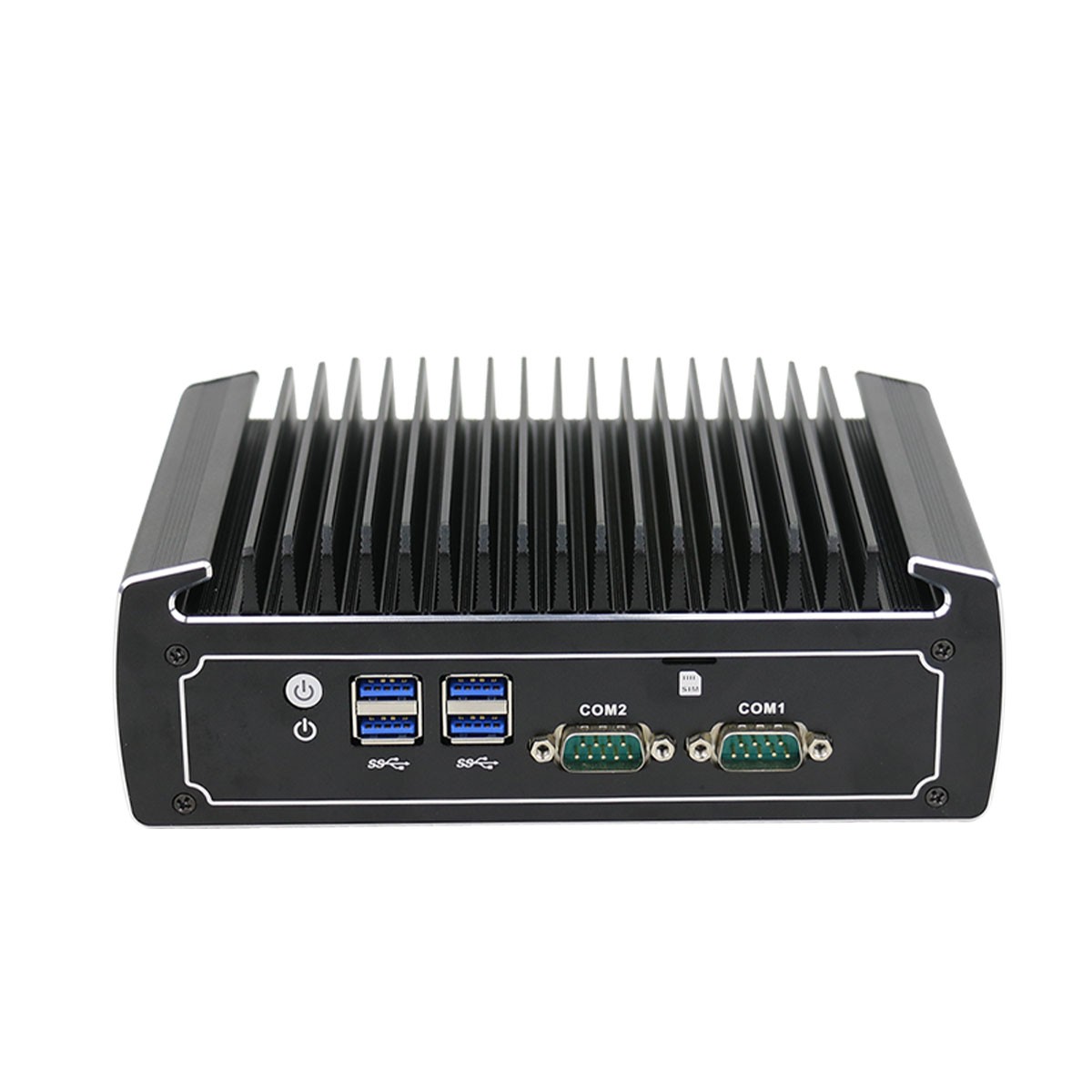

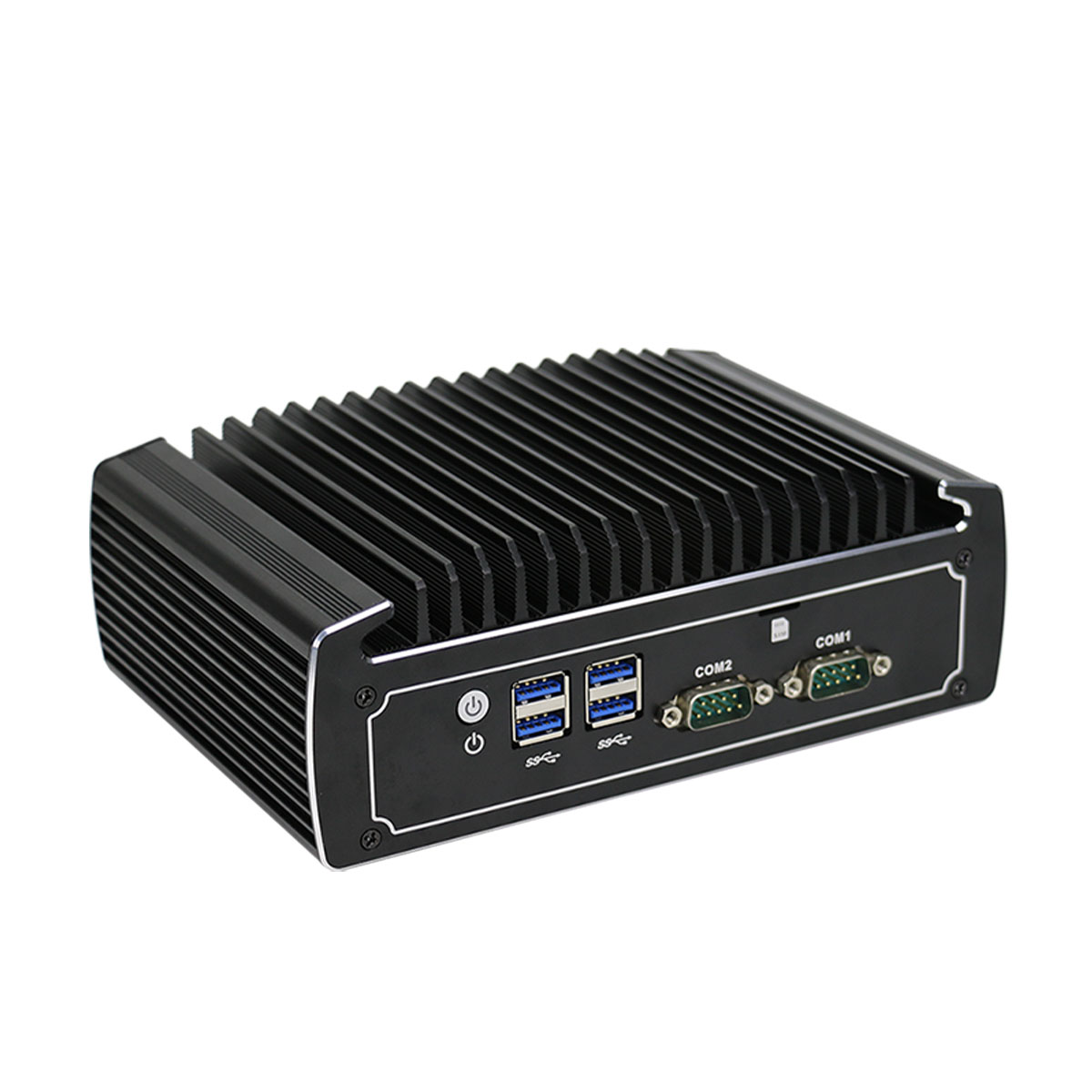

BAT i5 10310U
Intel® Core i5 10310U, 4-Core 8-Thread, 1.7GHz (4.4 GHz Burst), 15W
Up to 32GB RAM
TPM 2.0 support
Power In 12VDC
2x LAN Intel® Gigabit Ethernet
2x 4K Video interface (HDMI + DP)
INDATECH Industrial PC Bat i5 10310U
Specifiche tecniche
| MAINBOARD | |
| CPU: | Intel® Core i5 10310U
4 Core / 8 Thread 1.7 GHz (4.4 GHz Burst), 15W |
| TPM: | Intel® TPM 1.2/2.0 |
| MEMORY | |
| Capacity: | up to 32GB |
| Frequency: | 2666/2933 MHz |
| Type: | 1x SO-DIMM DDR4L |
| STORAGE | |
| SATA: | 1x SATA3 |
| M.2: | 1x M.2 (Support PCIe X4 + SATA, 2280) |
| Storage Bay: | 1x Internal 2.5” SSD Bay |

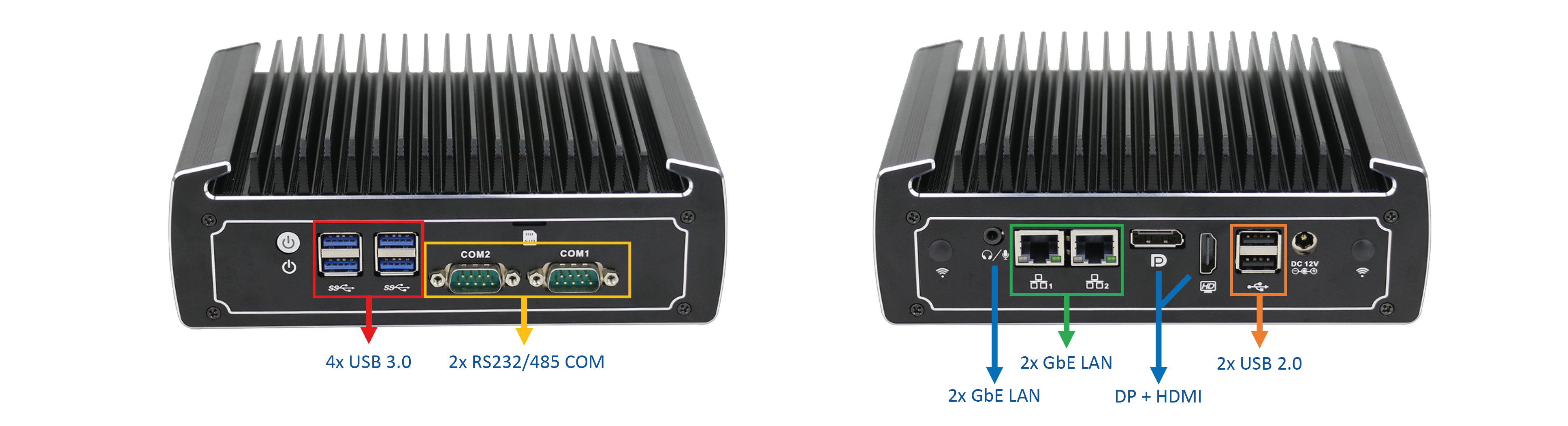

| I/O INTERFACE | |
| Serial ports: | 2x COM RS232/485 |
| USB ports: | 4x USB 3.0,
2x USB 2.0 |
| Mini-PCIe: | 1x Mini-PCIe (For WIFI or 4G module) |
| AUDIO: | 1x Combo Audio Jack, |
| SIM SLOT: | 1x Embedded SIM Card Slot |
| VIDEO | |
| GPU: | Intel® UHD Graphics |
| Interface: | 1x HDMI (Up to 4096×2304 @24Hz)
1x DP (Up to 4096×2304 @60Hz) |
| ETHERNET | |
| LAN: | 2x Intel® i2111-AT Gigabit LAN |
| POWER | |
| Power in: | 12V, DC-in |
| Max Power: | 25W max |
| Adapter: | AC_90~240V / DC_12V_3A/60W |
| MECHANICAL | |
| Material: | Lightweight aluminum alloy with extruded aluminum IO panel |
| Dimensions: | (L)186x(W)126.5x(H)66mm |
| Weight: | 1.3Kg |
| Mounting: | WallMount + VESA |
| ENVIRONMENT | |
| Operating temp.: | -20°C to 60°C with air flow |
| Storage temp.: | -20°C to 70°C |
| Humidity: | 5% to 95% Humidity, non-condensing |
| EMC: | CE, CCC, FCC, RoHS, ErP Ready |
| OPERATIVE SYSTEM | |
| MS Windows: | Windows 10, Windows 10 Enterprise LTSC,
Windows 11, Windows 11 Enterprise LTSC |
| Linux*: | Ubuntu 20.04 LTS, CentOS 8, Debian 10,
Fedora 34, pfSence 2.4.4, FreeNAS 11.2 |
| * Linux distributions tested with the IPC. |
Codici di ordinazione
| IPC | |||
| MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
| BAT i5 10310U | 10005376 | B04-25C-BAT-I510310U–RXX–SSDXXX | IPC + 8GB RAM + M2 256GB SSD + WIFI6 |
| RAM | R08 | 8GB RAM |
| R16 | 16GB RAM | |
| R32 | 32GB RAM |
| STORAGE | SSD (2,5”) | M2D/SSD128 |
| MSD (mSATA) | M2D/SSD256 | |
| M2D (M.2) | Other on Request |
| ACCESSORIES | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| HDMI to VGA converter | 10003577 | HDMI to VGA converter | |

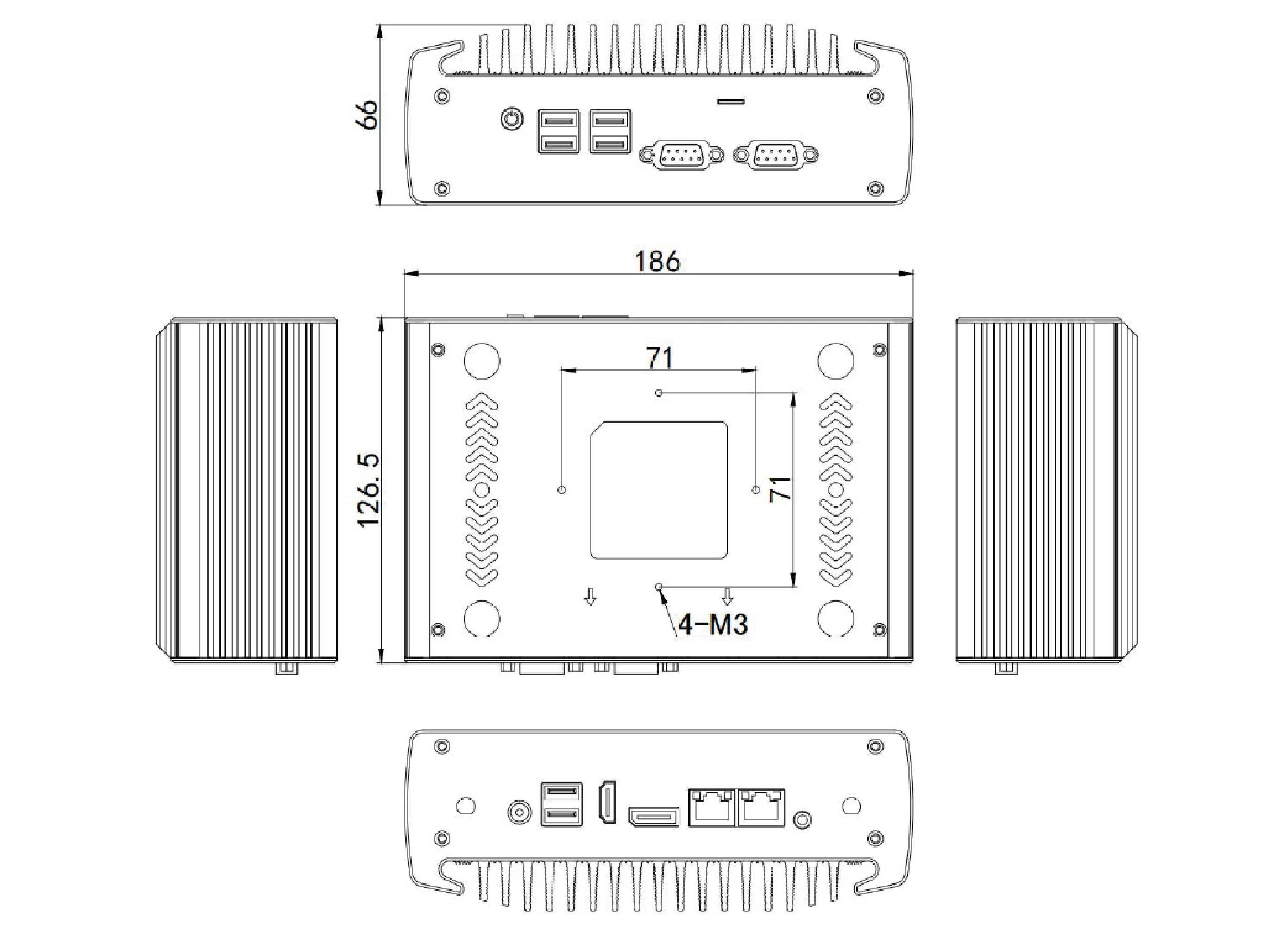

Disegni tecnici
File scaricabili
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| BAT I5 10310U | TBD | TBD | TBD |  |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| BAT I5 10310U manual | v1.0 | 2023-06-01 | 5.99 MB | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| BAT I5 10310U HIG | v1.0 | 2023-06-01 | 5.99 MB | |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| BAT I5 10310U drivers | v1.0 | 2023-06-01 | 4.3 GB | |
