WALLDIN-H i5-1235U
Intel® Core™ 12th Processor (i5-1235U)
2x DDR5 4800 MHz up to 64GB RAM
12-24V, DC-in w/ 220VAC Power Adapter
4x USB 3.0 + 1/2x COM (RS232/485) + 1x Fieldbus ports (on request)
4x Gigabit Ethernet LAN + 2x Industrial Ethernet Protocol (on request)
WIFI or 4G/5G connectivity (Optional)
2x 8K Video interface (DP)
Desktop, Wall, Book and DIN-Rail mount options

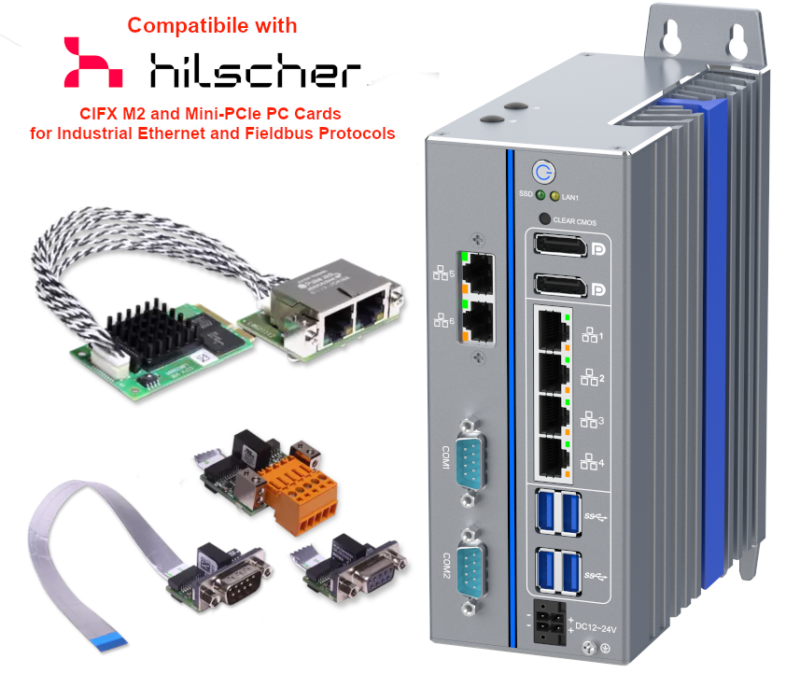

INDATECH Industrial IPC WALLDIN-H I5-1235U
Industrial Communication interfaces; Industrial Ethernet and fieldbus protocols with Master and Slave option. Supported protocols: EtherCAT, EtherNet/IP, Open Modbus TCP, Profinet, Sercos, CC-Link IE Field Basic, POWERLINK, VARAN and CANopen, DeviceNet, Profibus (also MPI), CC-Link.
– Industrial communication solution provided by Hilscher. –
Specifiche tecniche
MAINBOARD | |
CPU: | Intel® Core™ i5-1235U
10 Core / 12 Thread 1.3 GHz (Base) / 4.4 GHz (Turbo) 15W |
MEMORY | |
Capacity: | up to 64GB |
Frequency: | 4800 MHz |
Type: | 2x SO-DIMM DDR5 |
STORAGE | |
MSATA: | 1x MSATA (Full-size) |
M.2: | 1x M.2 M-Key (2280, SATA +NVMe) |
I/O INTERFACE | |
Serial ports: | 1/2x COM RS232/485 |
Fieldbus ports: | 1x Fieldbus Protocol port (on request) |
USB ports: | 4x USB 3.0 |
Mini-PCIe | 1x Mini-PCIe (Full-size, WIFI or 4G/5G) |
SIM: | 1x SIM Slot (NanoSIM) |
VIDEO | |
GPU: | Intel® Iris Xe Graphics |
Interface: | 2x DP 1.4 (Up to 7680×4320 @60Hz) |
ETHERNET | |
LAN: | 1x Intel i219-LM Gigabit LAN
3x Intel i210-AT Gigabit LAN |
Industrial: | 2x Industrial Ethernet Protocol port (on request) |
POWER | |
Power in: | 12-24V, DC-in |
Max Power: | 90W max |
Adapter: | AC_90~240V / DC_12V_7.5A/90W |
MECHANICAL | |
Material: | High-quality aluminum |
Dimensions: | (W)205x(D)146x(H)70mm |
Weight: | <1.9 Kg |
Mounting: | Desktop, Wall, Book and DIN Rail Mount |
ENVIRONMENT | |
Operating temp.: | -20°C to +60°C -w/Air Flow |
Storage temp.: | -20°C to 85°C |
Humidity: | 10% to 90% RH @40°C, non-condensing |
EMC: | CE, FCC, RoHS |
OPERATIVE SYSTEM | |
MS Windows: | Windows 10, Windows 10 Enterprise LTSC,
Windows 11, Windows 11 Enterprise LTSC |
Linux*: | Ubuntu 22.04 LTS, CentOS 8, Debian 12,
Fedora 39, pfSence 2.7.2 |
* Linux distributions tested with the IPC. |
Codici di ordinazione
IPC | |||
MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
WALLDIN-H i5-1235U | 1000xxxx | xxxx | xxxx |
File scaricabili
DATASHEET | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
WALLDIN-H i5-1235U | v1.0 | 01-09-2024 | 0.95 MB |
MANUAL | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
WALLDIN-H i5-1235U | TBD | TBD | TBD |
HARDWARE INSTALLATION GUIDE | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
WALLDIN-H i5-1235U HIG | TBD | TBD | TBD |
DRIVERS | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
WALLDIN-H i5-1235U drivers | TBD | TBD | TBD |
