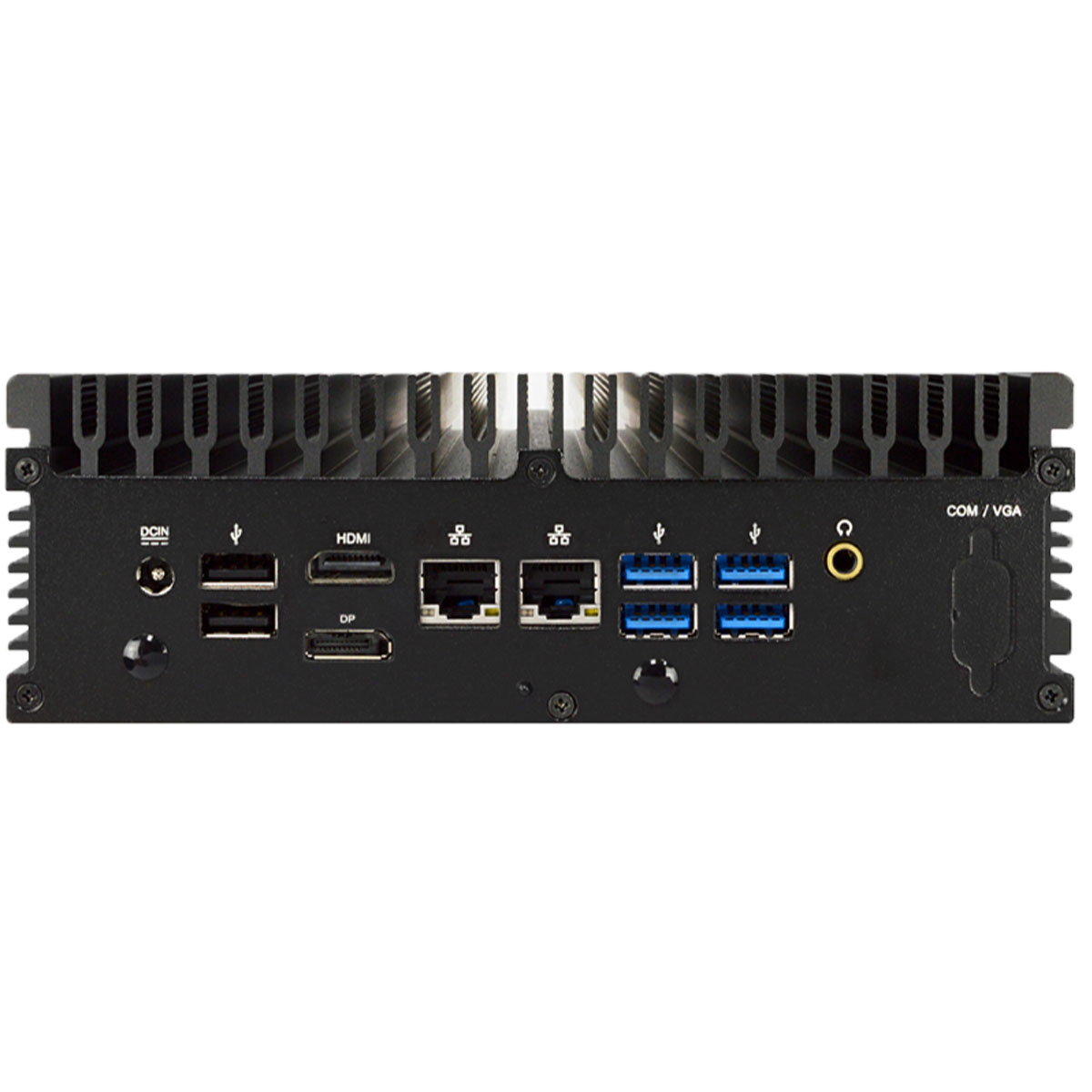

BOLT i5 7200U
Intel® Core i5 7200U 2-core 4-Thread
2.50-3.10Hz Burst, 15W
2x DDR3L 2133 MHz up to 32 GB RAM
Extended power supply range from 9V to 24VDC
4x COM (1xRS232/442/485 + 3x RS232)
2x LAN Intel® Gigabit Ethernet
2x 4K Video interface (HDMI – DP)

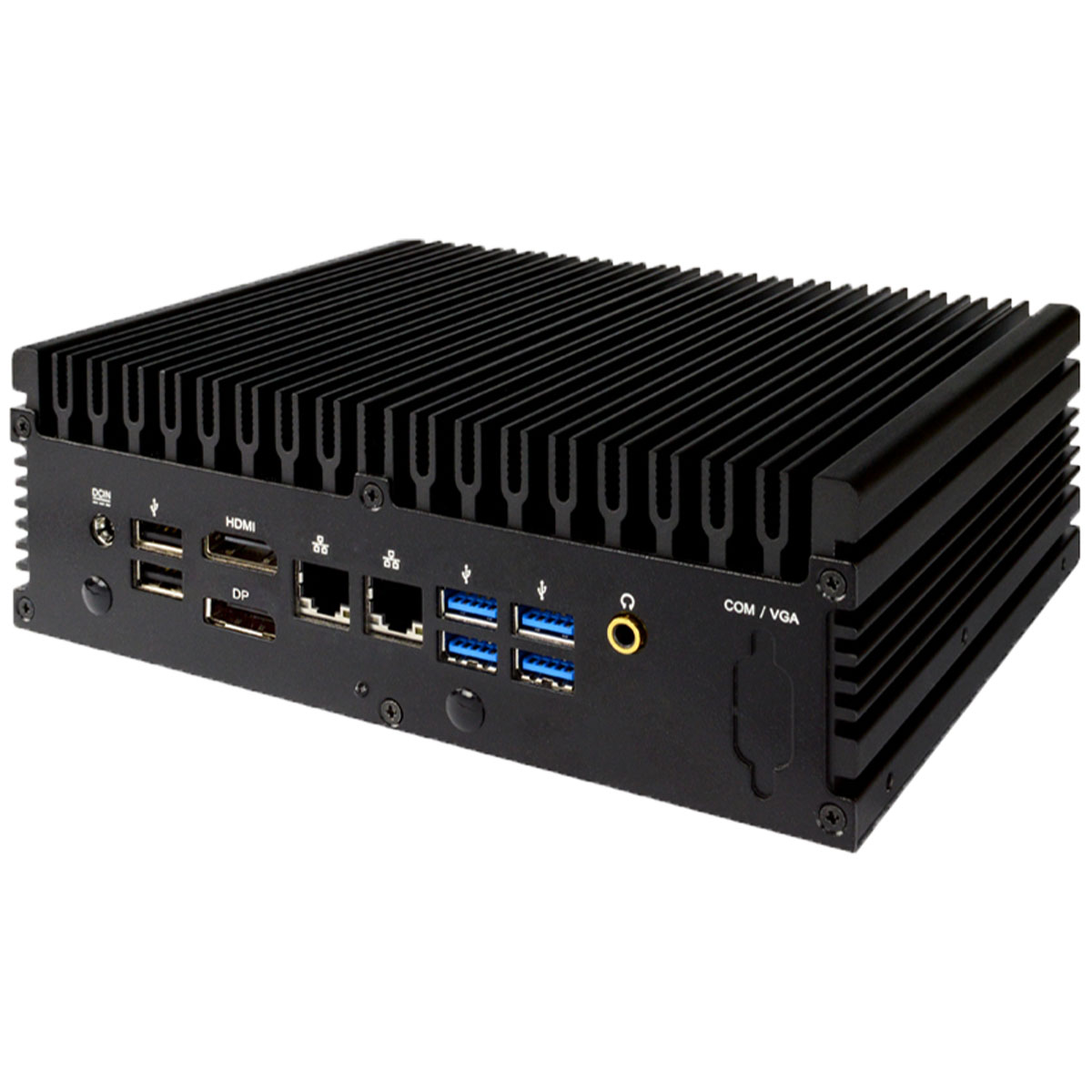

INDATECH Industrial PC Bolt i5 7200U
Specifiche tecniche
MAINBOARD | |
CPU: | Intel® Core i5 7200U
2 Core / 4 Thread 2.50-3.10Hz Burst, 15W |
MEMORY | |
Capacity: | up to 32GB |
Frequency: | 2133 MHz |
Type: | 2x SO-DIMM DDR4L |
STORAGE | |
SATA: | 1x SATA3 |
mSATA: | 1x Shared mSATA/mini-PCIe combo (full size) |
Storage Bay: | 1x Internal 2.5” SSD Bay |

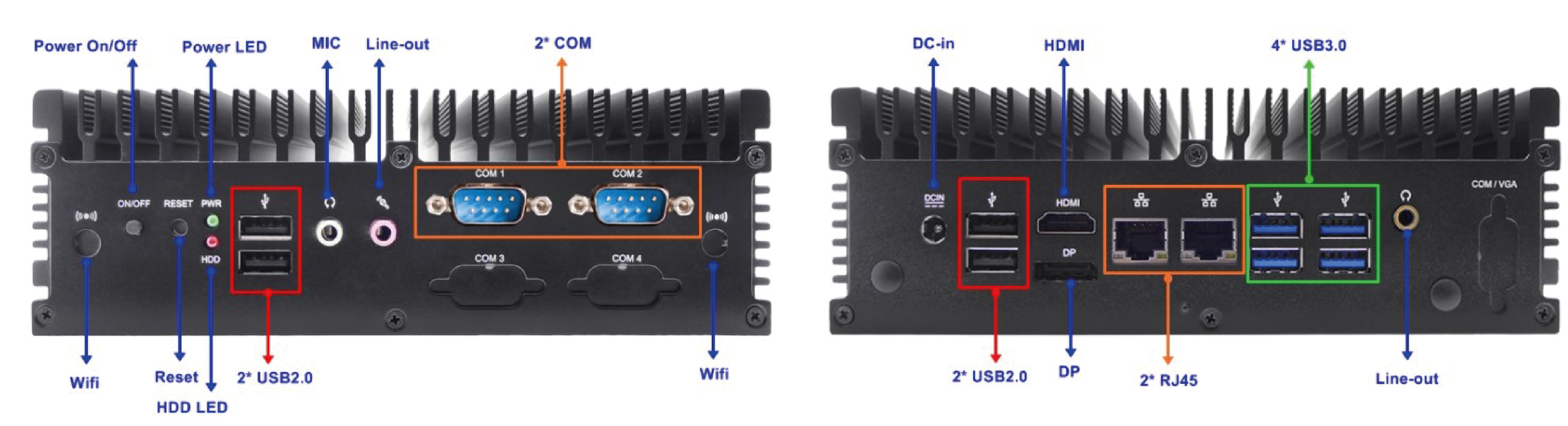

I/O INTERFACE | |

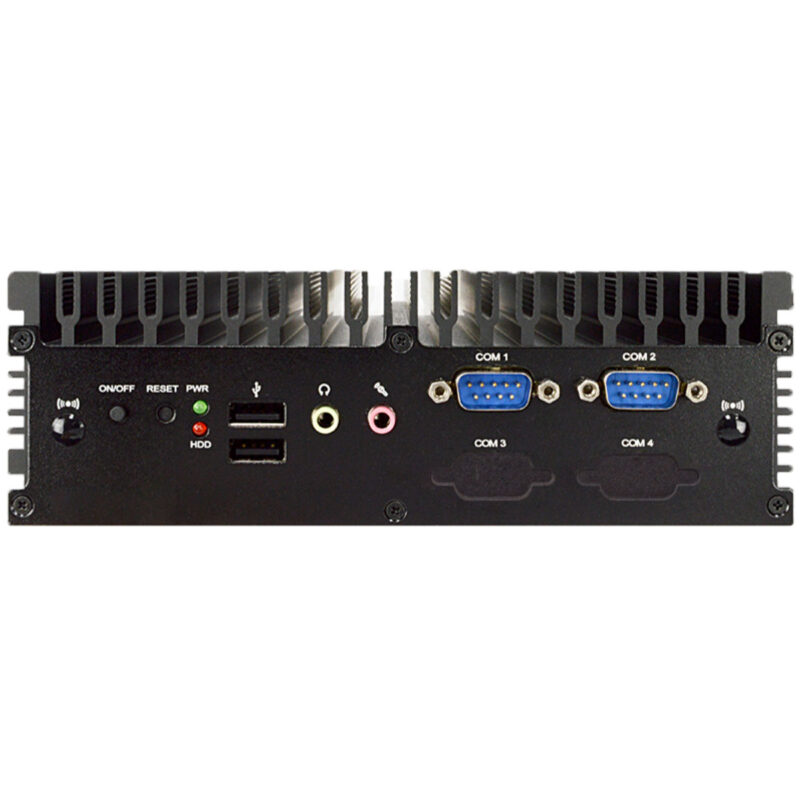

Serial ports: | 1x COM RS232/422/485 (ESD 8kV)
3x COM RS232 |
USB ports: | 4x USB 3.0,
4x USB 2.0 |
Mini-PCIe: | 1x Mini-PCIe (Half size) for WIFI module |
AUDIO: | 1x Headphone Jack,
1x MIC Jack 1x Line-out Jack |
VIDEO | |
GPU: | Intel® HD 620 Graphics |
Interface: | 1x HDMI (Up to 4096×2304 @24Hz)
1x DP (Up to 4096×2304 @60Hz) |
ETHERNET | |
LAN: | 1x Intel® i219LM PHY Gigabit LAN (iAMT 11.0)
1x Intel® i211AT PCI-E Gigabit LAN |
POWER | |
Power in: | 9 to 24V, DC-in |
Max Power: | 60W max |
Adapter: | AC_90~240V / DC_12V_3A/60W |
MECHANICAL | |
Material: | Lightweight aluminum alloy with extruded aluminum IO panel |

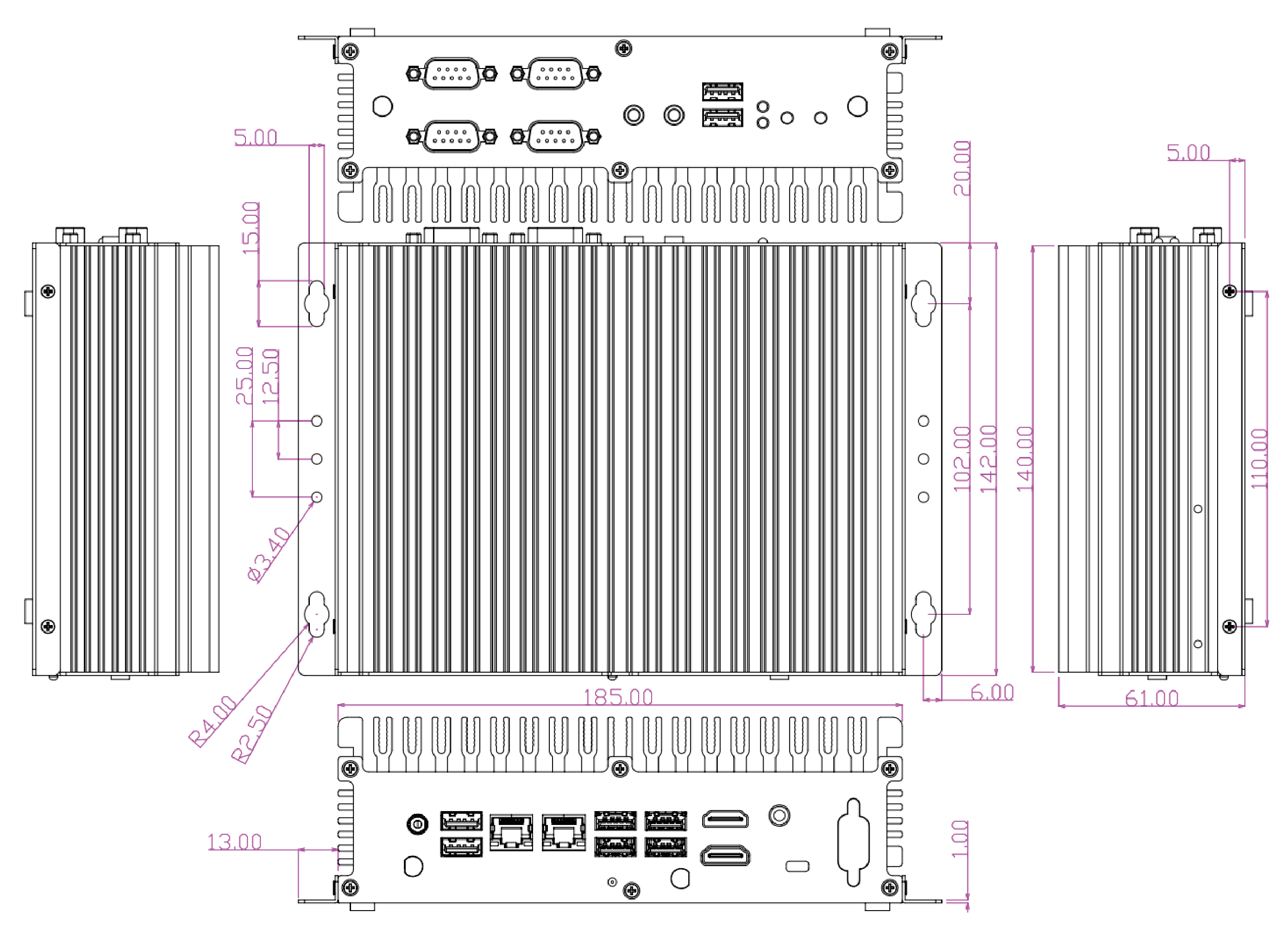

Dimensions: | (L)185x(W)142x(H)60mm |
Weight: | 2.2Kg |
Mounting: | WallMount + DIN Rail |
ENVIRONMENT | |
Operating temp.: | 0°C to 50°C with air flow |
Storage temp.: | -20°C to 70°C |
Humidity: | 5% to 95% Humidity, non-condensing |
EMC: | CE, FCC, RoHS, ErP Ready |
OPERATIVE SYSTEM | |
MS Windows: | Windows 10, Windows 10 Enterprise LTSC,
Windows 11, Windows 11 Enterprise LTSC |
Linux*: | Ubuntu 20.04 LTS, CentOS 8, Debian 10,
Fedora 34, pfSence 2.4.4, FreeNAS 11.2 |
* Linux distributions tested with the IPC. |
Codici di ordinazione
IPC | |||
MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
BOLT i5 7200U | 10005376 | B04-14C-BOLT-I57200U–R16–SSD512 | IPC + 8GB RAM + M2 256GB SSD + WIFI6 |
RAM | R08 | 8GB RAM |
R16 | 16GB RAM | |
R32 | 32GB RAM |
STORAGE | SSDXXX | 128GB to 1TB, 2,5” type |
MSDXXX | 64GB to 1TB, mSATA type |
ACCESSORIES | |||
MODEL NAME | PART NUMBER | DESCRIPTION | |
HDMI to VGA converter | 10003577 | HDMI to VGA converter |
File scaricabili
DATASHEET | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
BOLT I5 7200U | v1.0 | 2023-06-01 | 726 KB |
MANUAL | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
BOLT I5 7200U manual | v1.0 | 2023-06-01 | 5.99 MB |
HARDWARE INSTALLATION GUIDE | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
BOLT I5 7200U HIG | v1.0 | 2023-06-01 | 5.99 MB |
DRIVERS | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
BOLT I5 7200U drivers | v1.0 | 2023-06-01 | 4.3 GB |
