ES-A08F1-PU
Unmanaged Industrial Automation Ethernet Switch
8x 10/100BaseT(X) (RJ45)
Broadcast storm protection
Supports IEEE 802.3/ 802.3u/ 802.3x
QoS and packet prioritization according to 802.1p and Profinet CC-A requirements
10/100M, Full/Half-Duplex, MDI/MDI-X auto-detection
Redundant dual DC power inputs 9~48 VDC (5.4W)
Operating temperature ranges from 0˚ ~ +60˚C
Rugged plastic housing
DIN-Rail or wall mounting ability
INDATECH Industrial Automation Switch NETLANCE ES-A08F1-PU
Unmanaged Industrial Automation Ethernet Switch, 8x 10/100BaseT(X), Rugged plastic housing, IP30, Redundante with Reverse Polarity Protection 9~48VDC
QoS and packet prioritization according to 802.1p and Profinet CC-A requirements
Specifiche tecniche
| ETHERNET | |
| Connector: | RJ45 |
| Ports: | 8 |
| Standards: | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/ 100BASE-FX |
| Auto MDI/MDI-X: | Yes |
| POWER | |
| Input Voltage: | 9 ~ 48 VDC |
| Input Current: | 0.60A |
| Power Consumption: | 5.4 W Max |
| Connector: | 5.08mm 5-pin Terminal Block |
| Reverse Polarity Protection: | Yes |
| Redundancy: | Yes |
| PHYSICAL CHARACTERISTICS | |
| Housing: | IP30 protection, plastic housing |
| Dimension (W x H x D): | 45mm x 90mm x 80mm |
| Weight: | 155g |
| Installation: | DIN-Rail , Wall mount (optional kit) |
| Reset Button: | No |
| Warranty: | 5 years |
| ENVIRONMENTAL LIMITS | |
| Operating Temperature: | 0°C ~ +60°C ( 32° ~ 140°F ) |
| Storage Temperature: | -20° ~ +70°C ( -4°~ 185°F ), 5 ~ 95% RH |
| MTBF (MIL-HDBK-217F): | 112092 |
| Ambient Relative Humidity: | 5 ~ 95%RH (Non-condensing) |
| High Altitude: | Certified for 4000m altitude according to IEC 60068-2-13 |
| CERTIFICATION | STANDARD |
| RoHS 2: | Yes |
| REACH | Yes |
| EMC | EN55032:2012/AC:2013 Class A, EN61000-3-2:2014, EN61000-3-3:2013, EN61000-6-4:2007, EN55024:2010/A1:2015, IEC 61000-4-2:2008-12, IEC 61000-4-3:2010-04, IEC 61000-4-4:2012-04, IEC 61000-4-5:2014, IEC 61000-4-6:2013-10, IEC 61000-4-8:2009-09, IEC 61000-4-11:2004-03,EN61000-6-2:2005/AC:2005 |
| EMS: | ESD Level 2, RS Level 2, EFT Level 2, Surge Level 2, CS Level 2, PFMF Level1, DIP. |
| Shock | IEC 60068-2-27 |
| Drop | ISTA Test Procedure 2A |
| Vibration | IEC 60068-2-64 |
| Protection | IP30 protection, plastic housing |
Codici di ordinazione
| IPC | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| ES-A08F1-PU | 10006030 | INDATECH NETLANCE – Unmanaged Industrial Automation Ethernet Switch, 8x 10/100BaseT(X), Rugged plastic housing, IP30, Redundante with Reverse Polarity Protection 9~48VDC | |

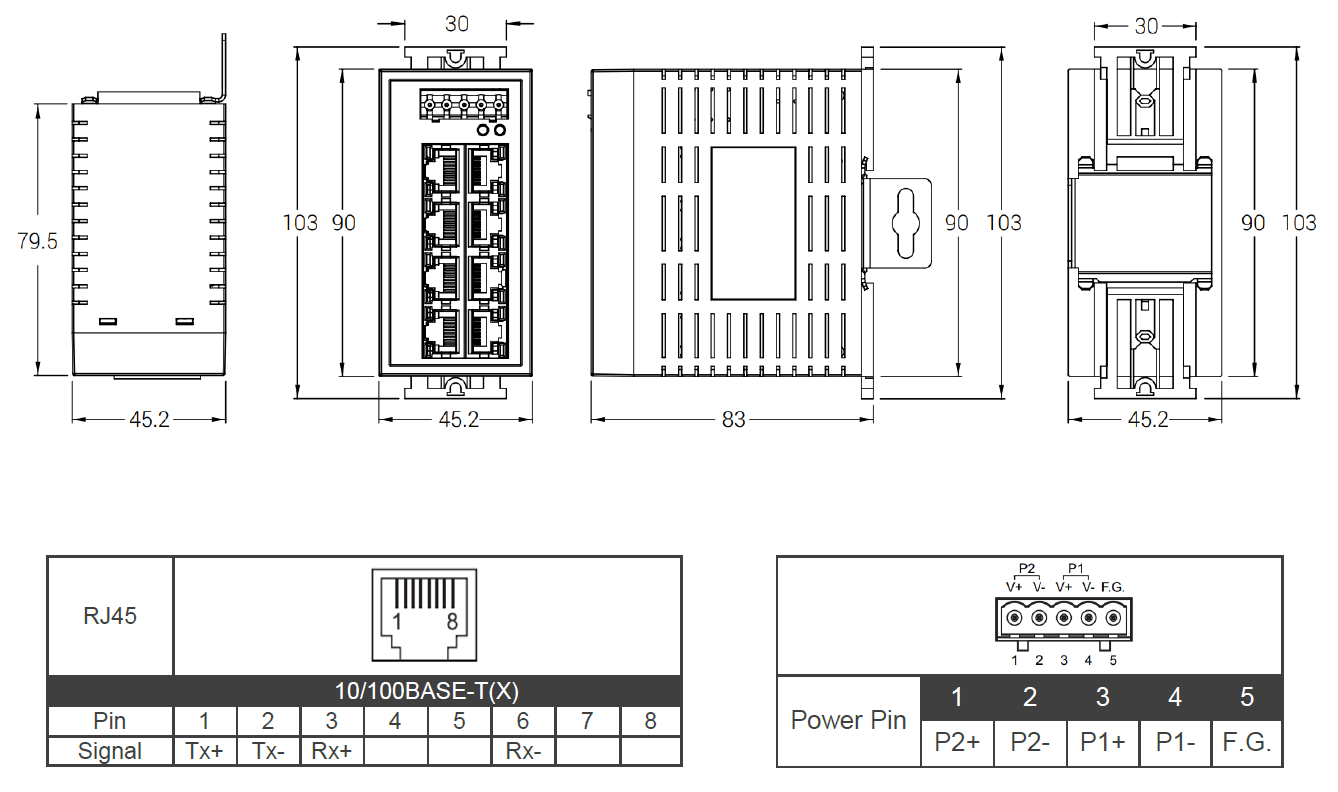

Disegni tecnici
File scaricabili
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| ES-A08F1-PU | v1.0 | 2023-07-26 | 289KB |  |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| ES-A08F1-PU Drivers | TBD | TBD | TBD | |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| ES-A08F1-PU manual | TBD | TBD | TBD | |

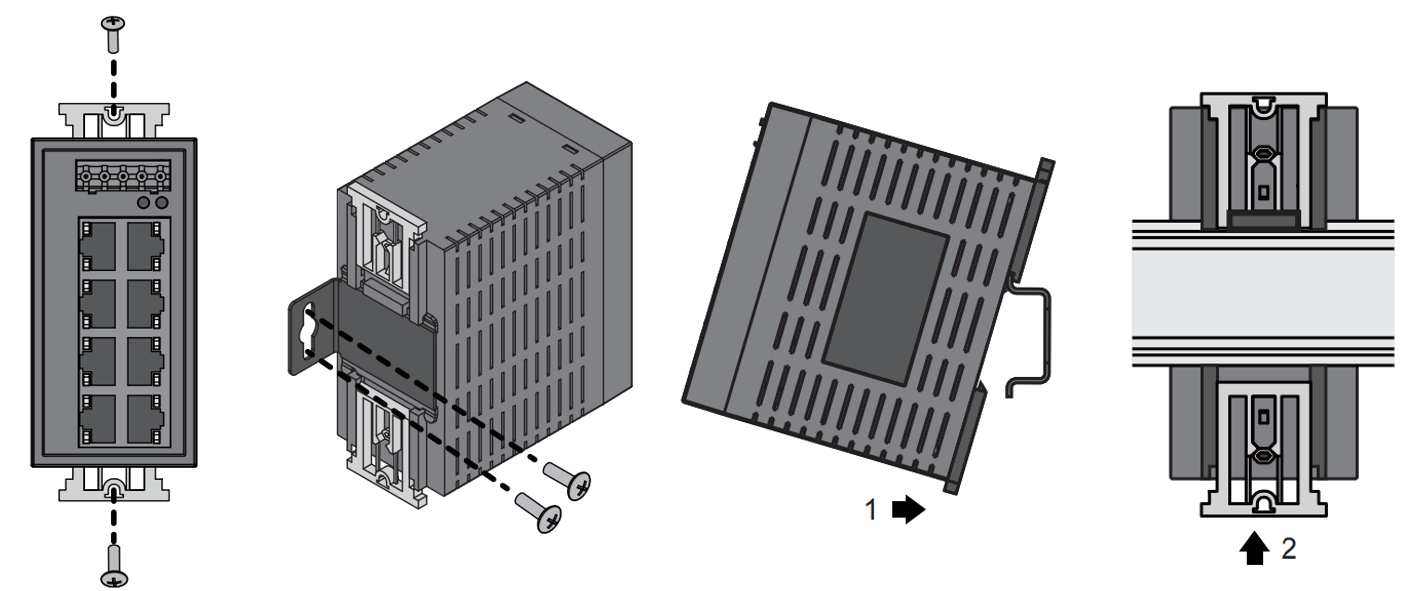

| HARDWARE INSTALLATION GUIDE | ||||
