BRICK J6412
Intel® Elkhart Lake SoC Processor (J6412)
2x DDR4 3200 MHz up to 32GB RAM
32GB Onboard eMMC (Storage)
Extended power supply range from 12V to 24V
2x LAN Intel® Gigabit Ethernet
2x 4K Video interface (HDMI)

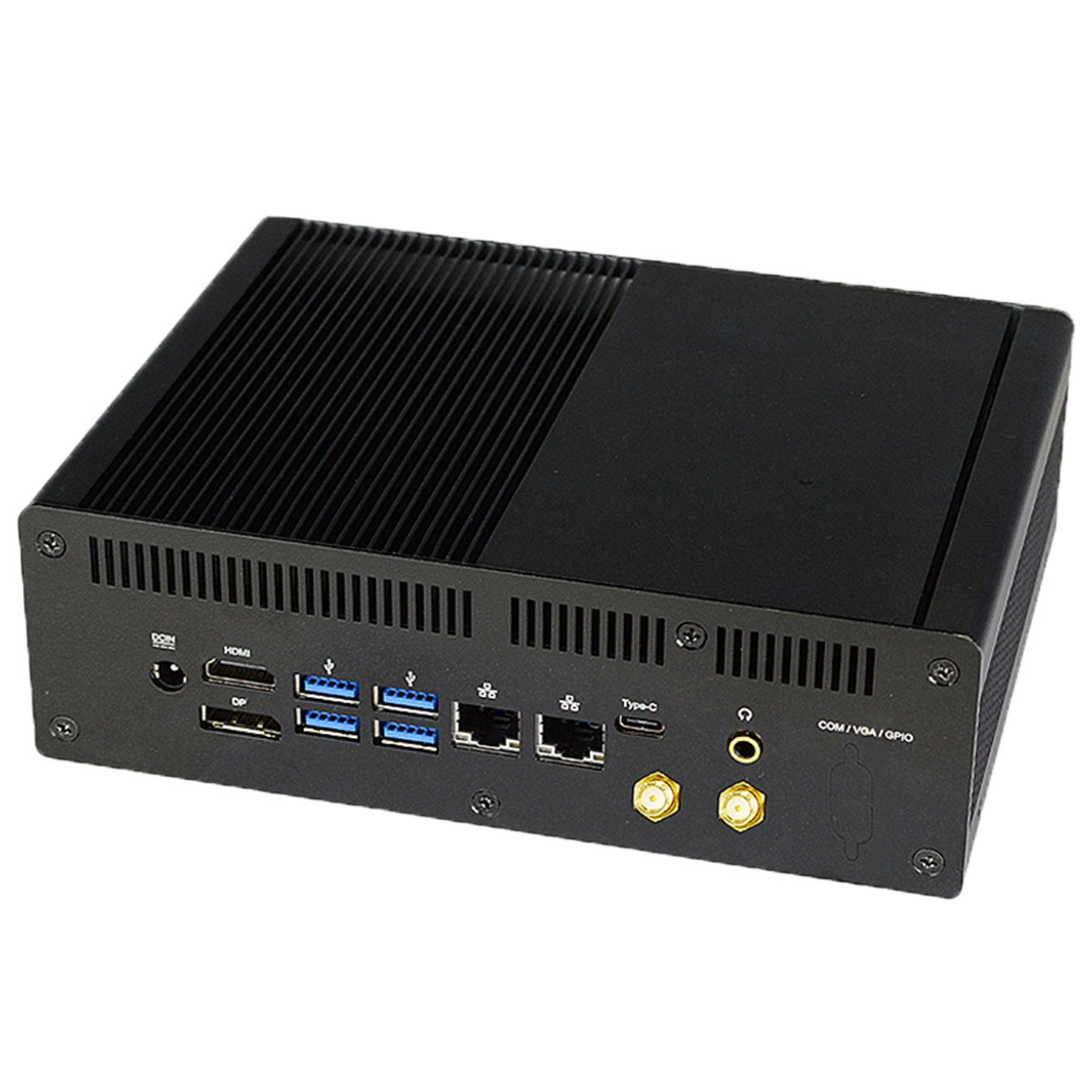

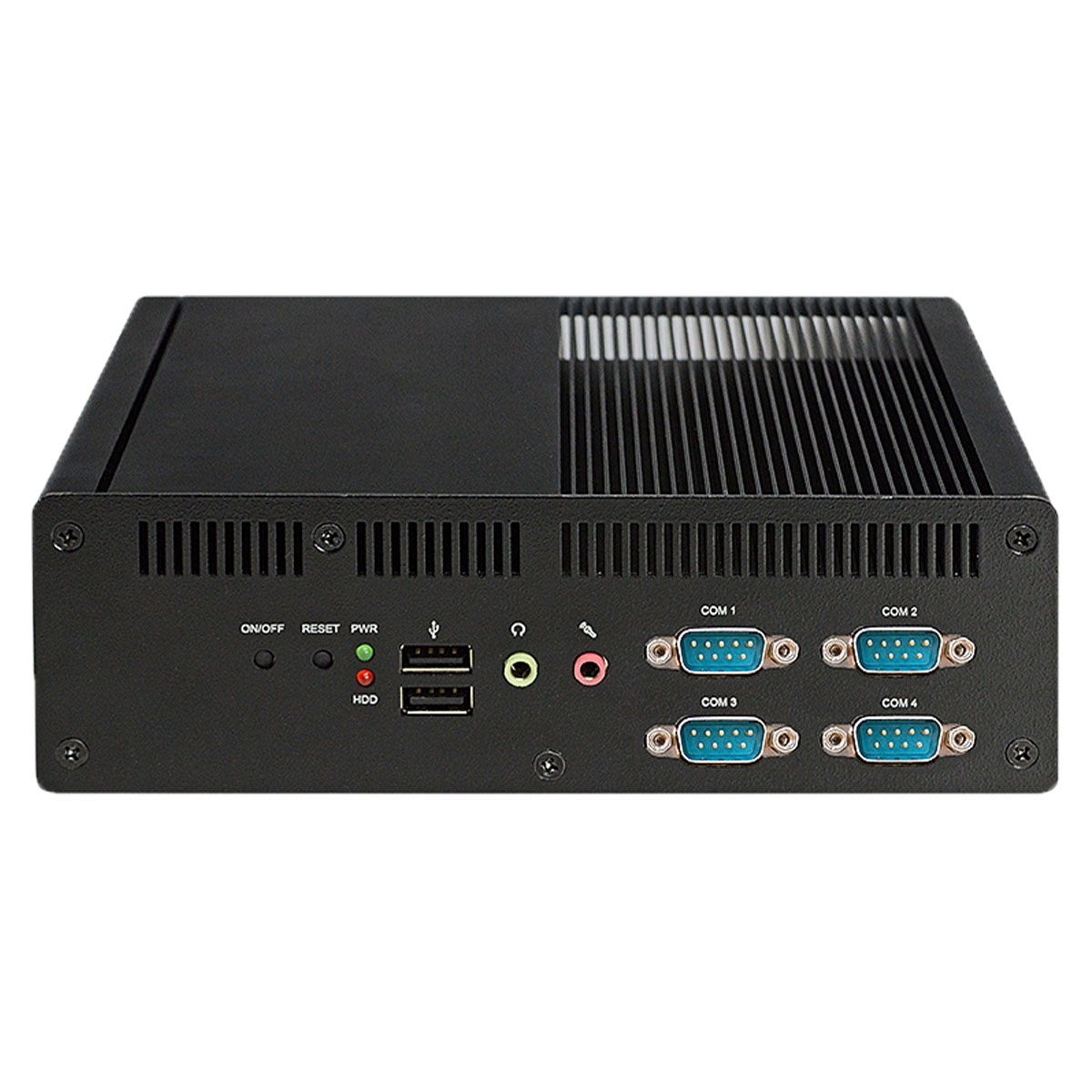

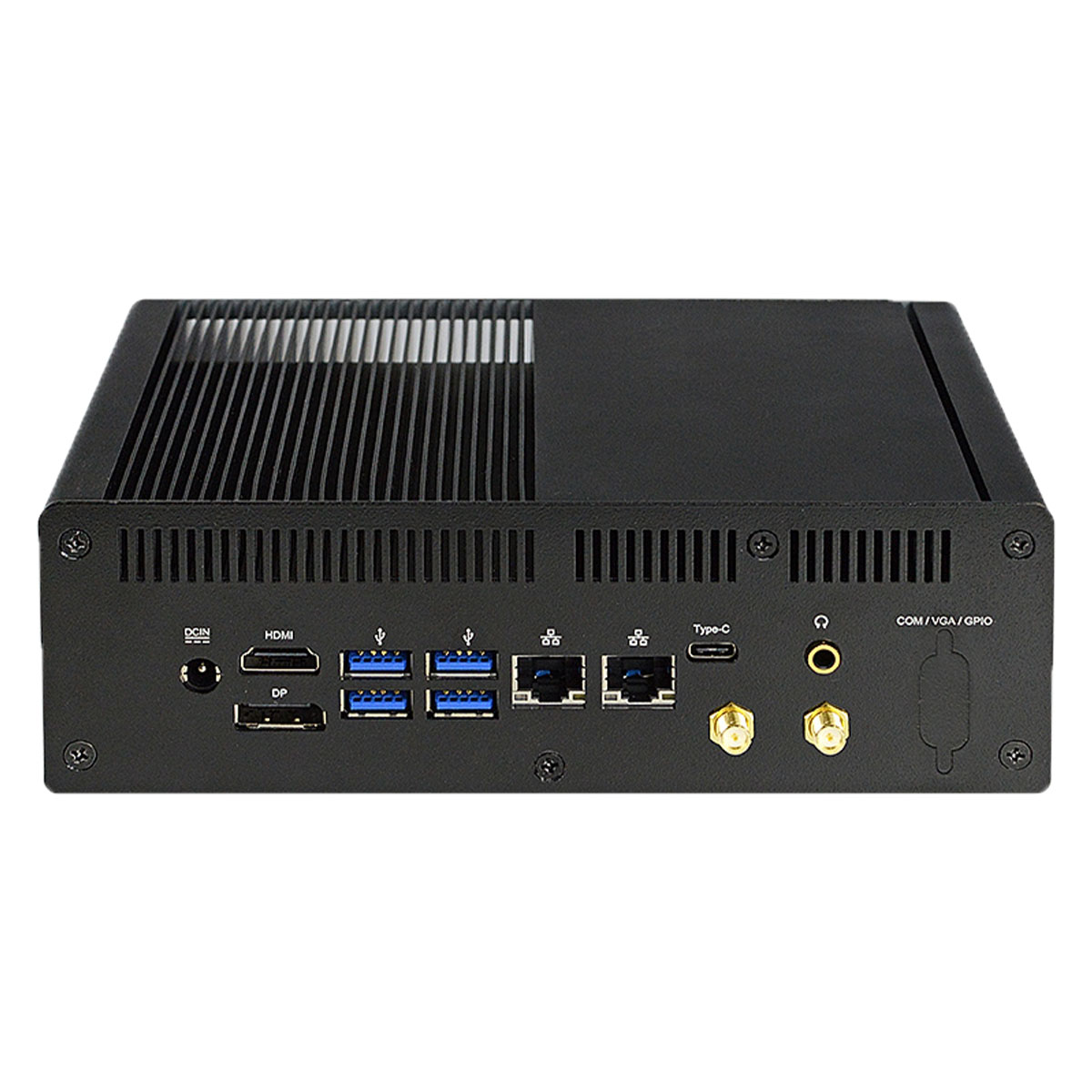

INDATECH Industrial PC Brick J6412
Specifiche tecniche
MAINBOARD | |
CPU: | Intel® Celeron J6412
4 Core / 4 Thread 2.0 GHz (Base) / 2.6GHz (Turbo) 10W |
MEMORY | |
Capacity: | up to 32GB |
Frequency: | 3200 MHz |
Type: | 2x SO-DIMM DDR4 |
STORAGE | |
SATA: | 1x SATA3 |
eMMC: | 32GB onboard eMMC |
M.2: | 1x M.2 M-Key (2242/2260/2280) Support NVMe |
Storage Bay: | 1x Internal 2.5” SSD Bay |

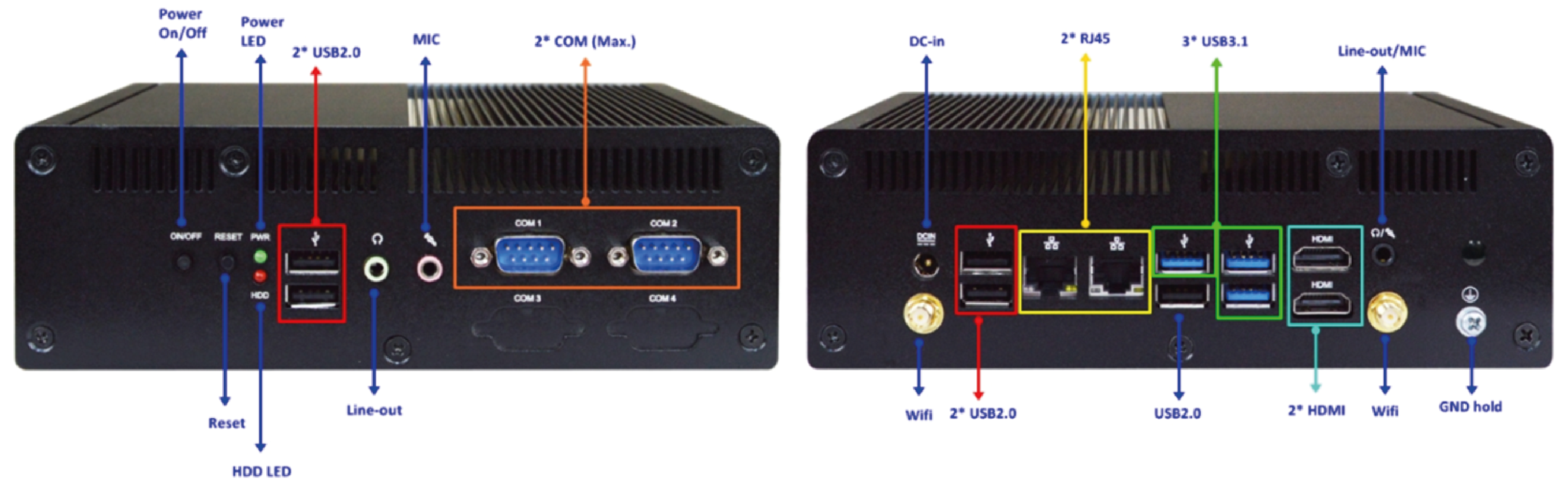

I/O INTERFACE | |
Serial ports: | 1x COM RS232/422/485
1x COM RS232 |
USB ports: | 3x USB 3.1,
5x USB 2.0 |
M.2: | 1x M.2 E-Key (2230)
1x M.2 B-Key (3042) Support USB |
AUDIO: | 1x Headphone Jack,
1x MIC Jack 1x Line-out Combo Jack |
VIDEO | |
GPU: | Intel® UHD 620 Graphics |
Interface: | 2x HDMI 1.4 (Up to 4096×2160 @60Hz) |
ETHERNET | |
LAN: | 2x Intel® i225LM 2.5GbE Gigabit LAN |
POWER | |
Power in: | 9 to 24V, DC-in |
Max Power: | 60W max |
Adapter: | AC_90~240V / DC_12V_5A/60W |
MECHANICAL | |
Material: | Lightweight aluminum alloy with extruded aluminum IO panel |

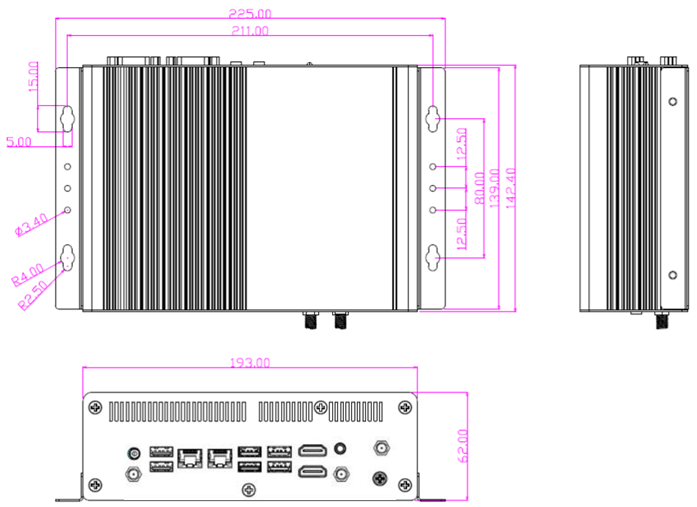

Dimensions: | (W)193x(D)142.4x(H)62mm |
Weight: | 2.2Kg |
Mounting: | WallMount + DIN Rail |
ENVIRONMENT | |
Operating temp.: | 0°C to 50°C |
Storage temp.: | -20°C to 85°C |
Humidity: | 10% to 90% RH @40°C, non-condensing |
EMC: | CE, FCC, RoHS, LVD, ErP Ready |
OPERATIVE SYSTEM | |
MS Windows: | Windows 10, Windows 10 Enterprise LTSC,
Windows 11, Windows 11 Enterprise LTSC |
Linux*: | Ubuntu 20.04 LTS, CentOS 8, Debian 10,
Fedora 34, pfSence 2.4.4, FreeNAS 11.2 |
* Linux distributions tested with the IPC. |
Codici di ordinazione
IPC | |||
MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
BRICK J6412 | 10005376 | B04-25C-BRICK-J6412–RXX–SSDXXX | IPC + 8GB RAM + M2 256GB SSD + WIFI6 |
RAM | R08 | 8GB RAM |
R16 | 16GB RAM | |
R32 | 32GB RAM |
STORAGE | SSD (2,5”) | M2D/SSD128 |
MSD (mSATA) | M2D/SSD256 | |
M2D (M.2) | Other on Request |
ACCESSORIES | |||
MODEL NAME | PART NUMBER | DESCRIPTION | |
HDMI to VGA converter | 10003577 | HDMI to VGA converter |
File scaricabili
DATASHEET | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
BRICK J6412 | v1.0 | 2023-06-01 | 850 KB |
MANUAL | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
BRICK J6412 manual | v1.0 | 2023-06-01 | 5.99 MB |
HARDWARE INSTALLATION GUIDE | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
BRICK J6412 HIG | v1.0 | 2023-06-01 | 5.99 MB |
DRIVERS | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
BRICK J6412 drivers | v1.0 | 2023-06-01 | 4.3 GB |
