BULL 6305e
Intel® Celeron 6305e, 2 Core / 2 Thread 1.80 GHz,15W [Tiger Lake]
2x DDR4 3200 MHz up to 64GB RAM
Power supply range from 12V to 24V, DC
2x LAN Intel® Gigabit Ethernet (1x 2.5GbE + 1x 1GbE)
4x 4K HDR Video interface (HDMI+DP) or 1x 8K SDR Display (DP)

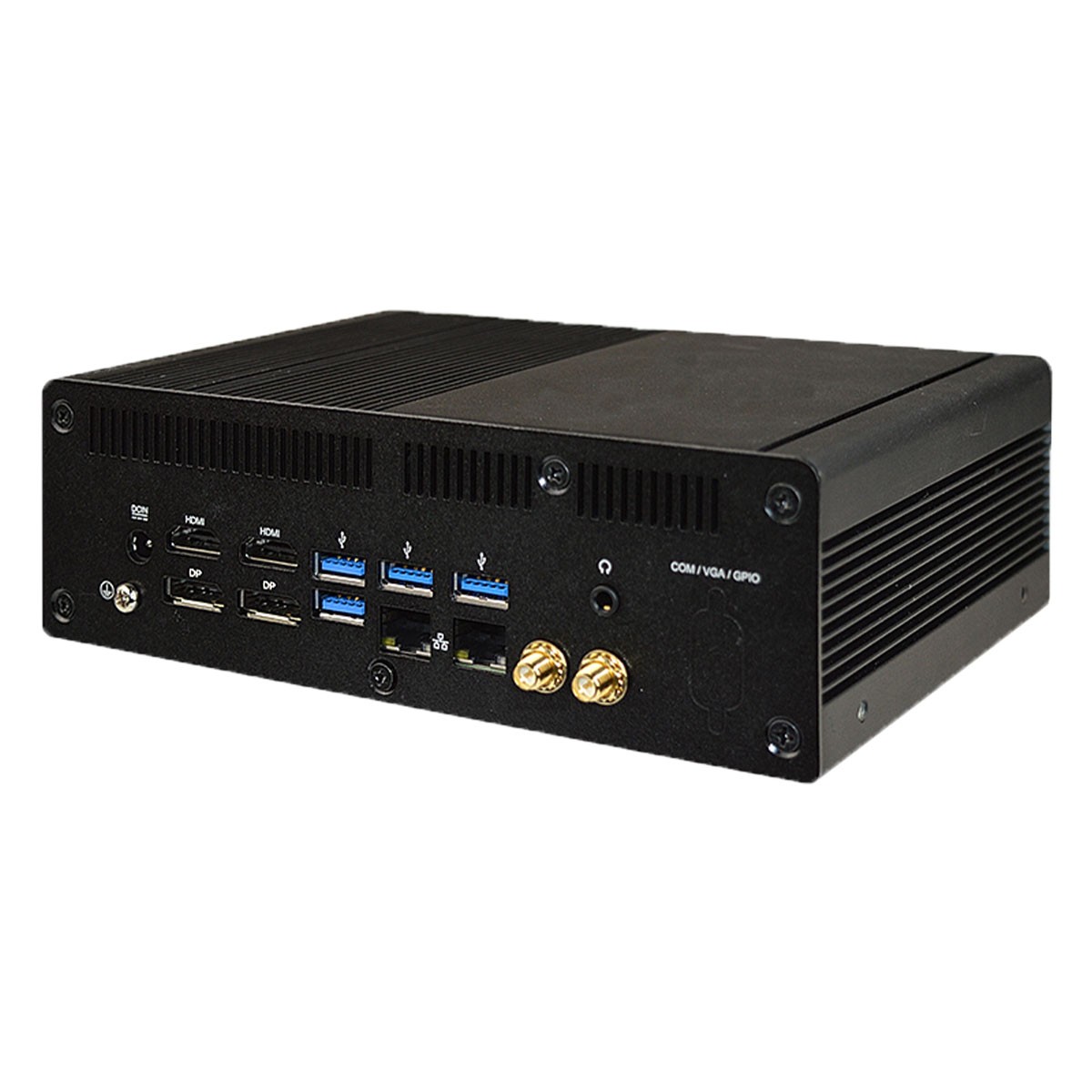

INDATECH Industrial PC Bull 6305e
Specifiche tecniche
MAINBOARD | |
CPU: | Intel® Celeron 6305e
2 Core / 2 Thread 1.80 GHz, 15W |
TPM: | TPM 2.0 / Intel fTPM 2.0 (PTT) |
MEMORY | |
Capacity: | up to 64GB |
Frequency: | 3200 MHz |
Type: | 2x SO-DIMM DDR4 |
STORAGE | |
SATA: | 1x SATA3 |
M.2: | 1x M.2 M-Key (2242/2280) NVMe PCIe 4.0 x4 |
Storage Bay: | 1x Internal 2.5” SSD Bay (Optional) |

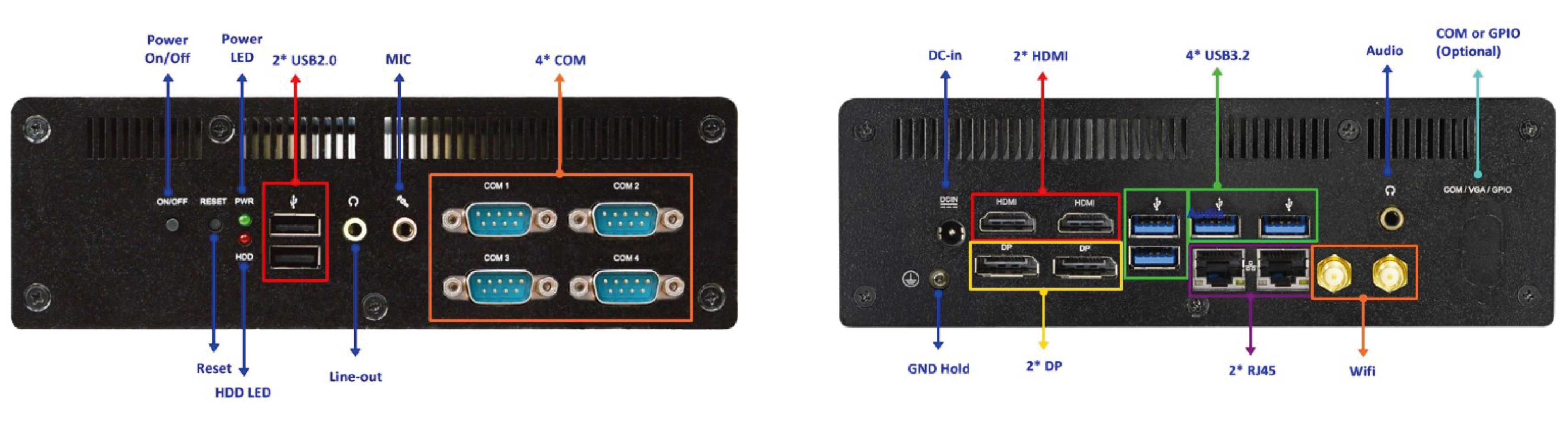

I/O INTERFACE | |

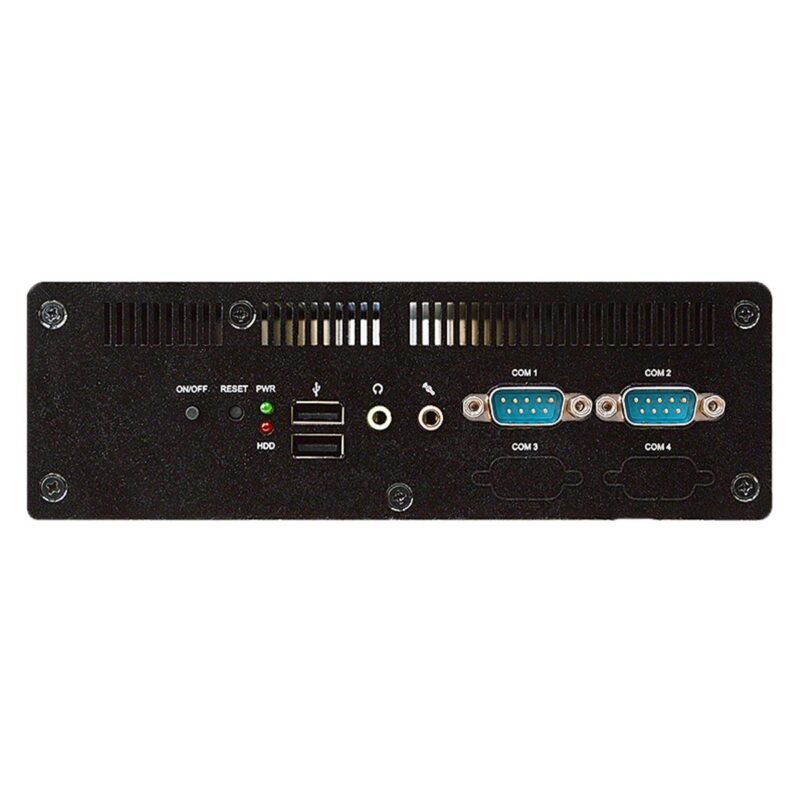

Serial ports: | 2x COM RS232/422/485
2x COM RS232 |
USB ports: | 4x USB 3.2,
2x USB 2.0, |
M.2: | 1x M.2 E-Key (2230) USB 2.0/PCIe x1 for WIFI/BT – Support CNVi |
AUDIO: | 1x Headphone Jack,
1x MIC Jack 1x Line-out Combo Jack |
VIDEO | |
GPU: | Intel® UHD Graphics (Tiger Lake G4) |
Interface: | 2x HDMI 2.0b (Up to 4096×2160 @60Hz)
2x DP 1.4 (Up to 4096×2304 @60Hz) |
ETHERNET | |
LAN: | 1x Intel® i225-LM 2.5GbE Gigabit LAN
1x Intel® i219-LM PHY Gigabit LAN |
POWER | |
Power in: | 12 to 24V, DC-in |
Max Power: | 90W max |
Adapter: | AC_90~240V / DC_12V_5A/60W |
MECHANICAL | |
Material: | Lightweight aluminum alloy with extruded aluminum IO panel |

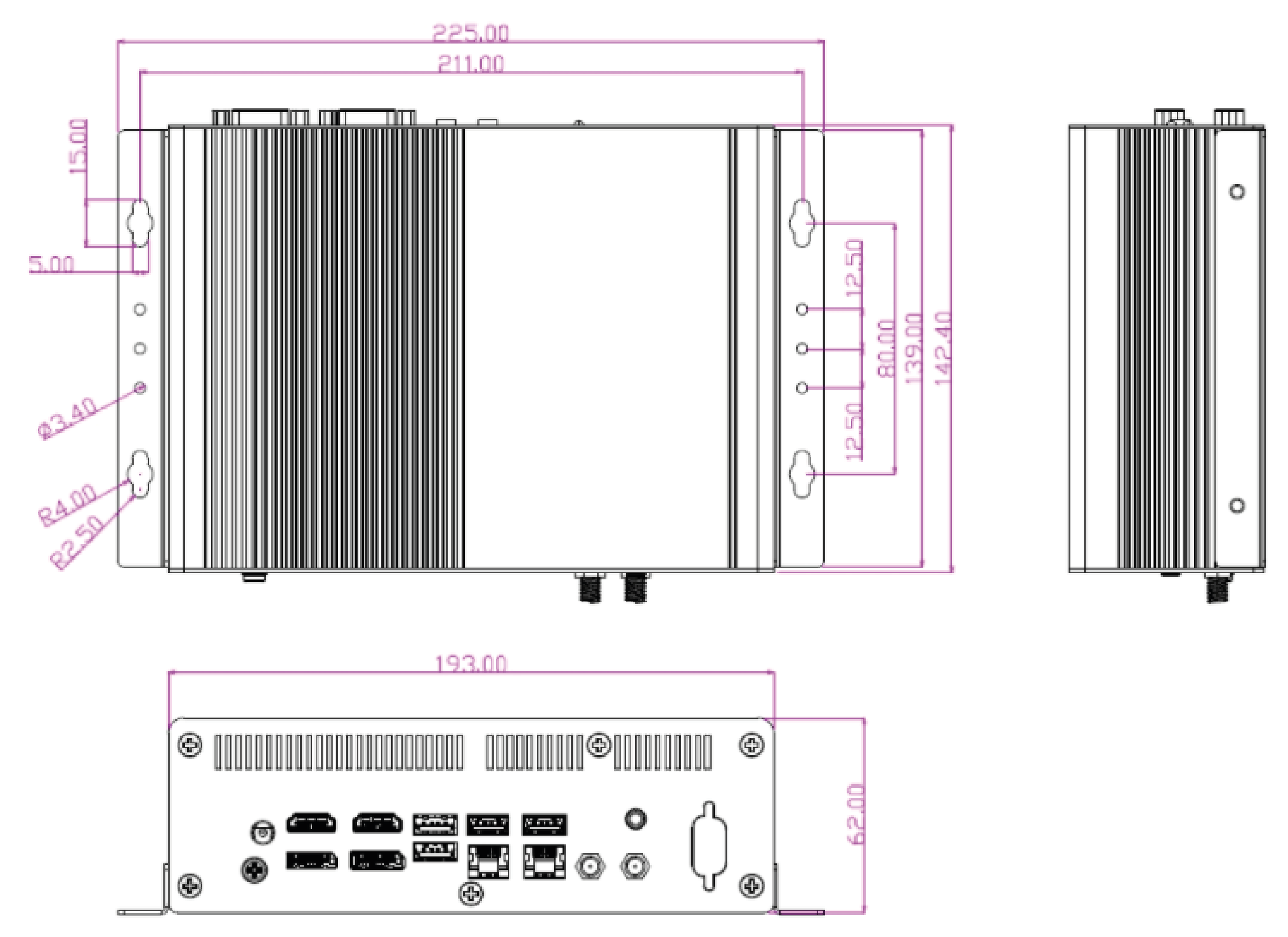

Dimensions: | (W)193x(D)142.4x(H)62mm |
Weight: | 2.2Kg |
Mounting: | WallMount + DIN Rail |
ENVIRONMENT | |
Operating temp.: | 0°C to 50°C |
Storage temp.: | -20°C to 85°C |
Humidity: | 40% to 60% RH @40°C, non-condensing |
EMC: | CE, FCC, RoHS, LVD, ErP Ready |
OPERATIVE SYSTEM | |
MS Windows: | Windows 10, Windows 10 Enterprise LTSC,
Windows 11, Windows 11 Enterprise LTSC |
Linux*: | Ubuntu 20.04 LTS, CentOS 8.2, Debian 10,
Fedora 34, pfSence 2.4.4, FreeNAS 11.2 |
* Linux distributions tested with the IPC. |
Codici di ordinazione
IPC | |||
MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
BULL 6305e | 10005376 | B04-32C-BULL-6305e–RXX–M2DXXX | IPC + 8GB RAM + M2 256GB SSD + WIFI6 |
RAM | R08 | 8GB RAM |
R16 | 16GB RAM | |
R32 | 32GB RAM | |
R64 | 64GB RAM |
STORAGE | SSD (2,5″) | M2D/SSD128 |
M2D (M.2) | Other on Request |
ACCESSORIES | |||
MODEL NAME | PART NUMBER | DESCRIPTION | |
HDMI to VGA converter | 10003577 | HDMI to VGA converter |
File scaricabili
DATASHEET | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
BULL 6305e | v1.0 | 2023-06-01 | 912 KB |
MANUAL | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
BULL 6305e manual | v1.0 | 2023-06-01 | 5.99 MB |
HARDWARE INSTALLATION GUIDE | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
BULL 6305e HIG | v1.0 | 2023-06-01 | 5.99 MB |
DRIVERS | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
BULL 6305e drivers | v1.0 | 2023-06-01 | 4.3 GB |
