TIGER
11st Gen. Intel® Tiger Lake – UP3 ULV CPU
Core i7/i5/i3 / Celeron, 15W
Intel® Iris Xe Graphics
up to 32GB RAM
Wide Power Range 8V ~ 24V DC-in
Up to 4x Intel® Ethernet LAN
(1x 2.5GbE + 1x 1GbE + Optional 2x 1GbE )
4x Video interface (2x HDMI 2.0b – 2x DP 1.4)

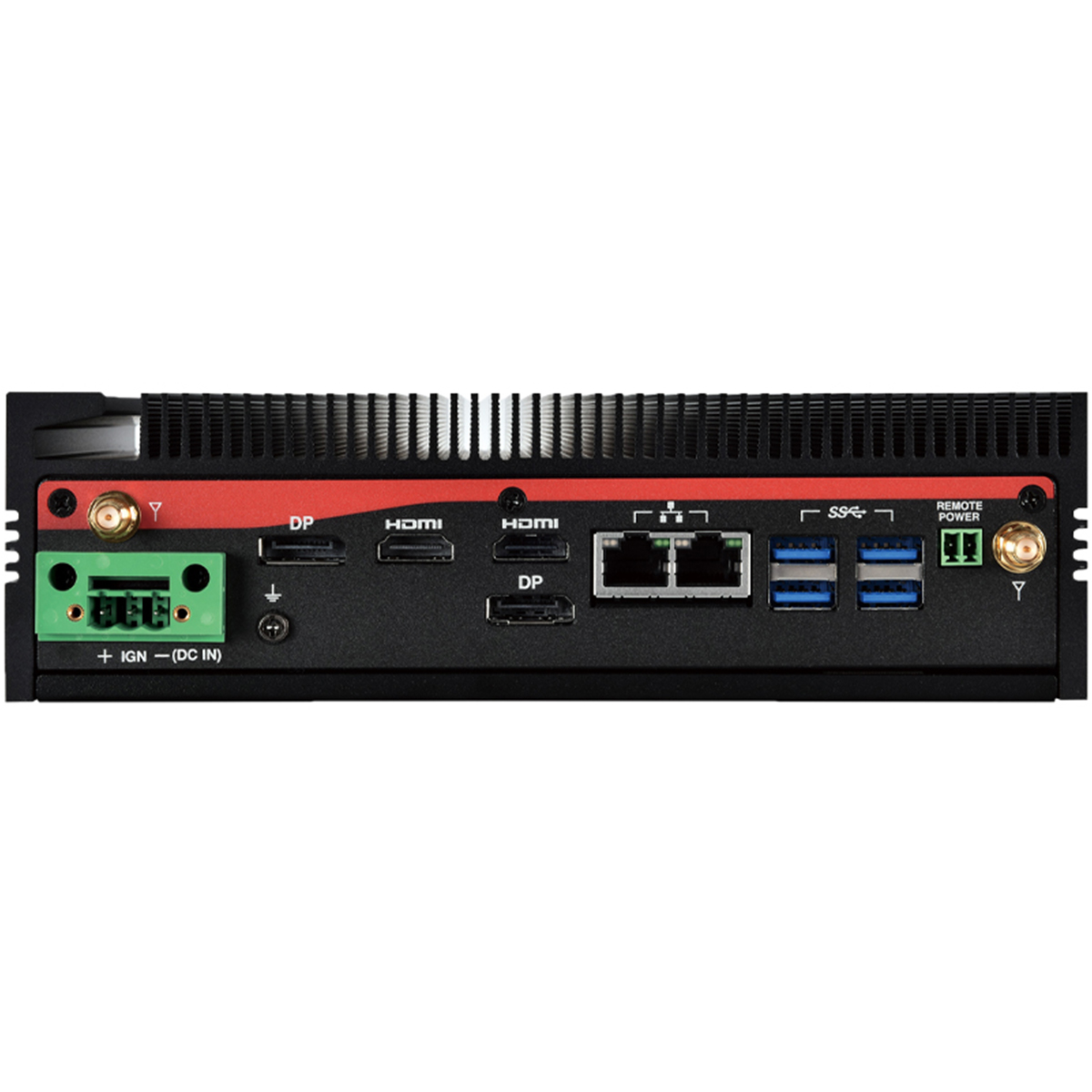

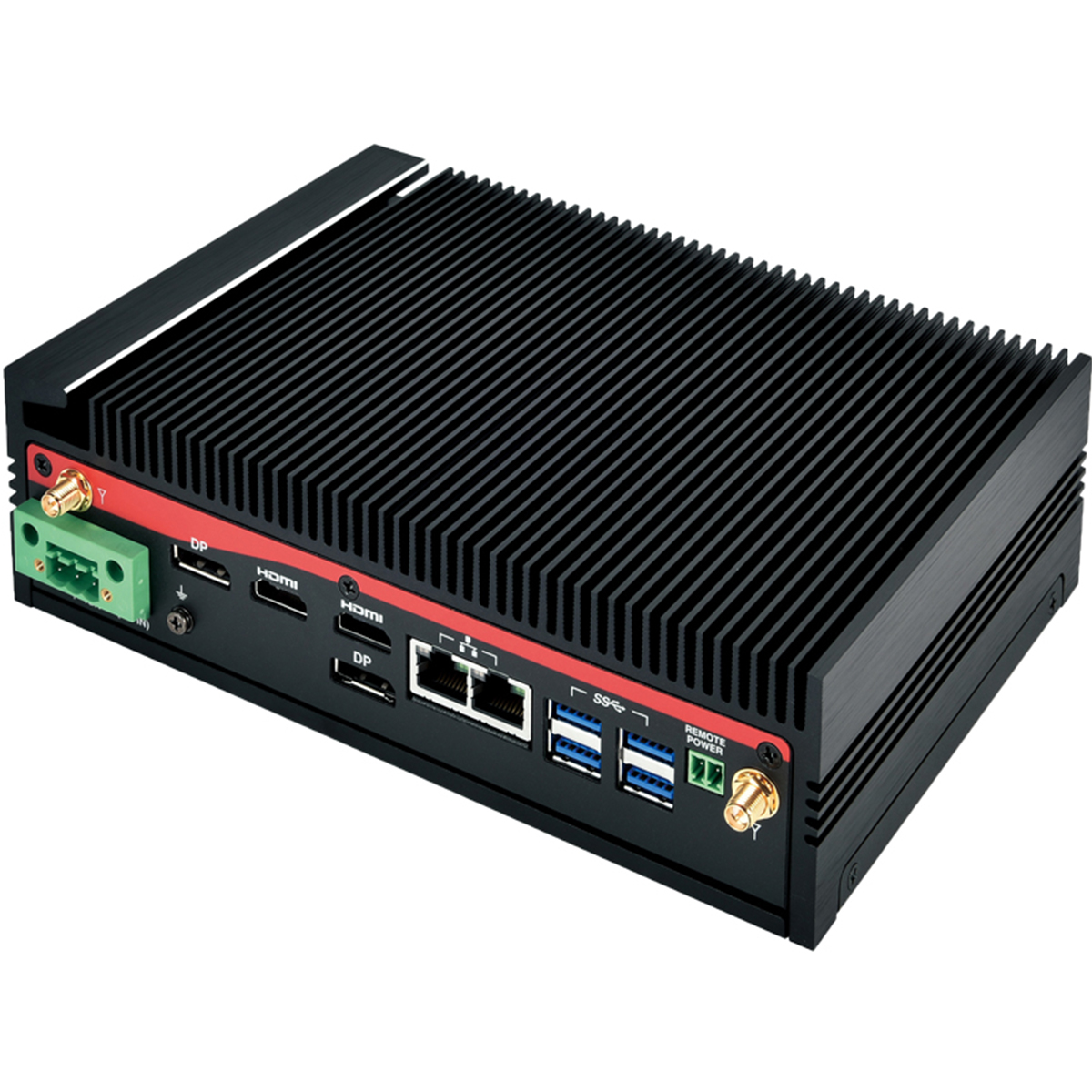

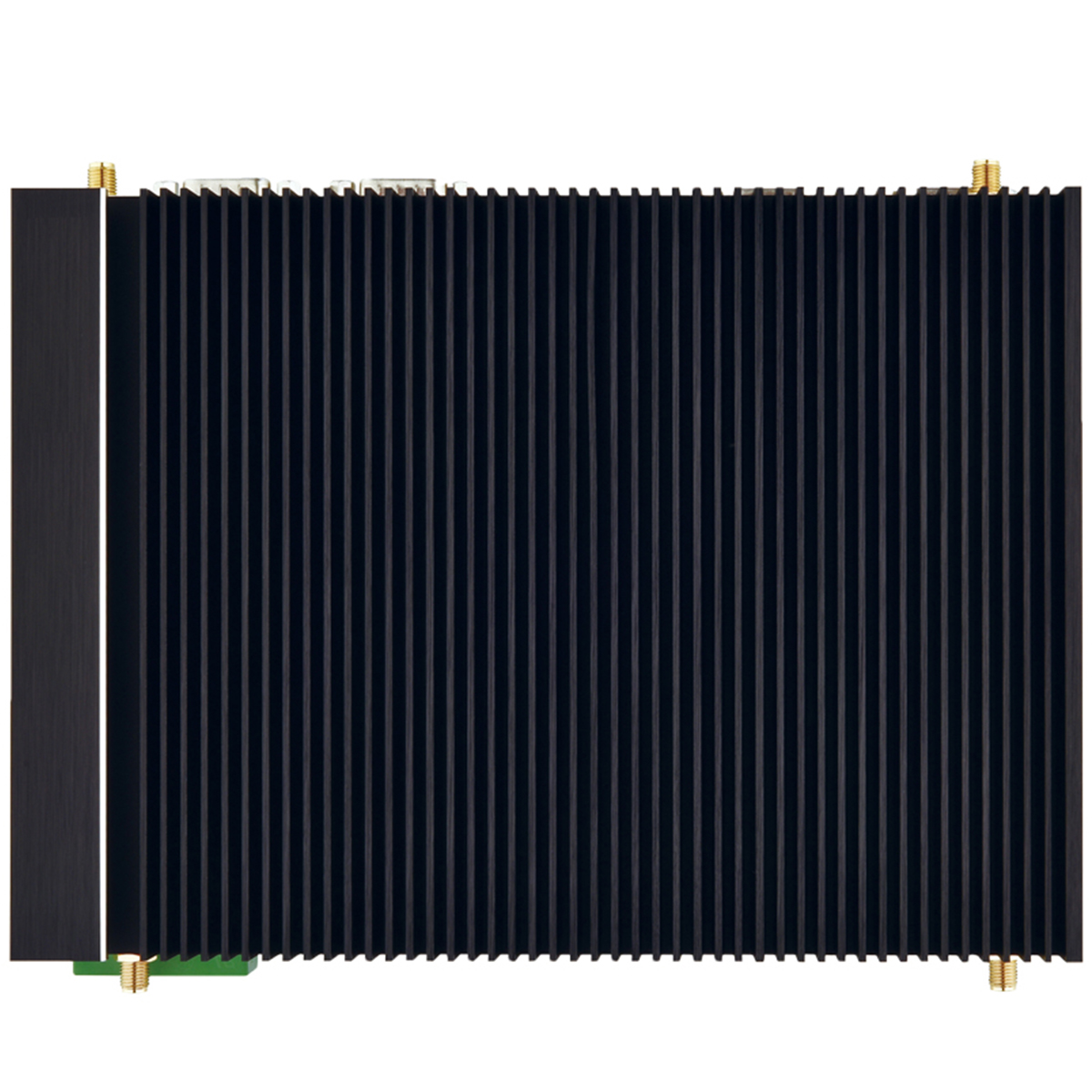

INDATECH Industrial PC TIGER
Specifiche tecniche
MAINBOARD | |
CPU: | 11st Gen Tiger Lake-UP3 ULV CPU
Celeron 6305E – 2 Core/2 Tread 1.8GHz, 15W i3-1115G4E – 2 Core/4 Tread 3.9GHz, 15/28W i5-1145G7E – 4 Core/8 Tread 4.1GHz, 15/28W i7-1185G7E – 4 Core/8 Tread 4.4GHz, 15/28W |
MEMORY | |
Capacity: | up to 32GB |
Frequency: | 3200 MHz |
Type: | 1x SO-DIMM DDR4 |
STORAGE | |
SATA: | 1x SATA3 |
M.2 | 1x M.2 M-Key (2242/2260/2280) |
Storage Bay: | 1x Hot Swappable 2.5” SSD Tray |

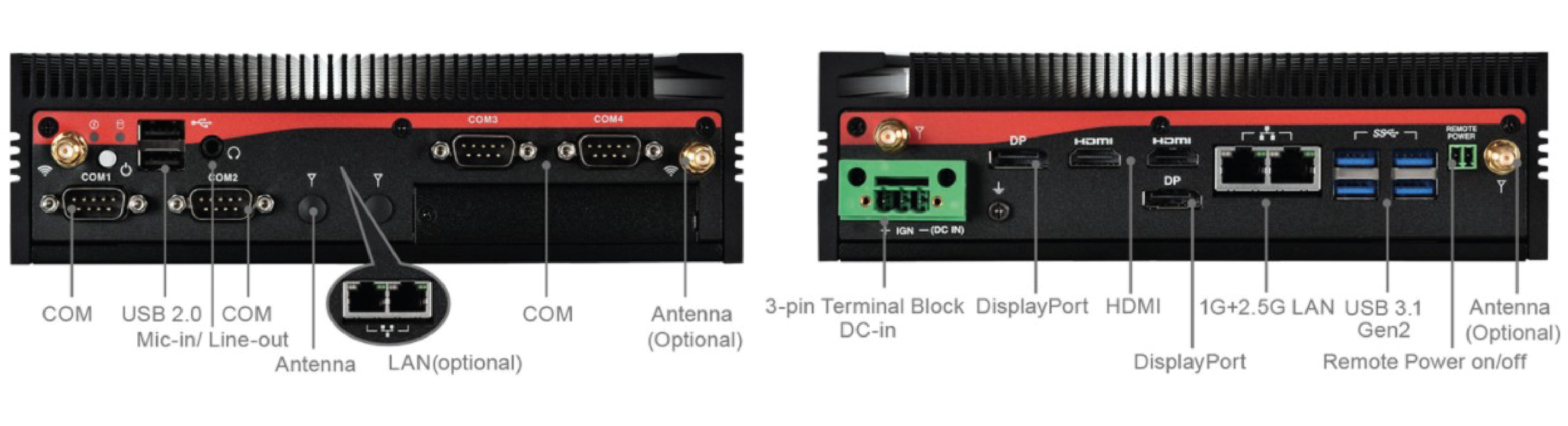

I/O INTERFACE | |

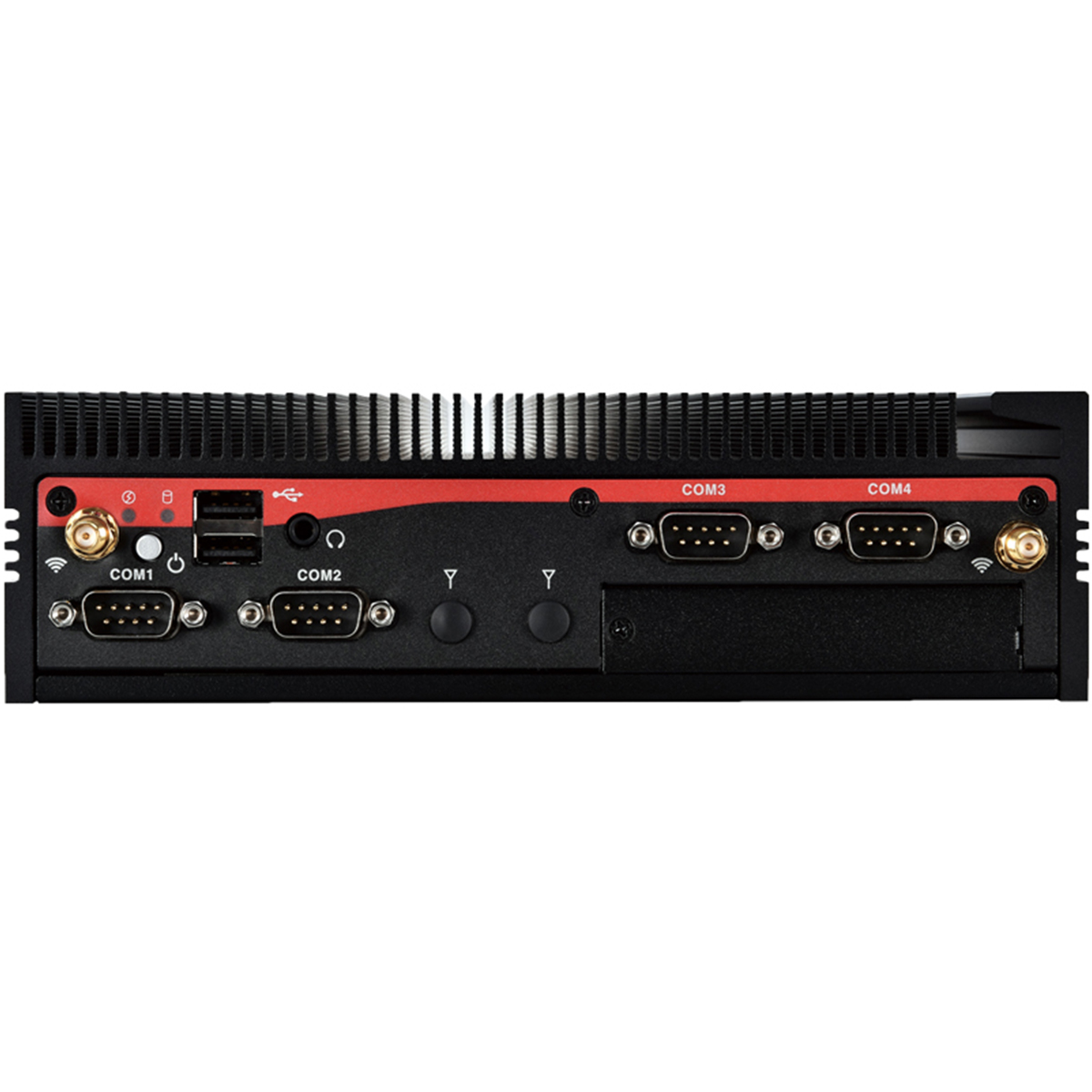

Serial ports: | 1x COM RS232/422/485
3x COM RS232 |
USB ports: | 4x USB 3.1 Gen 2,
2x USB 2.0 |
M.2: | 1x M.2 E-Key (2230) (PCIe/USB) for WIFI (on request)
1x M.2 B-Key (2240/2260/2280/3042/3052) (USB 2.0 / *PCIeX1 / SATA3) for Storage/LTE/5G *Not support M.2 M-Key NVMe SSD |
AUDIO: | 1x MIC/Line-out Jack |
Optional: | 1x COM or GPIO |
VIDEO | |
GPU: | Intel® Iris Xe Graphics |
Interface: | 2x HDMI 2.0b (Up to 4096×2304 @60Hz)
2x DP 1.4 (Up to 7680×4320 @60Hz) |
ETHERNET | |
LAN: | 1x Intel® i219-LM PHY GbE LAN (iAMT 11.0)
1x Intel® i225-LM 2.5GbE LAN 2x Intel® i210-IT GbE LAN (on request) |
POWER | |
Power in: | 8~24V, DC-in |
Max Power: | 60W max |
Adapter: | AC_90~240V / DC_24V_3A/72W |

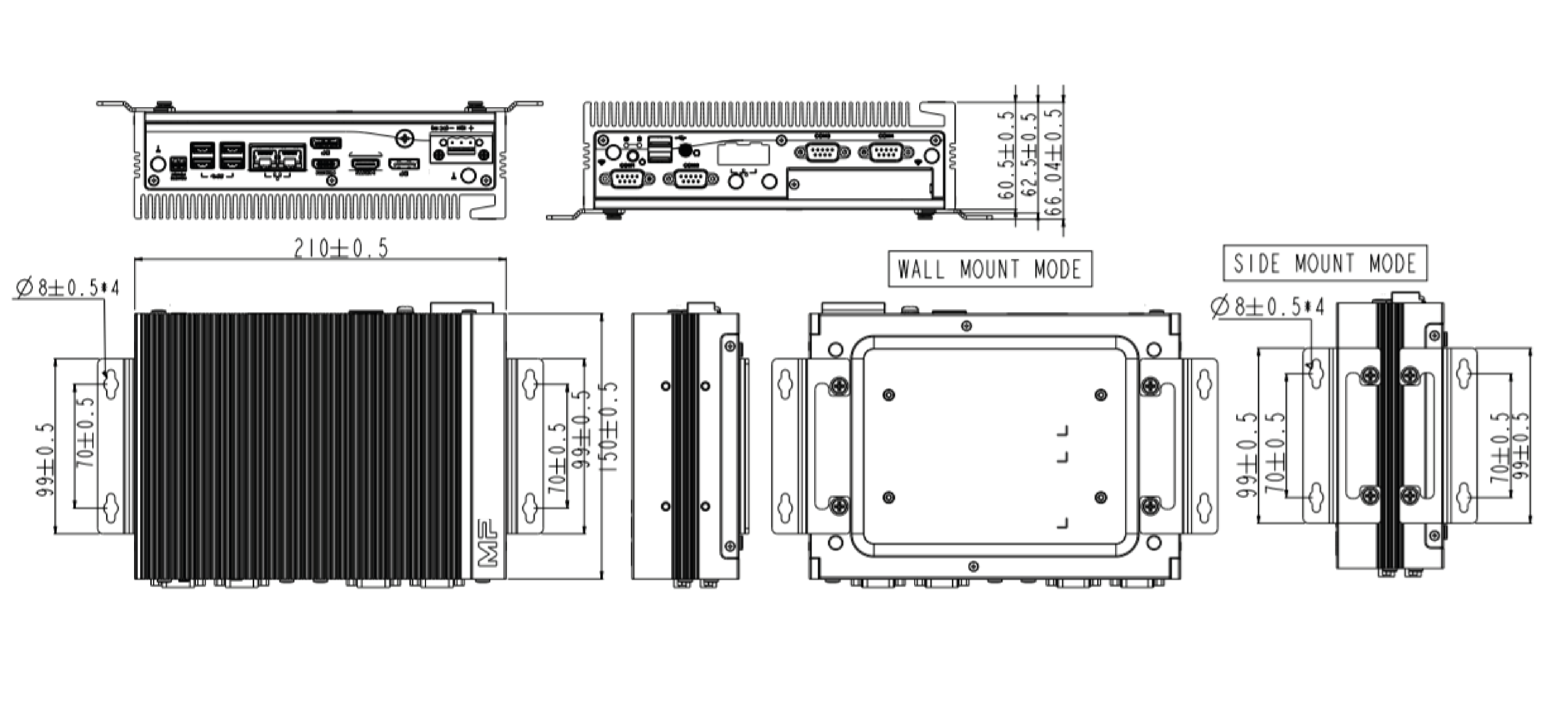

MECHANICAL | |
Material: | Top cover: aluminum alloy; Bezel and chassis:steel |
Dimensions: | (W)210x(D)150x(H)63mm |
Weight: | 2.2Kg |
Mounting: | WallMount / Side Mount / 75×75 VESA Holes + DIN Rail Kit (Optional) |
ENVIRONMENT | |
Operating temp.: | -40°C~60°C (28W) / 70°C (15W) |
Storage temp.: | -40°C~85°C |
Humidity: | 10% ~ 95% Humidity, non-condensing |
EMC: | CE, FCC, Class A, RoHS, LVD, IEC600068-2-27/64 |
OPERATIVE SYSTEM | |
MS Windows: | Windows 10, Windows 10 Enterprise LTSC,
Windows 11, Windows 11 Enterprise LTSC |
Linux*: | Ubuntu 20.04 LTS, CentOS 8, Debian 10,
Fedora 34, pfSence 2.4.4, FreeNAS 11.2 |
* Linux distributions tested with the IPC. |
Codici di ordinazione
IPC | |||
MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
TIGER | TBD | TBD | TBD |
ACCESSORIES | |||
MODEL NAME | PART NUMBER | DESCRIPTION | |
HDMI to VGA converter | 10003577 | HDMI to VGA converter |
