NEW

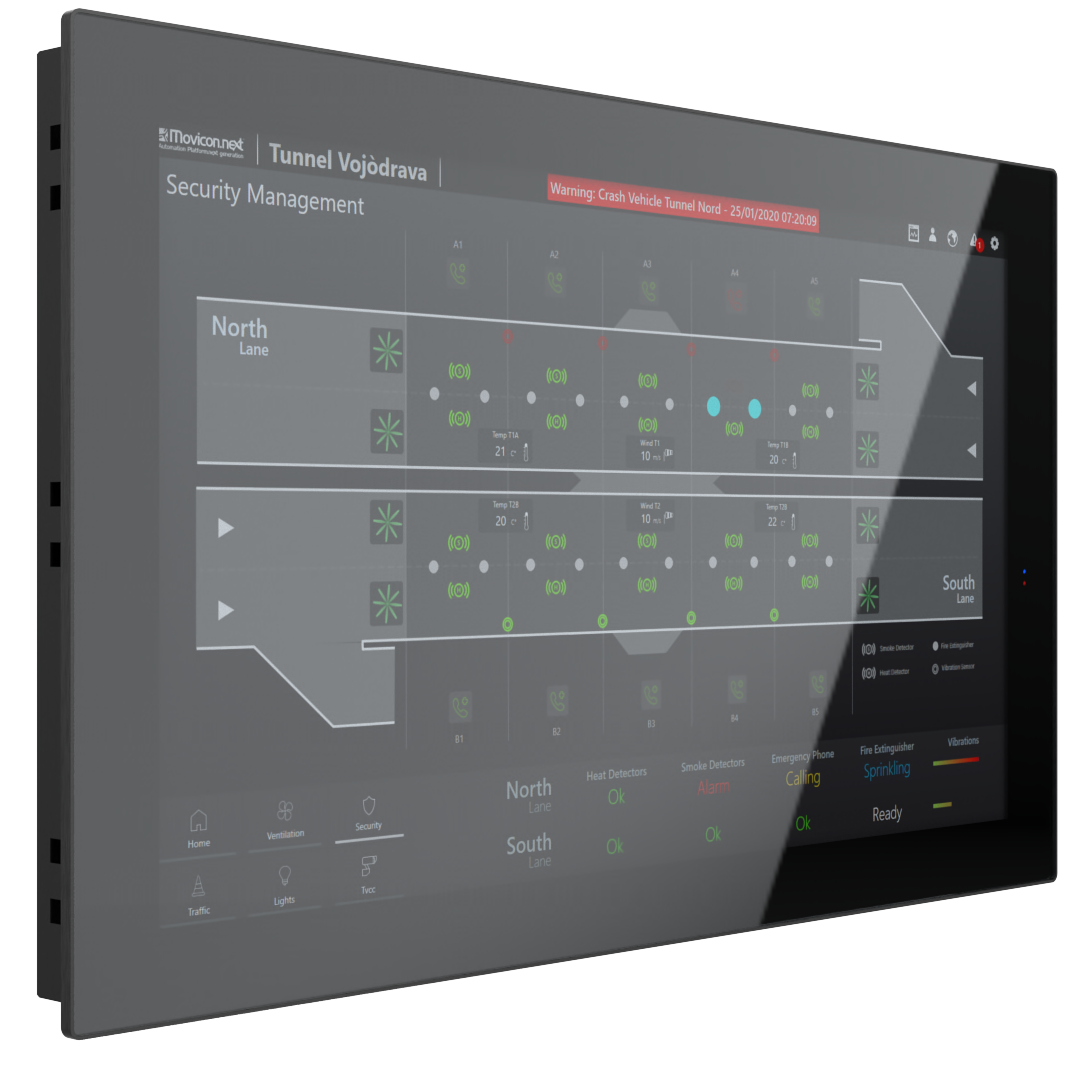

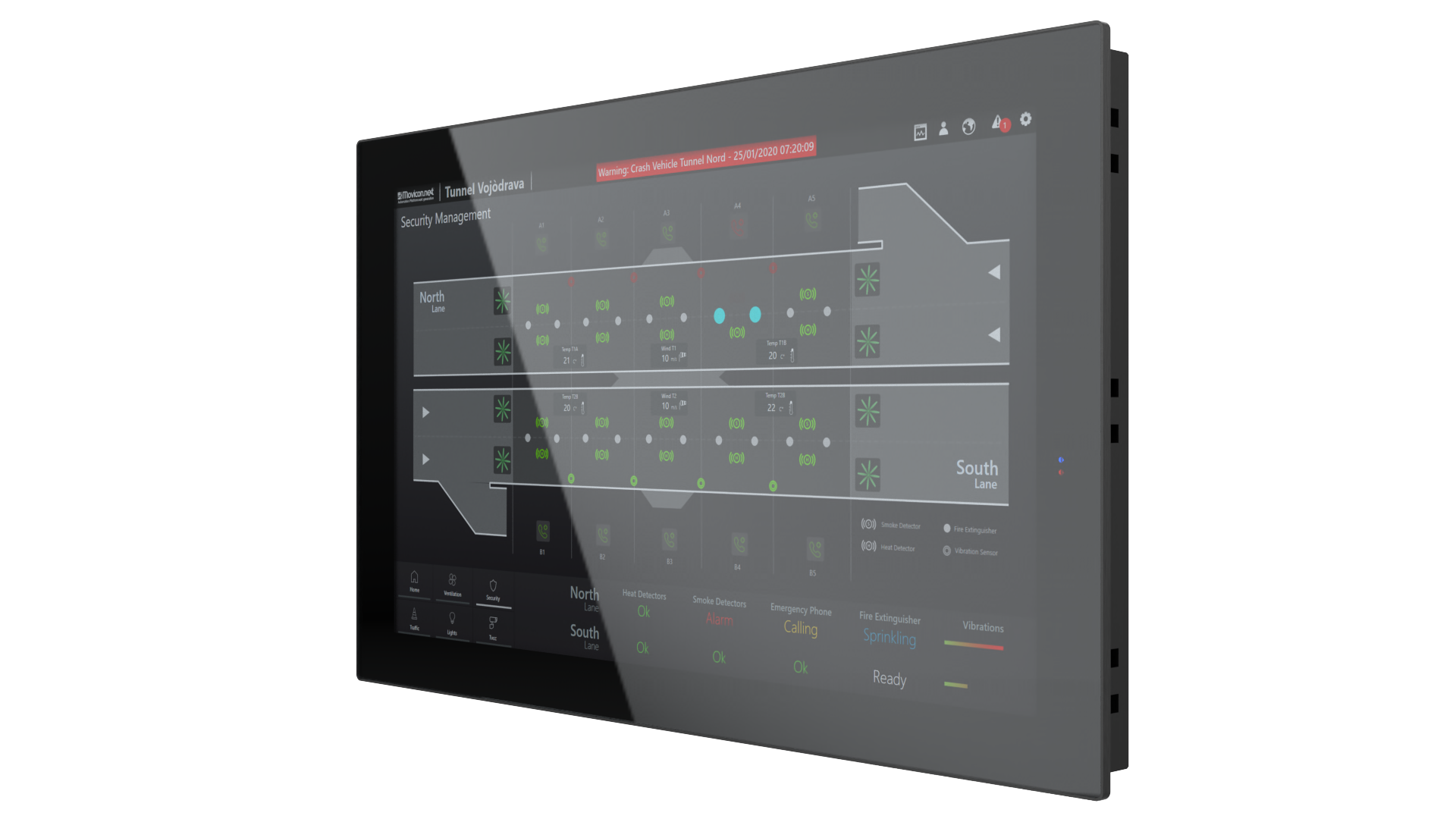

IMF-G240X
23,8” Industrial Panel Monitor (16:9)
Glass Frame front panel
Projective Capacitive Multitouch – 10 points with USB driver interface connection
Two Power options available: 24VDC or 220VAC
Fast mounting with clamps or VESA 100
| DISPLAY | |
| Size: | 24” |
| Resolution: | FullHD (1920×1080) |
| Aspect Ratio: | 16:9 |
| Backlight: | Led |
| Bright and Contrast: | 300 cd/mq 3000:1 |
| Colors: | 16M |
| View Angle: | 178° – 178° |
| FRONT PANEL | |
| Thickness: | 6 mm |
| Connection: | 1x USB 2.0 (Optional) |
| Graphic: | Graphically customizable polyester Only w/ “Aluminum w/ USB Front” |
| Front Panel Type: | “Aluminum True Flat” (Standard)
“INOX w/o USB Front (AISI 316)” “Aluminum w/ USB Front” “Open-frame” |
| TOUCH SCREEN | |
| Glass Thickness: | 3 mm |
| Technology: | Projective Capacitive Multitouch 10 points (Optional with “True Flat”)Resistive 5 wires |
| Connection Type: | USB 2.0 or RS232 |

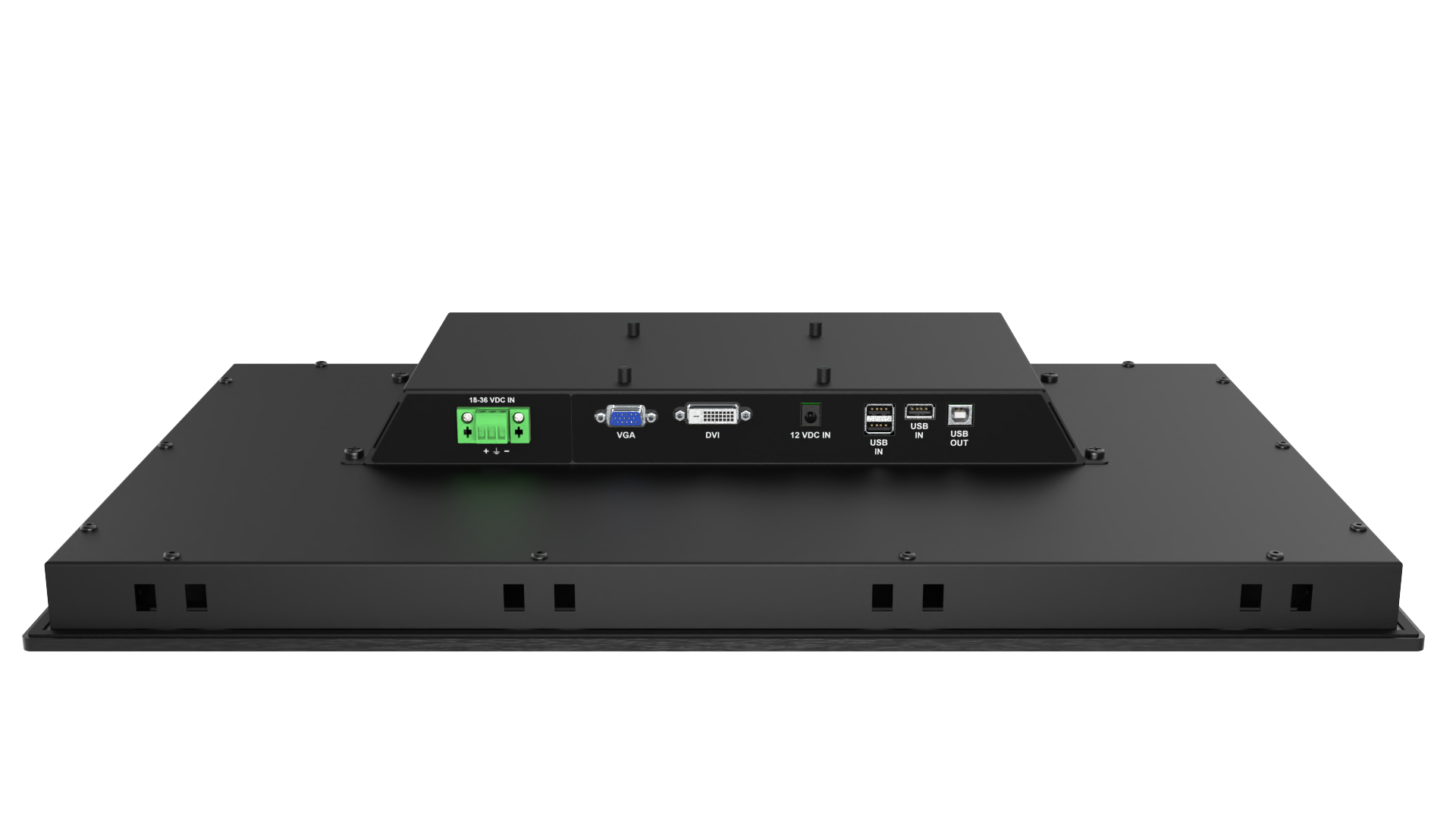

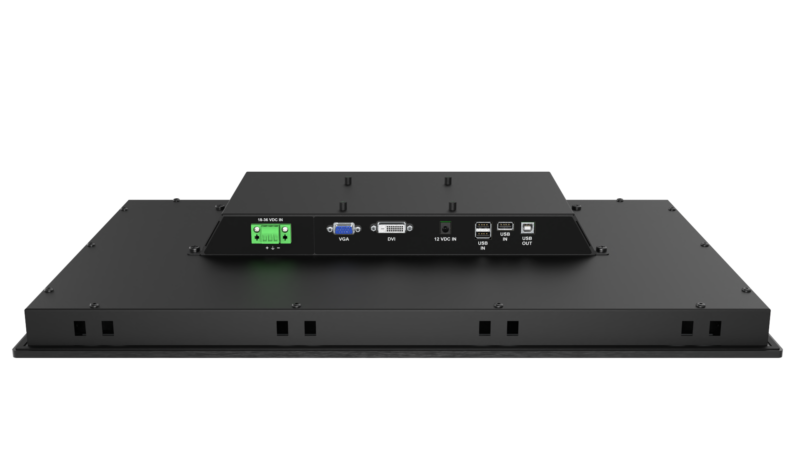

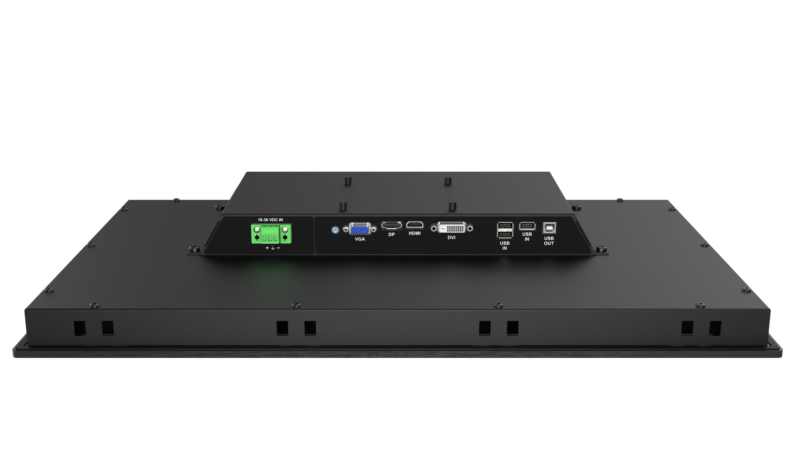

| I/O INTERFACE | |
| Video Input: | 1x DVI-I 1x VGA (D_SUB 15pin) |
| USB ports: | 1x USB 2.0 for front panel USB Connections (Optional with “Aluminum w/ USB Front” version)1x USB 2.0 or RS232 for Touch Driver (Only with Touch Version) |
| POWER | |
| Power in: | 18 ~ 36V, VDC Version
80 ~ 265V, VAC Version |
| Max Power: | 35W max |
| MECHANICAL | |
| Material: | Aluminum (w/ custom front panel) |
| IP Protection: | IP65 on front side |
| Dimensions: | (W)619x(D)380x(H)77mm |
| Weight: | 5 Kg |
| Mounting: | Fast mounting with clamps |
| ENVIRONMENT | |
| Operating temp.: | 0°C to 50°C |
| Storage temp.: | -20°C to 70°C |
| Humidity: | 40% to 60% Humidity, non-condensing |
| EMC: | CE, FCC, RoHS, LVD |
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| IMF-G240X | TBD | 2023-06-09 | 369 KB |  |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| IMF-240X manual | TBD | 2023-06-09 | 5.99 MB | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| IMF-240X HIG | TBD | 2023-06-09 | 5.99 MB | |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| IMF-240X drivers | TBD | 2023-06-09 | 4.3 GB | |
| IPC | |||
| MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
| IMF-G240X | |||
| ACCESSORIES | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| HDMI to VGA converter | 10003577 | HDMI to VGA converter | |
