NEW

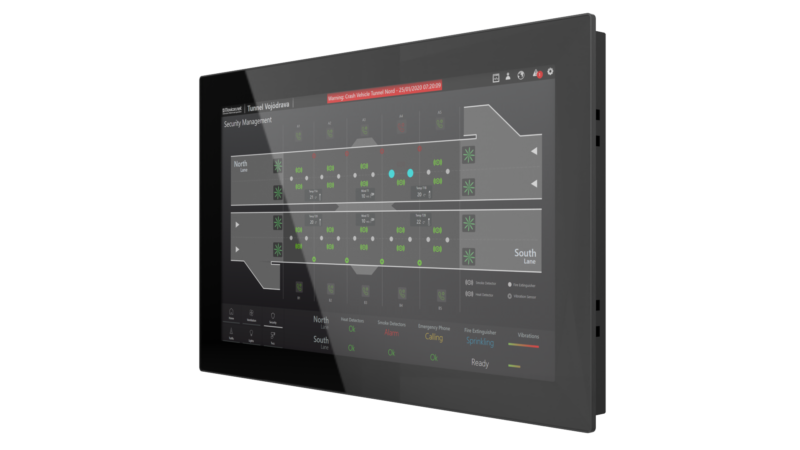

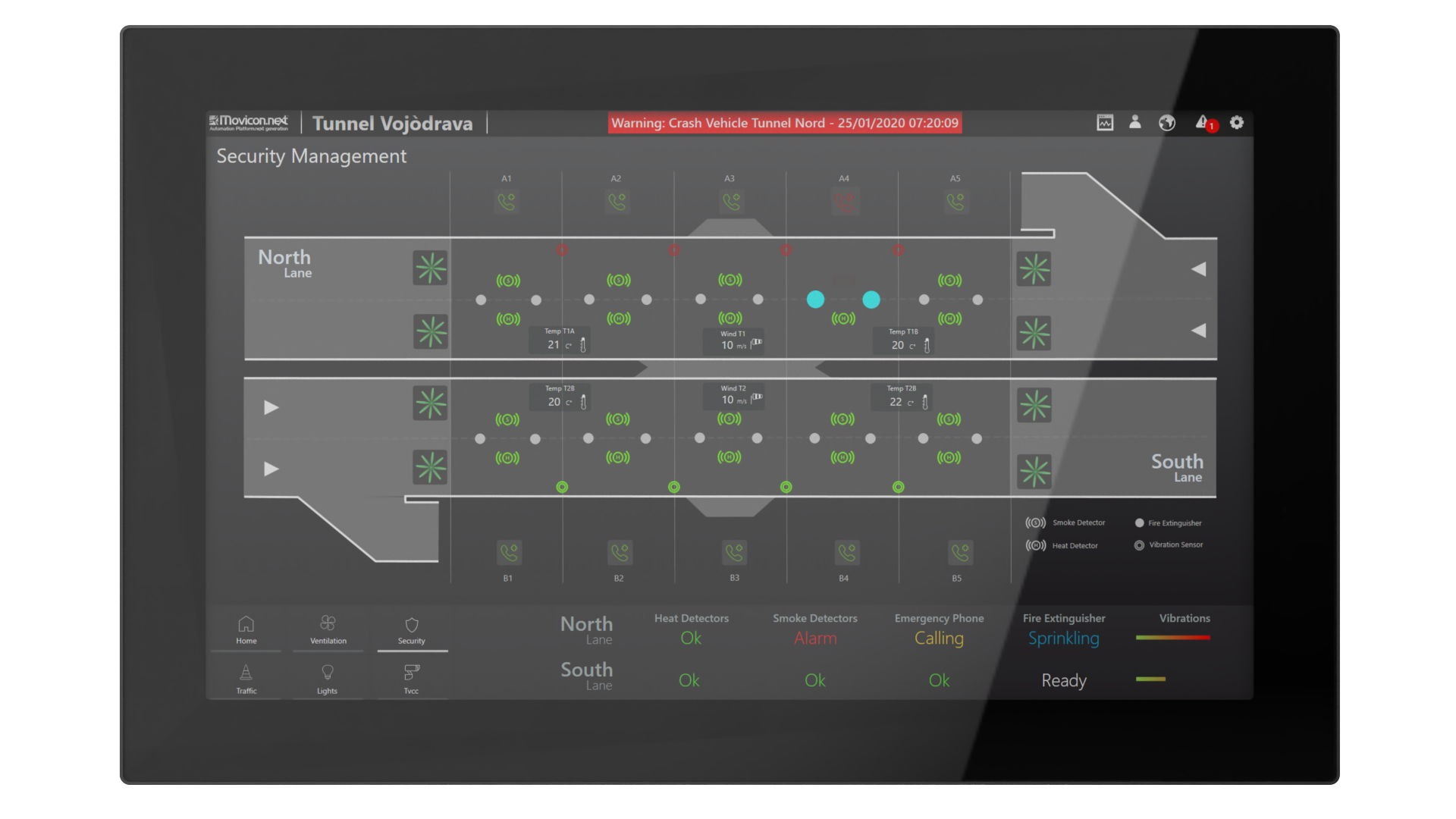

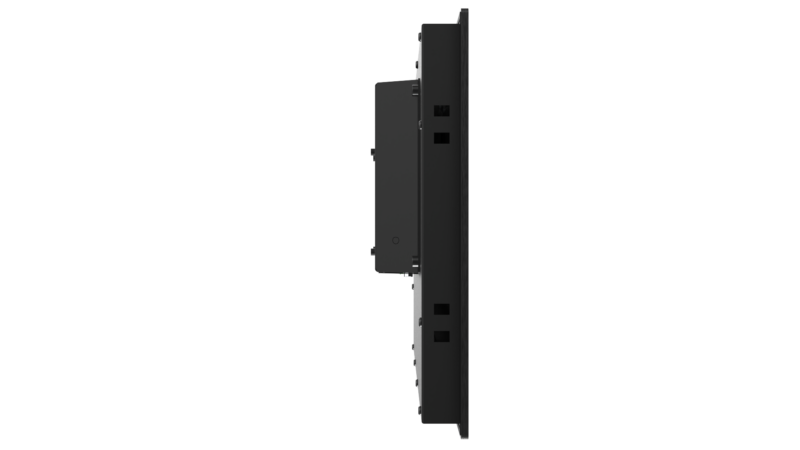

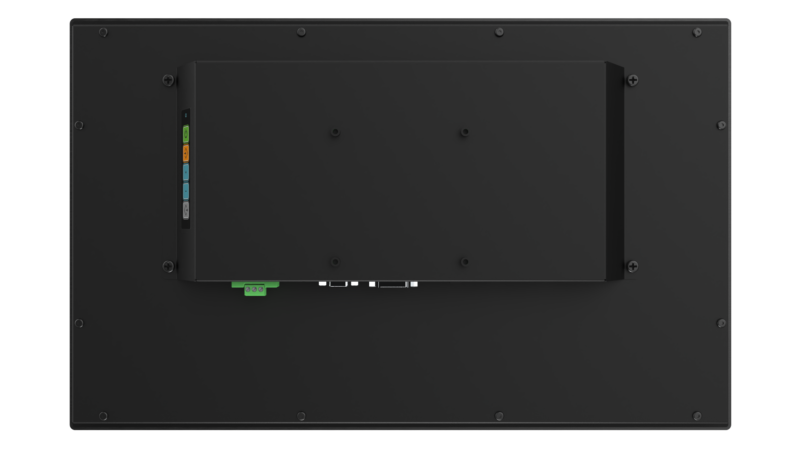

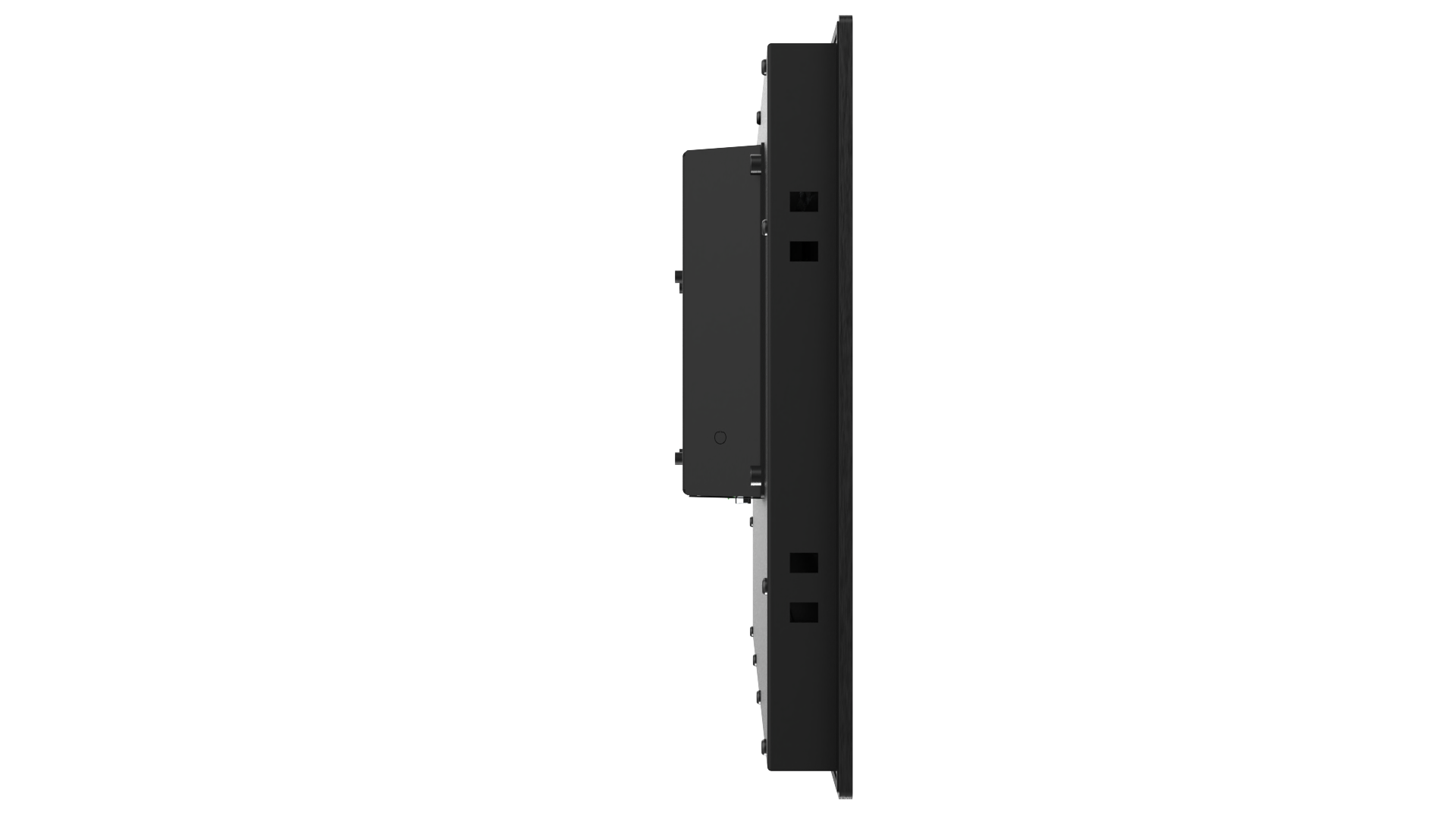

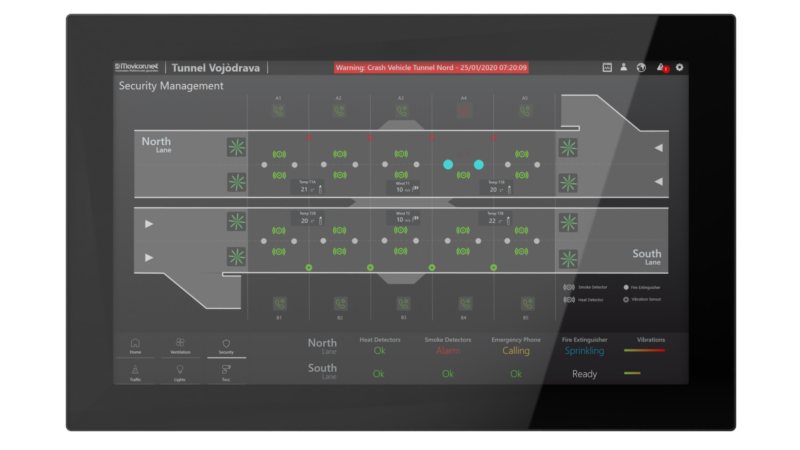

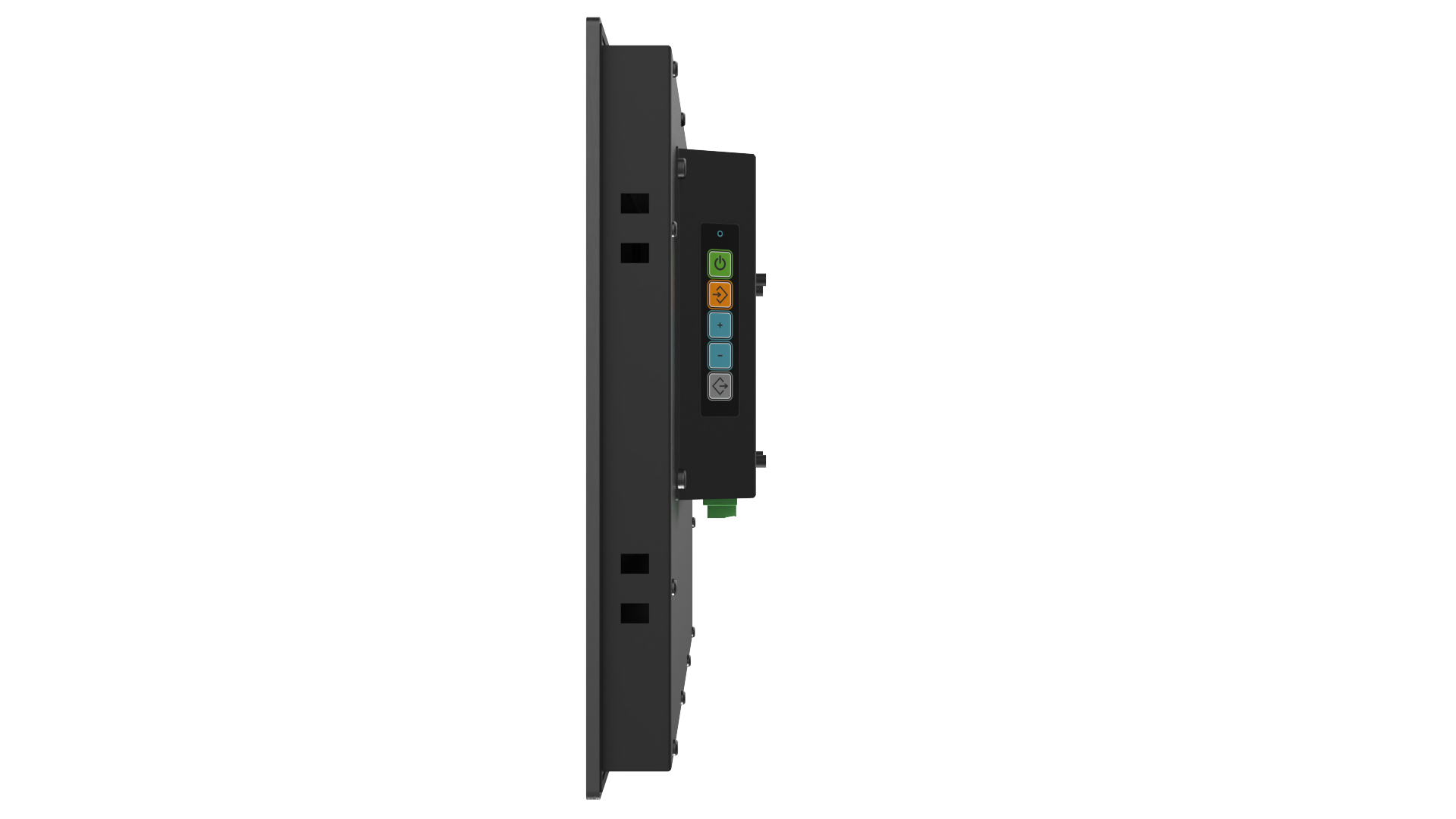

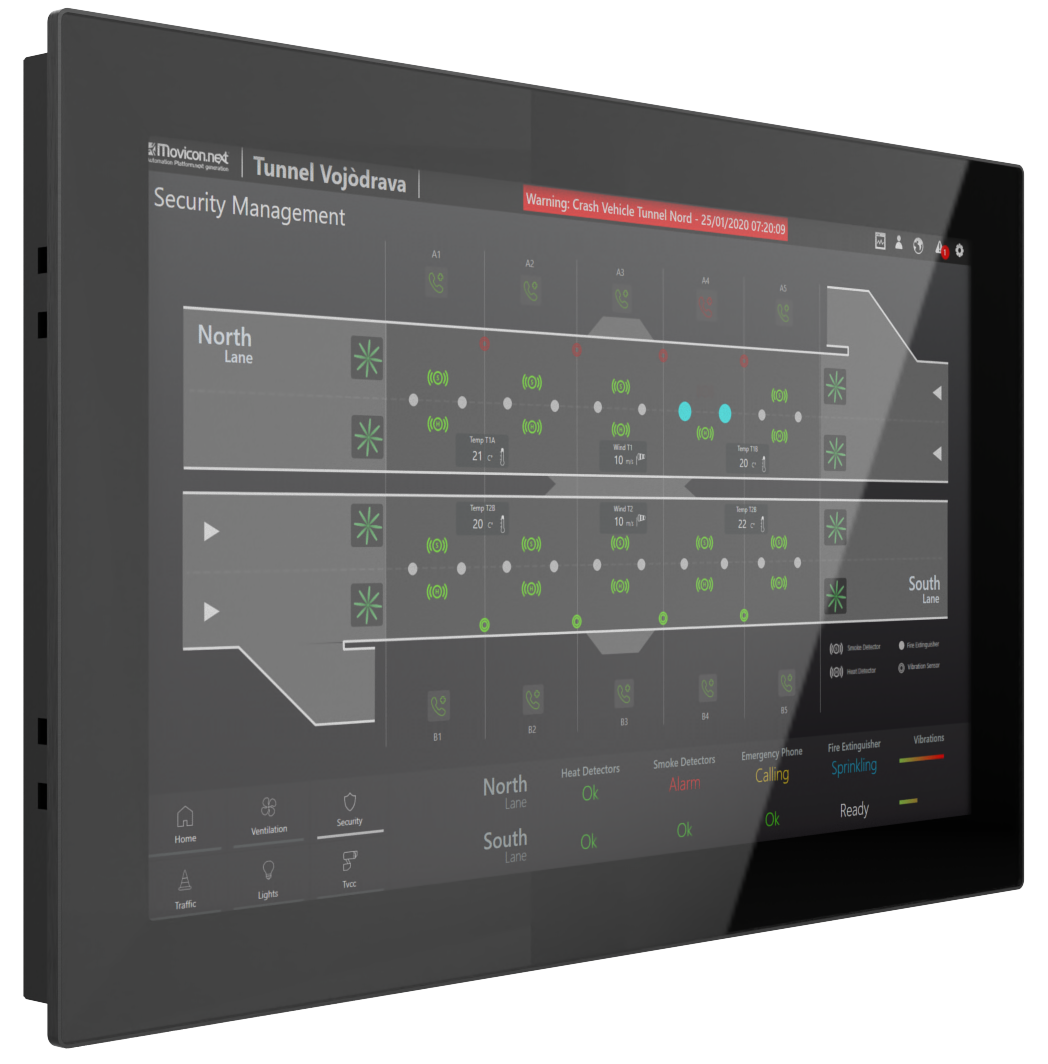

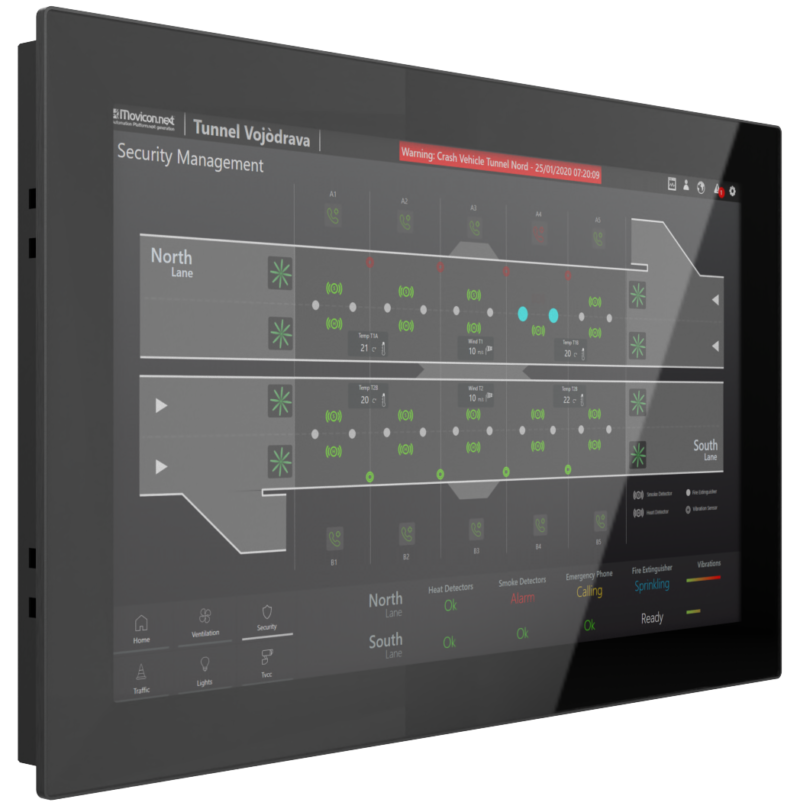

IMF-G215X
21,5” Industrial Panel Monitor (16:9)
Glass Frame front panel
Projective Capacitive Multitouch – 10 points with USB driver interface connection
Two Power options available: 24VDC or 220VAC
Fast mounting with clamps or VESA 100
| DISPLAY | |
| Size: | 21.5” |
| Resolution: | FullHD (1920×1080) |
| Aspect Ratio: | 16:9 |
| Backlight: | Led |
| Bright and Contrast: | 250 cd/mq 1000:1 |
| Colors: | 16M |
| View Angle: | 170° – 160° |
| FRONT PANEL | |
| Thickness: | 6 mm |
| Front Panel Type: | “Aluminum True Flat” |
| TOUCH SCREEN | |
| Glass Thickness: | 3 mm |
| Technology: | Projective Capacitive Multitouch 10 points |
| Connection Type: | USB 2.0 |

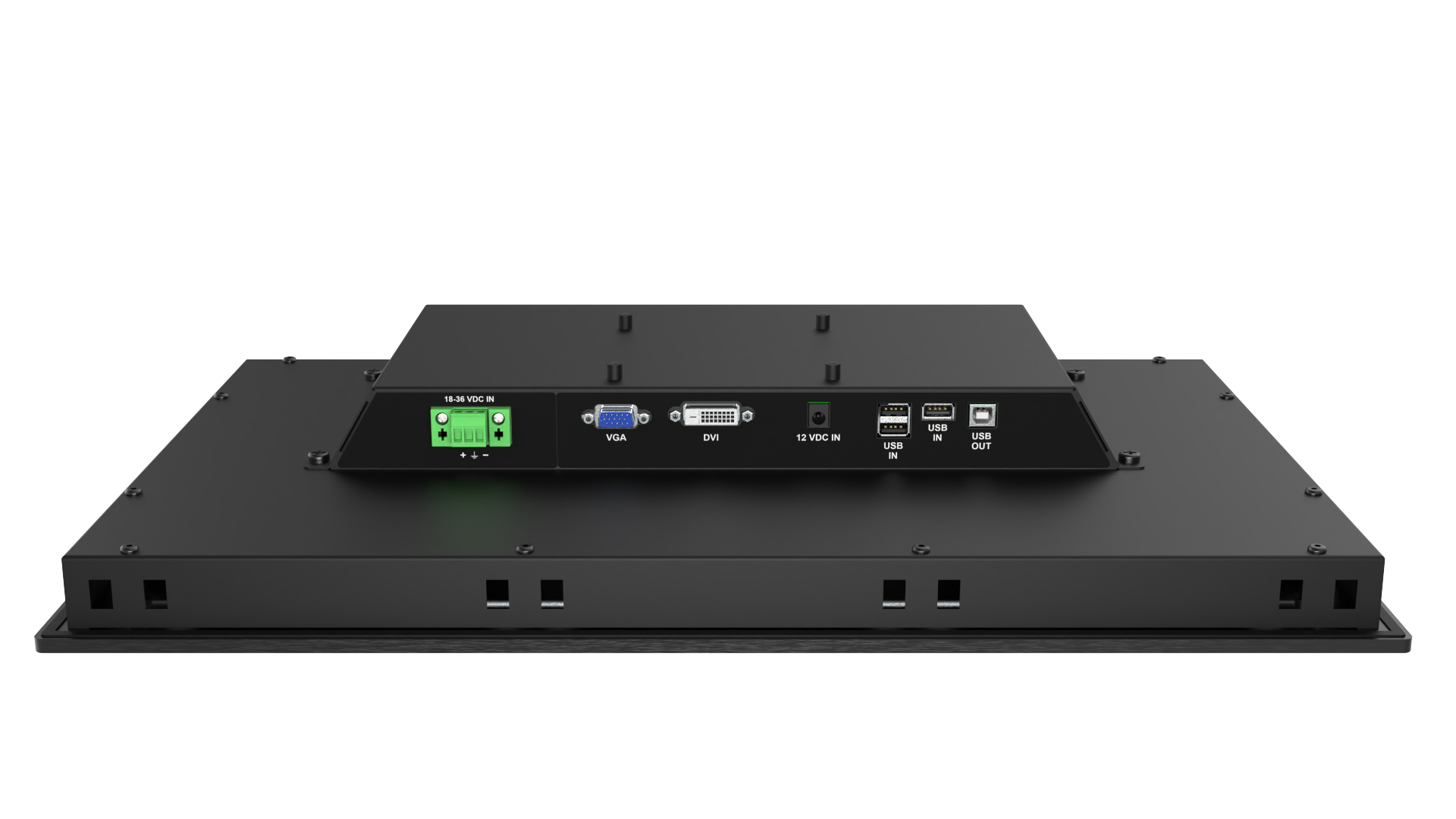

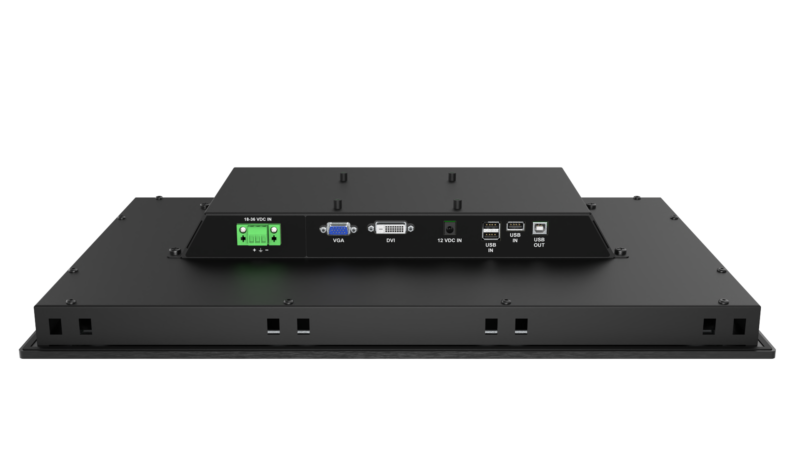

| I/O INTERFACE | |
| Video Input: | 1x DVI-I 1x VGA (D_SUB 15pin) |
| USB: | 1x USB 2.0 for Touch Driver |
| POWER | |
| Power in: | 18 ~ 36V, VDC Version |
| Max Power: | 25W max |
| Connection Type: | Terminal with screws |
| MECHANICAL | |
| Material: | Aluminum |
| IP Protection: | IP65 on front side |
| Dimensions: | (W)555x(D)350x(H)77mm |
| Weight: | 8 Kg |
| Mounting: | Fast mounting with clamps |
| ENVIRONMENT | |
| Operating temp.: | 0°C to 50°C |
| Storage temp.: | -20°C to 70°C |
| Humidity: | 40% to 60% Humidity, non-condensing |
| EMC: | CE, FCC, RoHS, LVD |
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| IMF-G215X | TBD | 2023-06-09 | 393 KB |  |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| IMF-G215X manual | TBD | 2023-06-09 | 5.99 MB | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| IMF-G215X HIG | TBD | 2023-06-09 | 5.99 MB | |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| IMF-G215X drivers | TBD | 2023-06-09 | 4.3 GB | |
| IPC | |||
| MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
| IMF-G215X | 10005469 | IMF-215X-65-TRU-DX-B-TCA-U | |
| ACCESSORIES | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| HDMI to VGA converter | 10003577 | HDMI to VGA converter | |
