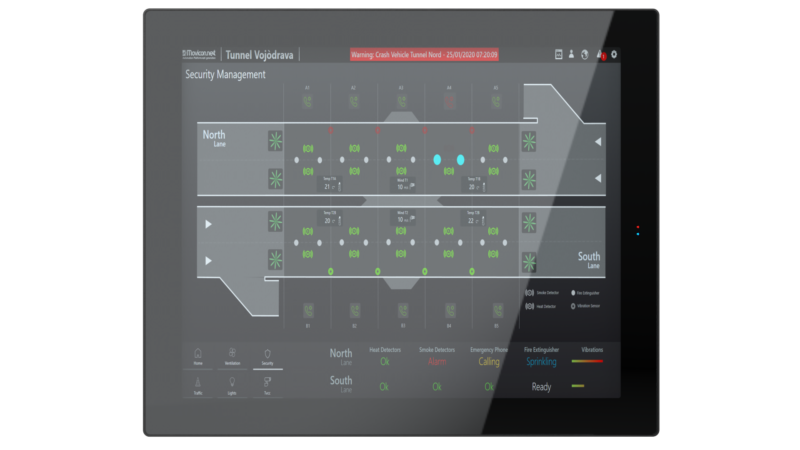

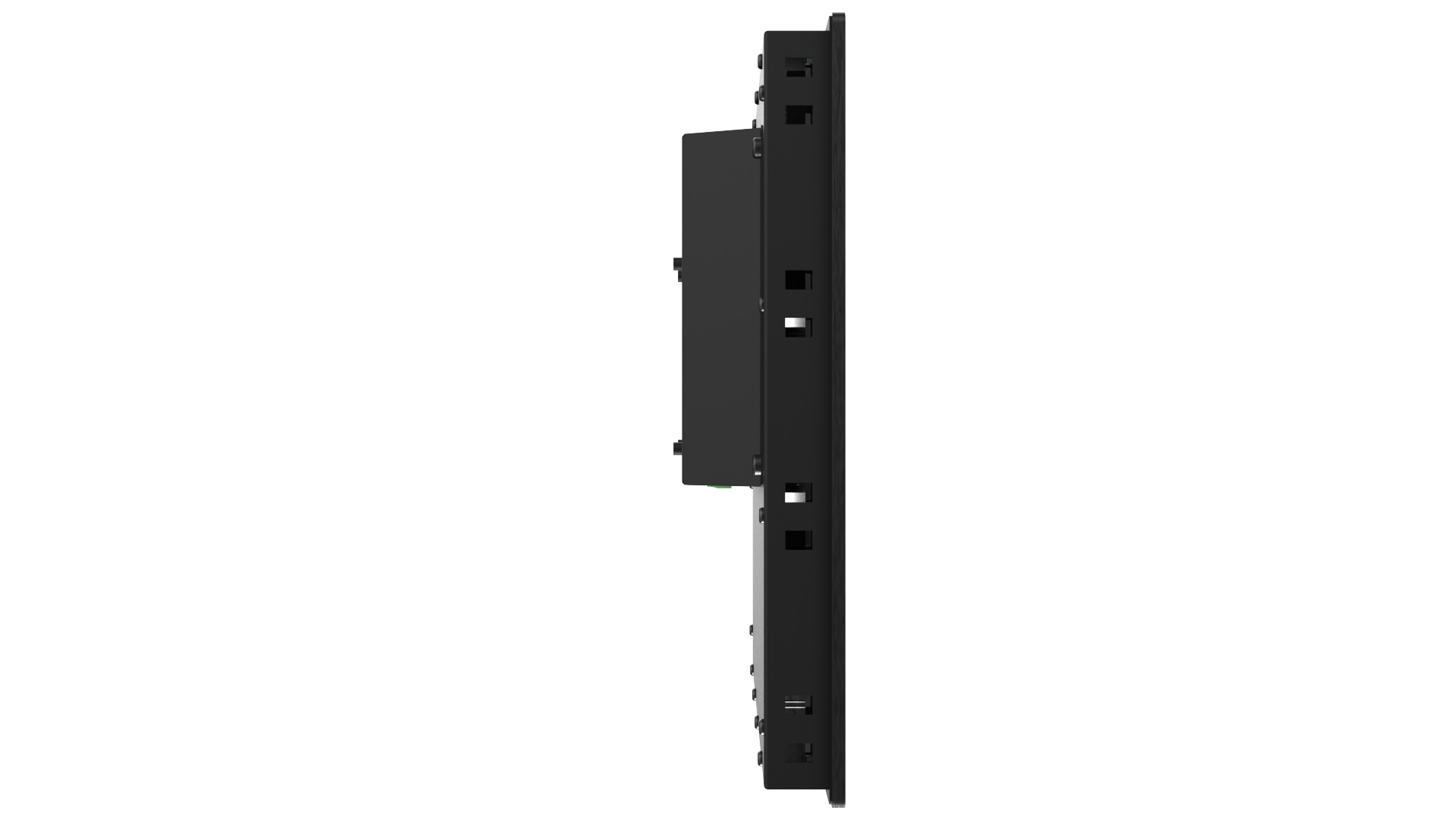

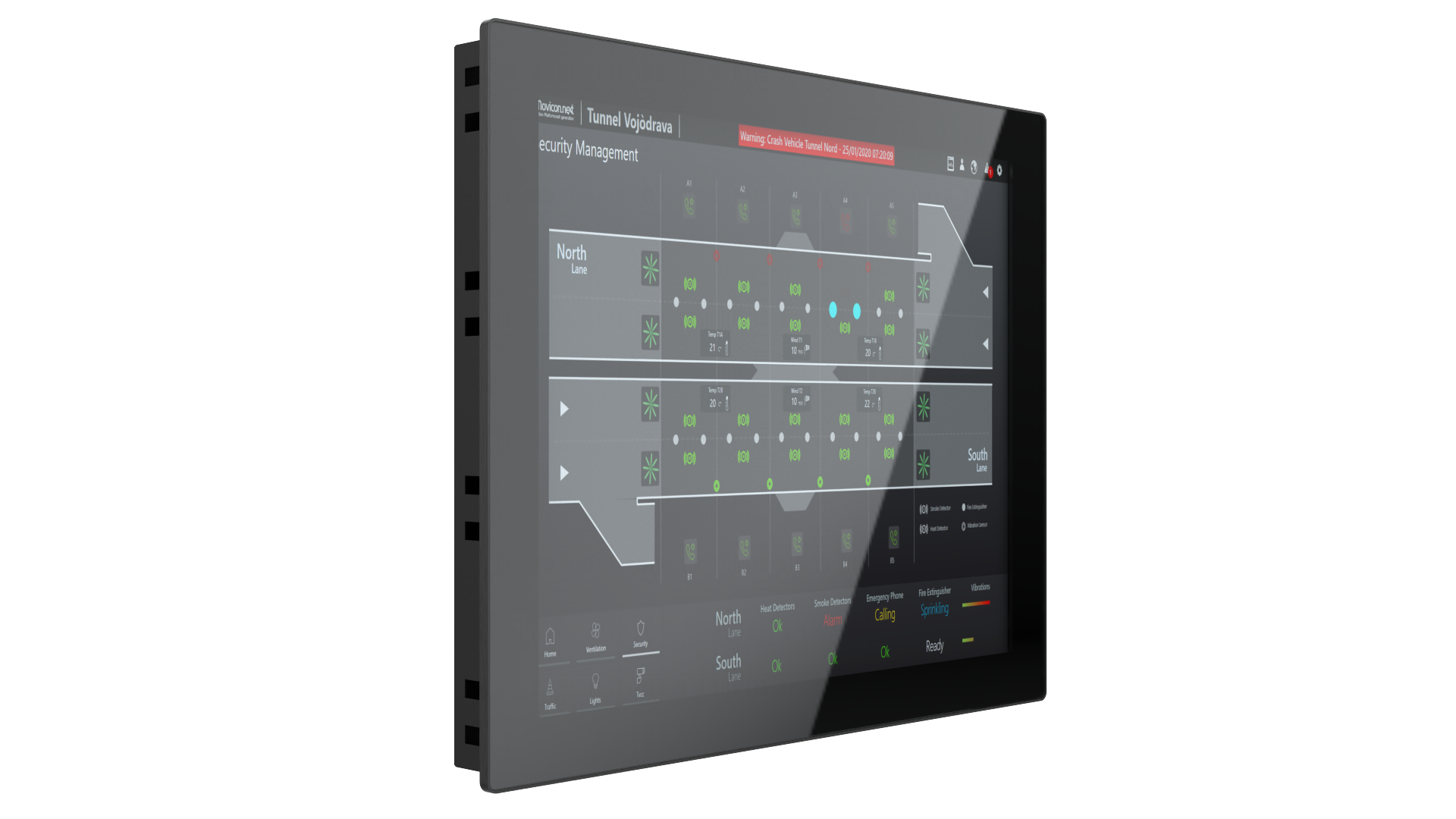

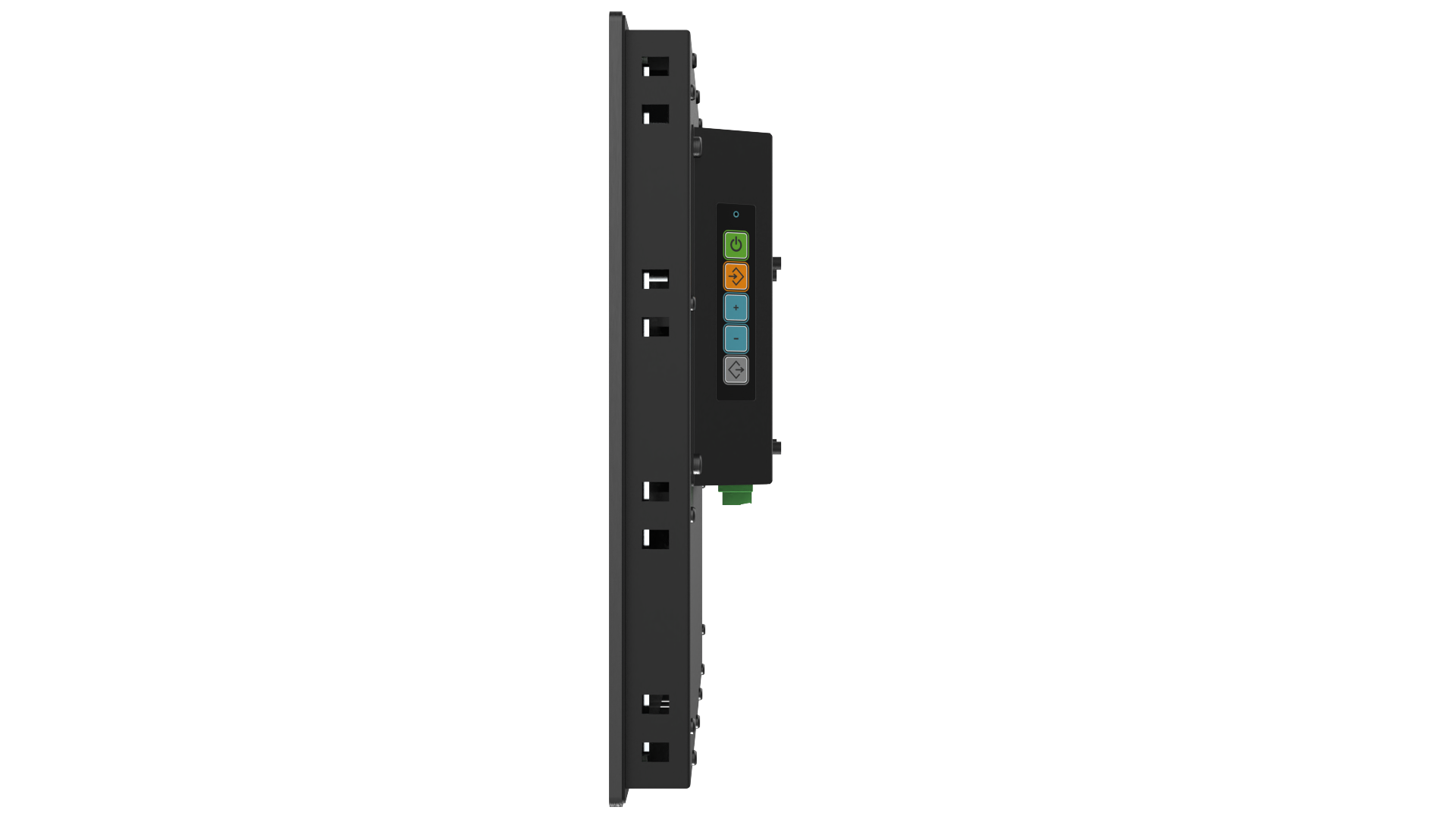

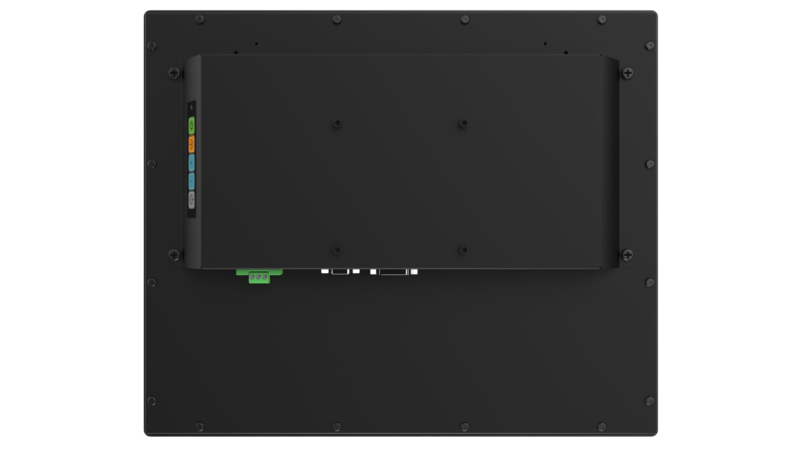

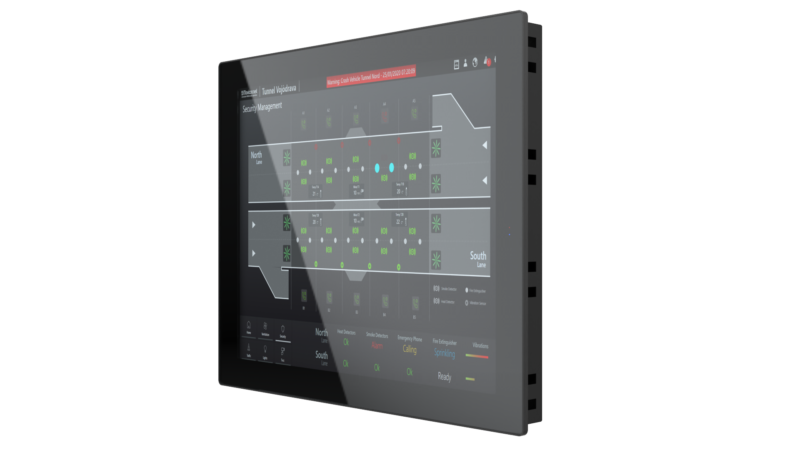

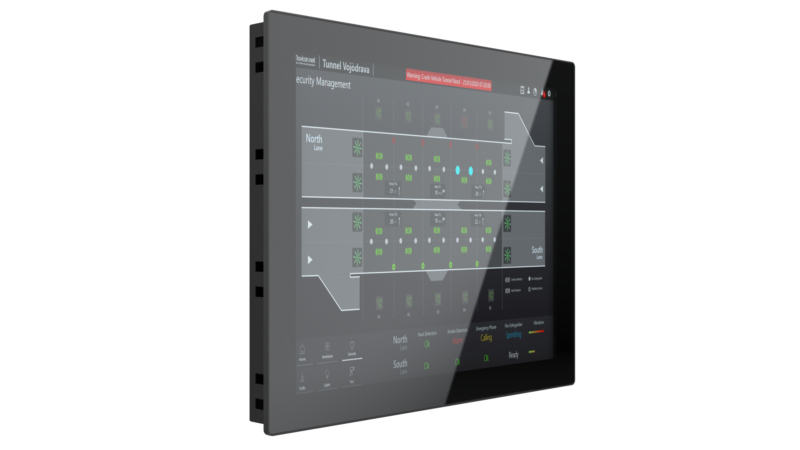

IMF-G190X
19” Industrial Panel Monitor (4:3)
Glass Frame front panel
Projective Capacitive Multitouch – 10 points with USB driver interface connection
Two Power options available: 24VDC or 220VAC
Fast mounting with clamps or VESA 100
INDATECH Industrial Panel Monitor
Specifiche tecniche
DISPLAY | |
Size: | 19” |
Resolution: | SXGA (1280×1024) |
Aspect Ratio: | 4:3 |
Backlight: | Led |
Bright and Contrast: | 250 cd/mq 1000:1 |
Colors: | 16M |
View Angle: | 170° – 160° |
FRONT PANEL | |
Thickness: | 6 mm |
Connection: | 1x USB 2.0 (Optional) |
Graphic: | Graphically customizable polyester Only w/ “Aluminum w/ USB Front” |
Front Panel Type: | “Aluminum True Flat” (Standard)
“Aluminum w/ USB Front” “AISI 316 True Flat [INOX]” |
TOUCH SCREEN | |
Glass Thickness: | 3 mm |
Technology: | Projective Capacitive Multitouch 10 points, (Optional with “True Flat”)Resistive 5 wires |
Connection Type: | USB 2.0 or RS232 |

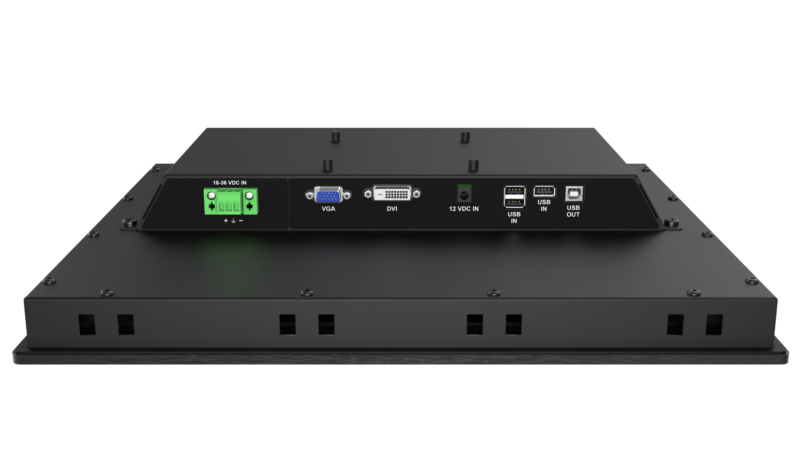

I/O INTERFACE | |
Video Input: | 1x DVI-I 1x VGA (D_SUB 15pin) |
USB ports: | 1x USB 2.0 for front panel USB Connections (Optional with “Aluminum w/ USB Front” version)1x USB 2.0 or RS232 for Touch Driver (Only with Touch Version) |
POWER | |
Power in: | 18 ~ 36V, VDC Version
80 ~ 265V, VAC Version |
Max Power: | 18W max |
MECHANICAL | |
Material: | Aluminum (w/ custom front panel) |
IP Protection: | IP65 on front side |
Dimensions: | (W)454.5x(D)380x(H)83.6mm |
Weight: | 7 Kg |
Mounting: | Fast mounting with clamps |
ENVIRONMENT | |
Operating temp.: | 0°C to 50°C |
Storage temp.: | -20°C to 70°C |
Humidity: | 40% to 60% Humidity, non-condensing |
EMC: | CE, FCC, RoHS, LVD |
Codici di ordinazione
IPC | |||
MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
IMF-190X | 10005874 | IMF-190X-65-TRU-DX-B-TR5-U |
ACCESSORIES | |||
MODEL NAME | PART NUMBER | DESCRIPTION | |
HDMI to VGA converter | 10003577 | HDMI to VGA converter |

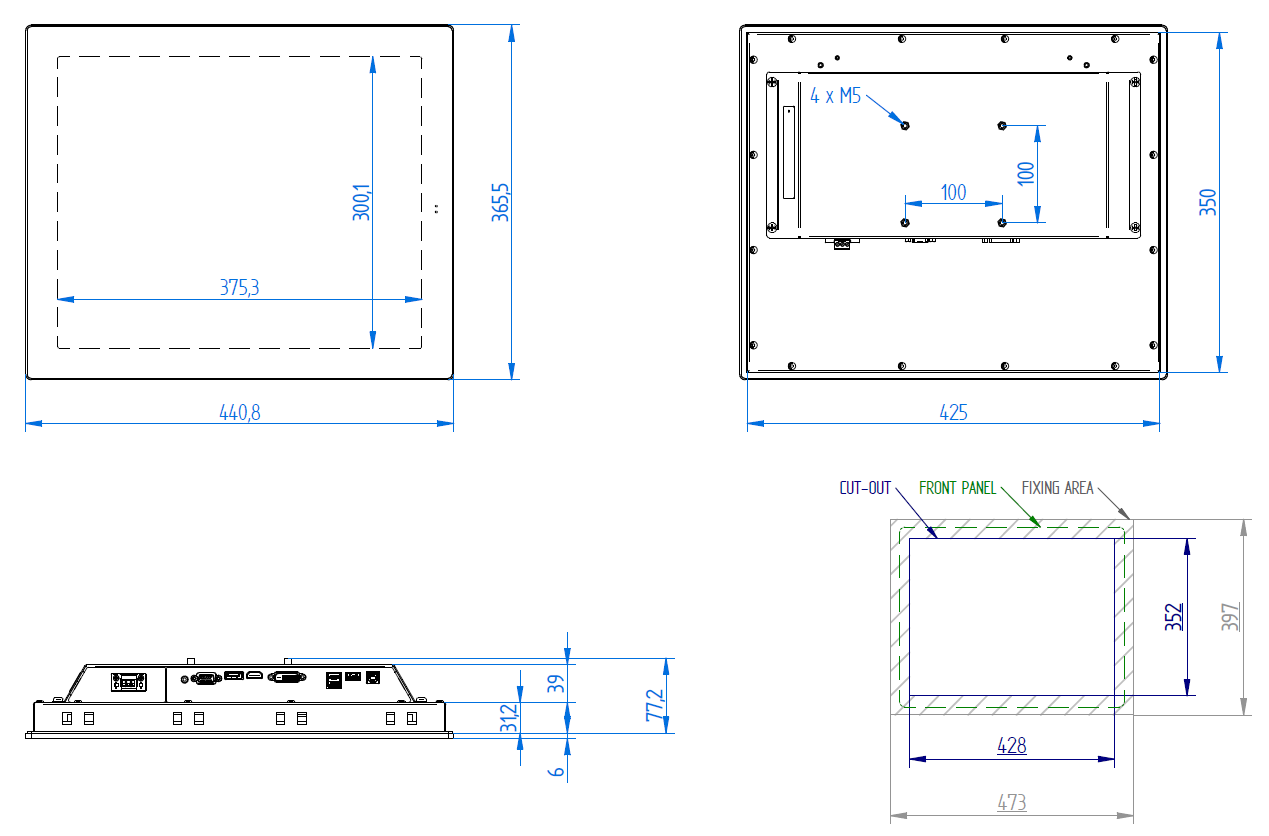

Disegni tecnici
File scaricabili
DATASHEET | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
IMF-190X | TBD | 2023-06-09 | 365 KB |
MANUAL | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
IMF-190X manual | TBD | 2023-06-09 | 5.99 MB |
HARDWARE INSTALLATION GUIDE | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
IMF-190X HIG | TBD | 2023-06-09 | 5.99 MB |
DRIVERS | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
IMF-190X drivers | TBD | 2023-06-09 | 4.3 GB |
