WAVE 6ETH J6412
Intel® Elkhart Lake SoC Processor (J6412)
1x DDR4 3200 MHz up to 16GB RAM
12V, DC-in w/ 220VAC Power Adapter
1x HDMI (4K)
6x LAN Intel® 2.5 Gigabit Ethernet
WIFI and/or 4G/5G connectivity (optional)
1x COM RS232/422/485 + 2x RS232
| MAINBOARD | |
| CPU: | Intel® Celeron J6412
4 Core / 4 Thread 2.0 GHz (Base) / 2.6GHz (Turbo) 10W |
| MEMORY | |
| Capacity: | up to 16GB |
| Frequency: | 3200 MHz |
| Type | 1x SO-DIMM DDR4 |
| STORAGE | |
| SATA: | 1x SATA3 |
| M.2: | 1x M.2 M-Key (2242) Support NVMe |
| Storage Bay: | 1x Internal 2.5” SSD Bay |

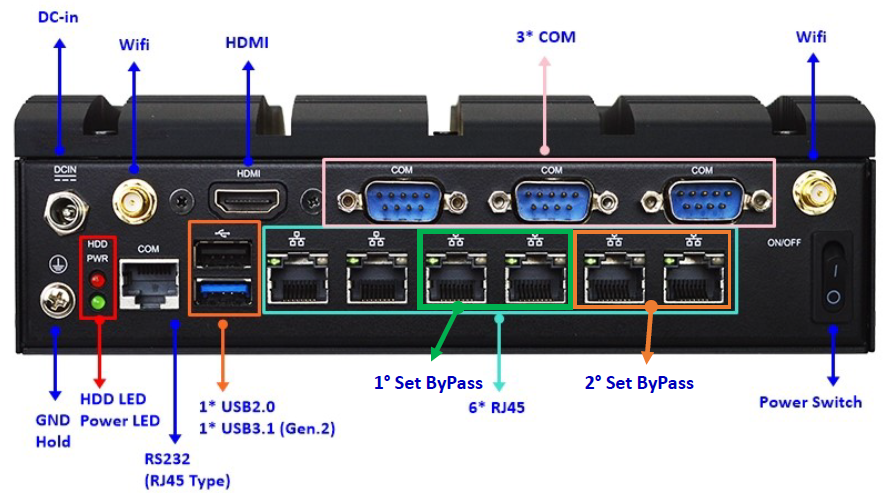

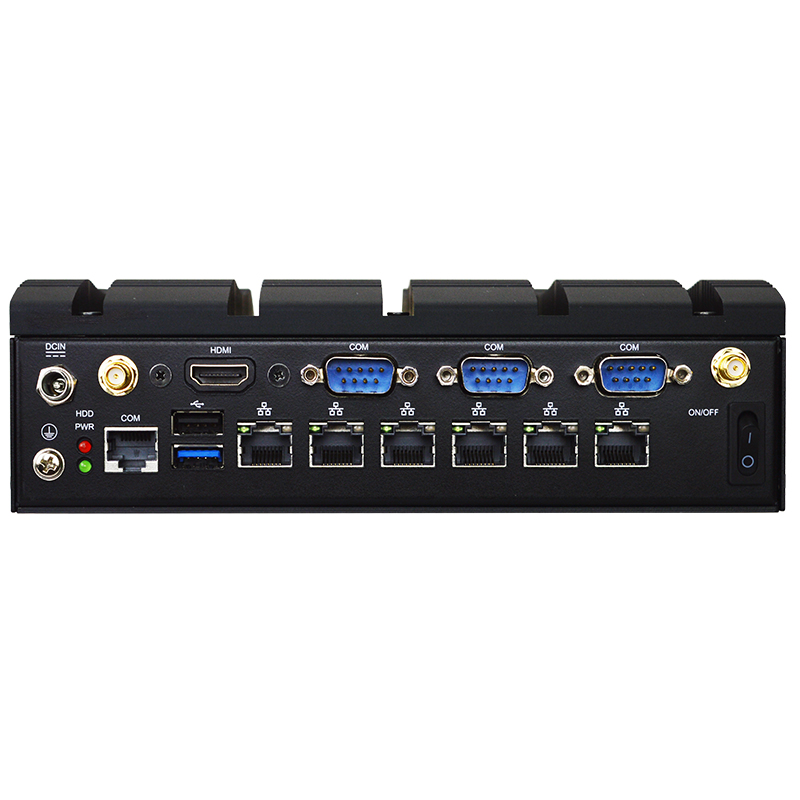

| I/O INTERFACE | |
| Serial ports: | 1x COM RS232/422/485
2x COM RS232 1x Console RS232 (RJ45 type) |
| USB ports: | 1x USB 3.1,
1x USB 2.0 |
| M.2: | 1x M.2 E-Key (2230, WIFI)
1x M.2 B-Key (3042, 4G/5G) + SIM Card Slot |
| SIM Slot: | 1x SIM Card Slot |
| VIDEO | |
| GPU: | Intel® UHD 620 Graphics |
| Interface: | 1x HDMI 2.0 (Up to 4096×2160 @60Hz) |
| ETHERNET | |
| LAN: | 6x Intel® i225LM 2.5GbE Gigabit LAN |
| POWER | |
| Power in: | 12V, DC-in |
| Max Power: | 60W max |
| Adapter: | AC_90~240V / DC_12V_5A/60W |
| MECHANICAL | |
| Material: | Lightweight aluminum alloy with extruded aluminum IO panel |

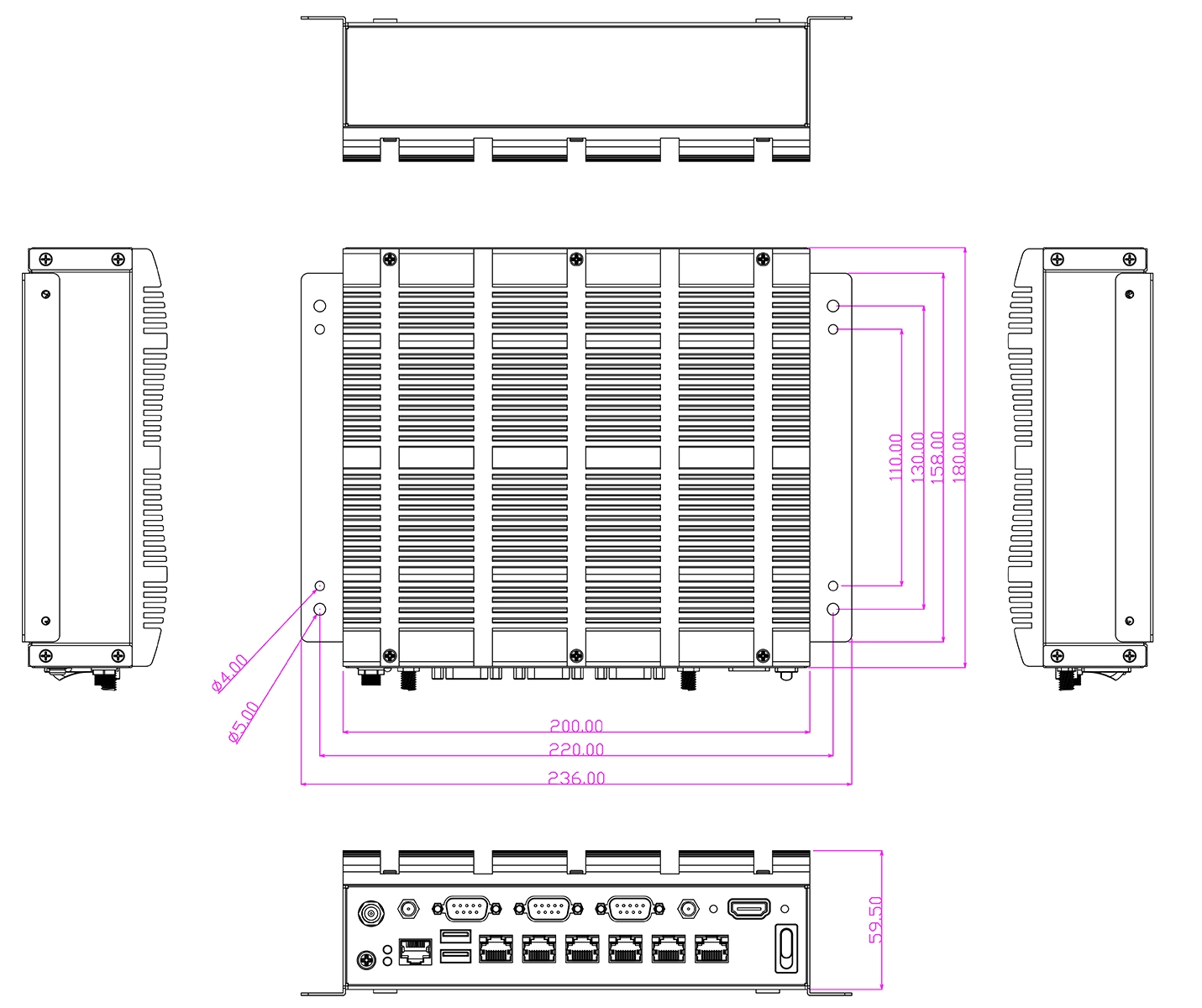

| Dimensions: | (W)200x(D)180x(H)59.5mm |
| Weight: | 2.2Kg |
| Mounting: | WallMount + DIN Rail |
| ENVIRONMENT | |
| Operating temp.: | -20°C to 60°C |
| Storage temp.: | -20°C to 60°C |
| Humidity: | 10% to 90% RH @40°C, non-condensing |
| EMC: | CE, FCC, RoHS, LVD, ErP Ready |
| OPERATIVE SYSTEM | |
| MS Windows: | Windows 10, Windows 10 Enterprise LTSC,
Windows 11, Windows 11 Enterprise LTSC |
| Linux*: | Ubuntu 22.04 LTS, CentOS 9, Debian 11.3,
Fedora 36-1.5, pfSence 2.6, FreeBSD 13.1 QNX 7.1. OPNSense 22.1.2 |
| * Linux distributions tested with the IPC. |
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| WAVE 6ETH-J6412 | TBD | TBD | TBD |  |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| WAVE 6ETH-J6412 drivers | TBD | TBD | TBD | |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| WAVE 6ETH-J6412 manual | TBD | TBD | TBD | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| WAVE 6ETH-J6412 HIG | TBD | TBD | TBD | |
| IPC | |||
| MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
| WAVE 6ETH J6412 | 10006325 | B04-23C-WAVE 6ETH-J6412-R08-M2D128 | IPC + 8GB RAM + M2 128GB SSD |
| ACCESSORIES | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| HDMI to VGA converter | 10003577 | HDMI to VGA converter | |
