BASIC2.1 4ETH J6412
Intel® Elkhart Lake SoC Processor (J6412)
1x DDR4 3200 MHz up to 32GB RAM
32/64GB eMMC + M.2 M-Key NVMe

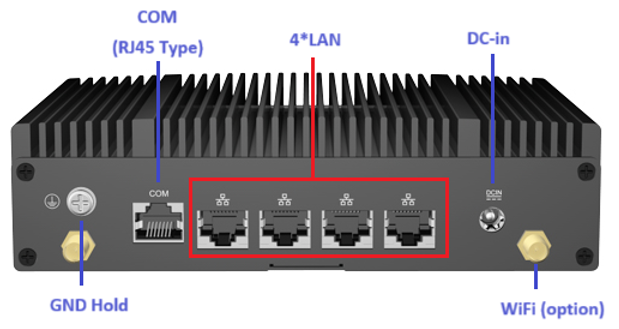

4x 2.5 Gigabit Ethernet LAN
WIFI (Optional) or 4G/5G (on request)
1x 4K Video interface (HDMI)
12V, DC-in w/ 220VAC Power Adapter
INDATECH Industrial IPC BASIC2.1 4ETH J6412
Specifiche tecniche
MAINBOARD | |
CPU: | Intel® Celeron J6412
4 Core / 4 Thread 2.0 GHz (Base) / 2.6 GHz (Turbo) 10W |
MEMORY | |
Capacity: | up to 32GB |
Frequency: | 3200 MHz |
Type: | 1x SO-DIMM DDR4 |
STORAGE | |
eMMC: | 1x 32/64GB eMMC |
M.2: | 1x M.2 M-Key (2242, NVMe) Co-layout with M.2 B-Key |
I/O INTERFACE | |

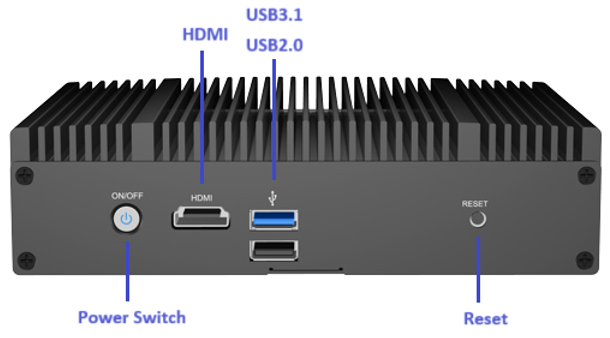

USB ports: | 1x USB 3.1 + 1x USB 2.0 |
M.2: | 1x M.2 E-Key Slot (2230, WIFI) (optional)
1x M.2 B-Key Slot (3052, 4G/5G)(on request) |
SIM: | 1x SIM Slot |
VIDEO | |
GPU: | Intel® UHD Graphics |
Interface: | 1x HDMI 2.0 (Up to 4096×2160 @60Hz) |
ETHERNET | |
LAN: | 4x Intel i225-V 2.5 Gigabit LAN |
POWER | |
Power in: | 12V, DC-in |
Max Power: | 60W max |
Adapter: | AC_90~240V / DC_12V_5A/60W |
MECHANICAL | |
Material: | High-quality aluminum |

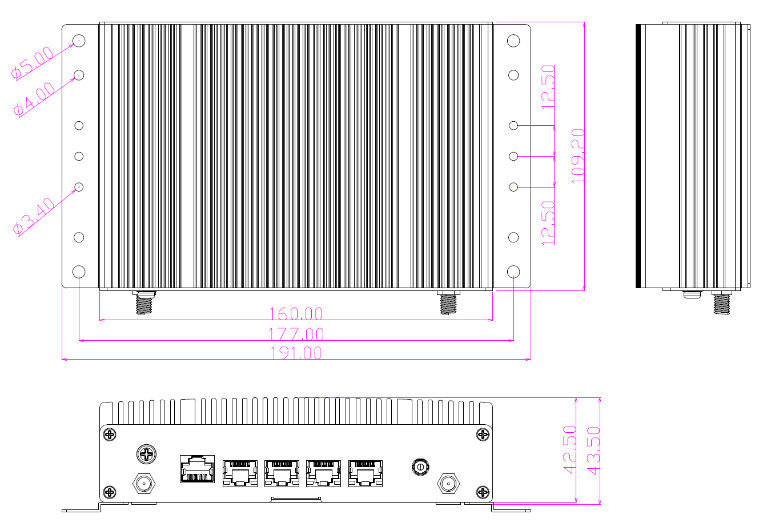

Dimensions: | (W)160x(D)109.20x(H)42.5mm |
Weight: | <1.2 Kg |
Mounting: | WallMount Kit |
ENVIRONMENT | |
Operating temp.: | -20°C to +60°C -w/Air Flow |
Storage temp.: | -40°C to 85°C |
Humidity: | 10% to 90% RH @40°C, non-condensing |
EMC: | CE, FCC, RoHS, LVD, ErP Ready |
OPERATIVE SYSTEM | |
MS Windows: | Windows 10, Windows 10 Enterprise LTSC,
Windows 11, Windows 11 Enterprise LTSC |
Linux*: | Ubuntu 20.04 LTS, CentOS 8, Debian 10,
Fedora 34, pfSence 2.4.4, FreeNAS 11.2, WMware ESXI 6.5 |
* Linux distributions tested with the IPC. |
Codici di ordinazione
IPC | |||
MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
BASIC2.1 4ETH J6412 | 1000xxxx | xxxx | xxxx |
ACCESSORIES | |||
MODEL NAME | PART NUMBER | DESCRIPTION | |
HDMI to VGA converter | 10003577 | HDMI to VGA converter |
File scaricabili
DATASHEET | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
BASIC2.1 4ETH J6412 | TBD | TBD | TBD |
MANUAL | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
BASIC2.1 4ETH J6412 | TBD | TBD | TBD |
HARDWARE INSTALLATION GUIDE | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
BASIC2.1 4ETH J6412 HIG | TBD | TBD | TBD |
DRIVERS | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
BASIC2.1 4ETH J6412 drivers | TBD | TBD | TBD |
