Coming soon!
WALLDIN-SCK-13G
Intel® Core™ 13th Gen. Processor
2x DDR5 4800 MHz up to 64GB RAM
12-24V, DC-in w/ 220VAC Power Adapter
6x USB 3.0, 2x RS485
4x Gigabit Ethernet LAN
WIFI or 4G/5G connectivity (Optional)
2x 4K Video interface (DP + HDMI)

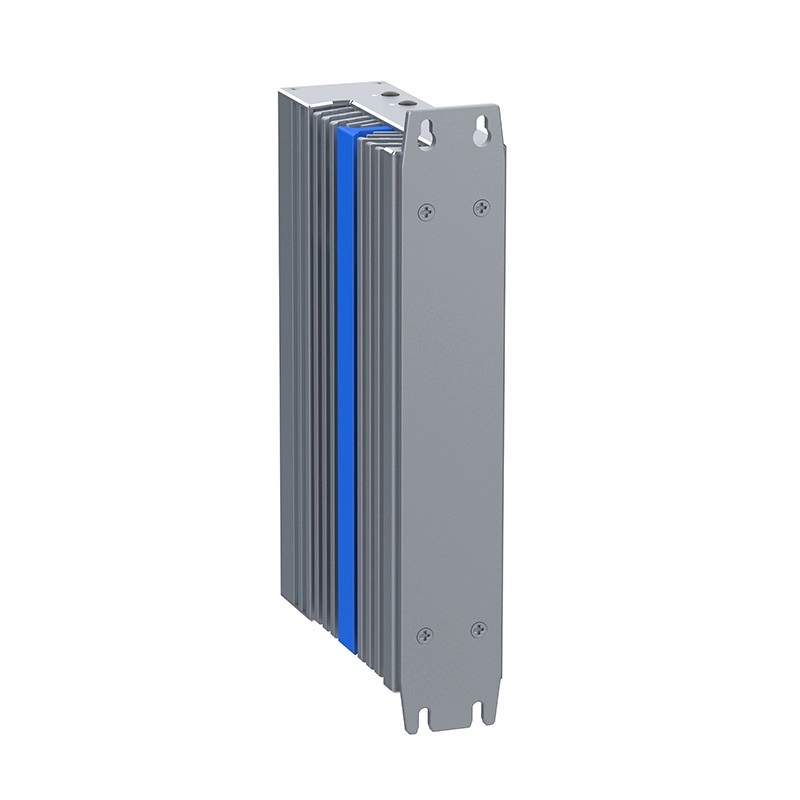

Desktop, Wall, Book and DIN-Rail mount options
| MAINBOARD | |
| CPU: | Intel® Core™ 13th Gen. Processor i3 13100T, 4C / 8T, 2.50 GHz i5 13500T, 14C / 20T, 1.60 GHz i7 13700T, 16C / 24T, 1.40 GHz |
| MEMORY | |
| Capacity: | up to 64GB |
| Frequency: | 4800 MHz |
| Type: | 2x SO-DIMM DDR5 |
| STORAGE | |
| MSATA: | 1x MSATA (Full-size) |
| M.2: | 1x M.2 M-Key (2280, SATA & NVMe) |
| I/O INTERFACE | |
| Serial ports: | 2x RS485 (optional w/ opto-isolation) |
| USB ports: | 6x USB 3.0 |
| M.2: | 1x Mini-PCIe (Full-size, WIFI/4G/5G) |
| SIM: | 1x Internal SIM Slot (NanoSIM) |
| VIDEO | |
| GPU: | Intel® UHD Graphics 770 |
| Interface: | 1x DP (Up to 3840×2160 @60Hz) 1x HDMI (Up to 3840×2160 @60Hz) |
| ETHERNET | |
| LAN: | 1x Intel i219-LM Gigabit LAN 3x Intel i210-AT Gigabit LAN |
| POWER | |
| Power in: | 12-24V, DC-in |
| Max Power: | 120W max |
| Adapter: | AC 90~240V to DC 12V @10A/120W |
| MECHANICAL | |
| Material: | High-quality aluminum |

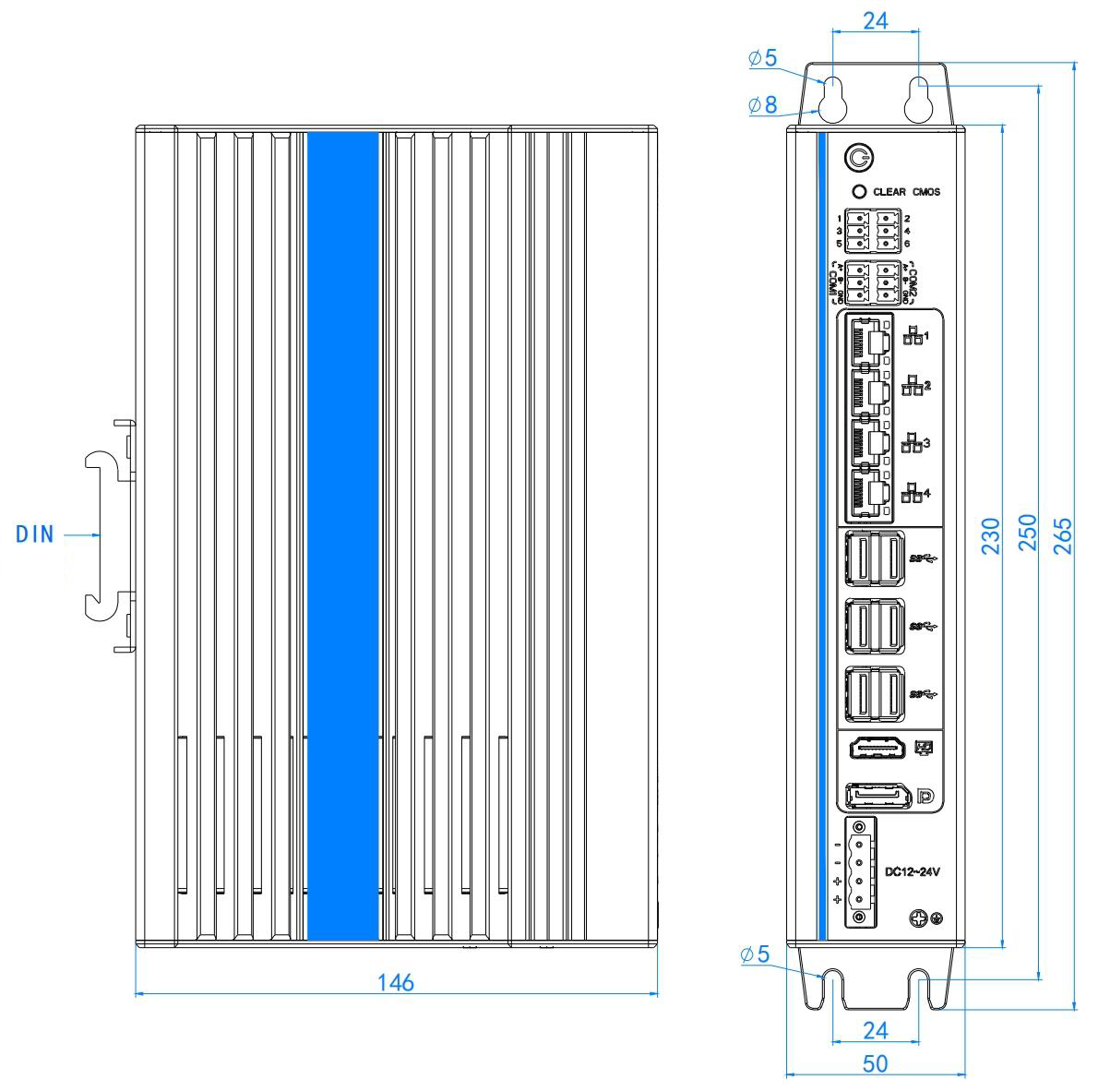

| Dimensions: | (W)265x(D)146x(H)50mm |
| Weight: | <2.3 Kg |
| Mounting: | Desktop, Wall, Book and DIN Rail Mount |
| ENVIRONMENT | |
| Operating temp.: | -20°C to +50°C – w/Air Flow |
| Storage temp.: | -20°C to +85°C |
| Humidity: | 5% to 95% RH @40°C, non-condensing |
| EMC: | CE, RoHS |
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| WALLDIN-SCK-13G | v1.0 | 07-07-2025 | 0.688 MB |  |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| WALLDIN-SCK-13G UM | TBD | TBD | TBD | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| WALLDIN-SCK-13G HIG | TBD | TBD | TBD | |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| WALLDIN-SCK-13G drivers | TBD | TBD | TBD | |
| IPC | |||
| MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
| WALLDIN-SCK-13G | TBD | TBD | TBD |
| ACCESSORIES | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| HDMI to VGA converter | 10003577 | HDMI to VGA converter | |
