NEW
PICO N97
Intel® Processor N97
Embedded LPDDR-4800 8GB RAM (On request 16GB) + eMMC 64GB
12~24V, DC-IN w/220VAC Power Adapter
3x 2.5 Gigabit Ethernet LAN, 2x USB3.2 Gen2 + HDMI
COM RS232/485 w/ 2.5KV isolation protection
-20°C to +70°C – w/Air Flow
DIN Rail, Book or Wall Mount option
| MAINBOARD | |
| CPU: | Intel Processor N97 4 Core / 4 Thread 1.6 GHz (Base) / 3.6GHz (Turbo), 12W |
| MEMORY | |
| Capacity: | 8GB (On Request 16GB) |
| Frequency: | 4800 MHz |
| Type: | Embedded LPDDR5 |
| STORAGE | |
| eMMC: | 1x eMMC 64GB |
| I/O INTERFACE | |
| COM: | 1x RS232/485 w/ 2.5KV isolation protection |
| USB ports: | 2x USB 3.2 G2 |
| VIDEO | |
| GPU: | Intel® UHD Graphics |
| Interface: | 1x HDMI (Up to 4096×2160 @60Hz) |
| ETHERNET | |
| LAN: | 3x Intel I226 I226-IT 2.5 Gigabit LAN |
| POWER | |
| Power in: | 12~24V, DC-in TB |
| Max Power: | 25W max |
| Adapter: | AC 90~240V to DC 24V @5A/60W |
| MECHANICAL | |
| Material: | High-quality aluminum |

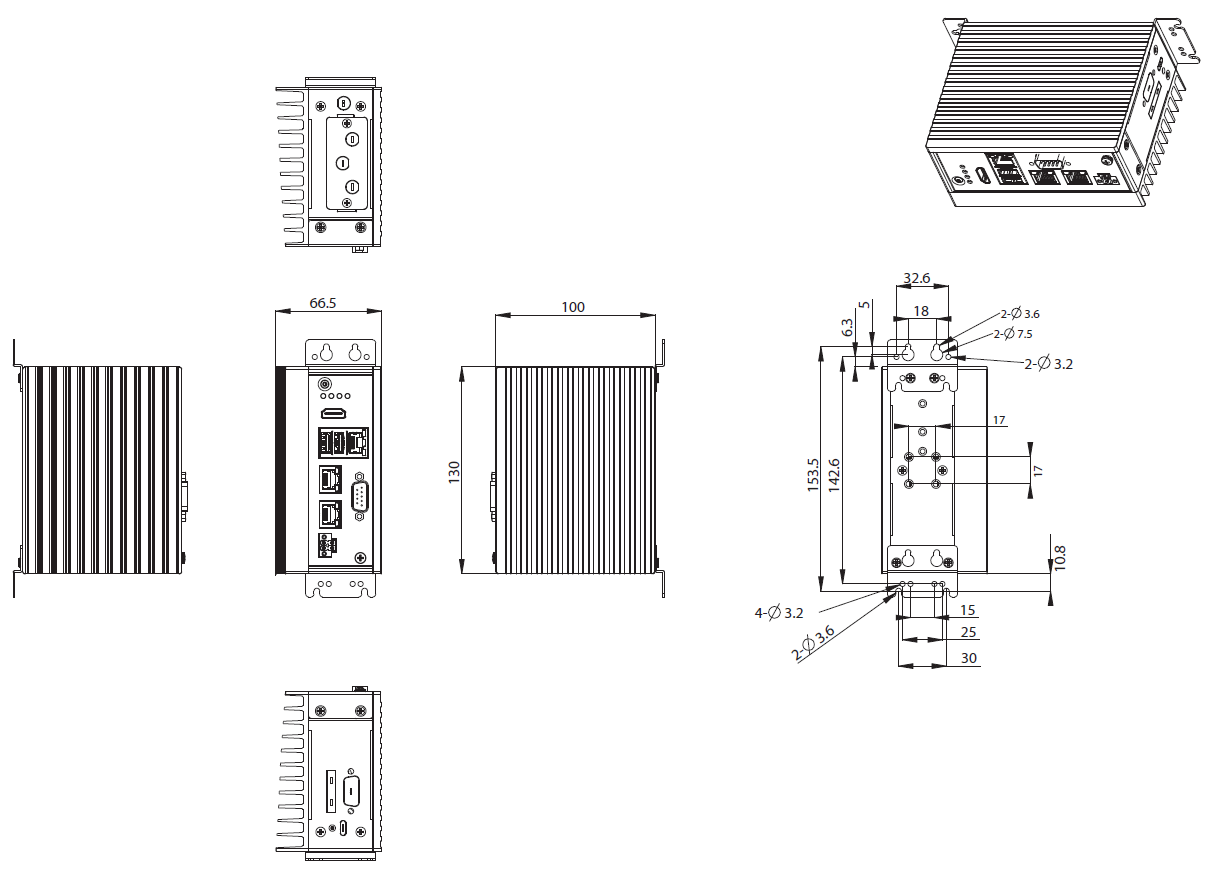

| Dimensions: | (W)66.5x(D)100x(H)130mm |
| Weight: | <1.00 Kg |
| Mounting: | DIN Rail, Book or Wall Mount option |
| ENVIRONMENT | |
| Operating temp.: | -20°C to +70°C – w/Air Flow |
| Storage temp.: | -20°C to 80°C |
| Humidity: | 10% to 95% RH @40°C, non-condensing |
| EMC: | CE, RoHS |
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| PICO N97 | v1.0 | 08-01-2024 | 1.09 MB |  |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| PICO N97 | TBD | TBD | TBD | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| PICO N97 HIG | TBD | TBD | TBD | |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| PICO N97 drivers | TBD | TBD | TBD | |
| IPC | |||
| MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
| PICO N97 | 10007093 | B04-32C-PICO-N97-R08-eMMC064 | IPC PICO N97, RAM 8GB, eMMC 64GB |
| ACCESSORIES | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| HDMI to VGA converter | 10003577 | HDMI to VGA converter | |
