NEW
SILVER N100
Intel® Processor N100
1x SO-DIMM DDR4 3200 MHz up to 16GB RAM
12VDC JACK or 9-36VDC TB w/ 220VAC Power Adapter
4x USB 3.0 + 2x USB 2.0
2x RS232/485 + 2x RS232
2x RTL8111H Gigabit Ethernet LAN
3x Video Interface (2x HDMI + 1x VGA)
| MAINBOARD | |
| CPU: | Intel® N100 4 Core / 4 Thread 1.8 GHz (Base) / 3.4GHz (Turbo) 6W |
| MEMORY | |
| Capacity: | up to 16GB |
| Frequency: | 3200 MHz |
| Type: | 1x SO-DIMM DDR4 |
| STORAGE | |
| SATA: | 1x SATA3 |
| M.2: | 1x M.2 M-Key (2280, SATA, NVMe) |
| Storage Bay: | 1x Internal 2.5” SSD Bay |
| I/O INTERFACE | |
| Serial ports: | 2x RS232/485 |
| USB ports: | 4x USB 3.0 + 2x USB 2.0 |
| M.2: | 1x Mini-PCIe (Full-size, WIFI/4G/5G) |
| SIM: | 1x Nano-SIM Slot Internal |
| AUDIO: | 1x Combo Line-out/Mic |
| VIDEO | |
| GPU: | Intel® UHD Graphics |
| Interface: | 2x HDMI (Up to 4096×2160 @60Hz) |
| VGA: | 1x VGA (Up to 1920×1080 @60Hz) |
| ETHERNET | |
| LAN: | 2x RTL8111H Gigabit LAN |
| POWER | |
| Power in: | 12V, DC-in Jack and 9~36VDC TB |
| Max Power: | 50W max |
| Adapter: | AC 90~240V to DC 12V @5A/60W |
| MECHANICAL | |
| Material: | High-quality aluminum |
| Dimensions: | (W)186x(D)127x(H)66mm |
| Weight: | <1.40 Kg |

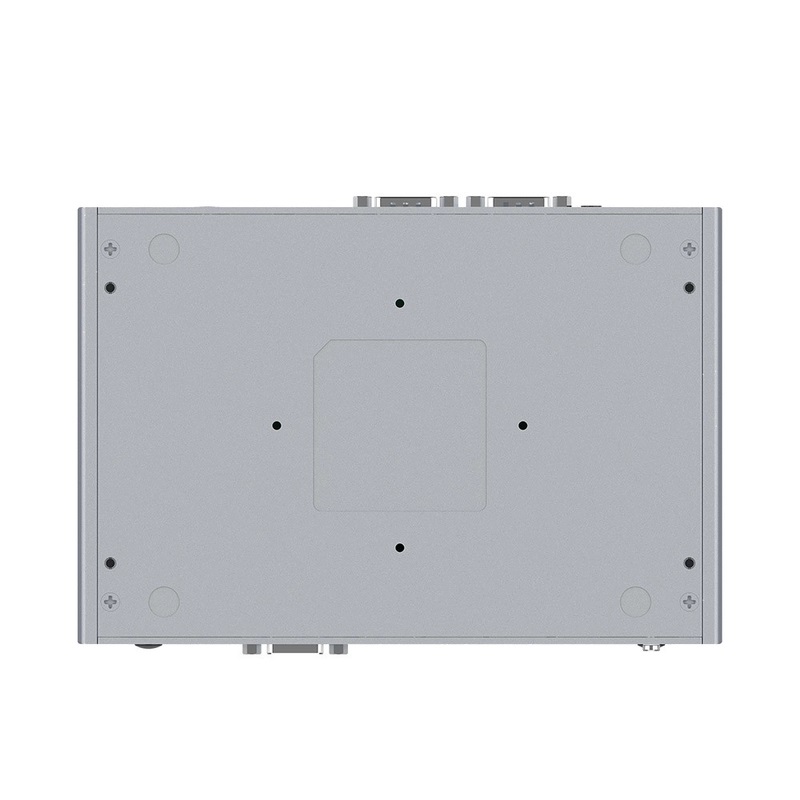

| Mounting: | VESA, Wall Mount Kit, Din-Rail (Optional) |
| ENVIRONMENT | |
| Operating temp.: | -20°C to +60°C – w/Air Flow |
| Storage temp.: | -40°C to 85°C |
| Humidity: | 5% to 95% RH @40°C, non-condensing |
| EMC: | CE, RoHS |
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| SILVER N100 | v1.0 | 08-01-2024 | 1.09 MB |  |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| SILVER N100 | TBD | TBD | TBD | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| SILVER 100 HIG | TBD | TBD | TBD | |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| SILVER 100 drivers | TBD | TBD | TBD | |
| IPC | |||
| MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
| SILVER N100 | 1000xxxx | xxxx | xxxx |
| ACCESSORIES | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| HDMI to VGA converter | 10003577 | HDMI to VGA converter | |
