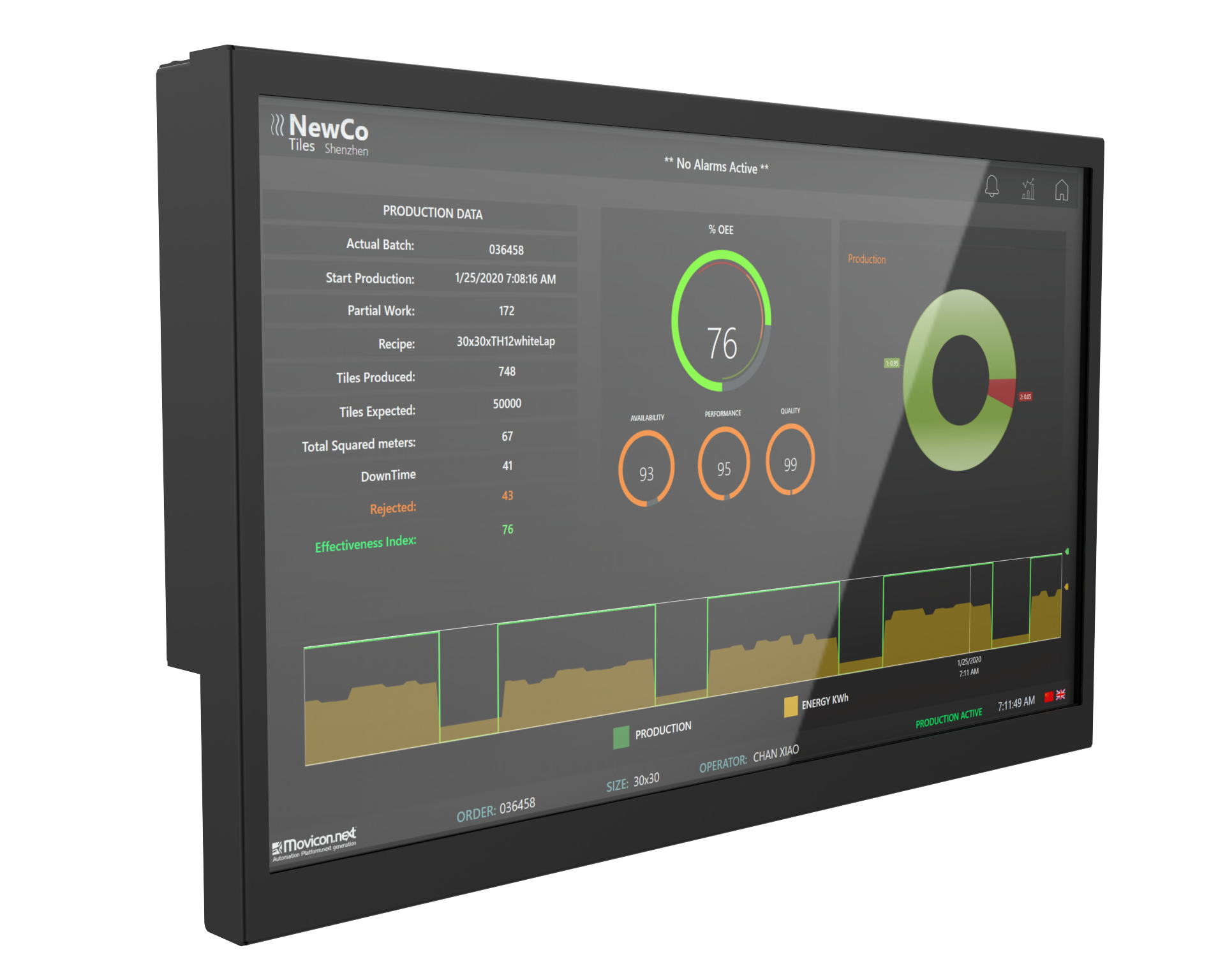

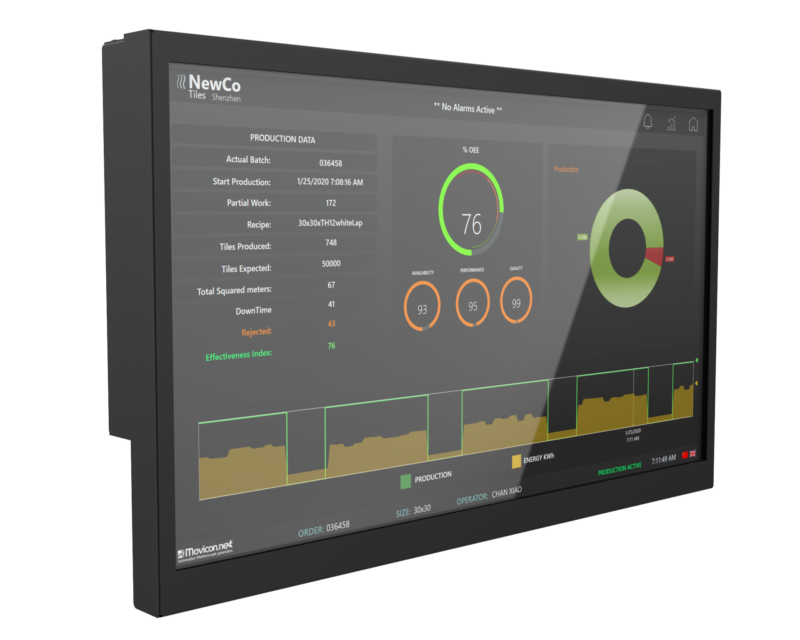

IMC-215v2X
21.5” Industrial Metalcase (VESA) Monitor (16:9)
Resolution: FullHD (1920×1080)
Touch or w/o -Touch version with USB driver interface connection
Double power supply: 18 ~ 36V, VDC or 80 ~ 265V, VAC (it’s not redundant)
VESA 100×100
| DISPLAY | |
| Size: | 21.5” |
| Resolution: | FullHD (1920×1080) |
| Aspect Ratio: | 16:9 |
| Backlight: | Led |
| Bright and Contrast: | 250 cd/mq 1000:1 |
| Colors: | 16 M |
| View Angle: | 178° – 178° |
| FRONT PANEL | |
| Thickness: | 2 mm |
| Graphic: | Black painted steel |
| Front Panel Type: | Metalcase |
| TOUCH SCREEN | (Only with Touch Version) |
| Glass Thickness: | 3 mm |
| Technology: | Resistive 5 wires |
| Connection Type | USB 2.0 (Type B) |

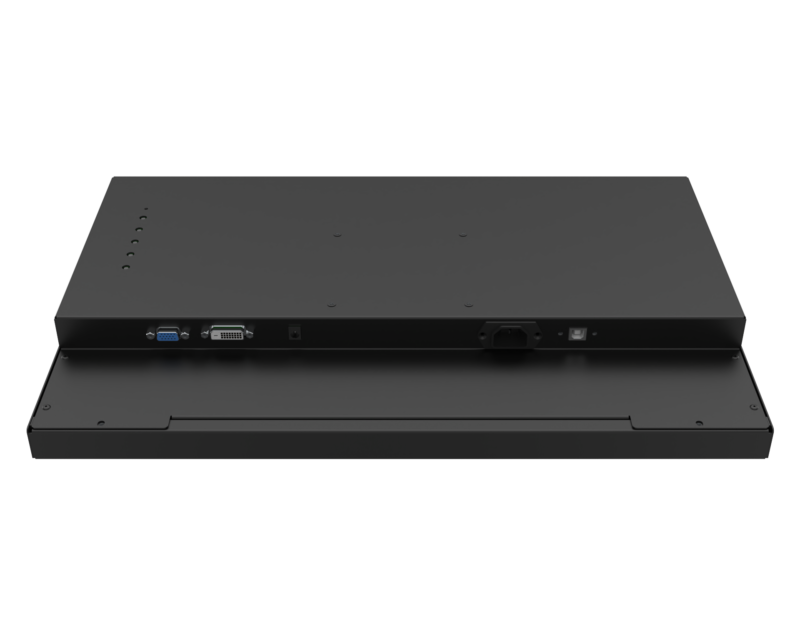

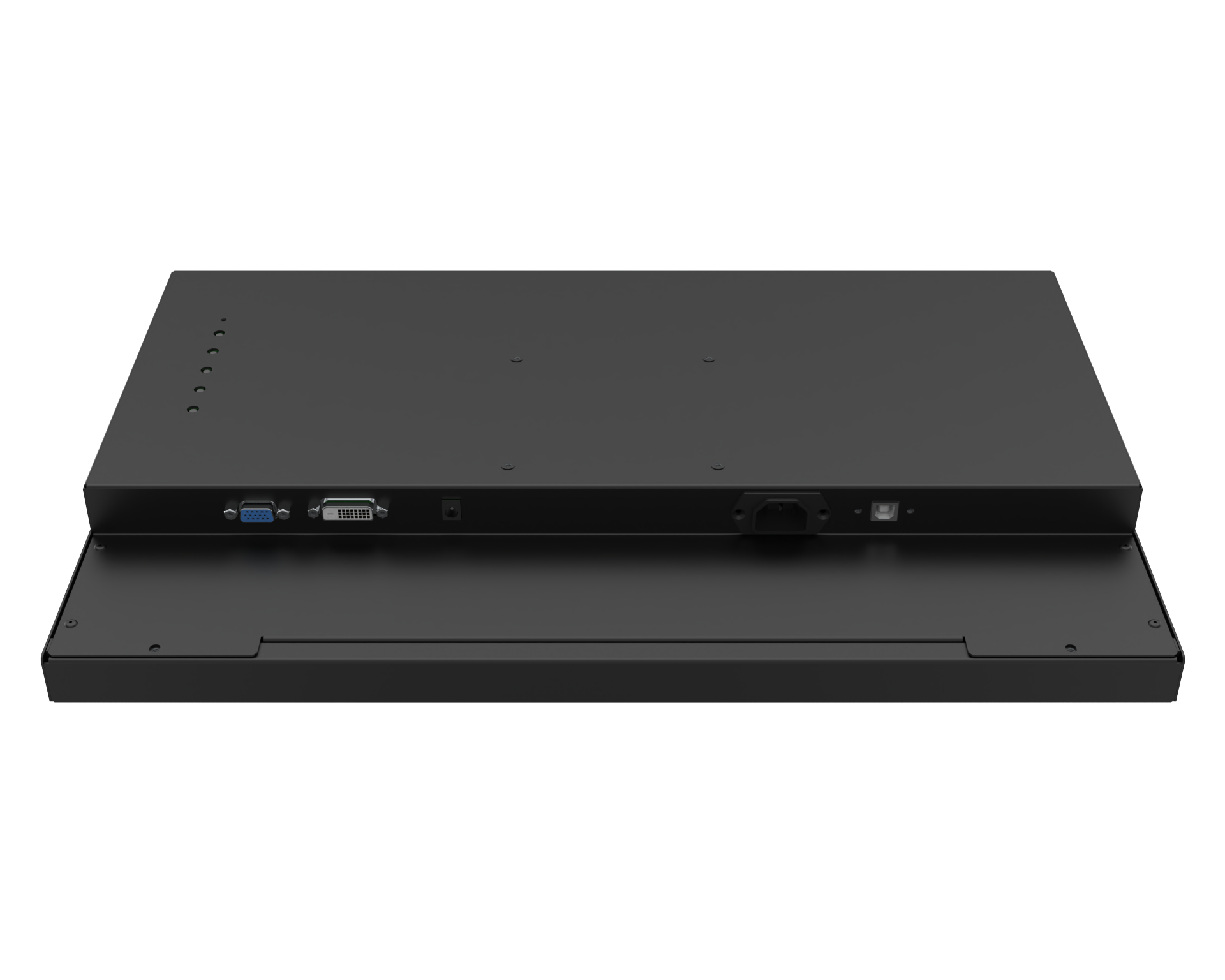

| I/O INTERFACE | |
| Video Input: | 1x DVI-I 1x VGA (D_SUB 15pin) |
| USB ports: | 1x USB 2.0 (Type B) for Touch Driver (Only with Touch Version) |
| POWER | |
| Power in: | 18 ~ 36V, VDC Version (Jack)
80 ~ 265V, VAC Version (IEC) (it’s not redundant) |
| Max Power: | 25W max |

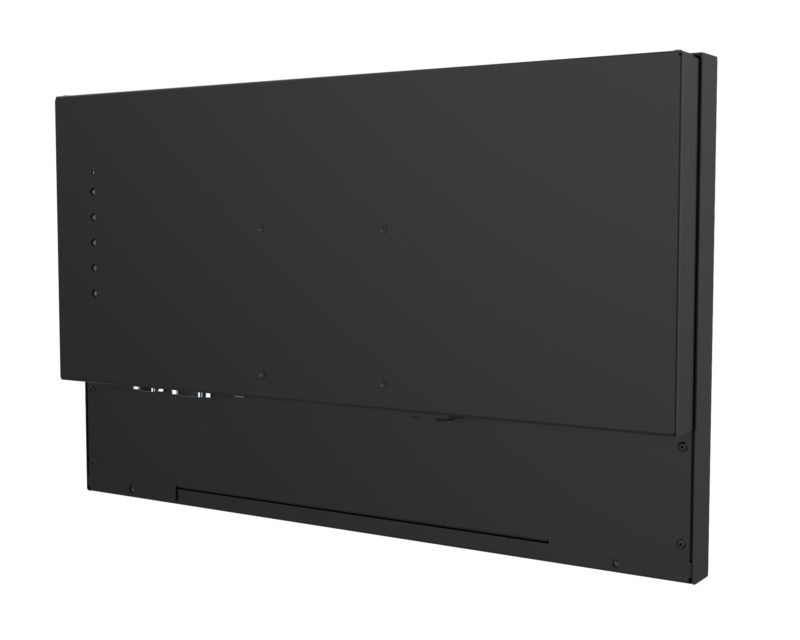

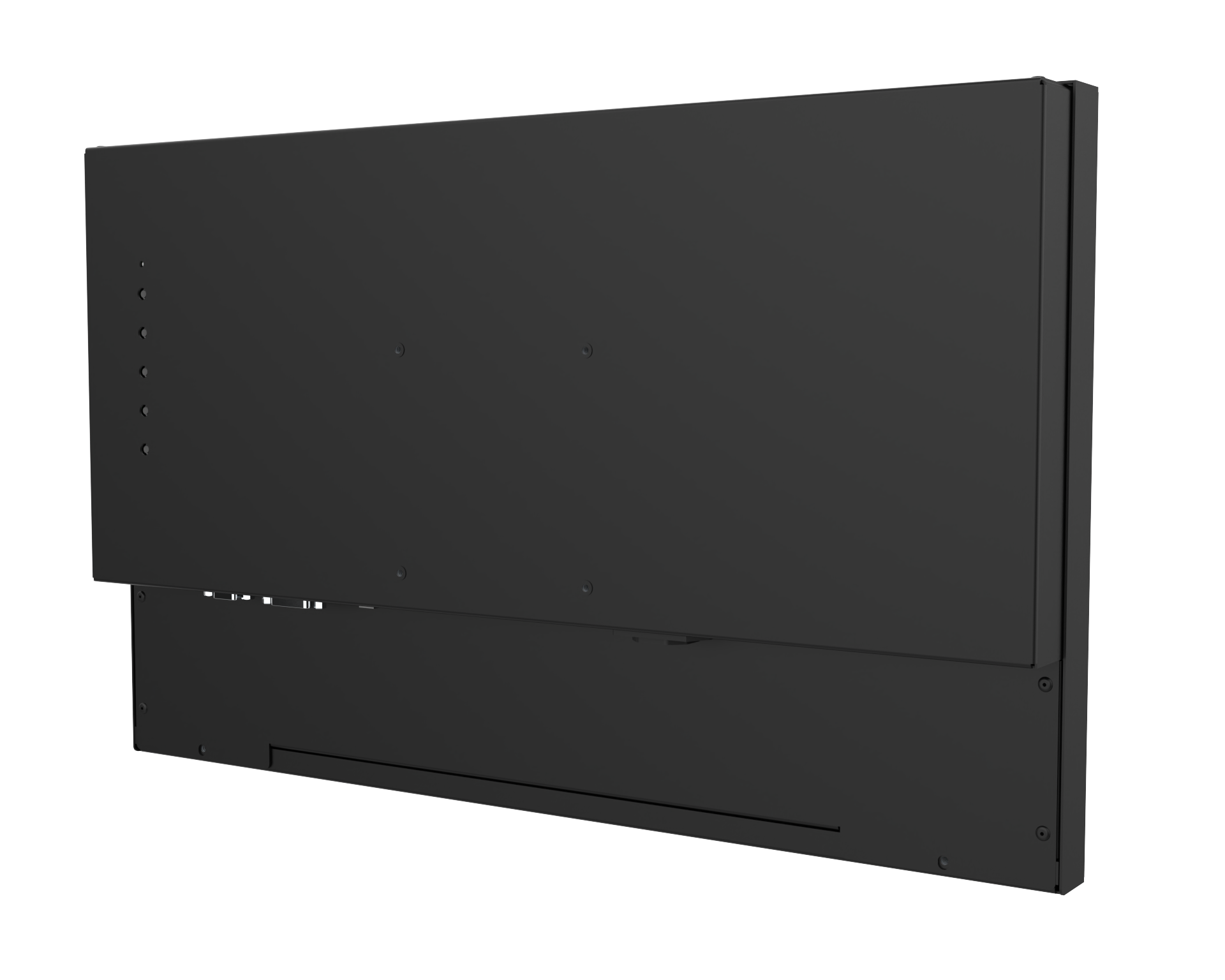

| MECHANICAL | |
| Material: | Fully painted steel frame |
| IP Protection: | IP40 |
| Dimensions: | (W)557x(D)345x(H)63mm |
| Weight: | 10 Kg |
| Mounting: | VESA 100×100 |
| ENVIRONMENT | |
| Operating temp.: | 0°C to 50°C |
| Storage temp.: | -20°C to 70°C |
| Humidity: | 40% to 60% Humidity, non-condensing |
| EMC: | CE, FCC, RoHS, LVD |
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| IMC-215v2X | TBD | TBD | TBD |  |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| IMC-215X manual | TBD | TBD | TBD | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| IMC-215X HIG | TBD | TBD | TBD | |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| IMC-215X drivers | TBD | TBD | TBD | |
| IPC | |||
| MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
| IMC-215v2X | |||
| ACCESSORIES | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| HDMI to VGA converter | 10003577 | HDMI to VGA converter | |
