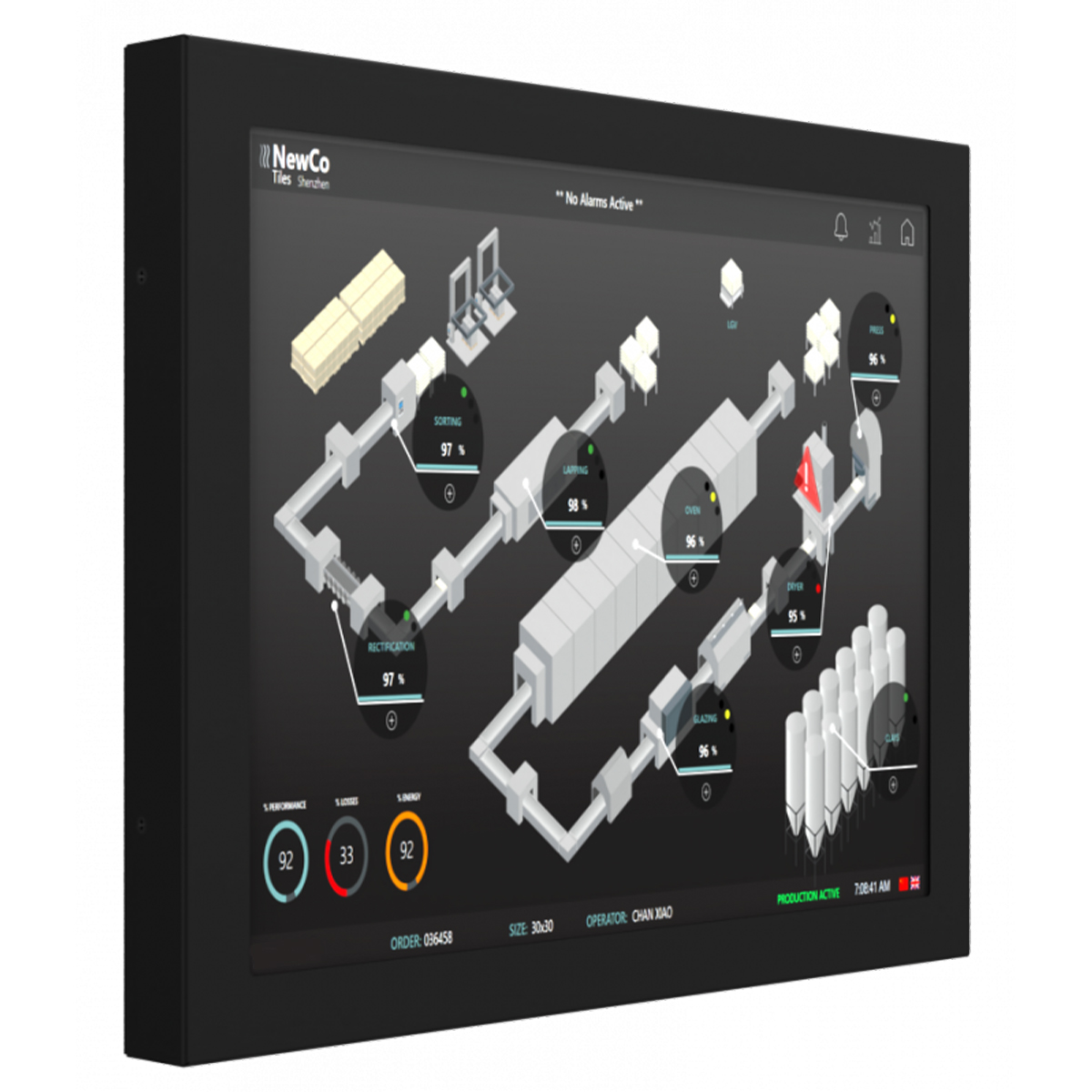

IMC-150X
15” Industrial Metalcase (VESA) Monitor (4:3)
Resolution: XGA (1240×768)
Touch or w/o -Touch version with USB or RS232 driver interface connection
Two Power options available:
18 ~ 36V, VDC or
80 ~ 265V, VAC
VESA 100×100 + 200×100
INDATECH Industrial Metalcase (VESA) Monitor
Specifiche tecniche
DISPLAY | |
Size: | 15” |
Resolution: | XGA (1024×768) |
Aspect Ratio: | 4:3 |
Backlight: | Led |
Bright and Contrast: | 400 cd/mq 700:1 |
Colors: | 16 M |
View Angle: | 160° – 140° |
FRONT PANEL | |
Thickness: | 6 mm |
Graphic: | Black painted steel |
Front Panel Type: | Metalcase |
TOUCH SCREEN | (Only with Touch Version) |
Glass Thickness: | 3 mm |
Technology: | Resistive 5 wires |
Connection Type: | USB 2.0 or RS232 |

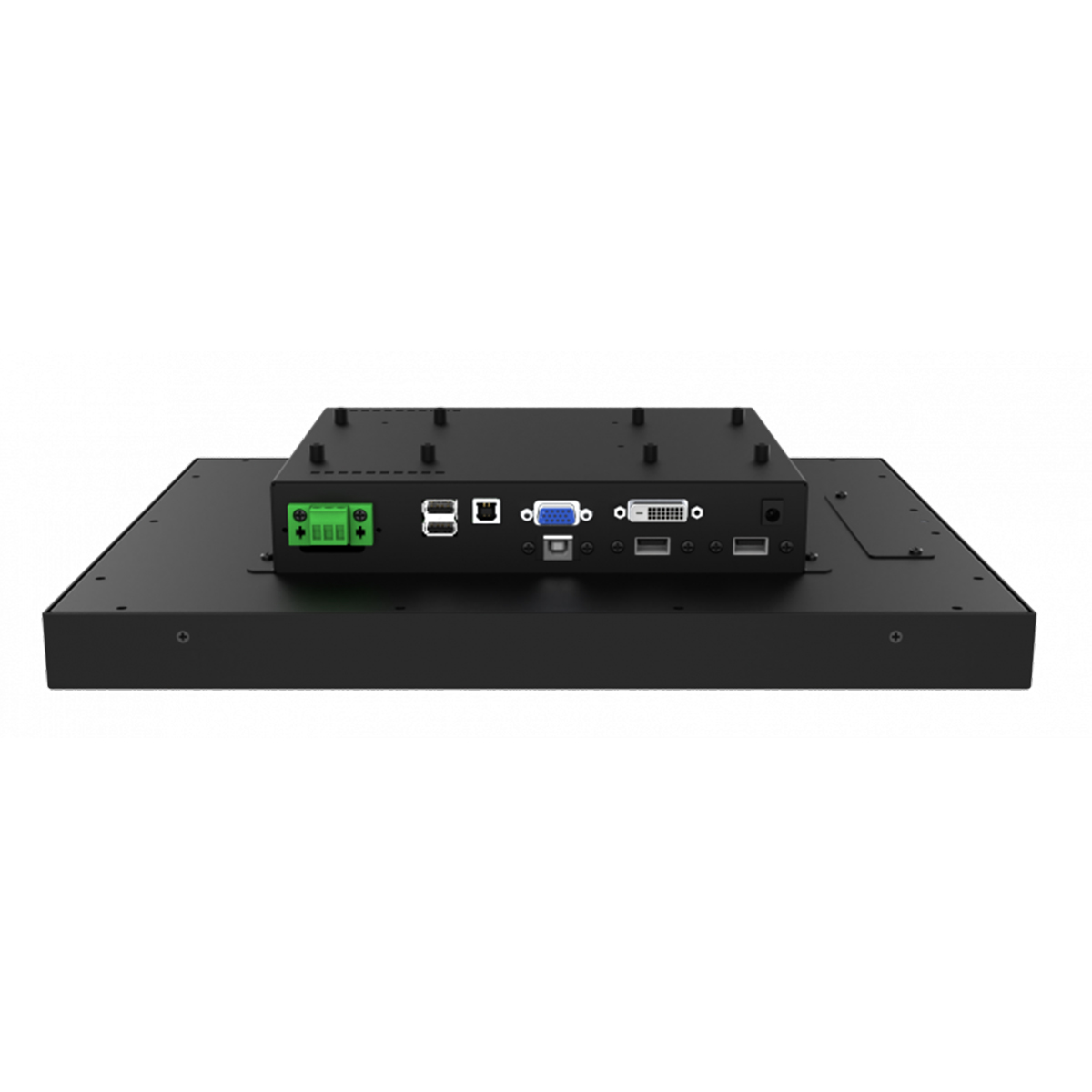

I/O INTERFACE | |
Video Input: | 1x DVI-I 1x VGA (D_SUB 15pin) |
USB ports: | 1x USB 2.0 or RS232 for Touch Driver (Only with Touch Version) |
POWER | |
Power in: | 18 ~ 36V, VDC Version
80 ~ 265V, VAC Version |
Max Power: | 12W max |

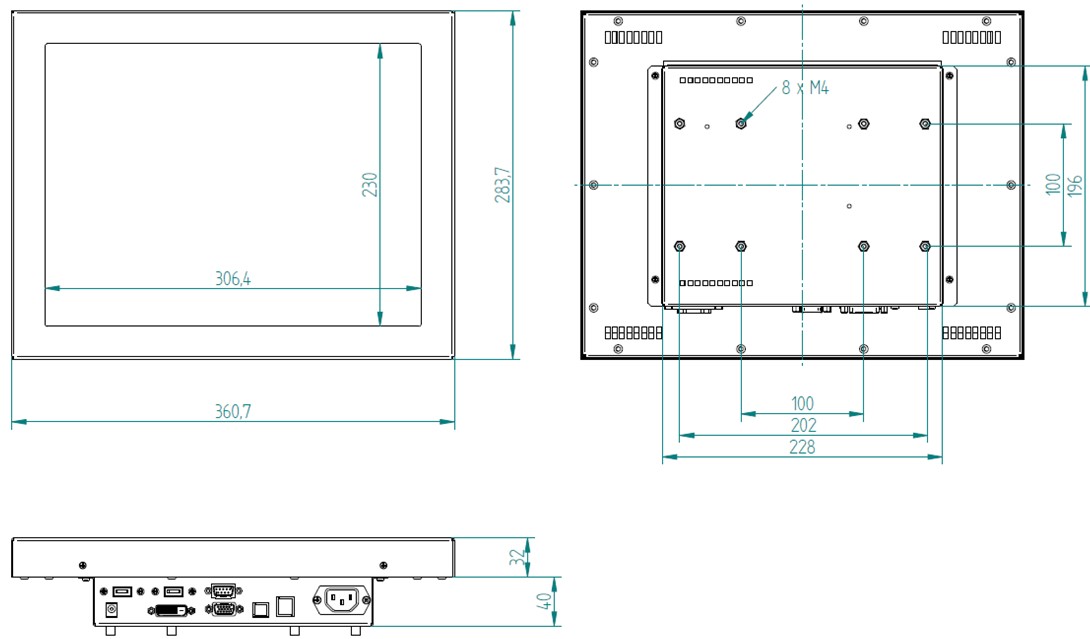

MECHANICAL | |
Material: | Steel |
IP Protection: | IP40 |
Dimensions: | (W)360,7x(D)283,7x(H)72mm |
Weight: | 5 Kg |

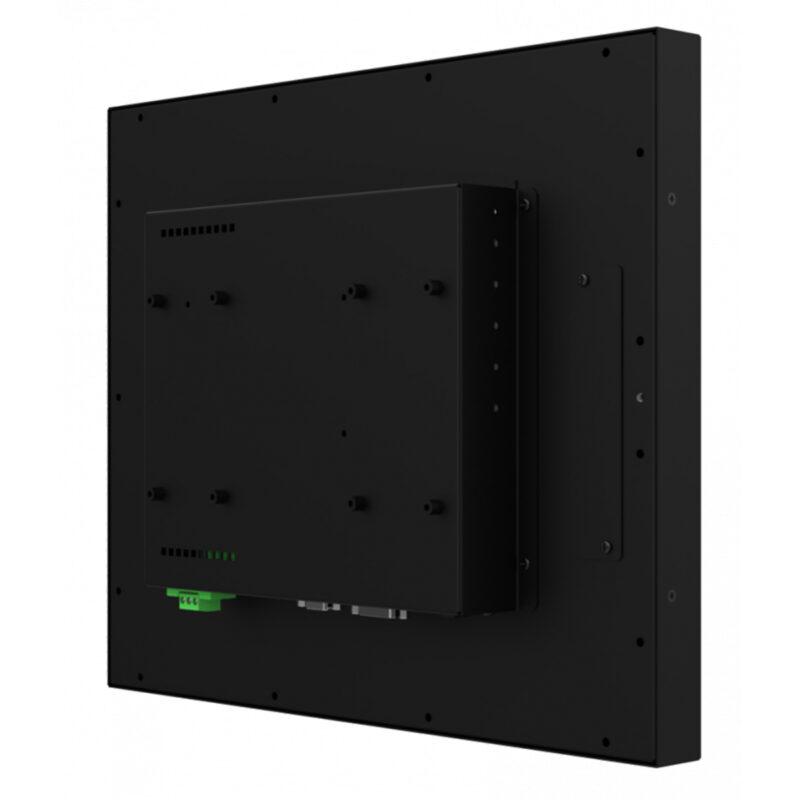

Mounting: | VESA 100×100 + 200×100 |
ENVIRONMENT | |
Operating temp.: | 0°C to 50°C |
Storage temp.: | -20°C to 70°C |
Humidity: | 40% to 60% Humidity, non-condensing |
EMC: | CE, FCC, RoHS, LVD |
Codici di ordinazione
IPC | |||
MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
IMC-150X |
ACCESSORIES | |||
MODEL NAME | PART NUMBER | DESCRIPTION | |
HDMI to VGA converter | 10003577 | HDMI to VGA converter |
File scaricabili
DATASHEET | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
IMC-150X | TBD | 2023-06-09 | 332 KB |
DRIVERS | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
IMC-150X drivers | TBD | 2023-06-09 | 4.3 GB |
MANUAL | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
IMC-150X manual | TBD | 2023-06-09 | 5.99 MB |
HARDWARE INSTALLATION GUIDE | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
IMC-150X HIG | TBD | 2023-06-09 | 5.99 MB |
