NEW
DELTA PRO N100
Intel® Alder Lake-N SoC Processor (N100)
1x DDR4 3200 MHz up to 16GB RAM
12V, DC-in w/ 220VAC Power Adapter
4x USB 3.1 + 2x USB 2.0
2x COM (RS232)
2x 2.5 Gigabit Ethernet LAN
WIFI and/or 4G connectivity (Optional)
2x 4K Video interface (2x HDMI)

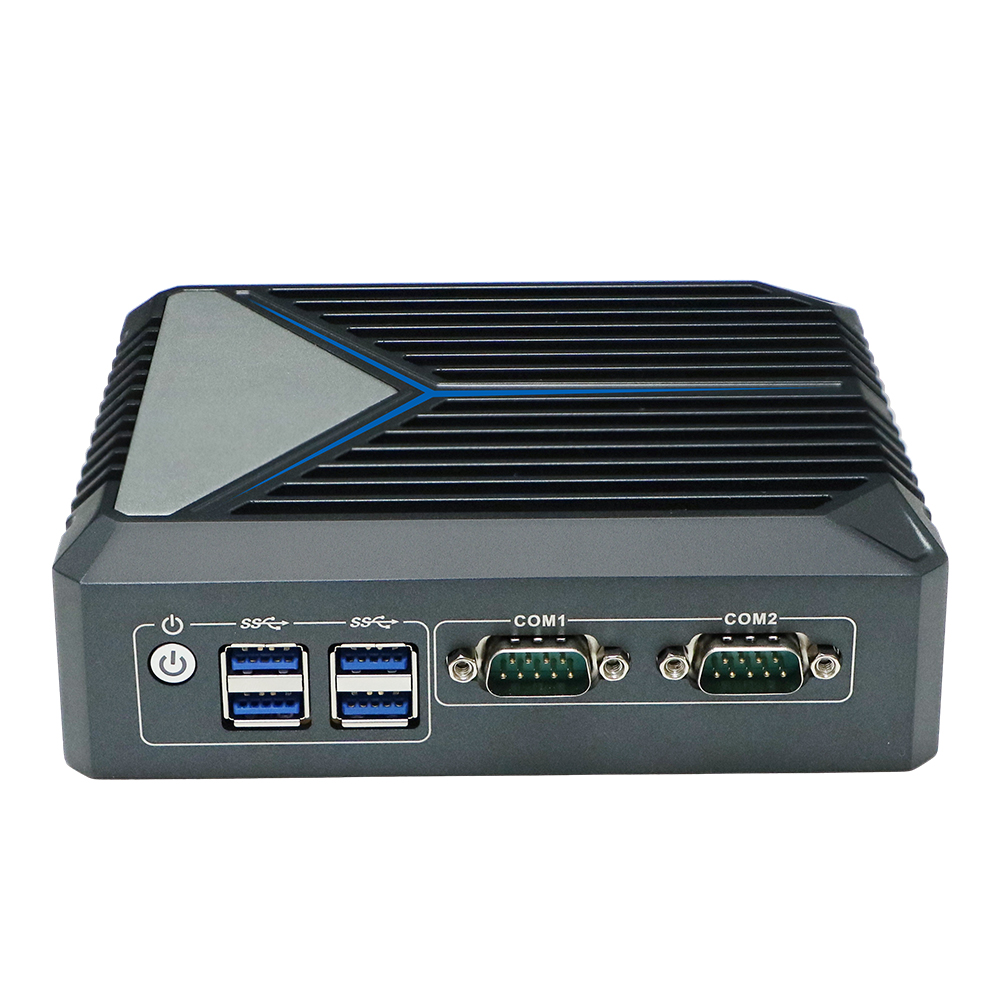

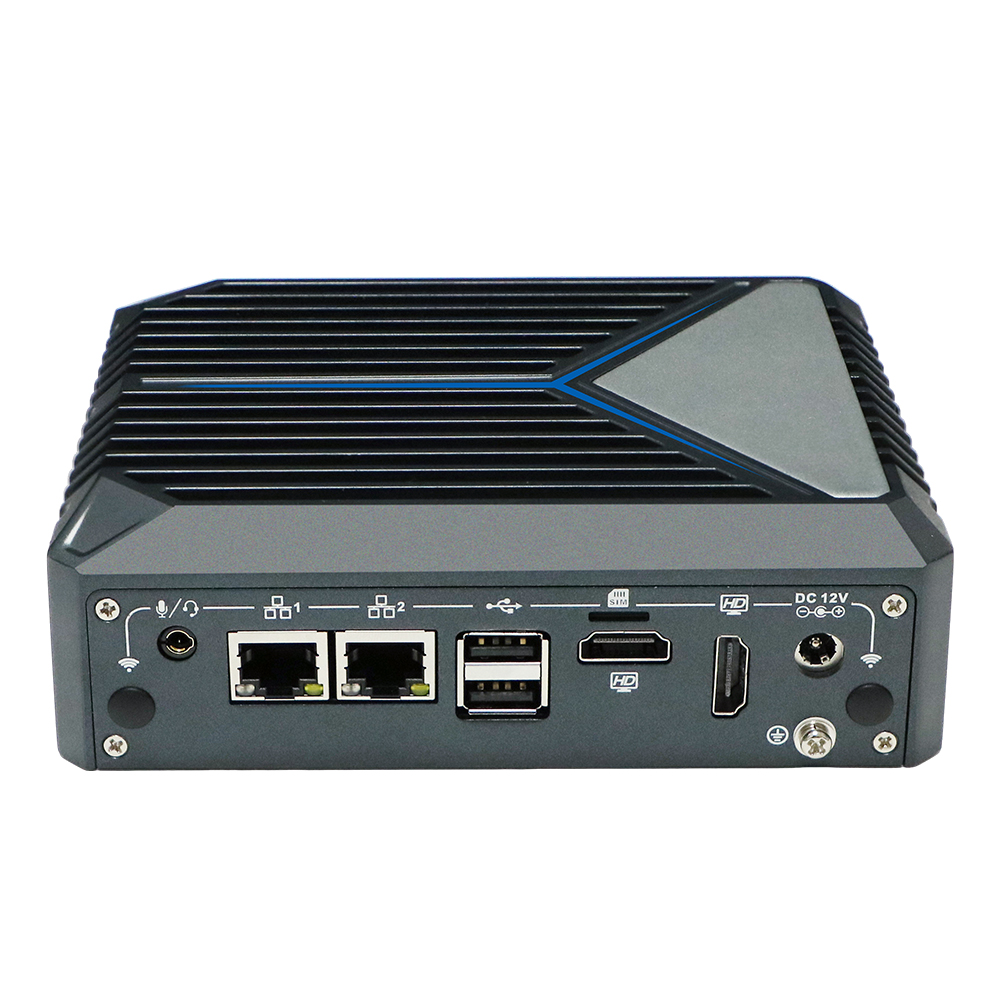

INDATECH Industrial IPC DELTA PRO N100
Specifiche tecniche
| MAINBOARD | |
| CPU: | Intel® Alder Lake-N N100
4 Core / 4 Thread 1.8 GHz (Base) / 3.4 GHz (Turbo) 6W |
| MEMORY | |
| Capacity: | up to 16GB |
| Frequency: | 3200 MHz |
| Type: | 1x SO-DIMM DDR4 |
| STORAGE | |
| SATA: | 1x SATA3 |
| M.2: | 1x M.2 M-Key (2280, STA +NVMe) |
| Storage Bay: | 1x Internal 2.5” SSD Bay |
| I/O INTERFACE | |
| Serial ports: | 2x COM RS232 |
| USB ports: | 4x USB 3.1 + 2x USB 2.0 |
| M.2: | 1x M.2 E-Key Slot (2230, WIFI) |
| mPCIe: | 1x Mini-PCIe Slot (4G) |
| SIM: | 1x SIM Slot (MicroSIM) |
| AUDIO: | 1x Line-out/MIC-in Jack |
| VIDEO | |
| GPU: | Intel® UHD Graphics |
| Interface: | 2x HDMI 1.4 (Up to 4096×2160 @60Hz) |
| ETHERNET | |
| LAN: | 2x Intel i225-V 2.5 Gigabit LAN |
| POWER | |
| Power in: | 12V, DC-in |
| Max Power: | 60W max |
| Adapter: | AC_90~240V / DC_12V_5A/60W |
| MECHANICAL | |
| Material: | High-quality aluminum |
| Dimensions: | (W)150x(D)126.5x(H)45mm |
| Weight: | <1 Kg |
| Mounting: | WallMount + VESA kit |
| ENVIRONMENT | |
| Operating temp.: | -20°C to +60°C |
| Storage temp.: | -20°C to 85°C |
| Humidity: | 10% to 90% RH @40°C, non-condensing |
| EMC: | CE, FCC, RoHS, LVD, ErP Ready |
| OPERATIVE SYSTEM | |
| MS Windows: | Windows 10, Windows 10 Enterprise LTSC,
Windows 11, Windows 11 Enterprise LTSC |
| Linux*: | Ubuntu 20.04 LTS, CentOS 8, Debian 10,
Fedora 34, pfSence 2.4.4, FreeNAS 11.2, WMware ESXI 6.5 |
| * Linux distributions tested with the IPC. |
Codici di ordinazione
| IPC | |||
| MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
| DELTA PRO N100 | 1000xxxx | xxxx | xxxx |
| ACCESSORIES | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| HDMI to VGA converter | 10003577 | HDMI to VGA converter | |

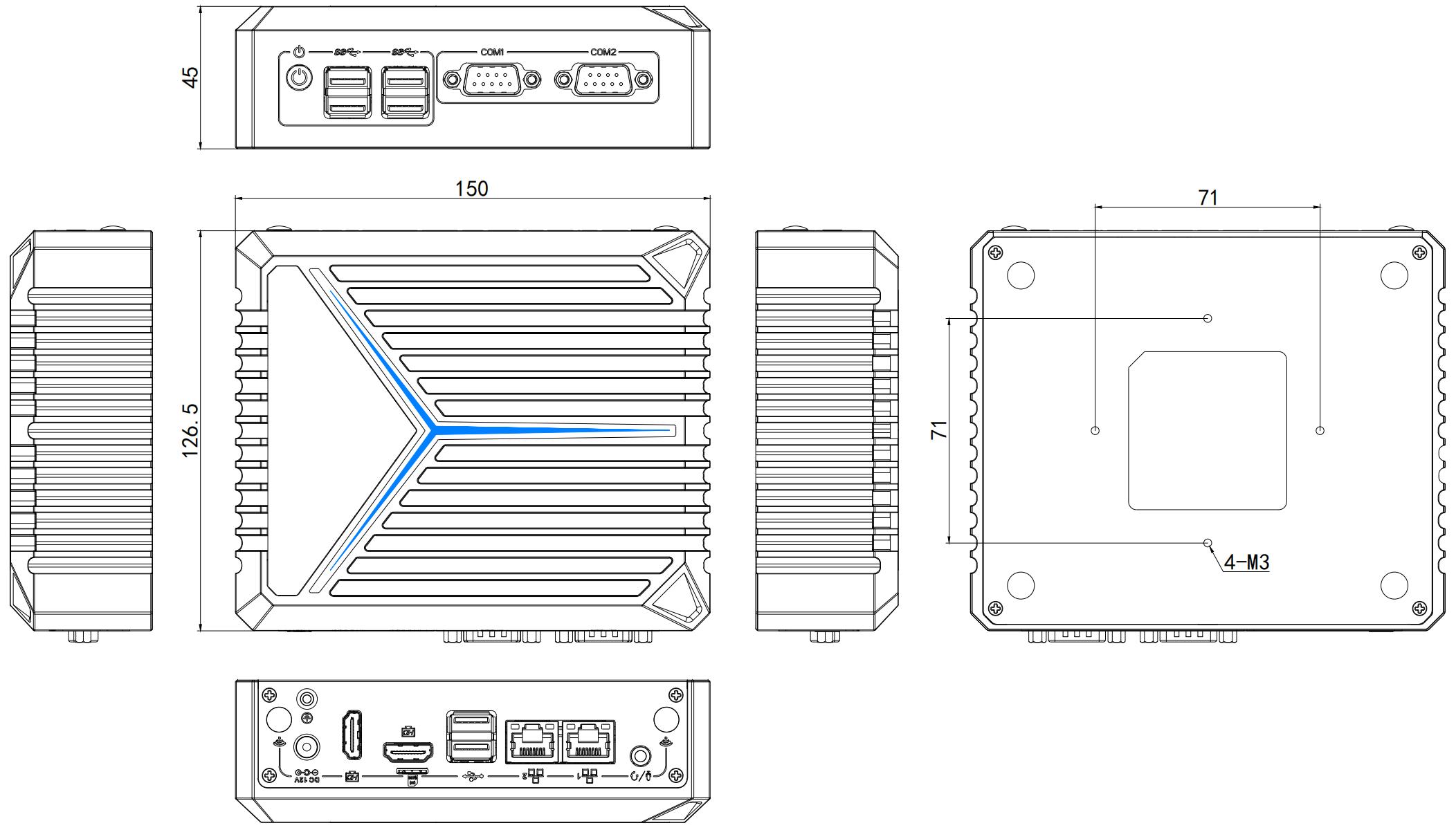

Disegni tecnici
File scaricabili
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| DELTA PRO N100 | TBD | TBD | TBD |  |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| DELTA PRO N100 | TBD | TBD | TBD | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| DELTA PRO N100 HIG | TBD | TBD | TBD | |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| DELTA PRO N100 drivers | TBD | TBD | TBD | |
