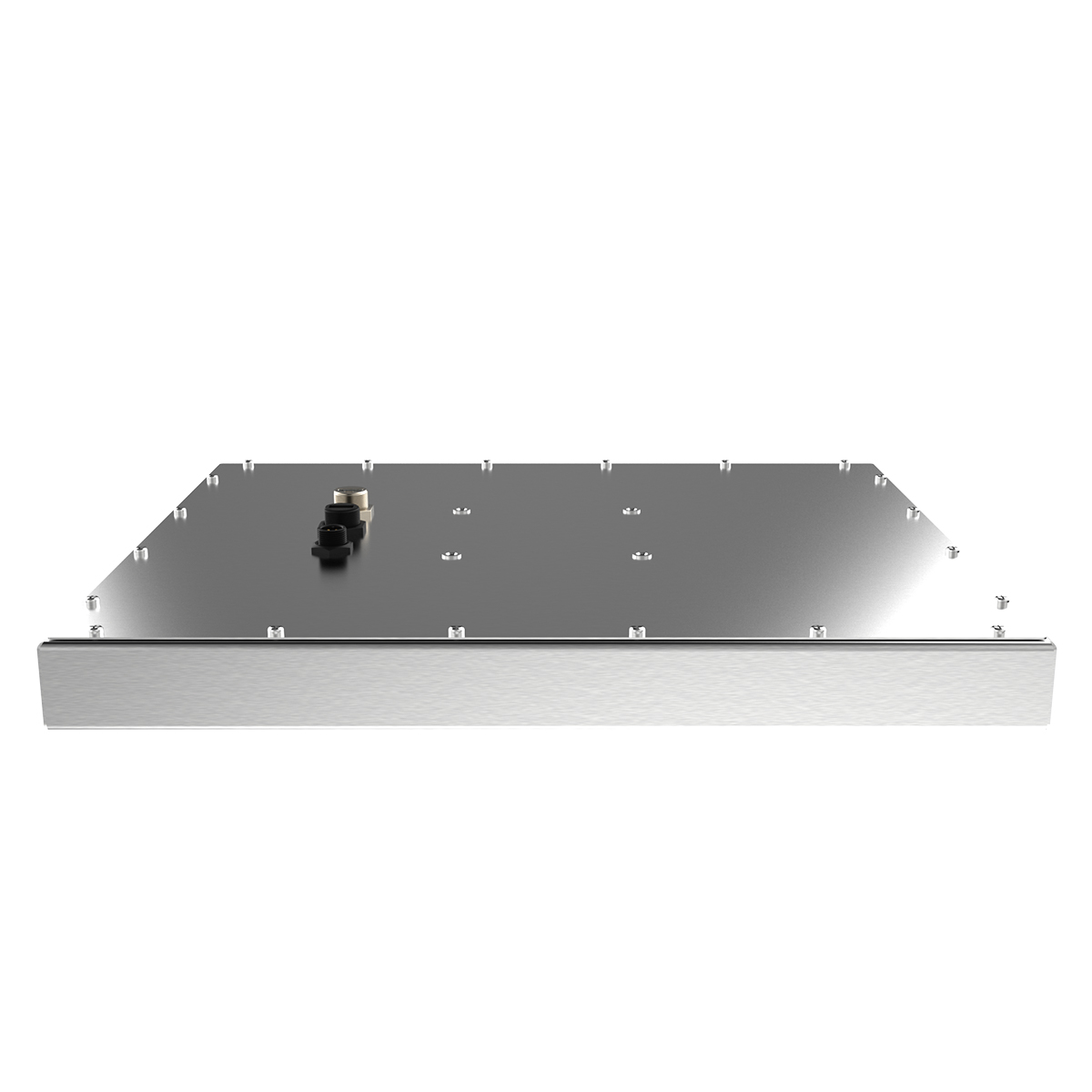

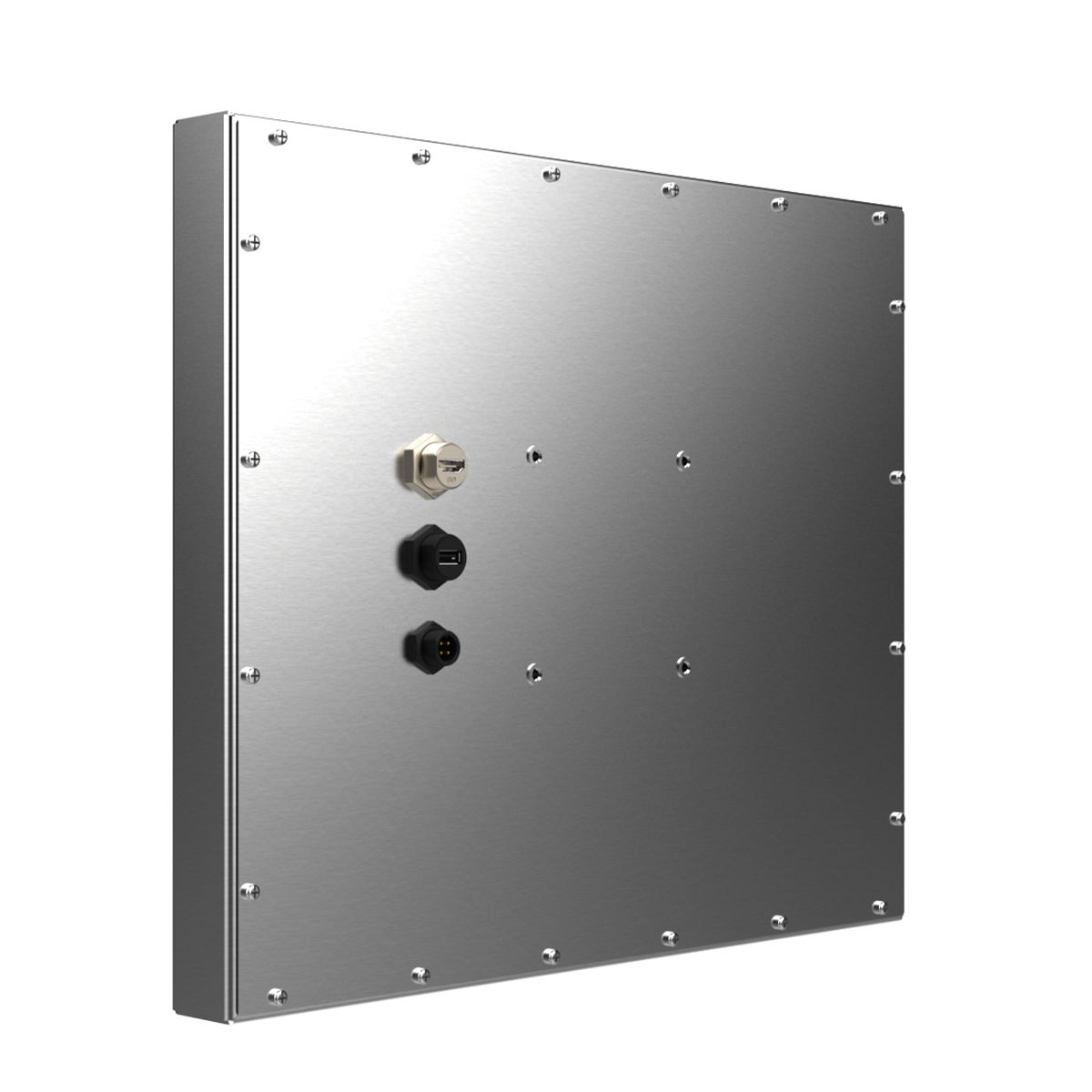

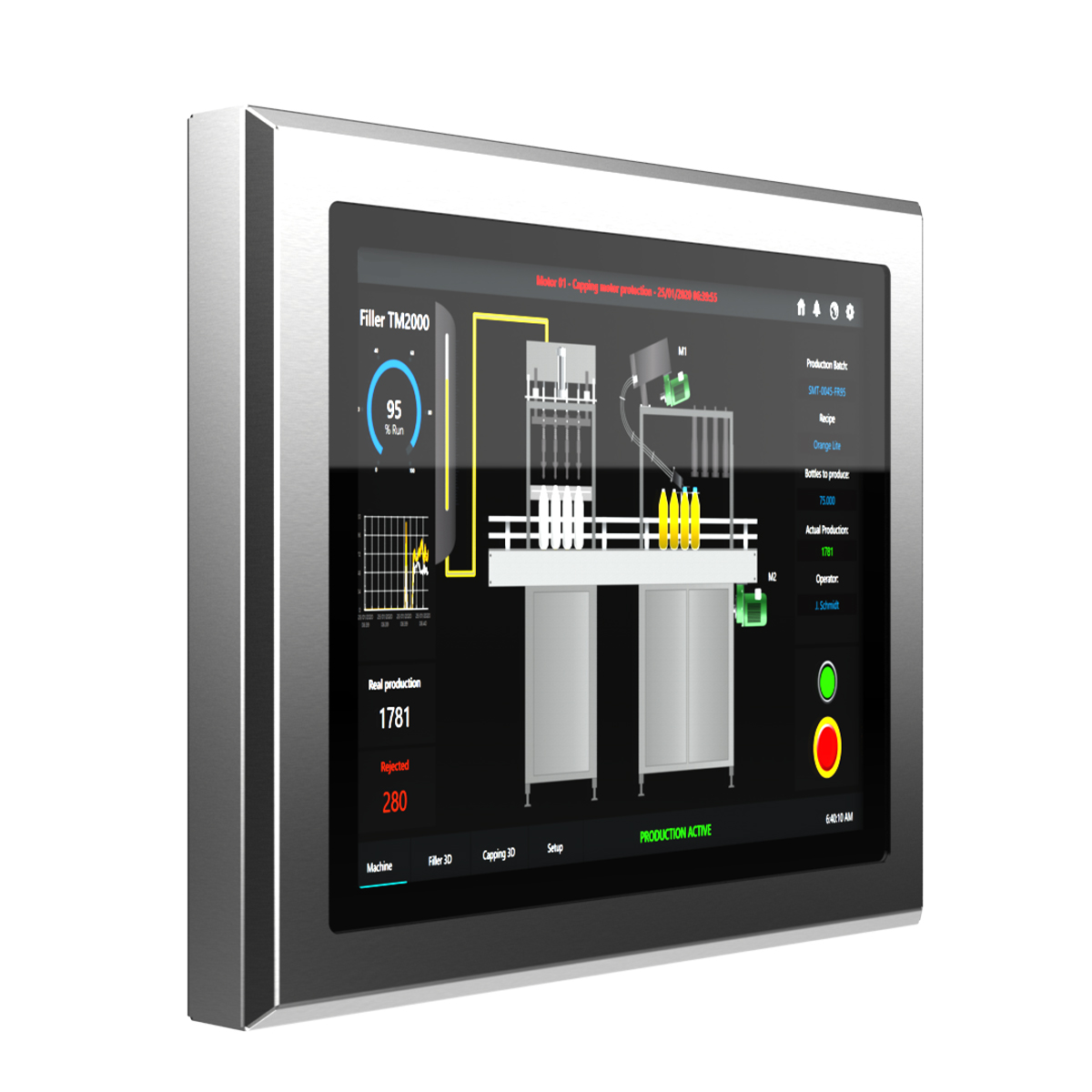

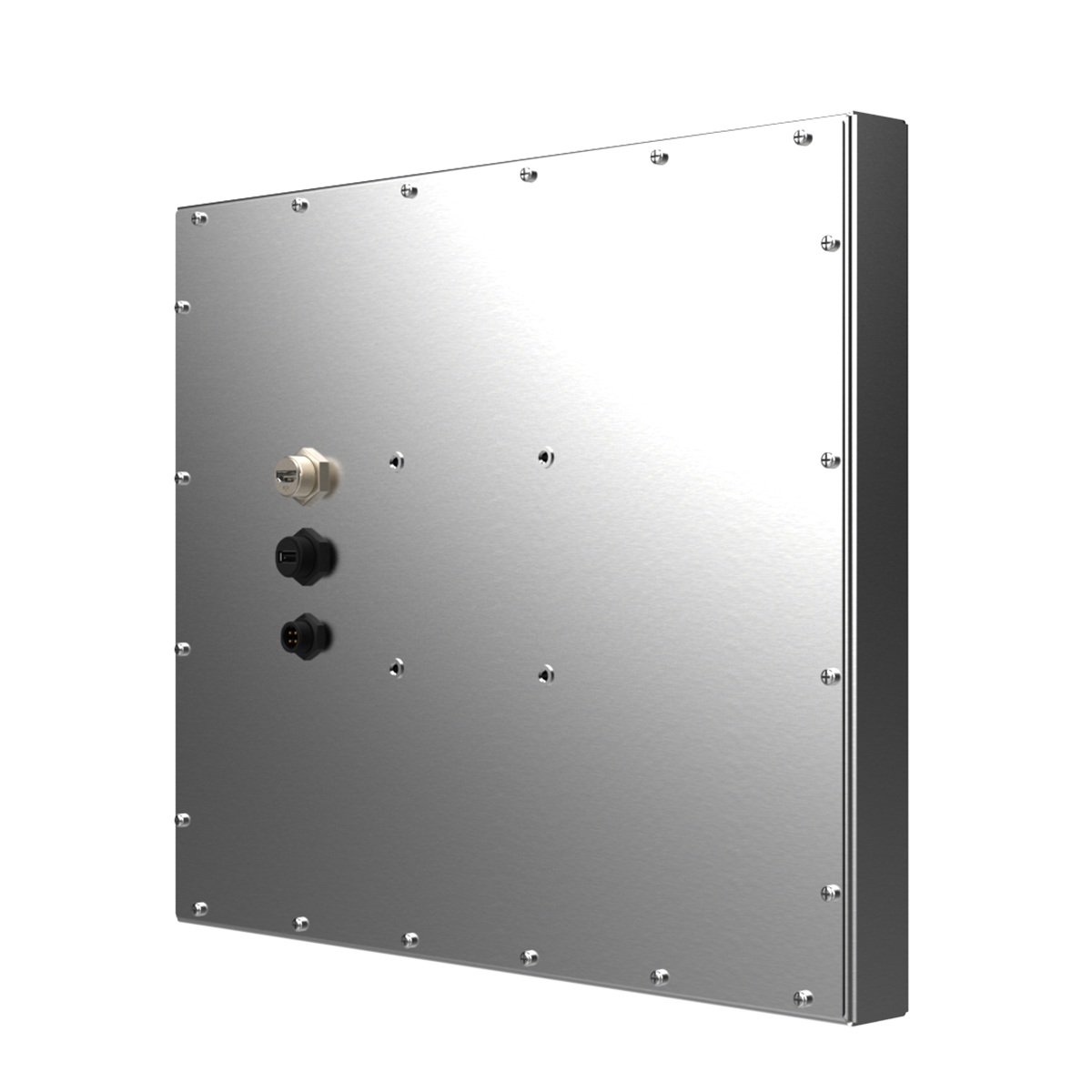

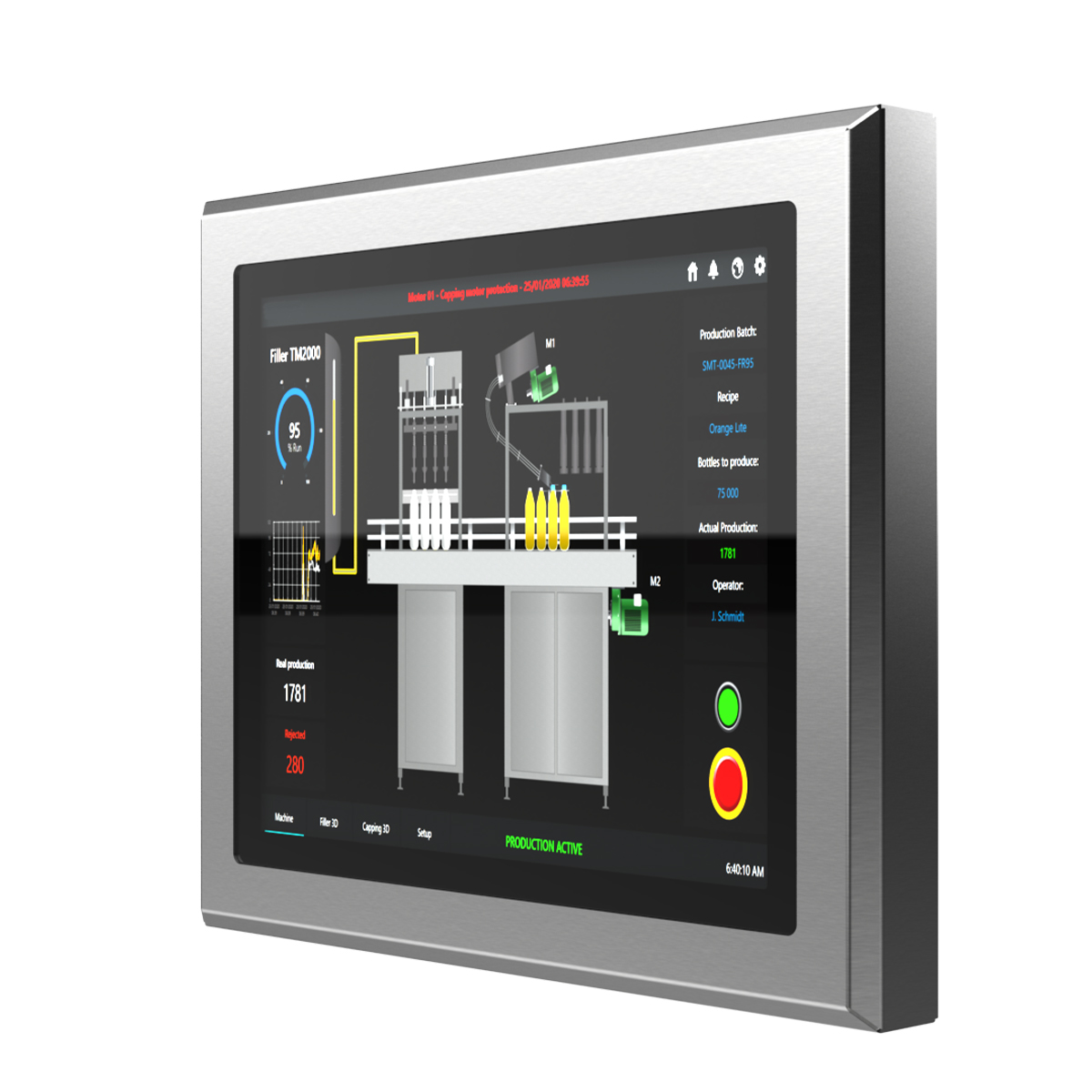

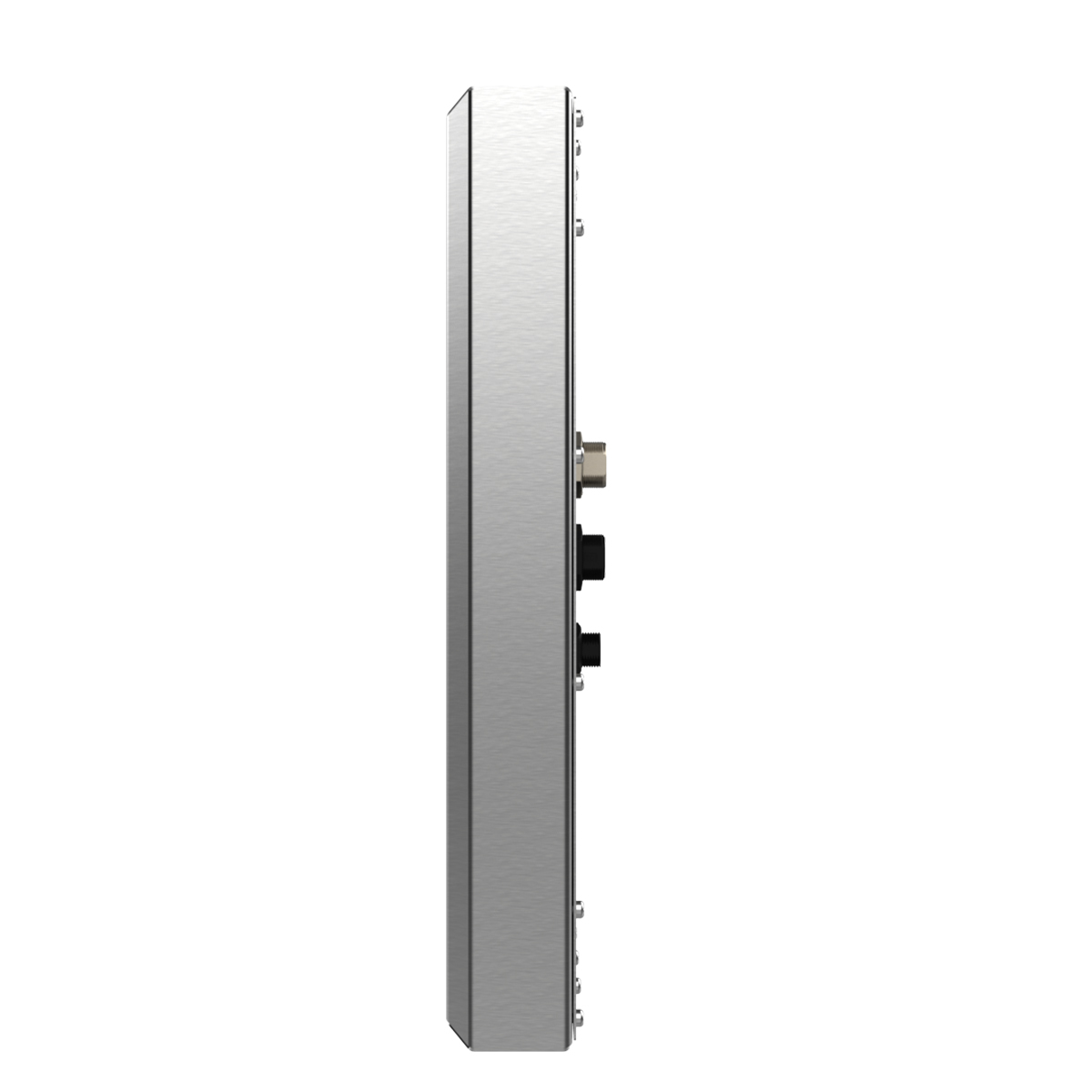

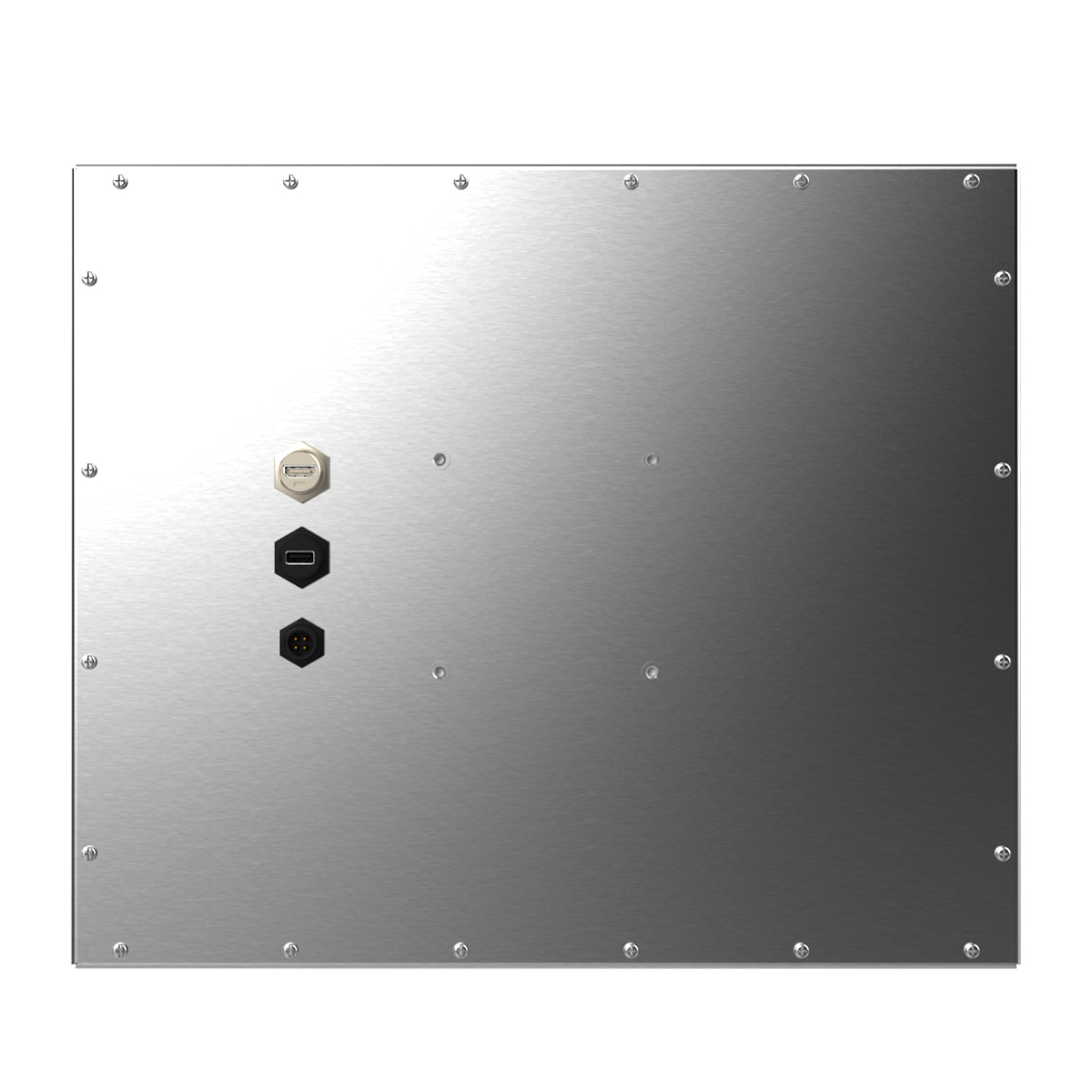

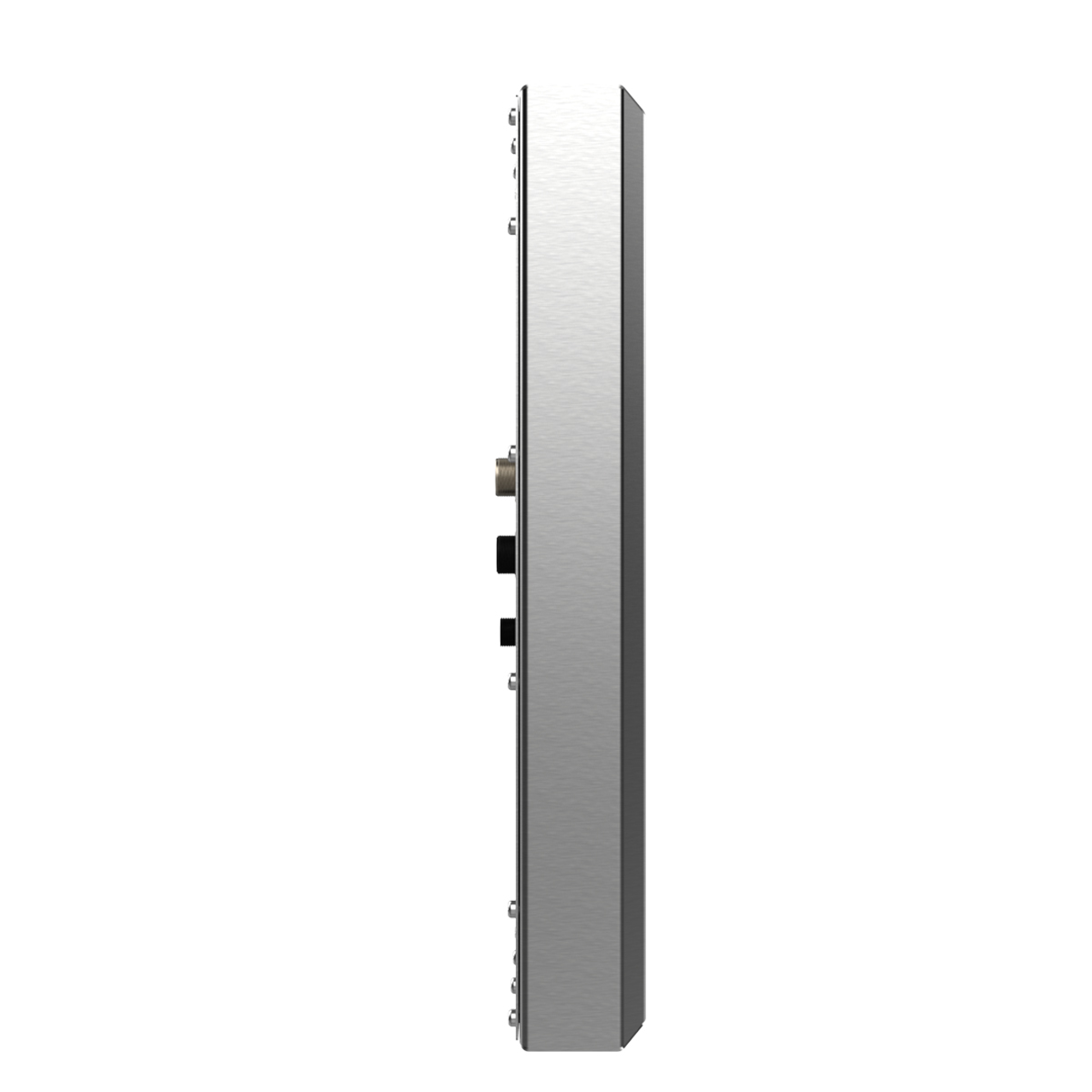

AINOX-170X
17” Industrial AINOX Monitor (4:3)
Resolution: SXGA (1280×1024)
Touch or w/o -Touch version with USB driver interface connection
9 ~ 24V, VDC
VESA 100×100 + CUSTOM
INDATECH Industrial AINOX Monitor
Specifiche tecniche
DISPLAY | |
Size: | 17” |
Resolution: | SXGA (1280×1024) |
Aspect Ratio: | 4:3 |
Backlight: | Led |
Bright and Contrast: | 250 cd/mq 1000:1 |
Colors: | 16 M |
View Angle: | 170° – 160° |
TOUCH SCREEN | (Only with Touch Version) |
Glass Thickness: | 3 mm |
Technology: | Projective Capacitive Multitouch – 10 points |
Connection Type: | USB |
I/O INTERFACE | |
Video Input: | 1x HDMI |
USB ports: | 1x USB for Touch Driver (Only with Touch Version) |
POWER | |
Power in: | 9 ~ 24V, DC Version |
Max Power: | 60W max |
MECHANICAL | |
Material: | AISI 316 Stainless Steel |
IP Protection: | IP66 |
Dimensions: | (W)448x(D)380x(H)52mm |
Weight: | 10 Kg |
Mounting: | VESA 100×100 + CUSTOM |
ENVIRONMENT | |
Operating temp.: | -10°C to 50°C |
Humidity: | 100% Humidity, non-condensing |
EMC: | CE, FCC, RoHS, LVD |
Codici di ordinazione
IPC | |||
MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
AINOX-170X |
ACCESSORIES | |||
MODEL NAME | PART NUMBER | DESCRIPTION | |
HDMI to VGA converter | 10003577 | HDMI to VGA converter |
File scaricabili
DATASHEET | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
AINOX-170X | v1.0 | 2021-12-10 | 5.99 MB |
MANUAL | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
AINOX-170X manual | v1.28 | 2021-12-10 | 5.99 MB |
HARDWARE INSTALLATION GUIDE | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
AINOX-170X HIG | v1.28 | 2021-12-10 | 5.99 MB |
DRIVERS | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
AINOX-150X drivers | v1.0 | 2021-12-10 | 4.3 GB |
