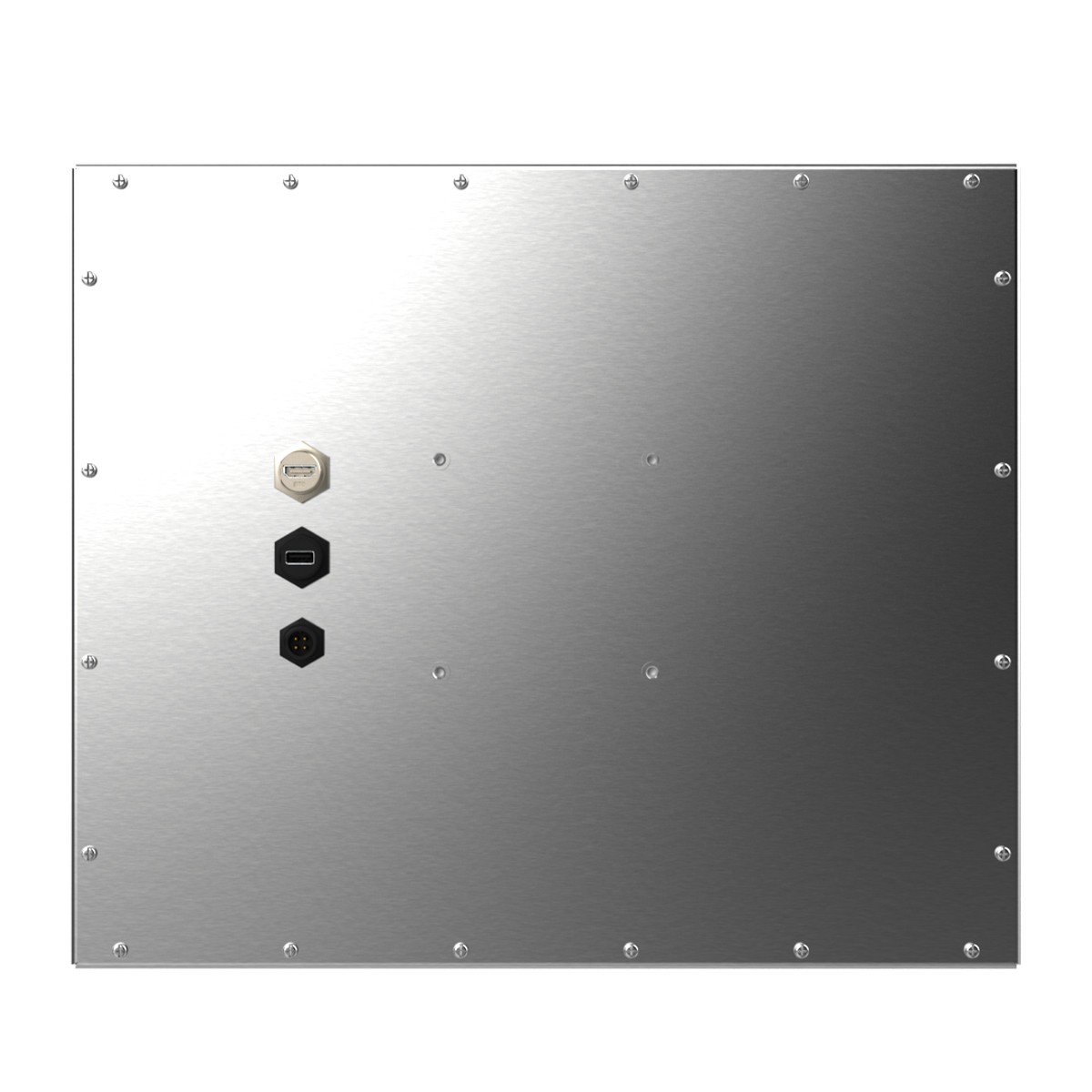

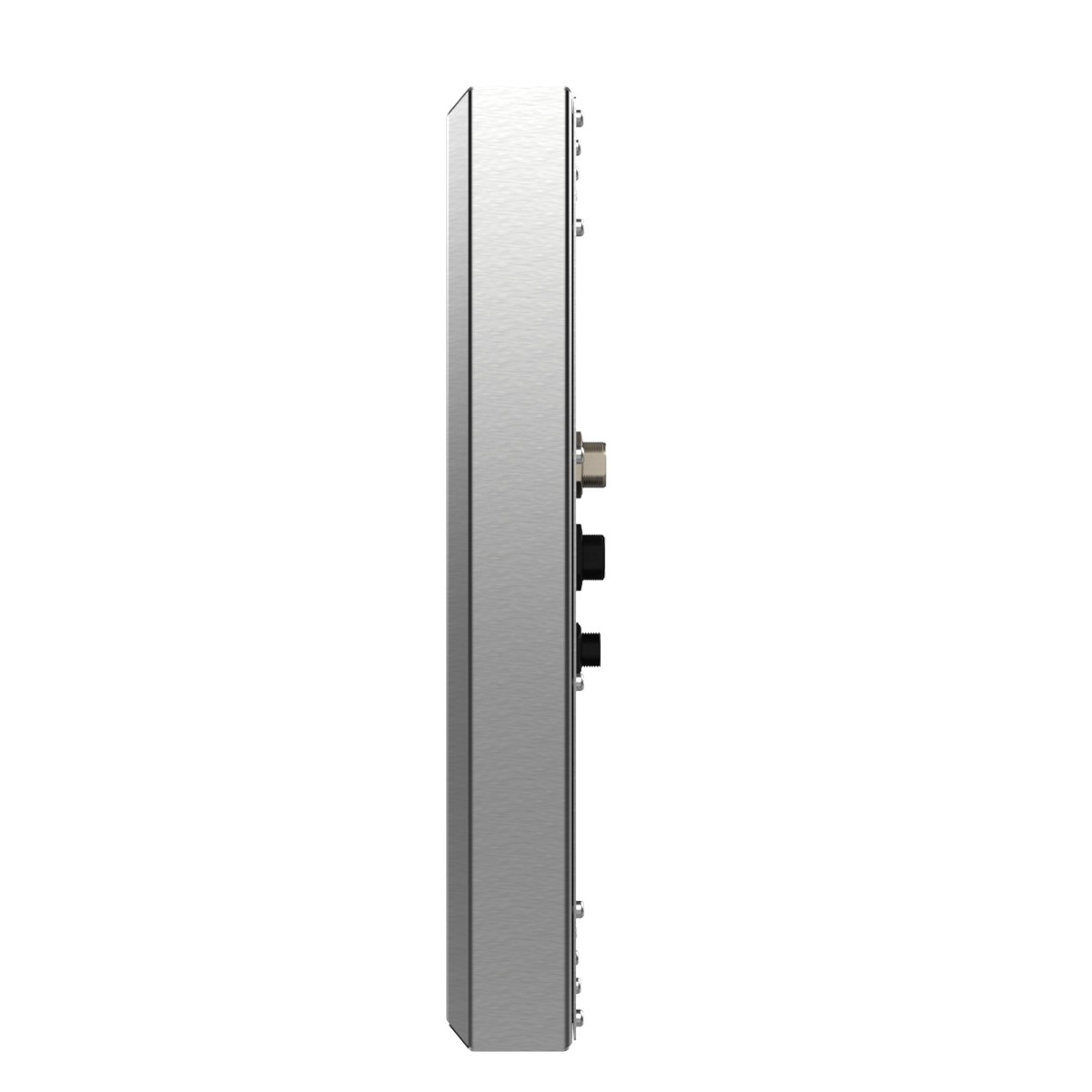

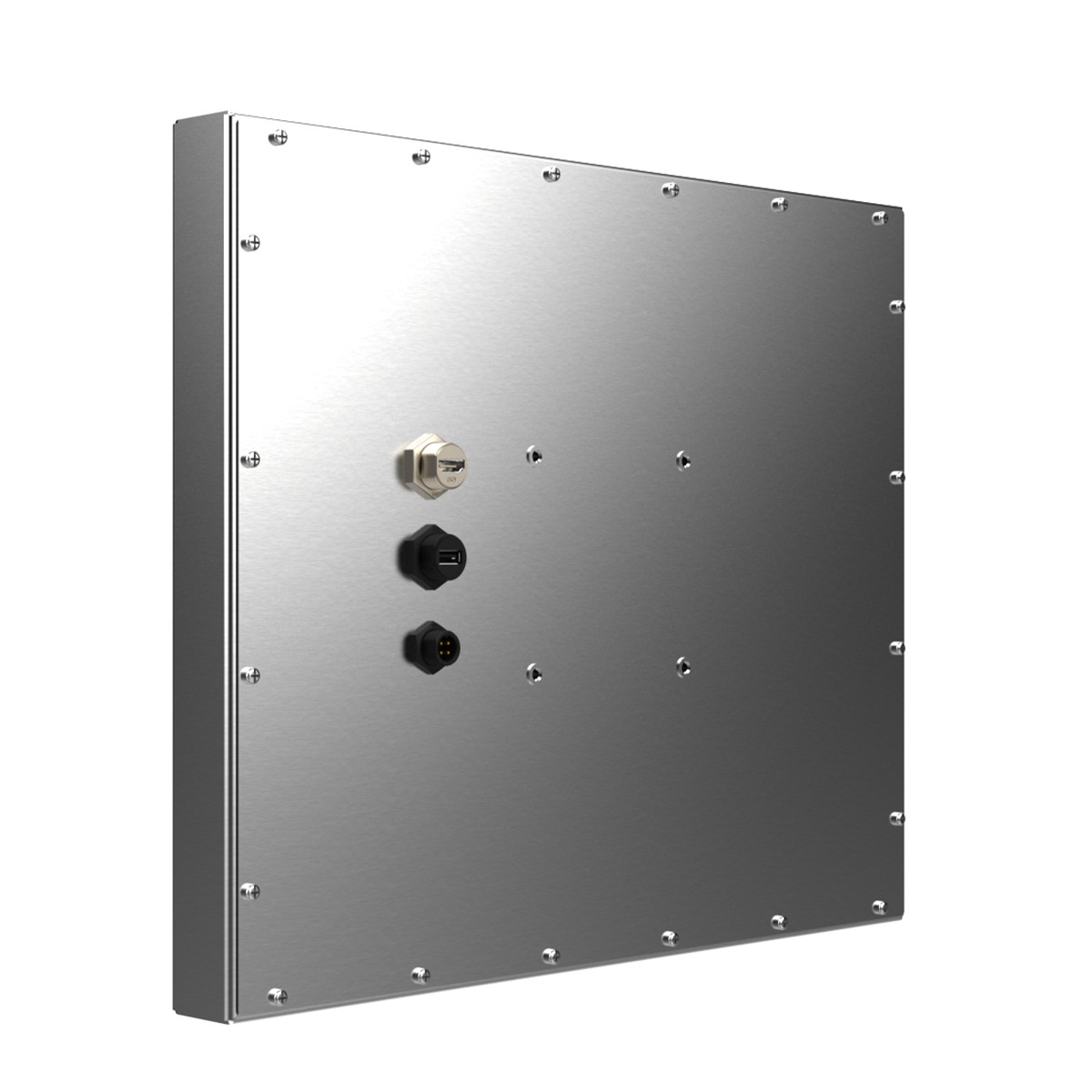

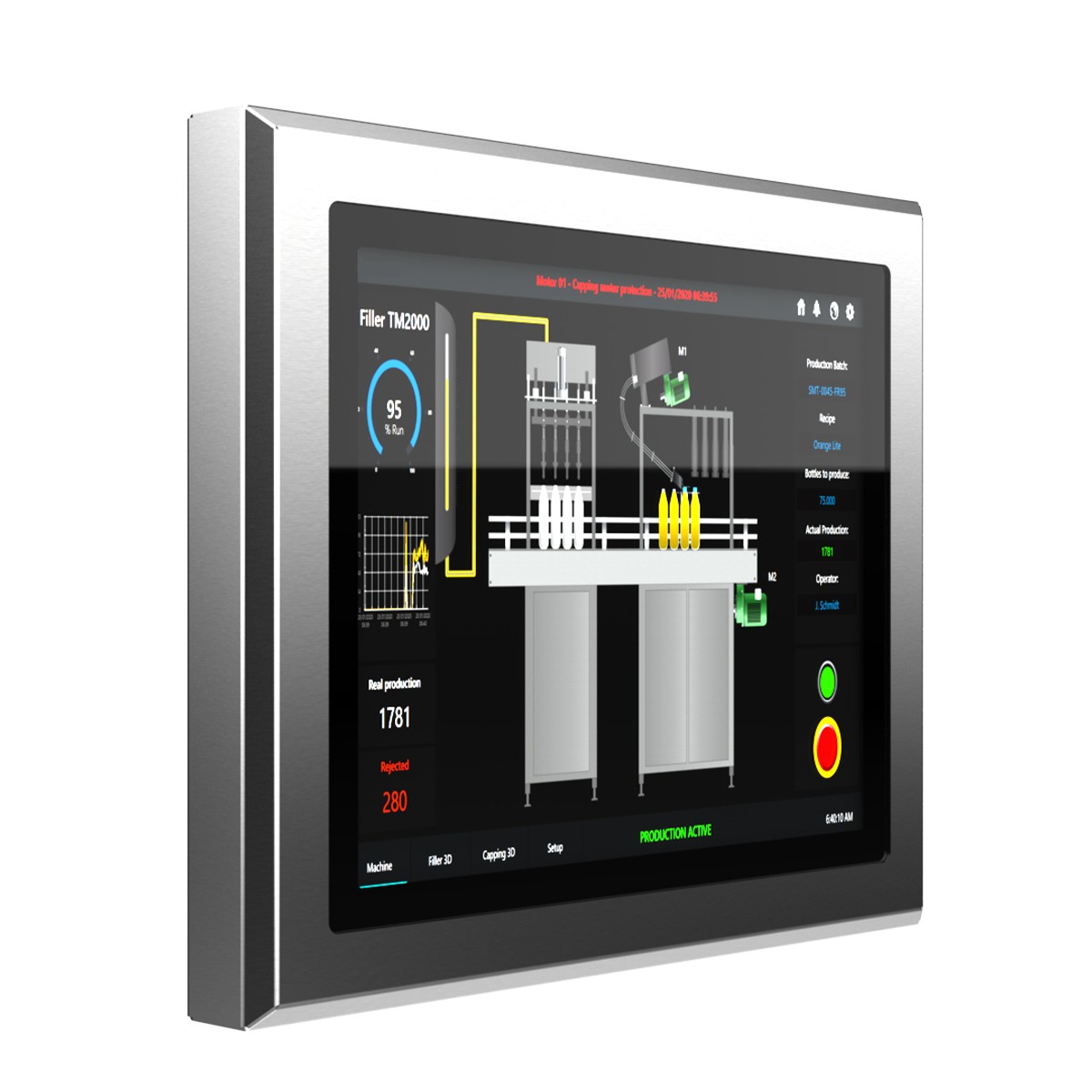

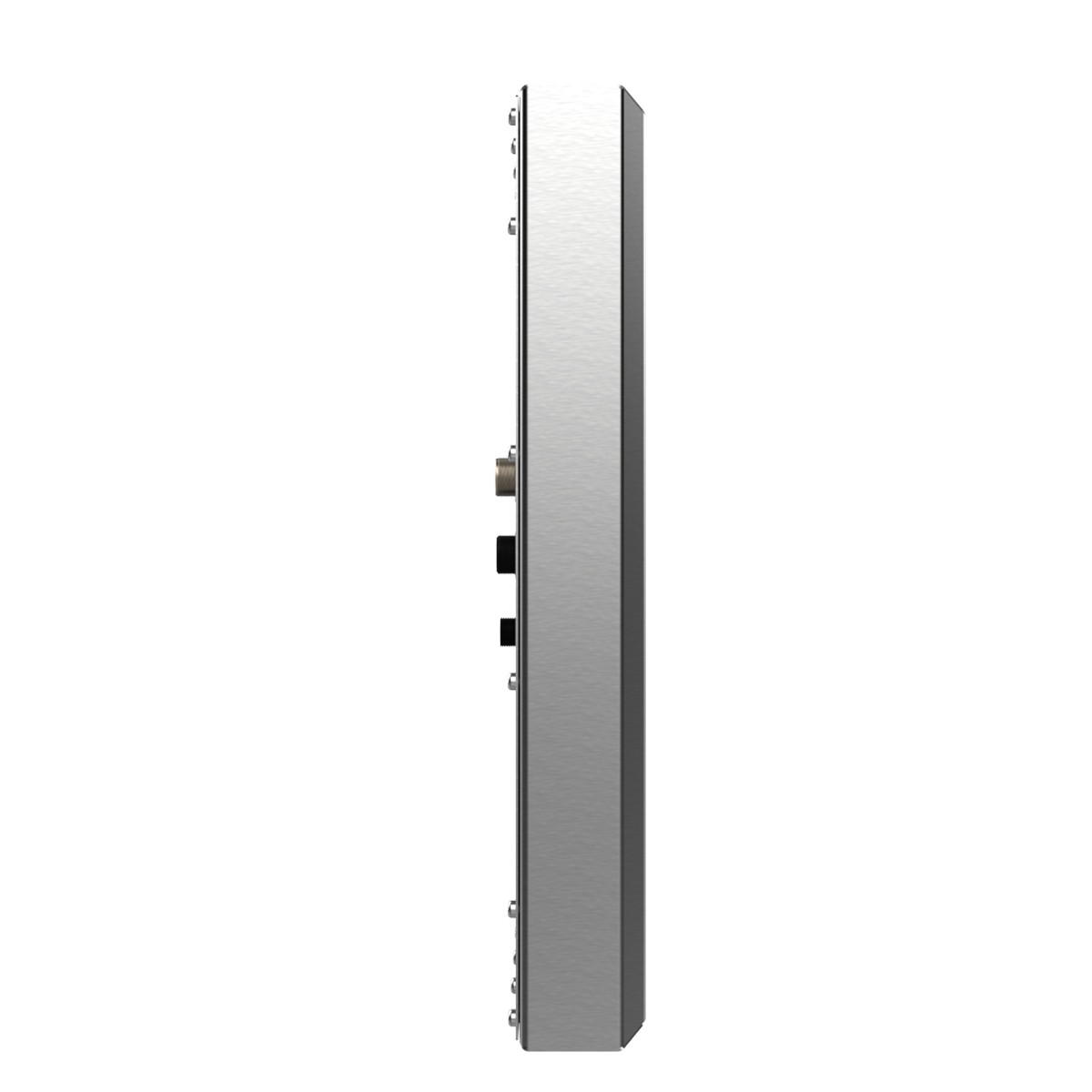

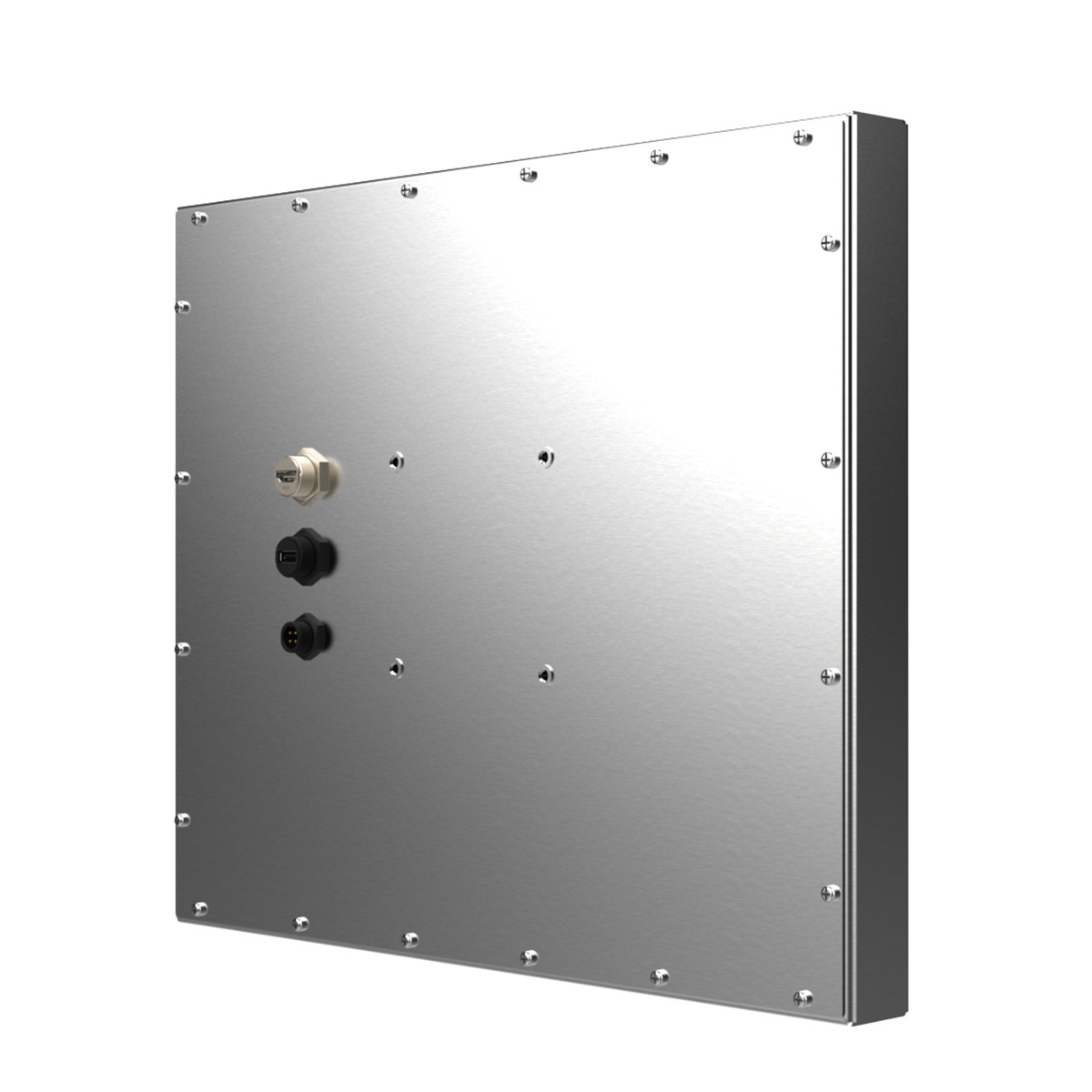

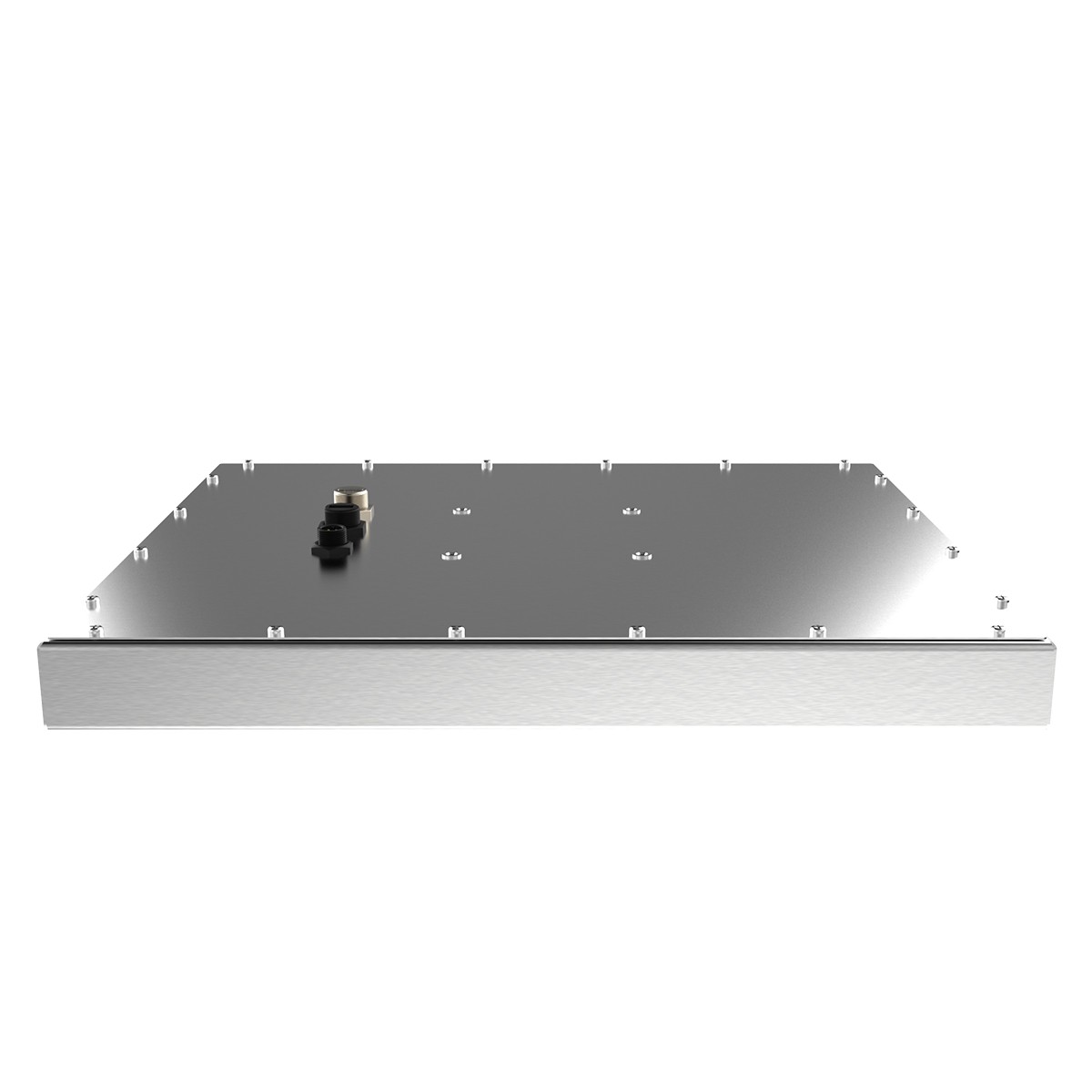

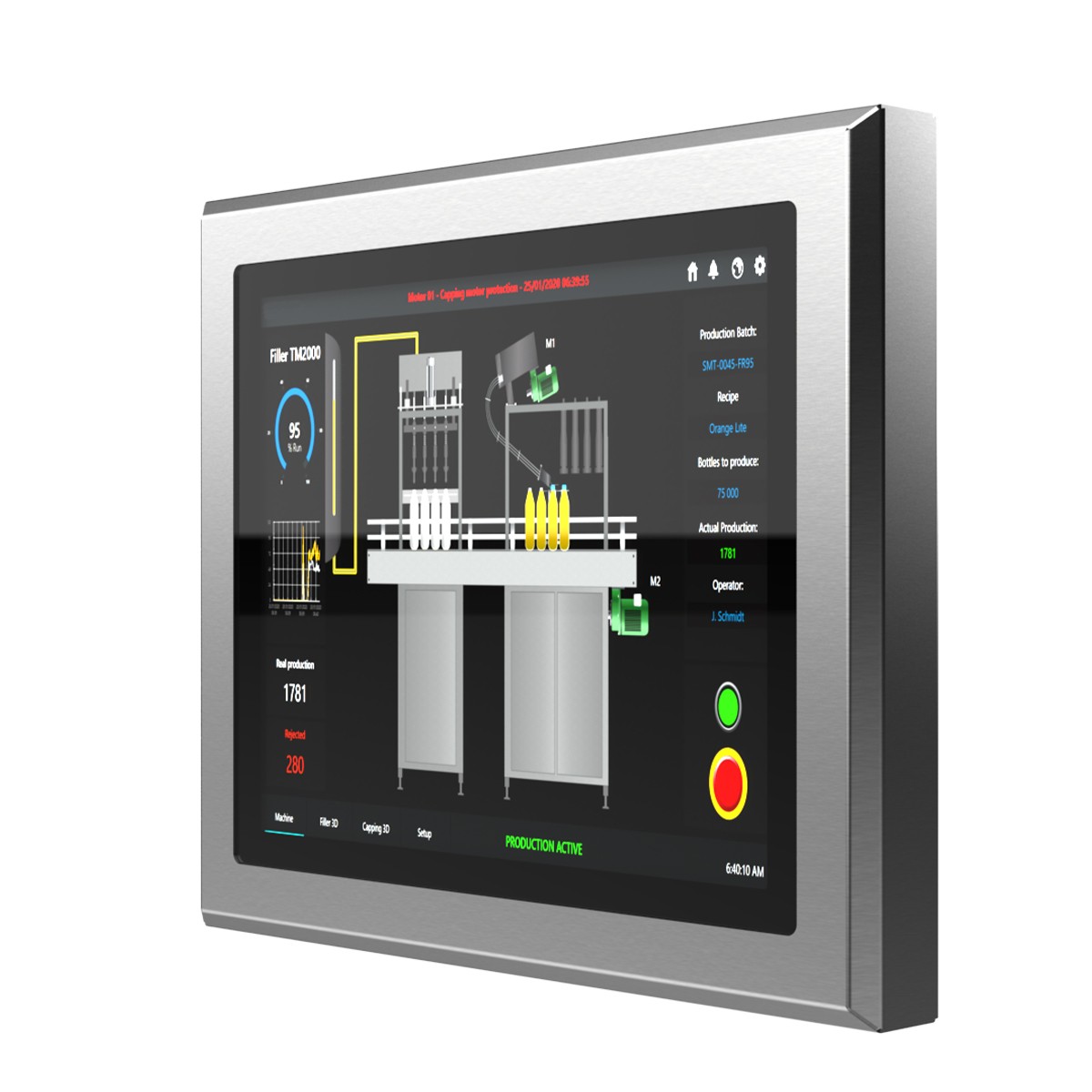

AINOX-120X
12.1” Industrial AINOX Monitor (4:3)
Resolution: SVGA (800×600) or XGA (1024×768)
Touch or w/o -Touch version with USB driver interface connection
9 ~ 24V, VDC
Full-IP66 & AISI 316 Stainless Steel
VESA 100 + CUSTOM Mount
INDATECH Industrial AINOX Monitor
Specifiche tecniche
DISPLAY | |
Size: | 12.1” |
Resolution: | SVGA (800×600)
XGA (1024×768) |
Aspect Ratio: | 4:3 |
Backlight: | Led |
Bright and Contrast: | 450 cd/mq 700:1 |
Colors: | 256K |
View Angle: | 160° – 160° |
TOUCH SCREEN | (Only with Touch Version) |
Glass Thickness: | 2 mm |
Technology: | Projective Capacitive Multitouch – 10 points |
Connection Type: | USB 2.0 |
I/O INTERFACE | |
Video Input: | 1x HDMI |
USB ports: | 1x USB for Touch Driver (Only with Touch Version) |
POWER | |
Power in: | 9 ~ 24V, VDC Version |
Max Power: | 25W max |
MECHANICAL | |
Material: | AISI 316 Stainless Steel |
IP Protection: | IP66 |
Dimensions: | (W)375x(D)294x(H)47mm |
Weight: | 6 Kg |
Mounting: | VESA 100 + CUSTOM |
ENVIRONMENT | |
Operating temp.: | -10°C to 50°C |
Humidity: | 10-90% Humidity, non-condensing |
EMC: | CE, FCC, RoHS, LVD |
Codici di ordinazione
IPC | |||
MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
AINOX-120X |
ACCESSORIES | |||
MODEL NAME | PART NUMBER | DESCRIPTION | |
HDMI to VGA converter | 10003577 | HDMI to VGA converter |
File scaricabili
DATASHEET | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
AINOX-120X | TBD | TBD | TBD |
MANUAL | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
AINOX-120X MANUAL | TBD | TBD | TBD |
HARDWARE INSTALLATION GUIDE | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
AINOX-120X HIG | TBD | TBD | TBD |
DRIVERS | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
AINOX-120X drivers | TBD | TBD | TBD |
