Specifiche tecniche
INPUT | |
Input Voltage: | 12 VDC |
Input Voltage range: | 11.5 ~ 16 VDC |
Electric strength max: | 18 VDC |
Fixed connect threshold: | Undervoltage: 18 VDC
Voltage drop IN/OUT: 0.6 VDC max |
Current consumption: | Rated current: 8.1 A
Max current: 9 A Current w/o Load: 100 mA Current charge: 3.5 A |
Power consumption: | Rated power: 97 W
Max power: 108 W Power charge: 42 W |
Internal input fuse: | 15 A |
Switch-on time: | 5 sec |
ENERGY STORAGE | |
Charging method: | CC / CV / CP |
Rated voltage: | 8.3 V |
End of charge voltage: | 8.3 V |
Charging current: | 16 A max |
Undervoltage protection: | 4.5 V |
Battery technology: | EDLC |
Rated capacity: | 5.73 kj (3.88 kj usefull)
1.59 Wh (1.08 Wh usefull) |
Charging time: | ~ 2 min |

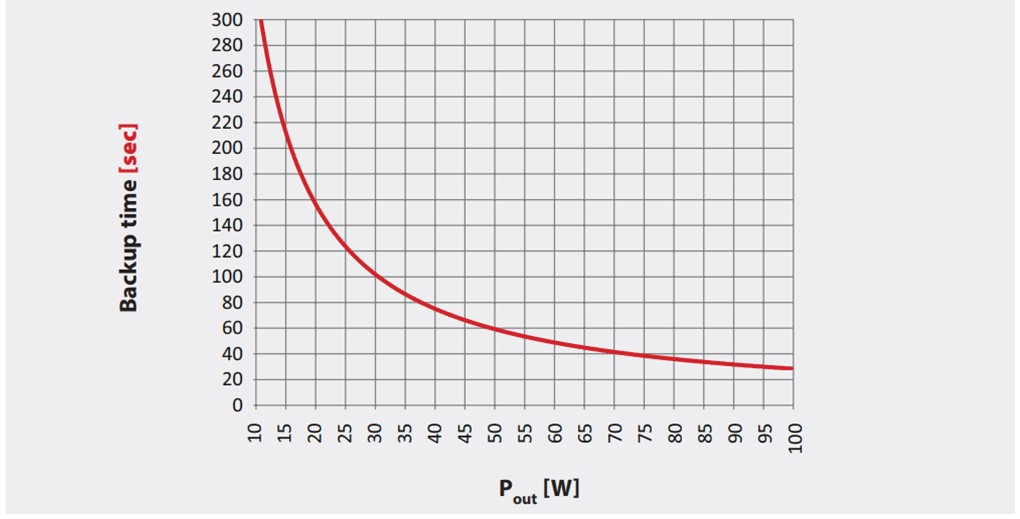

Buffer time: | 30 sec |
OUTPUT | |
Output Voltage: | 12 VDC |
Output Voltage range: | (Input voltage) – 0.6 VDC |
Capacitive load: | 3000 µF (at start) |
Output current: | 8 A |
Output Power: | 96 W |
Short-circuit proof: | Yes |
No-load proof: | Yes |
Overcurrent shutdown: | 8.2 ~ 8.4 A for max 3s
8.5 ~ 10.8 A for max 100ms > 10.8A for max 5ms |
MECHANICAL & ENVIRONMENTAL CONDITIONS | |
Flammability class: | V0 |
Weight: | 0.6 kg |
UPS Connection: | Parallel: NO
Series: NO |
Degree of protection: | IP 20 |
Protection class: | III (without PE) |
Mounting type: | DIN-Rail mounting |
Housing version: | Aluminium |

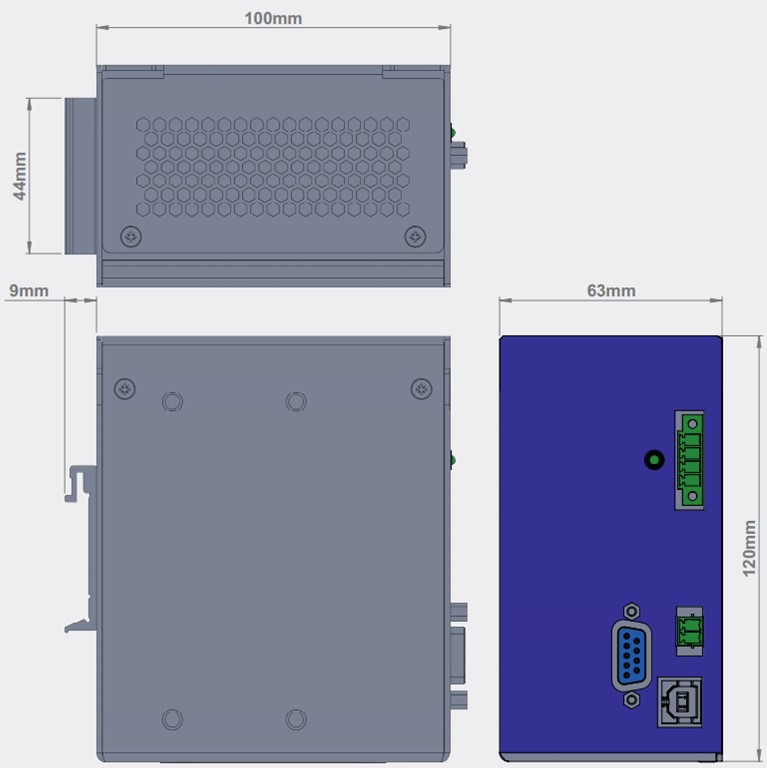

Dimension: | (W)63x(H)120x(D)100 mm |
Operation Temperature: | -20 ~ +60°C |
Storage Temperature: | -30 ~ +65°C |
Max. Humidity: | ≤ 95% (at +25°C, no dew) |
Climate Class: | 3k3 (EN 60721) |
Degree of pollution: | 2 |
Overvoltage Category: | EN 61010-1: I
EN 61010-2-201: I |

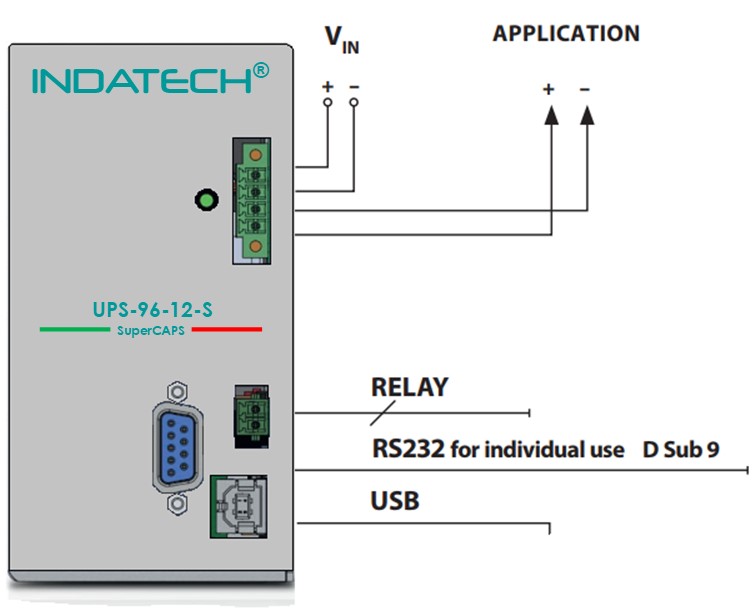

CONNECTION | |
Connection INPUT/OUTPUT | Method: Screwable plug connector
Conductor cross-section: 0.129 mm² ~ 1.31 mm² Stripping length: 6 mm ~ 7 mm |
Connection RELAY | Status (configurable): Power Fail Alarm
Switching voltage: 24 VDC / 125 VAC Current Capacity: 1 A (DC) / 0.5 A (AC) State (configurable): NO / NC |
Data Interface USB | Connection Method: USB Type B (F)
Transmission physics: USB 2.0 Protocol: VCOM, HID Electrical Isolation: NO Chipset: NXP Transmission length: ≤ 3m |
Data Interface RS232 | Connection Method: DSUB 9-Pin (F) – DB9
Transmission physics: RS232 light (TX / RX) Baud Rate: 38400 Type of cable: 1:1 Electrical Isolation: NO Chipset: NXP Transmission length: ≤ 10m Voltage Level: -6 ~ +6 VDC |
INTERFERENCE IMMUNITY ACCORDING TO EN 61000 | |
Electrostatic discharge – EN 61000-4-2 | Contact discharge: 4kV
Air discharge: 8kV Comment: Criterion B |
Electromagnetic HF Field – EN 61000-4-3 | Frequency range: 80MHz ~ 1GHz
Test field strength: 10V/m Frequency range: 1.4GHz ~ 2GHz Test field strength: 3V/m Comment: Criterion A |
Fast transients (Burst) – EN 61000-4-4 | Test voltage: 2kV
Comment: Criterion A |
Surge voltage load (Surge) – EN 61000-4-5 | Test voltage L-N: ± 1kV
Test voltage L-PE, N-PE: ± 2kV Comment: Criterion A |
Power frequency magnetic field immunity – EN 61000-4-8 | Test level: 30 A/m
Comment: Criterion A |
Criterion A Normal operating behavior within the defined limits
Criterion B Temporary impairment of the operating behavior,that is corrected by the device itself
Codici di ordinazione
IPC | |||
MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
UPS-96-12-S | 10005376 | B04-23C-BACH-I58365U-R08-M2D256 | IPC + 8GB RAM + M2 256GB SSD + WIFI6 |
ACCESSORIES | |||
MODEL NAME | PART NUMBER | DESCRIPTION | |
HDMI to VGA converter | 10003577 | HDMI to VGA converter |
