UPS-240-24-LFP
24 VDC @10A – 240W Industrial-grade UPS
LiFePO4 battery [64Wh] (up to 5000 cycles)
Specifiche tecniche
INPUT | |
Input Voltage: | 24 VDC |
Input Voltage range: | 22.8 ~ 30 VDC |
Electric strength max: | 35 VDC |
Fixed connect threshold: | Undervoltage: 21.6 VDC
Voltage drop IN/OUT: 0.6 VDC max |
Current consumption: | Rated current: 10.1 A
Max current: 11 A Current w/o Load: <100 mA Current charge: 4.5 A |
Power consumption: | Rated power: 242 W
Max power: 264 W Power charge: 108 W |
Internal input fuse: | 12 A |
Switch-on time: | <5 sec |
ENERGY STORAGE | |
Charging method: | CC / CV / CP |
Rated voltage: | 25.6 V |
End of charge voltage: | 27.6 V |
Charging current: | 4.5 A max |
Undervoltage protection: | 2.4 V (Cell Level) |
Battery technology: | LiFePO4 |
Rated capacity: | 2.5 Ah / 64Wh |
Charging time: | ~ 50 min |
Buffer time: | 14 min |
OUTPUT | |
Output Voltage: | 24 VDC |
Output Voltage range: | (Input voltage) – 0.6 VDC |
Capacitive load: | 10000 µF (at start) |
Output current: | 10 A |
Output Power: | 234 W |
Short-circuit proof: | Yes |
No-load proof: | Yes |
Overcurrent shutdown: | 10.3 ~ 12 A for max 10s
12.1 ~ 16.3 A for max 100ms > 16.3A for max 5ms |
MECHANICAL & ENVIRONMENTAL CONDITIONS | |
Flammability class: | V0 |
Weight: | 1.53 kg |
UPS Connection: | Parallel: NO
Series: NO |
Degree of protection: | IP 20 |
Protection class: | III (without PE) |
Mounting type: | DIN-Rail mounting |
Housing version: | Aluminium |

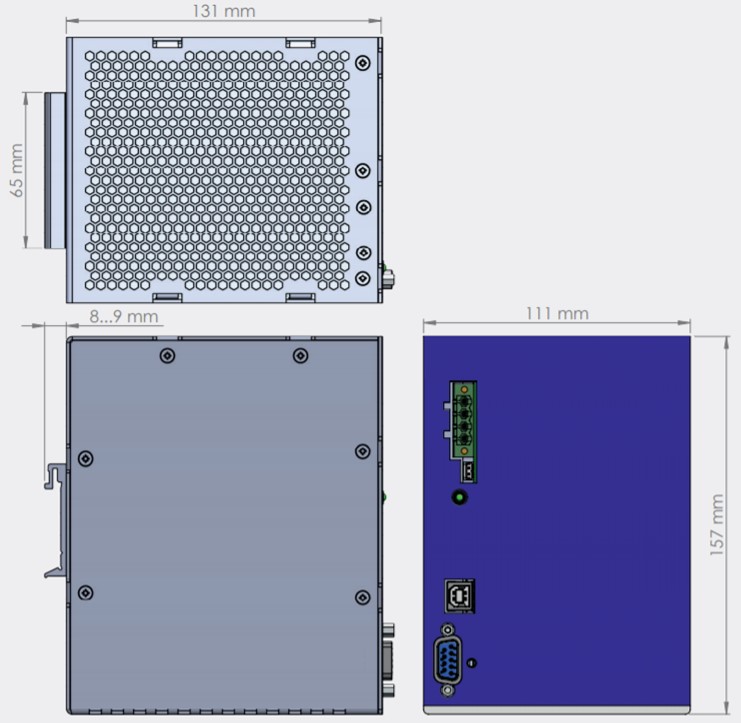

Dimension: | (W)111x(H)157x(D)131 mm |
Operation Temperature: | -20 ~ +55°C |
Storage Temperature: | -30 ~ +55°C |
Max. Humidity: | ≤ 95% (at +25°C, no dew) |
Climate Class: | 3k3 (EN 60721) |
Degree of pollution: | 2 |
Overvoltage Category: | EN 61010-1: I
EN 61010-2-201: I |
CONNECTION | |
Connection INPUT/OUTPUT | Method: Screwable plug connector
Conductor cross-section: 0.205 mm² ~ 3.31 mm² Stripping length: 7 mm ~ 8 mm |

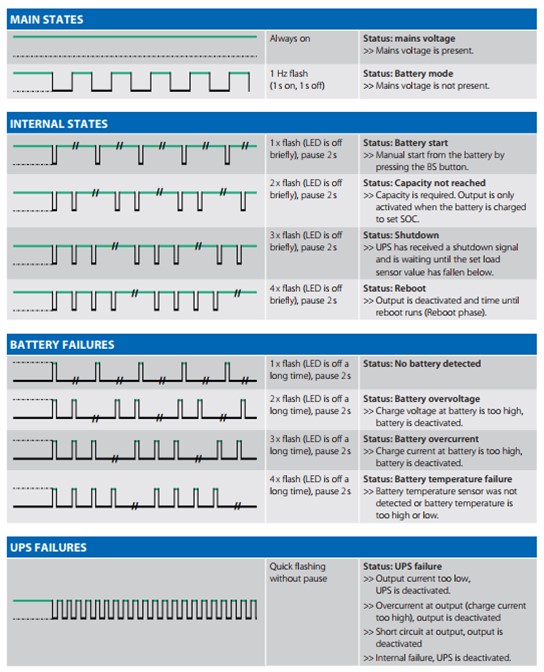

Connection RELAY | Status (configurable): Power Fail Alarm
Switching voltage: 24 VDC / 125 VAC Current Capacity: 1 A (DC) / 0.5 A (AC) State (configurable): NO / NC |
Data Interface USB | Connection Method: USB Type B (F)
Transmission physics: USB 2.0 Protocol: VCOM, HID Electrical Isolation: NO Chipset: NXP Transmission length: ≤ 3m |
Data Interface RS232 | Connection Method: DSUB 9-Pin (F) – DB9
Transmission physics: RS232 light (TX / RX) Baud Rate: 38400 Type of cable: 1:1 Electrical Isolation: NO Chipset: NXP Transmission length: ≤ 10m Voltage Level: -6 ~ +6 VDC |
INTERFERENCE IMMUNITY ACCORDING TO EN 61000 | |
Electrostatic discharge – EN 61000-4-2 | Contact discharge: 4kV
Air discharge: 8kV Comment: Criterion B |
Electromagnetic HF Field – EN 61000-4-3 | Frequency range: 80MHz ~ 1GHz
Test field strength: 10V/m Frequency range: 1.4GHz ~ 2GHz Test field strength: 3V/m Comment: Criterion A |
Fast transients (Burst) – EN 61000-4-4 | Test voltage: 2kV
Comment: Criterion A |
Surge voltage load (Surge) – EN 61000-4-5 | Test voltage L-N: ± 1kV
Test voltage L-PE, N-PE: ± 2kV Comment: Criterion A |
Power frequency magnetic field immunity – EN 61000-4-8 | Test level: 30 A/m
Comment: Criterion A |
Criterion A Normal operating behavior within the defined limits
Criterion B Temporary impairment of the operating behavior,that is corrected by the device itself
