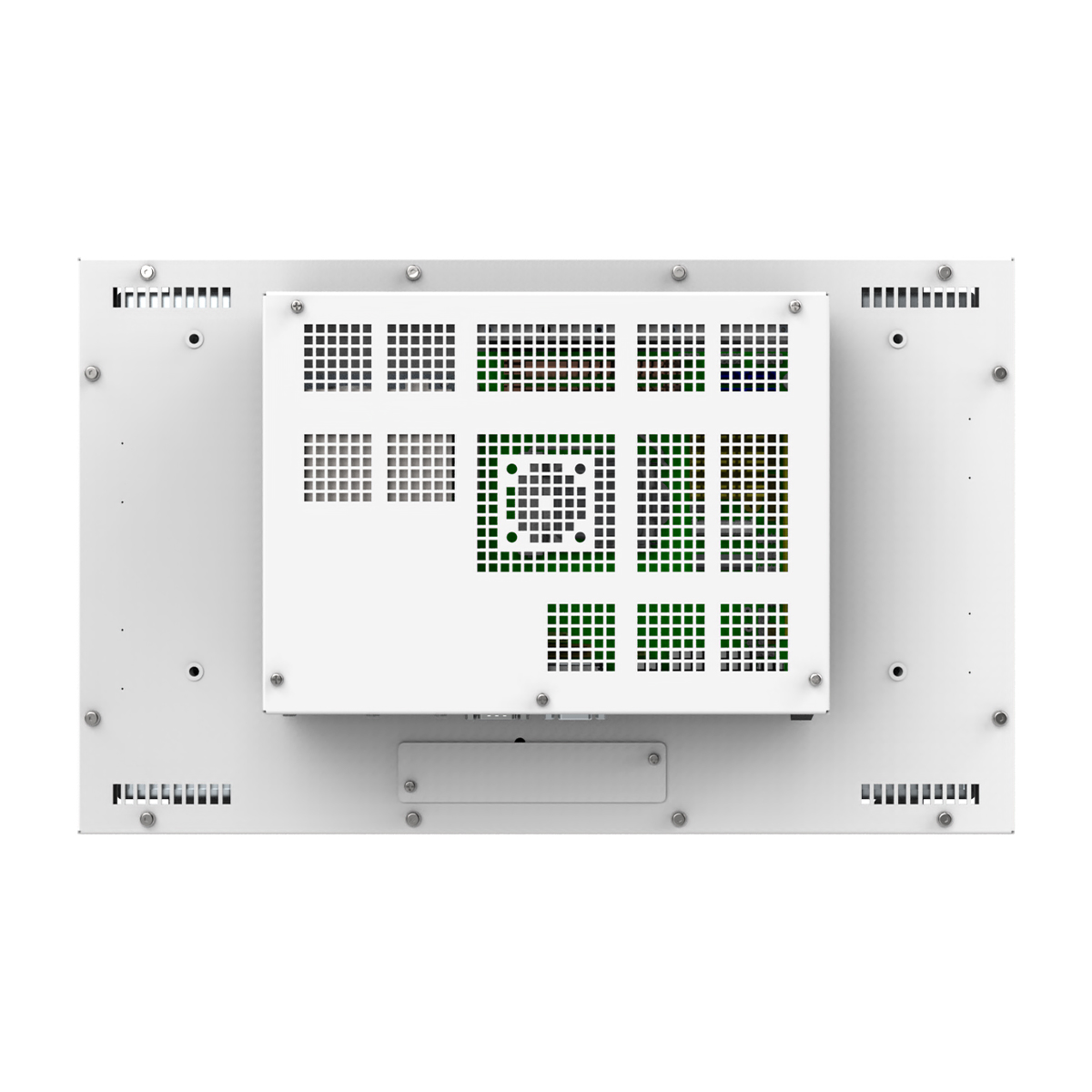

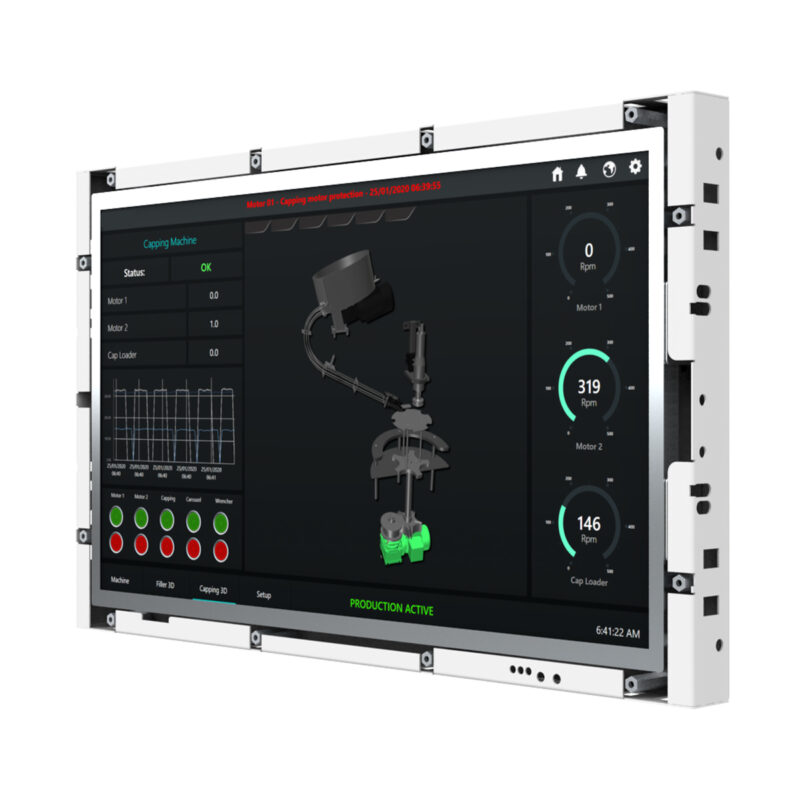

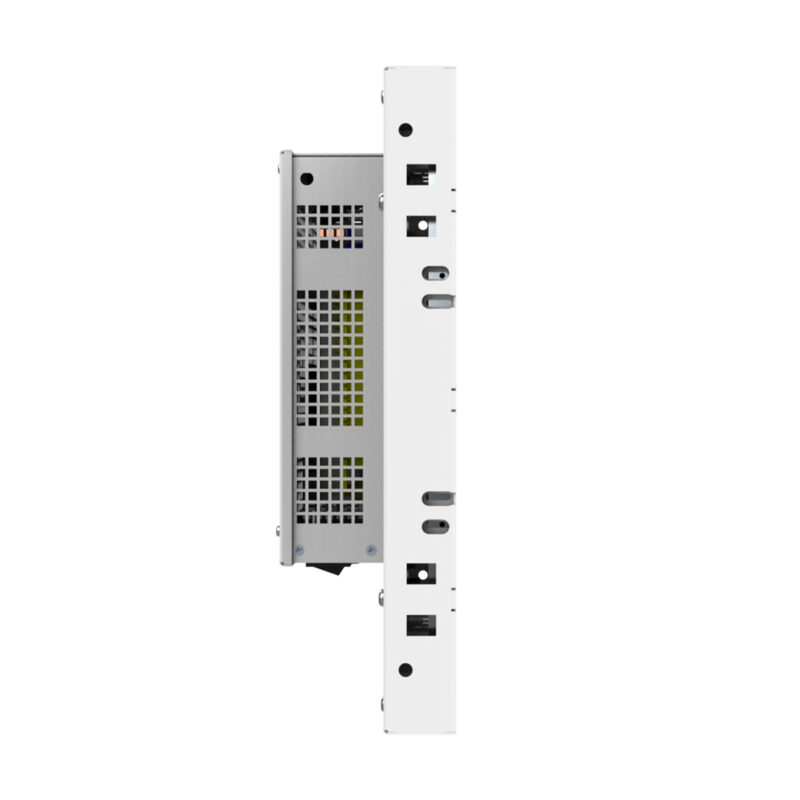

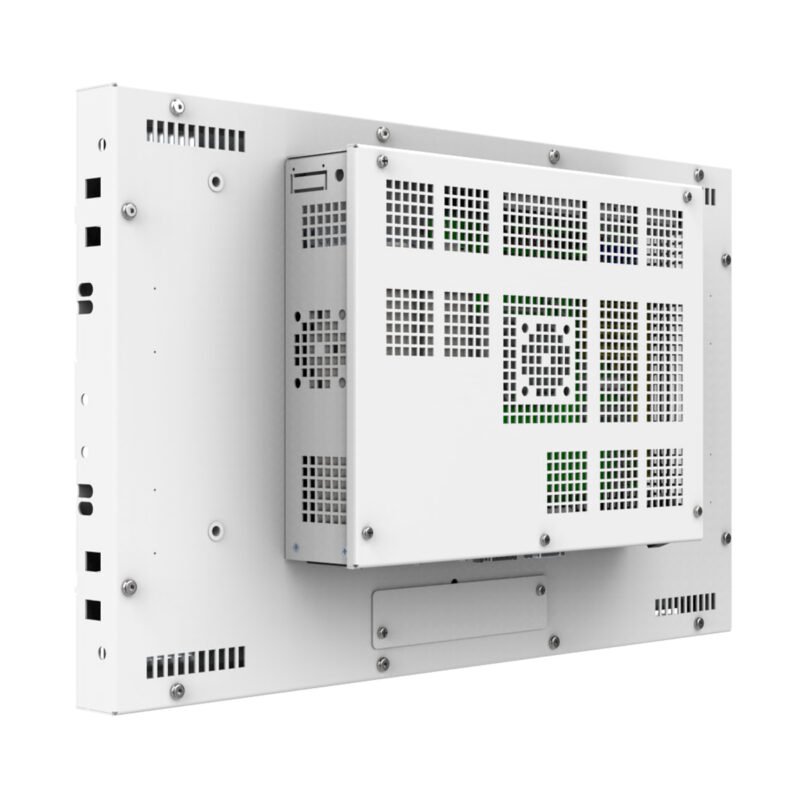

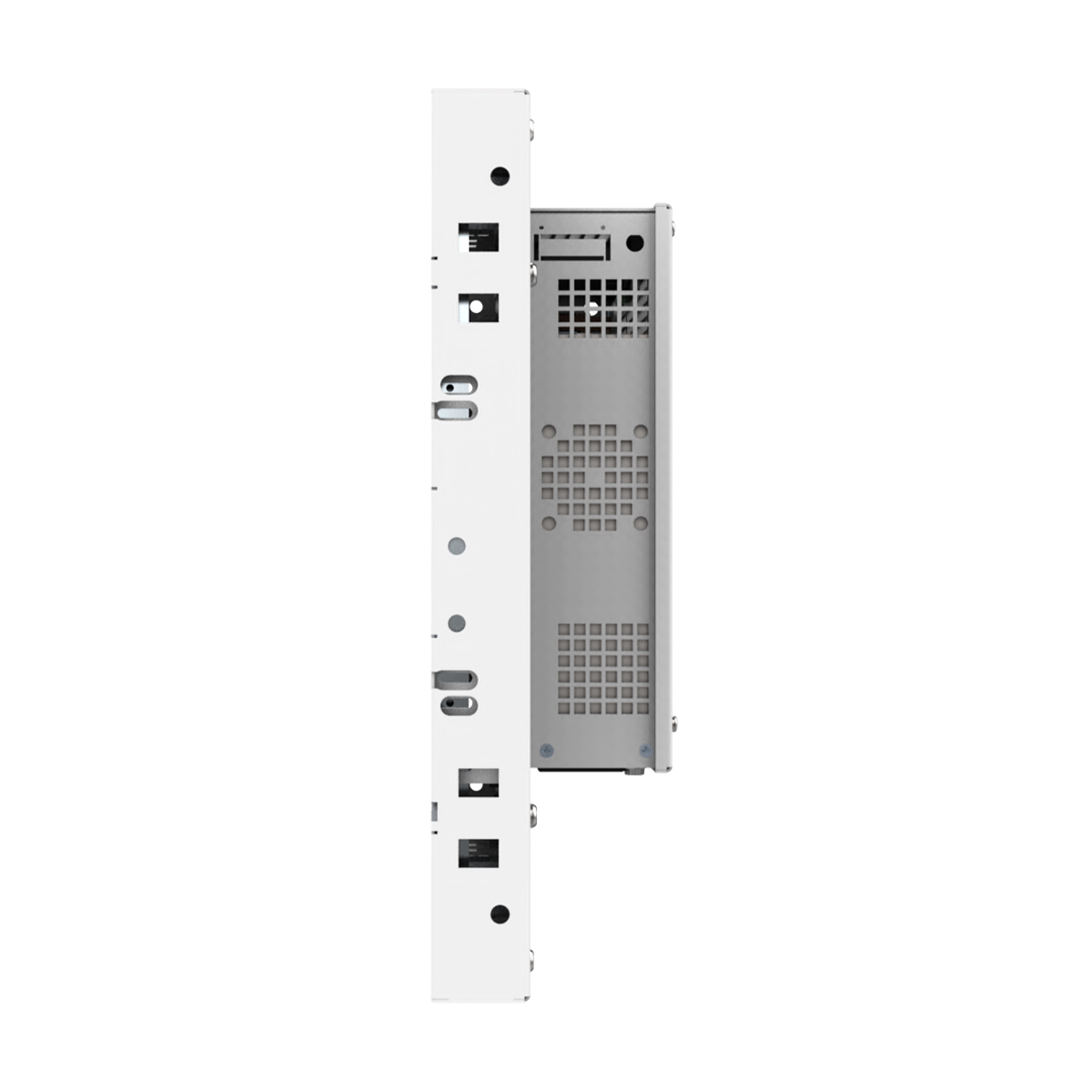

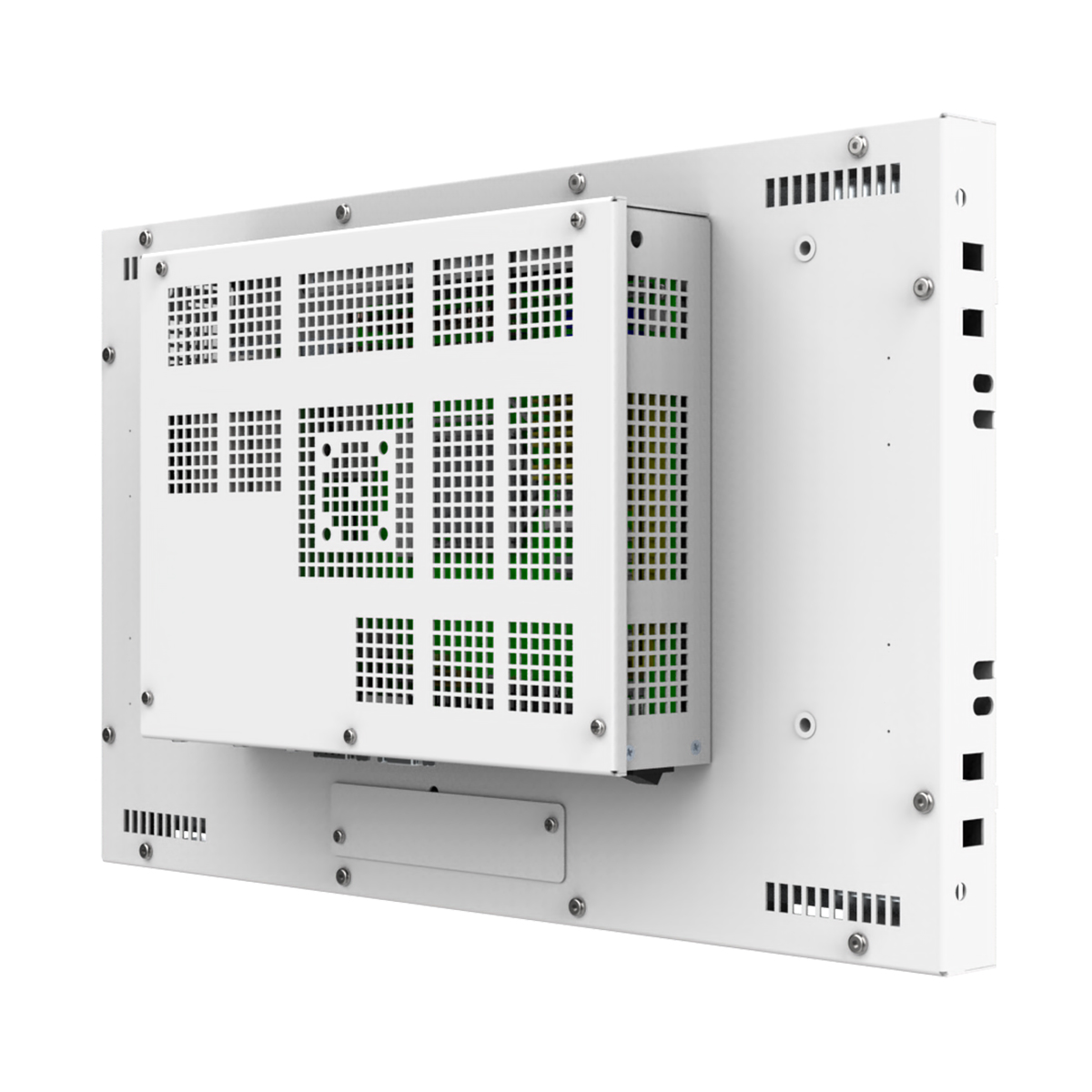

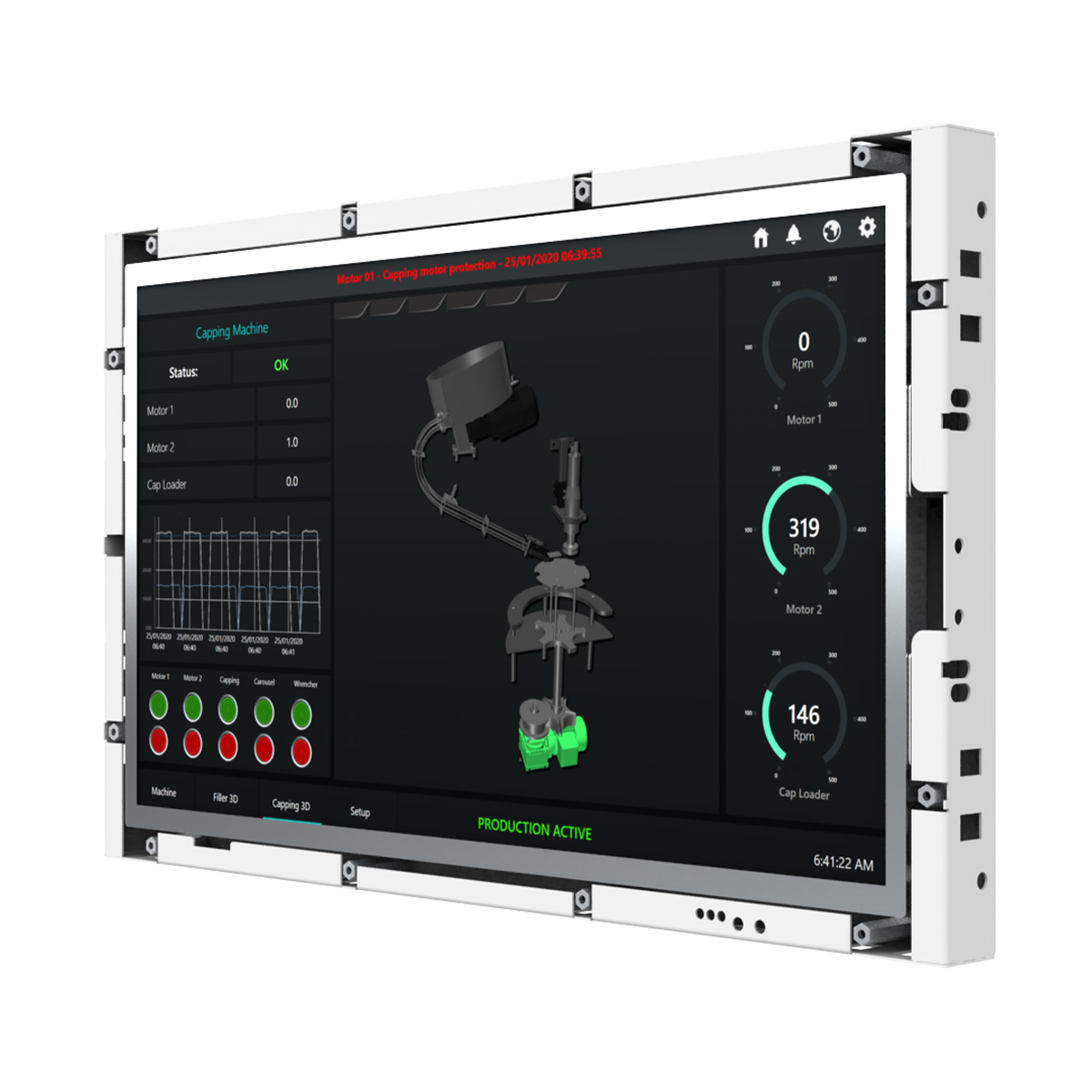

OPC 185X – J3455
18.5” Industrial Open frame PC (16:9)
Intel® Celeron Apollo Lake – J3455
Resolution: FullHD (1920×1080)
Open Frame front panel
Touch or w/o -Touch version
Two Power options available:
18 ~ 36V, VDC or 80 ~ 265V, VAC
INDATECH Industrial Open frame PC
Specifiche tecniche
MAINBOARD | |
CPU: | Intel® Celeron Apollo Lake J3455
4 Core / 4 Thread 1.5 GHz (Base) / 2.3 GHz (Turbo) 10 W |
MEMORY | |
Capacity: | 8GB |
Frequency: | 1600 MHz |
Type: | 1x SO-DIMM DDR3L |
STORAGE | |
SATA: | 1x SATA3 |
M.2: | 1x M.2 M-Key (2242) |
Storage Bay: | 1x Internal Storage Bay (2.5″) |
I/O INTERFACE | |
Serial ports: | 1x COM RS232/422/485
3x COM RS232 |
USB ports: | 4x USB 3.0 |
Mini-PCIe: | 1x Mini-PCIe (Half size) for WIFI or 4G/LTE module |
Audio: | 1x Audio Combo Jack |
VIDEO | |
GPU: | Intel® HD Graphics 500 |
Interface: | 2x HDMI 1.4 (Up to 3840×2160 @30Hz) |
ETHERNET | |
LAN: | 2x Intel® i211AT Gigabit LAN
1x Intel® 82574 GbE LAN (optional) |
TOUCH SCREEN | |
Glass Thickness: | 2 mm |
Technology: | Resistive 5 wires (Standard) |
DISPLAY | |
Size: | 18.5″ |
Resolution: | FullHD (1920×1080) |
Aspect Ratio: | 16:9 |
Backlight: | Led |
Bright and Contrast: | 300 cd/mq 5000:1 |
Colors: | 16 M |
View angle: | 178° – 178° |
FRONT PANEL | |
Thickness: | 6 mm |
Connection: | 1x USB 2.0 (only w/USB Front) |
Front Panel Type: | Open Frame |
MECHANICAL | |
Material: | Painted material RAL7035 |
IP Protection: | N/A – Open Frame Front |
Dimensions: | (L)442x(W)370x(H)89mm |
Weight: | 7 Kg |
Mounting: | Fast mounting with clamps |
POWER | |
Power in: | 18 to 36V, VDC version 80 to 265V, VAC version |
Max Power: | 20W max |
ENVIRONMENT | |
Operating temp.: | 0°C to 60°C |
Humidity: | 40% – 60% Humidity, non-condensing |
EMC: | CE, FCC, RoHS, LVD |
OPERATIVE SYSTEM | |
MS Windows: | Windows 10, Windows 10 Enterprise LTSC,
Windows 11, Windows 11 Enterprise LTSC |
Linux*: | Ubuntu 20.04 LTS, CentOS 8, Debian 10,
Fedora 34, pfSence, FreeNAS 11.2 |
* Linux distributions tested with the IPC. |
Codici di ordinazione
IPC | |||
MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
OPC 185X – J3455 |
ACCESSORIES | |||
MODEL NAME | PART NUMBER | DESCRIPTION | |
HDMI to VGA converter | 10003577 | HDMI to VGA converter |
File scaricabili
DATASHEET | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
OPC 185X – J3455 | TBD | TBD | TBD |
DRIVERS | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
OPC 185X – J3455 drivers | TBD | TBD | TBD |
MANUAL | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
OPC 185X – J3455 manual | TBD | TBD | TBD |
HARDWARE INSTALLATION GUIDE | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
OPC 185X – J3455 HIG | TBD | TBD | TBD |
