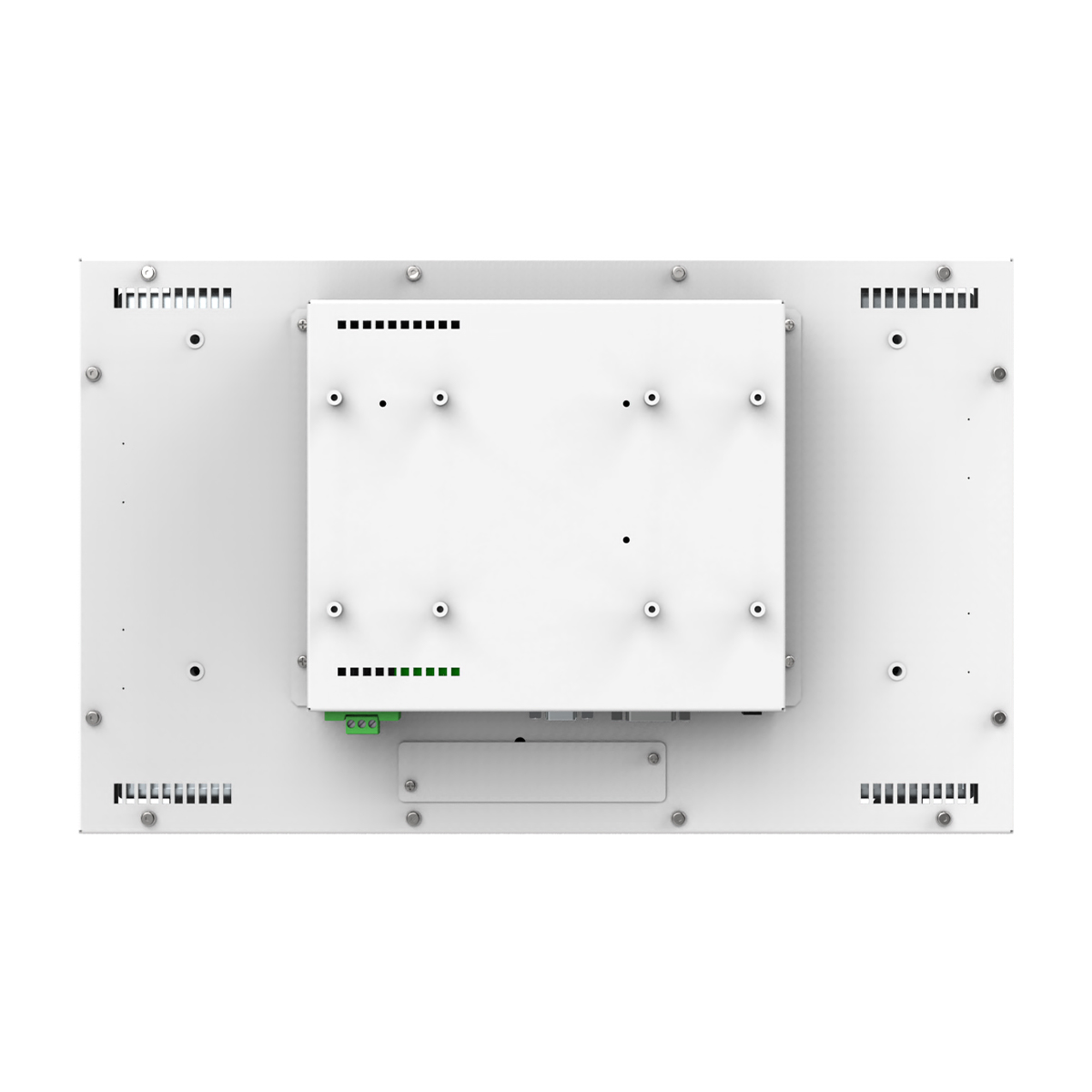

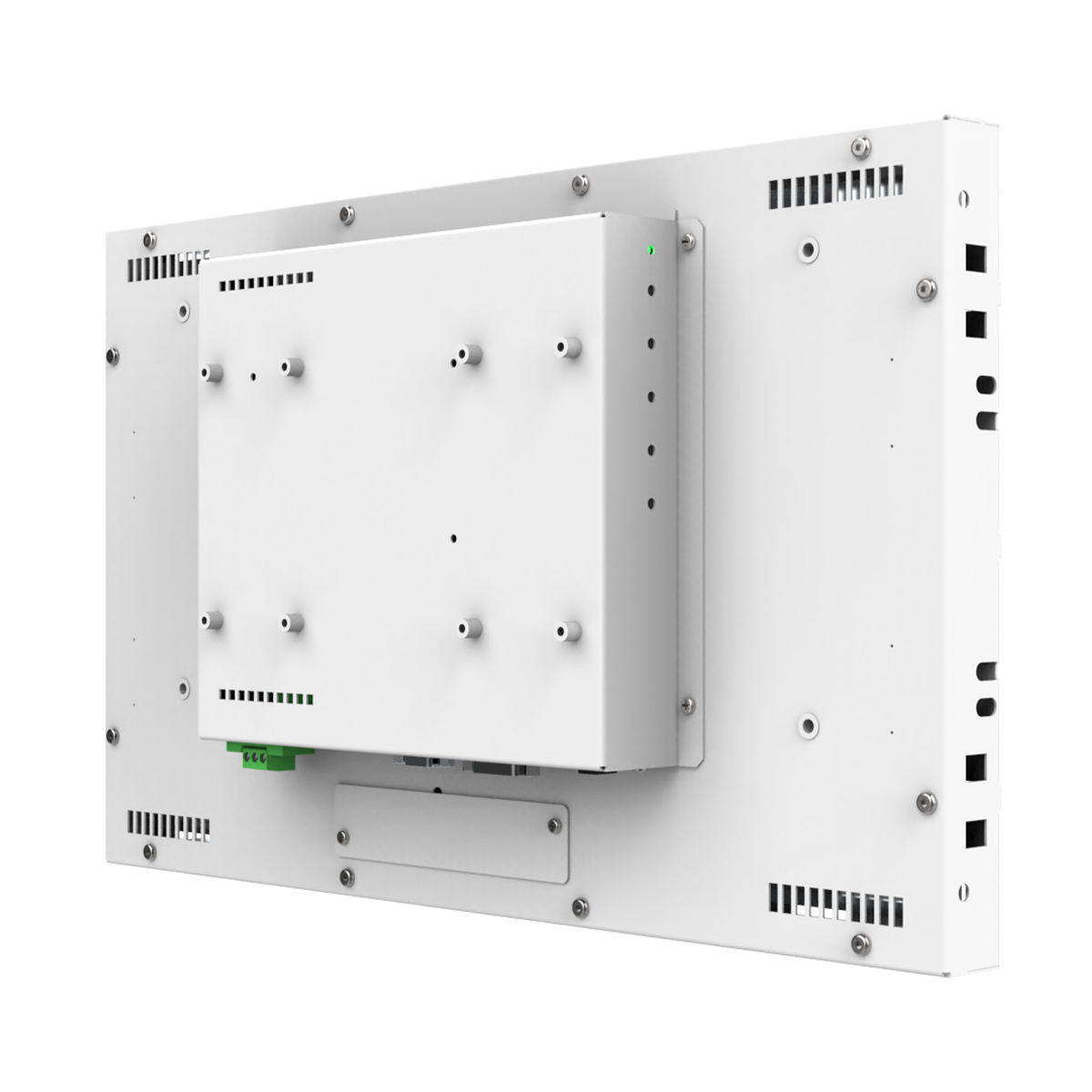

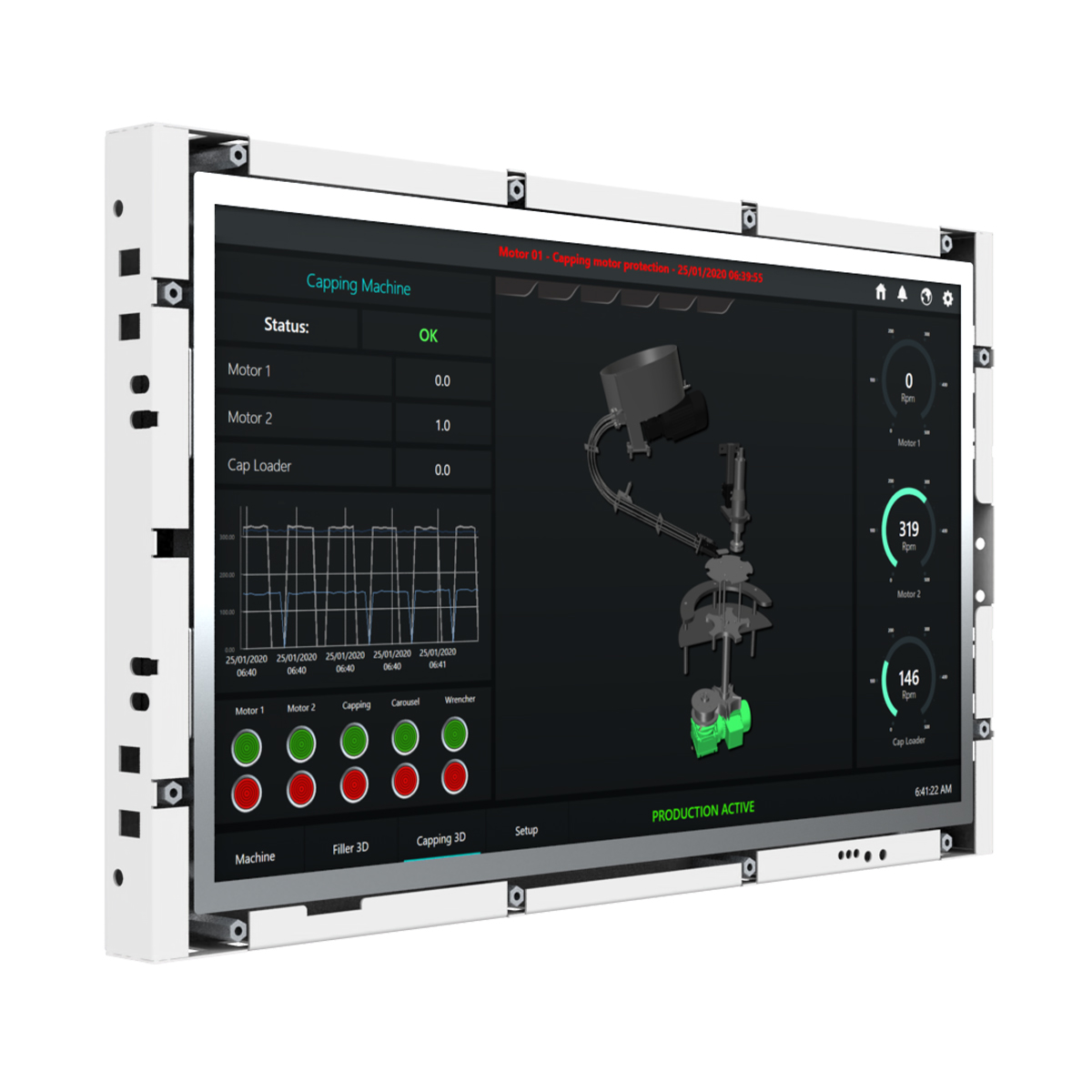

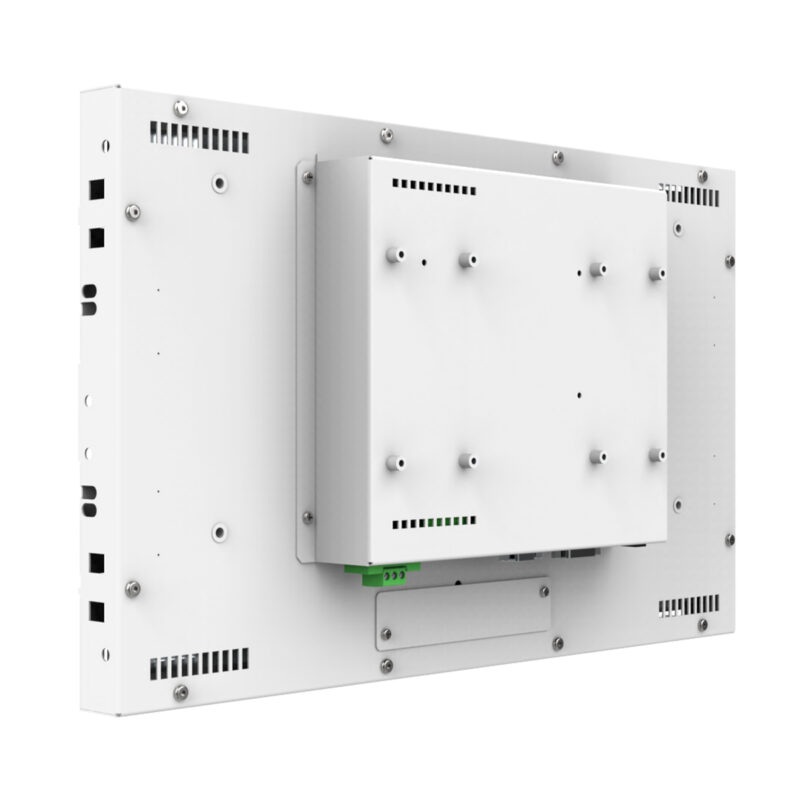

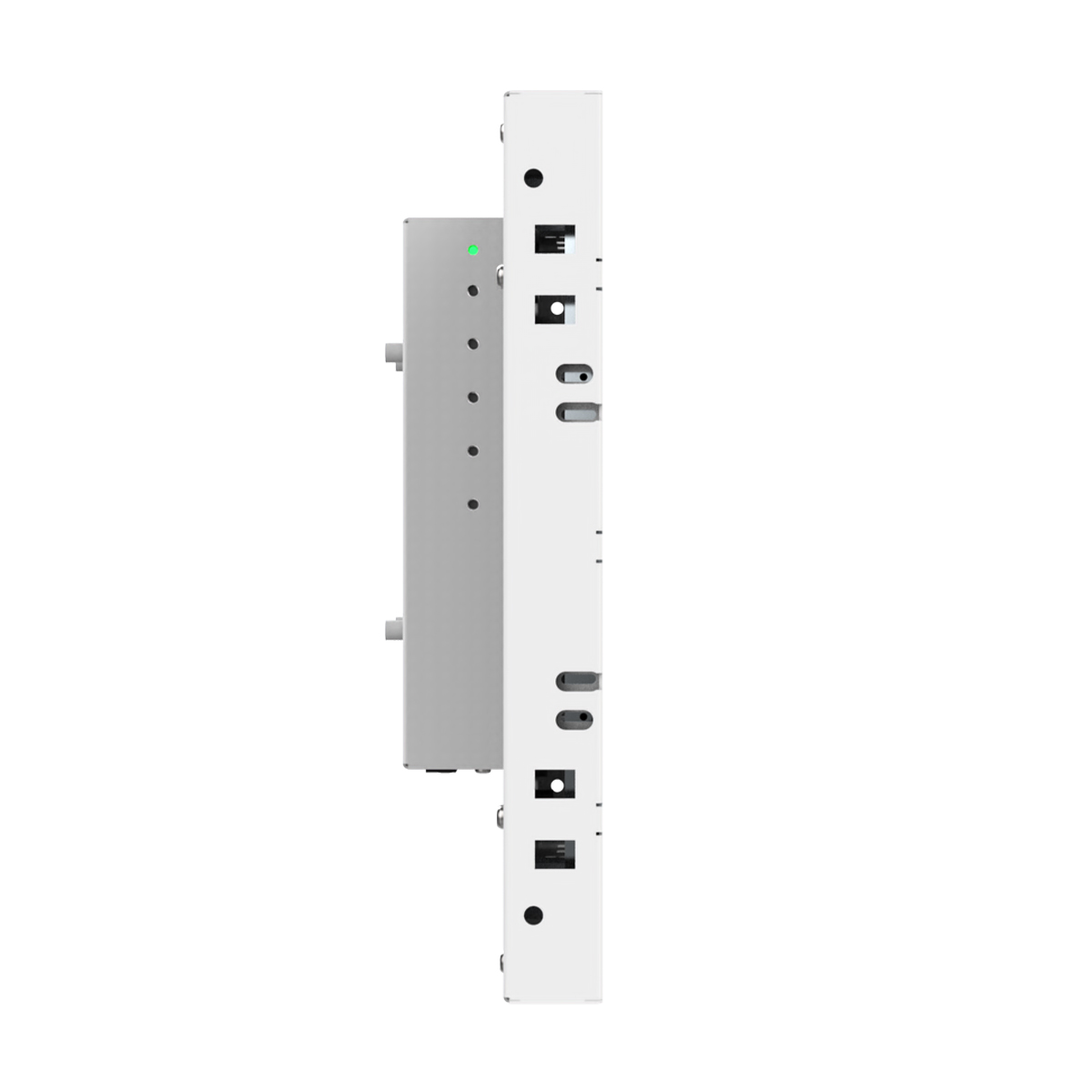

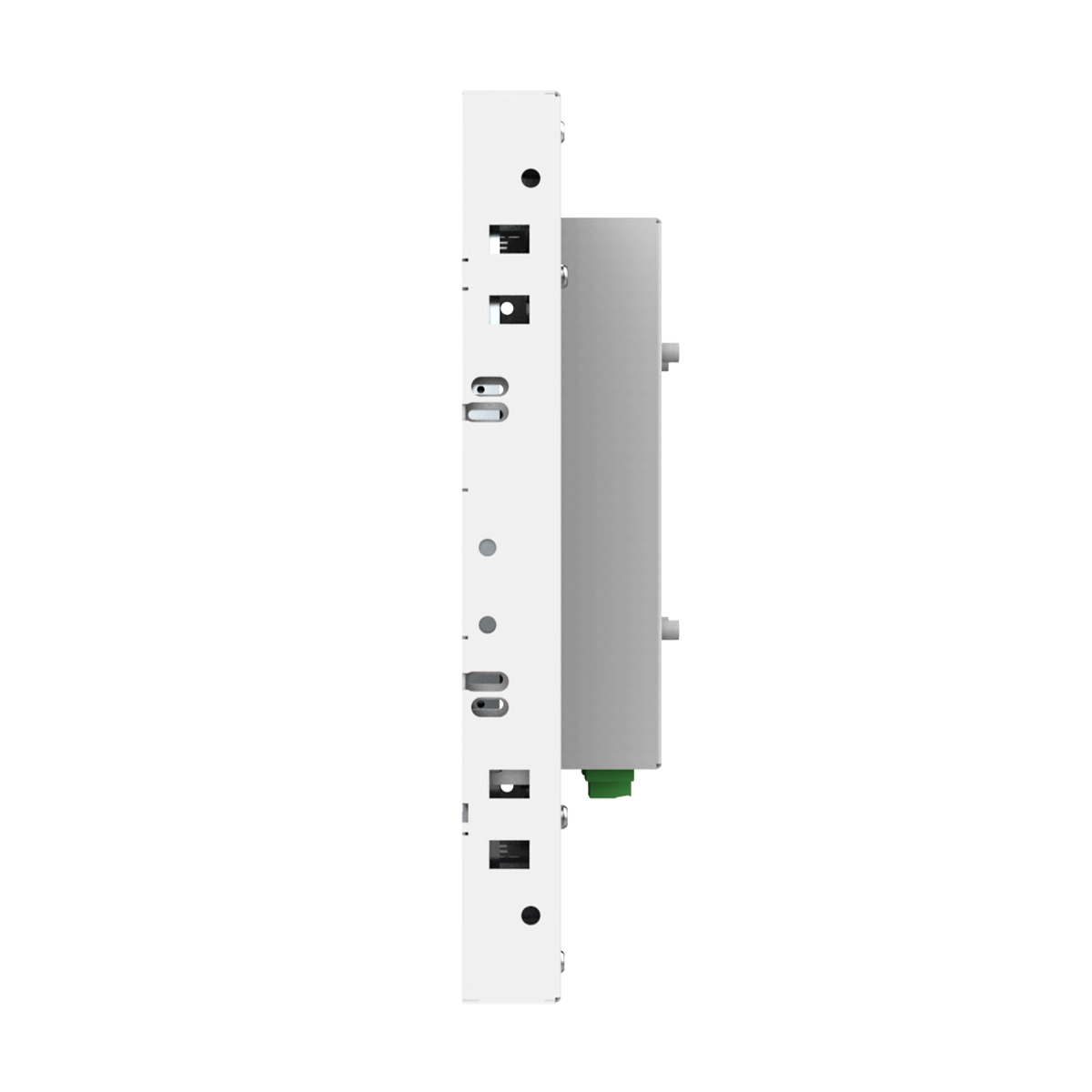

IMO-185X
18.5” Industrial Open frame Monitor (16:9)
Resolution: WXGA (800×600)
Touch or w/o-Touch version with USB or RS232 driver interface connection
Two Power options available: 18 ~ 36V, VDC or 80 ~ 265V, VAC
Fast mounting with clamps
INDATECH Industrial Open frame Monitor
Specifiche tecniche
DISPLAY | |
Size: | 18.5” |
Resolution: | WXGA (1366×768) |
Aspect Ratio: | 16:9 |
Backlight: | Led |
Bright and Contrast: | 250 cd/mq 500:1 |
Colors: | 16 M |
View Angle: | 160° – 140° |
FRONT PANEL | |
Thickness: | 6 mm |
Connection: | 1x USB 2.0 (Optional) |
Front Panel Type: | Open frame Front |
TOUCH SCREEN | |
Glass Thickness: | 2 mm |
Technology: | Resistive 5 wires |
Connection Type: | USB 2.0 or RS232 |
I/O INTERFACE | |
Video Input: | 1x DVI-I 1x VGA (D_SUB 15pin) |
USB ports: | 1x USB 2.0 or RS232 for Touch Driver (Only with Touch Version) |
POWER | |
Power in: | 18 ~ 36V, DC Version
80 ~ 265V, AC Version |
Max Power: | 20W max |
MECHANICAL | |
Material: | Aluminium |
IP Protection: | IP65 on front side |
Dimensions: | (W)360,7x(D)283,7x(H)72mm |
Weight: | 6 Kg |
Mounting: | Fast mounting with clamps |
ENVIRONMENT | |
Operating temp.: | 0°C to 50°C |
Storage temp.: | -20°C to 70°C |
Humidity: | 40% to 60% Humidity, non-condensing |
EMC: | CE, FCC, RoHS, LVD |
Codici di ordinazione
IPC | |||
MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
IMO-185X | 10003136 | IMF-104X-65-IPU-DX-B-TR5 |
ACCESSORIES | |||
MODEL NAME | PART NUMBER | DESCRIPTION | |
HDMI to VGA converter | 10003577 | HDMI to VGA converter |
File scaricabili
DATASHEET | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
IMO-185X | TBD | 2023-06-09 | 285 KB |
MANUAL | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
IMO-185X manual | TBD | 2023-06-09 | 5.99 MB |
HARDWARE INSTALLATION GUIDE | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
IMO-185X HIG | TBD | 2023-06-09 | 5.99 MB |
DRIVERS | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
IMO-185X drivers | TBD | 2023-06-09 | 4.3 GB |
