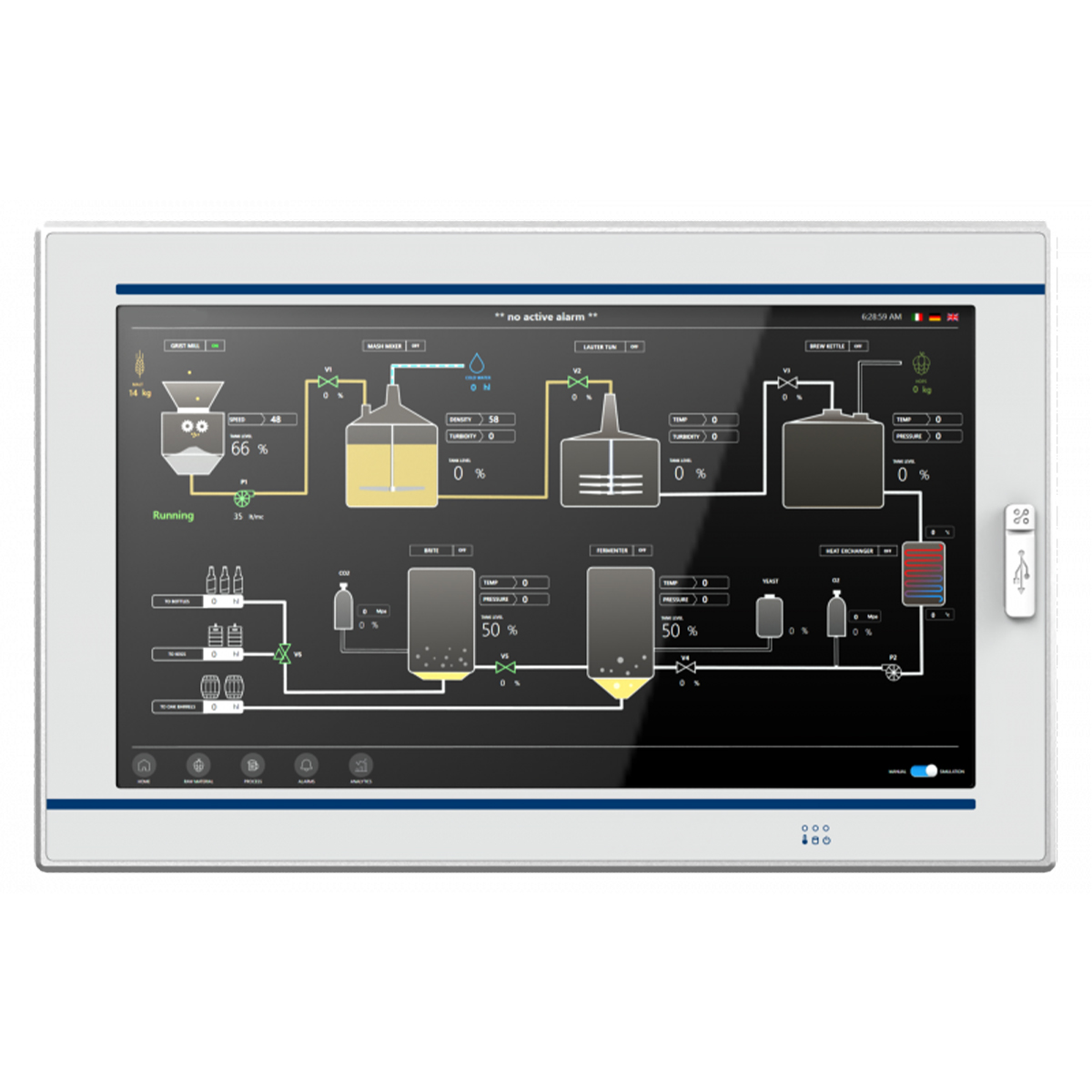

IMF-215X
21.5” Industrial Panel Monitor (16:9)
Customizable front panel:
“Aluminum True Flat” (Standard)
“Aluminum w/ USB Front”
“AISI 316 True Flat [INOX]”
Touch or w/o -Touch version with USB or RS232 driver interface connection
Two Power options available:
18 ~ 36V, VDC
80 ~ 265V, VAC
Fast mounting with clamps
INDATECH Industrial Panel Monitor
Specifiche tecniche
| DISPLAY | |
| Size: | 21.5” |
| Resolution: | FullHD (1920×1080) |
| Aspect Ratio: | 16:9 |
| Backlight: | Led |
| Bright and Contrast: | 250 cd/mq 1000:1 |
| Colors: | 16M |
| View Angle: | 170° – 160° |
| FRONT PANEL | |
| Thickness: | 6 mm |
| Front Panel Type | “Aluminum True Flat” (Standard) |
| TOUCH SCREEN | |
| Glass Thickness: | 3 mm |
| Technology: | Projective Capacitive Multitouch 10 points |
| Connection Type | USB 2.0 |
| I/O INTERFACE | |
| Video Input: | 1x DVI-I 1x VGA (D_SUB 15pin) |
| USB: | 1x USB 2.0 for Touch Driver |
| POWER | |
| Power in: | 18 ~ 36V, DC Version |
| Max Power: | 25W max |
| Connection Type: | Terminal with screws |
| MECHANICAL | |
| Material: | Aluminum |
| IP Protection: | IP65 on front side |
| Dimensions: | (W)555x(D)350x(H)77mm |
| Weight: | 8 Kg |
| Mounting: | Fast mounting with clamps |
| ENVIRONMENT | |
| Operating temp.: | 0°C to 50°C |
| Storage temp.: | -20°C to 70°C |
| Humidity: | 40% to 60% Humidity, non-condensing |
| EMC: | CE, FCC, RoHS, LVD |
Codici di ordinazione
| IPC | |||
| MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
| IMF-215X | 10005376 | B04-23C-BACH-I58365U-R08-M2D256 | IPC + 8GB RAM + M2 256GB SSD + WIFI6 |
| ACCESSORIES | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| HDMI to VGA converter | 10003577 | HDMI to VGA converter | |
Disegni tecnici
File scaricabili
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| IMF-215X | v1.0 | 2021-12-10 | 5.99 MB |  |
| DRIVERS | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| IMF-215X drivers | v1.0 | 2021-12-10 | 4.3 GB | |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| IMF-215X manual | v1.28 | 2021-12-10 | 5.99 MB | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| IMF-215X HIG | v1.28 | 2021-12-10 | 5.99 MB | |
Prodotti Correlati
-
IMF-240X
24” Industrial Panel Monitor (16:9)
Customizable front panel:
“Aluminum True Flat” (Standard)
“Aluminum w/ USB Front”
“AISI 316 True Flat [INOX]”
Touch or w/o -Touch version with USB or RS232 driver interface connection
Two Power options available:
18 ~ 36V, VDC
80 ~ 265V, VAC
Fast mounting with clamps
-
IMF-120X
12.1” Industrial Panel Monitor (4:3)
Customizable front panel:
“Aluminum True Flat” (Standard)
“Aluminum w/ USB Front”
“AISI 316 True Flat [INOX]”
Touch or w/o -Touch version with USB or RS232 driver interface connection
Two Power options available:
18 ~ 36V, VDC
80 ~ 265V, VAC
Fast mounting with clamps
-
IMF-150X
15” Industrial Panel Monitor (4:3)
Customizable front panel:
“Aluminum True Flat” (Standard)
“Aluminum w/ USB Front”
“AISI 316 True Flat [INOX]”
Touch or w/o -Touch version with USB or RS232 driver interface connection
Two Power options available:
18 ~ 36V, VDC
80 ~ 265V, VAC
Fast mounting with clamps
-
IMF-104X
10.4” Industrial Panel Monitor (4:3)
Customizable front panel:
“Aluminum True Flat” (Standard)
“Aluminum w/ USB Front”
“AISI 316 True Flat [INOX]”
Touch or w/o -Touch version with USB or RS232 driver interface connection
Two Power options available:
18 ~ 36V, VDC
80 ~ 265V, VAC
Fast mounting with clamps
-
IMF-173X
17.3” Industrial Panel Monitor (16:9)
Customizable front panel:
“Aluminum True Flat” (Standard)
“Aluminum w/ USB Front”
“AISI 316 True Flat [INOX]”
Touch or w/o -Touch version with USB or RS232 driver interface connection
Two Power options available:
18 ~ 36V, VDC
80 ~ 265V, VAC
Fast mounting with clamps
-
IMF-190X
19” Industrial Panel Monitor (4:3)
Customizable front panel:
“Aluminum True Flat” (Standard)
“Aluminum w/ USB Front”
“AISI 316 True Flat [INOX]”
Touch or w/o -Touch version with USB or RS232 driver interface connection
Two Power options available:
18 ~ 36V, VDC
80 ~ 265V, VAC
Fast mounting with clamps
-
IMF-185X
18.5” Industrial Panel Monitor (16:9)
Customizable front panel:
“Aluminum True Flat” (Standard)
“Aluminum w/ USB Front”
“AISI 316 True Flat [INOX]”
Touch or w/o -Touch version with USB or RS232 driver interface connection
Two Power options available:
18 ~ 36V, VDC
80 ~ 265V, VAC
Fast mounting with clamps
-
IMF-156X
15.6” Industrial Panel Monitor (16:9)
Customizable front panel:
“Aluminum True Flat” (Standard)
“Aluminum w/ USB Front”
“AISI 316 True Flat [INOX]”
Touch or w/o -Touch version with USB or RS232 driver interface connection
Two Power options available:
18 ~ 36V, VDC
80 ~ 265V, VAC
Fast mounting with clamps
-

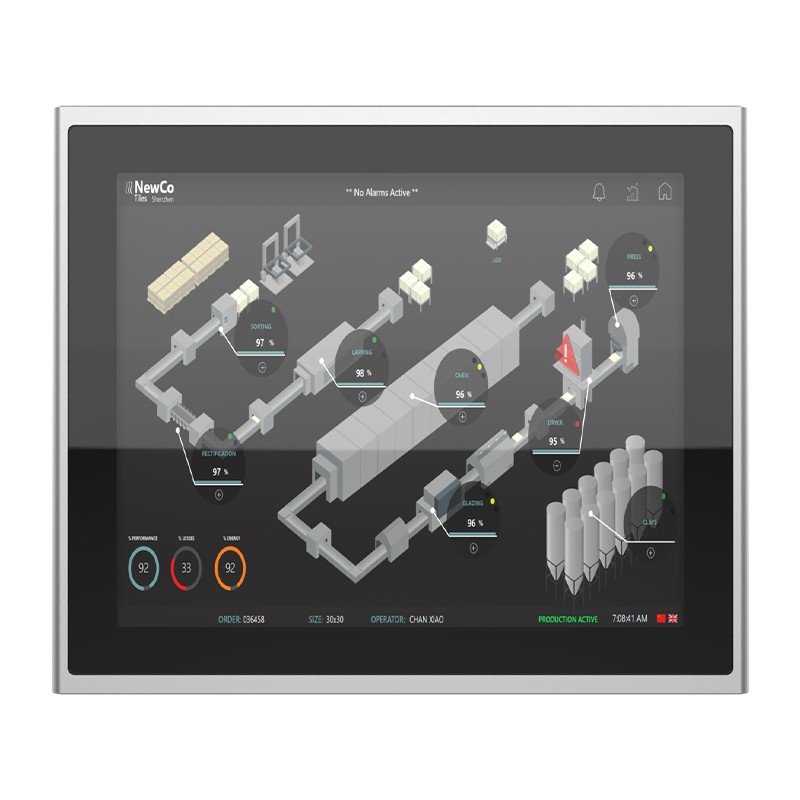

IMF-170X
