NEW
ES-P10G2-MUP
Unmanaged Gigabit PoE Ethernet Switch
8x PoE (RJ45), Uplink 1x RJ45 + 1x SFP
Support QOS WRR queue algorithm
Support BPDU Frame and EAPOL
Supports IEEE 802.3 /ab /u /x /az /af /at
10/100/1000 Full/Half-Duplex, MDI/MDI-X auto-detection
53.5VDC with Jack (<4W)
Operating temperature ranges from –10˚ ~ +45˚C
IP40, Metal housing
IEC 61000-4-2, level 4, ESD + IEC 61000-4-5, level4, surge
Desktop and Wall Mounting

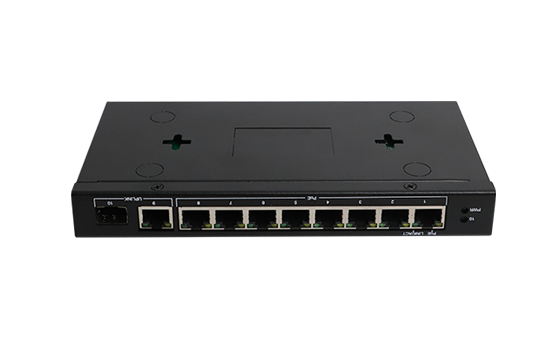

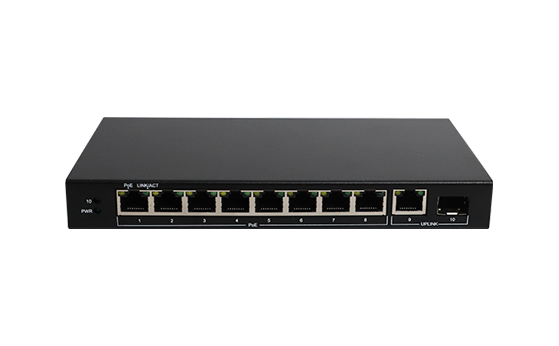

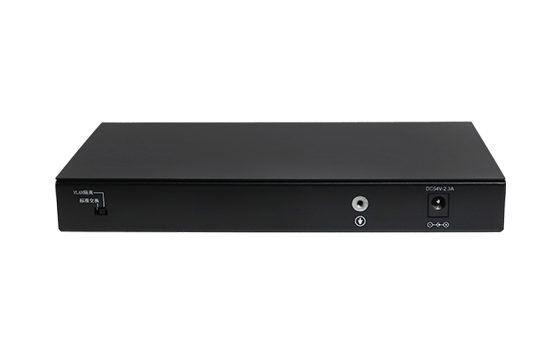

INDATECH Unmanaged Gigabit PoE Ethernet Switch
Specifiche tecniche
| ETHERNET | |
| Connector: | 9x RJ45 / 1x SFP |
| Ports: | 10 |
| Uplink Port: | 1x RJ45 / 1x SFP |
| PoE Port: | 8x RJ45 PoE (Max 120W, 30W for single PoE port) |
| Transmission Rate: | 10/100/1000 Mbps |
| Standards: | IEEE 802.3 /ab /u /x /az /af /at |
| Auto MDI/MDI-X: | Yes |
| VLAN mode: | Supported (through switch) |
| MAC Address Table: | 4K |
| POWER | |
| Input Voltage: | 53.5 VDC |
| Input Current: | 1.22A |
| Power Consumption: | < 5W Max (w/o PoE |
| Connector: | Jack |
| PHYSICAL CHARACTERISTICS | |
| Housing: | IP40 protection, Metal housing |
| Dimension (W x H x D): | 200mm x 100mm x 26mm |
| Weight: | 0.35 Kg |
| Installation: | DIN-Rail and Wall Mount |
| Reset Button: | No |
| Warranty: | 1 years |
| ENVIRONMENTAL LIMITS | |
| Operating Temperature: | -10°C ~ 45°C ( 14° ~ 113°F ) |
| Storage Temperature: | -40°C ~ 70°C ( -40°~ 158°F ) |
| Ambient Relative Humidity: | 5 ~ 95%RH (Non-condensing) |
Codici di ordinazione
| IPC | |||
| MODEL NAME | PART NUMBER | DESCRIPTION | |
| ES-P10G2-MUP | 10006647 | (PRO SERIES) Unmanaged Gigabit PoE Ethernet Switch, 10/100/1000M, 8x POE RJ45, Uplink 1x RJ45 + 1x SFP- METAL | |
Disegni tecnici
File scaricabili
| DATASHEET | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| ES-P10G2-MUP | TBD | TBD | TBD |  |
| MANUAL | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| ES-P10G2-MUP manual | TBD | TBD | TBD | |
| HARDWARE INSTALLATION GUIDE | ||||
| NAME | VERSION | TIME | SIZE | DOWNLOAD |
| ES-P10G2-MUP HIG | TBD | TBD | TBD | |
