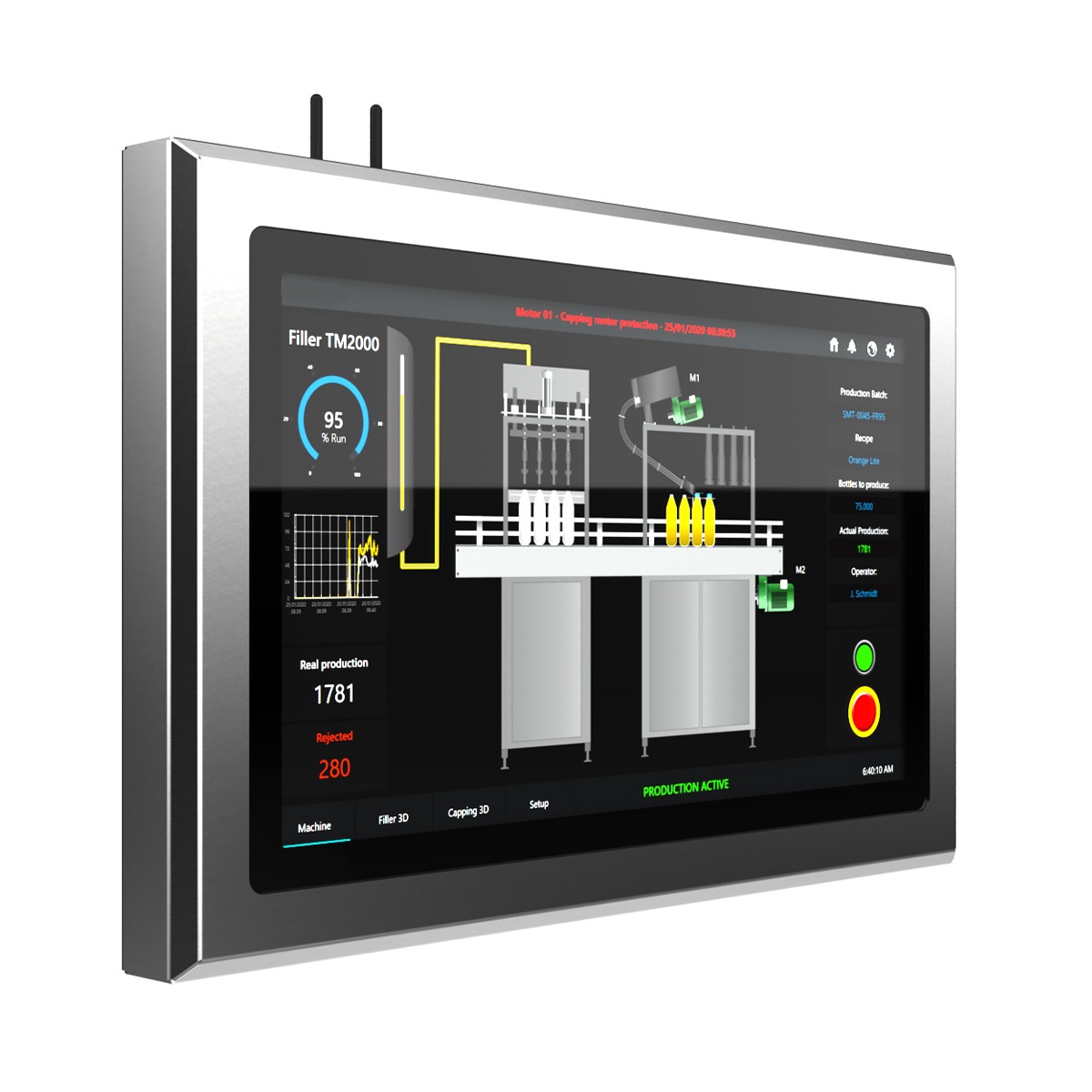

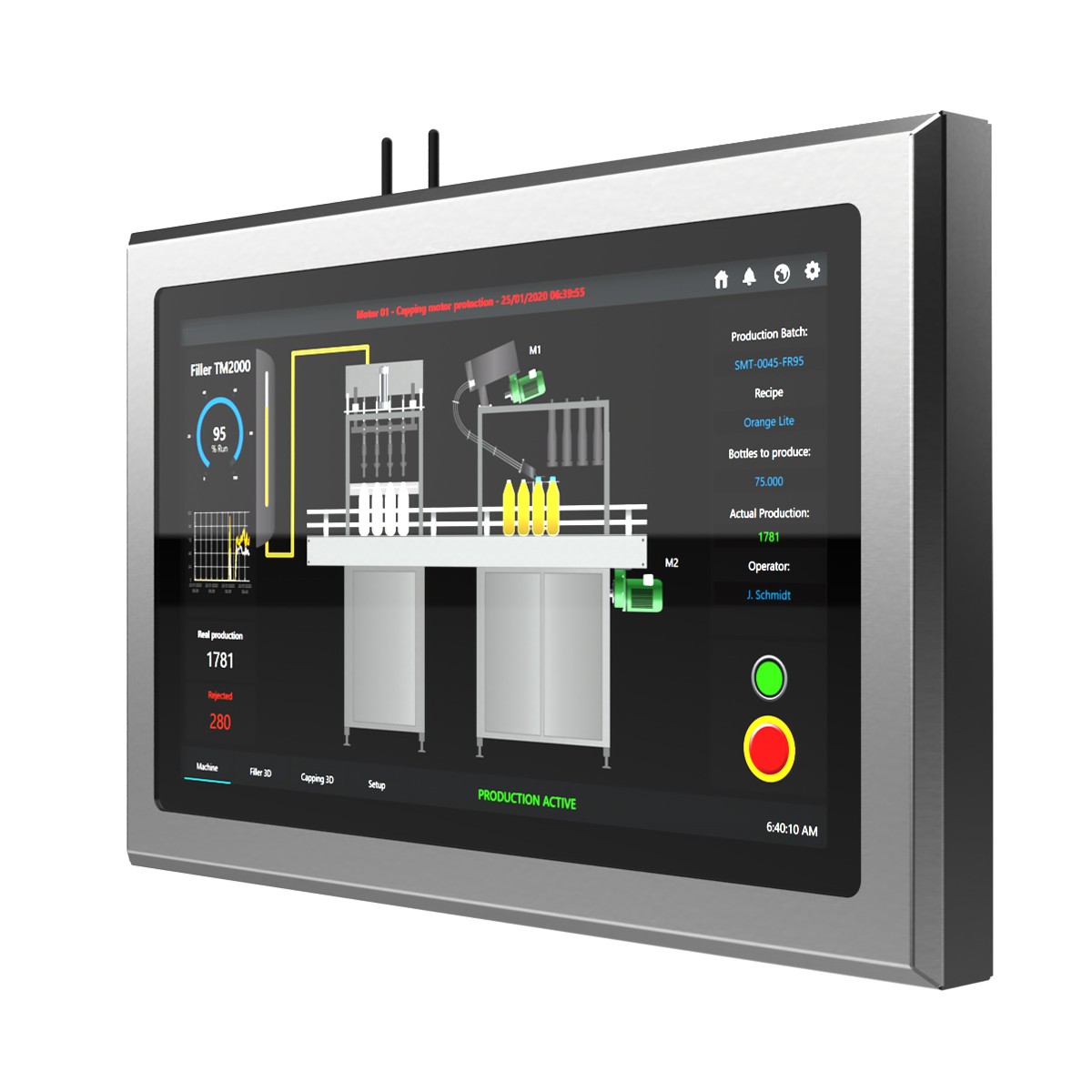

AINOX P240 – i5 8265UE
24” Industrial AINOX PC (16:9)
Intel® Core i5 8265UE
Up to 32 GB RAM
FullHD + 10 point multi touch screen
Extended power supply range from 9V to 24V
2x LAN Intel® Gigabit Ethernet
High quality AISI 316 Stainless Steel
Full-IP66 & Fanless cooling
VESA 100 + CUSTOM
INDATECH Industrial AINOX PC
Specifiche tecniche
MAINBOARD | |
CPU: | Intel® Core i5 8265UE
4 Core / 8 Thread 1.6 GHz (Base) / 4.1GHz (Turbo) 15 W |
MEMORY | |
Capacity: | up to 32 GB |
Frequency: | 2666 MHz |
Type | 1x SO-DIMM DDR4 |
STORAGE | |
SATA: | 1x SATA3 |
M.2 | 1x M.2 M-Key (2242/2260/2280)
Support PCIe x4 (NVMe) & SATA |
Storage Bay: | 1x Internal 2.5″ SSD Bay (optional) |

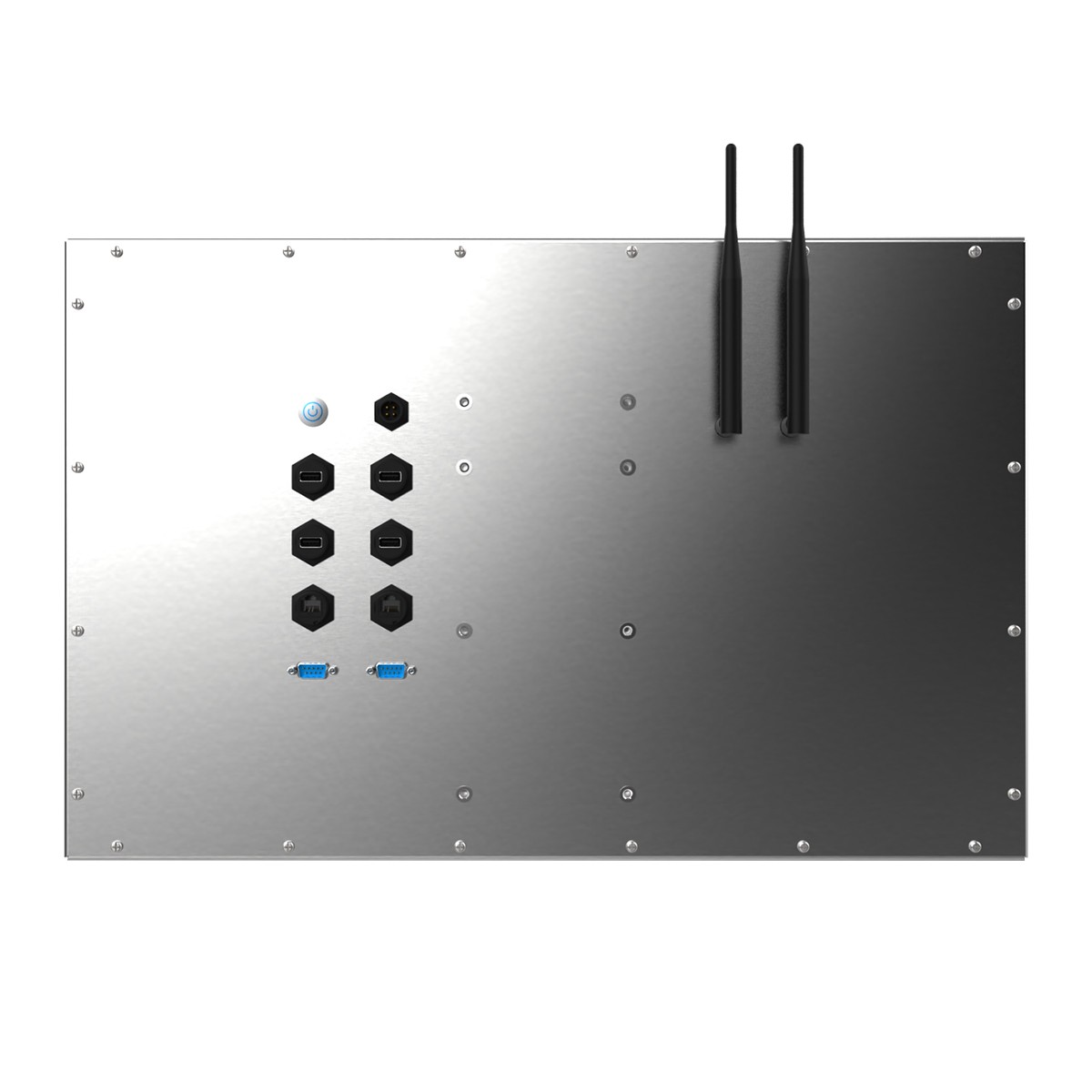

I/O INTERFACE | |
Serial ports: | 1x COM RS232/422/485
1x COM RS232 |
USB ports: | 4x USB 2.0, |
M.2: | 1x M.2 E-Key (2230)
CNVi WIFI module (optional) |
ETHERNET | |
LAN: | 1x Intel® i219LM PHY Gigabit LAN (iANT 11.0)
1x Intel® i211AT Gigabit LAN |
TOUCH SCREEN | |
Glass Thickness: | 3 mm |
Technology: | Projective Capacitive Multitouch |
DISPLAY | |
Size: | 24″ |
Resolution: | FullHD (1920×1080) |
Aspect Ratio: | 16:9 |
Backlight: | Led |
Bright and Contrast: | 350 cd/mq 1000:1 |
Colors: | 16 M |
View angle: | 178° – 178° |
MECHANICAL | |
Material: | AISI 316 Stainless Steel |
IP Protection: | Full IP66 |
Dimensions: | (L)643x(W)412x(H)52mm |
Weight: | 8 Kg |
Mounting: | VESA 100 + CUSTOM |
POWER | |
Power in: | 9 to 24V, DC-in |
Max Power: | 60W max |
ENVIRONMENT | |
Operating temp.: | -10°C to 50°C |
Humidity: | 100% Humidity, non-condensing |
EMC: | CE, FCC, RoHS, ErP Ready |
OPERATIVE SYSTEM | |
MS Windows: | Windows 10, Windows 10 Enterprise LTSC,
Windows 11, Windows 11 Enterprise LTSC |
Linux*: | Ubuntu 20.04 LTS, CentOS 8, Debian 10,
Fedora 34, pfSence, FreeNAS 11.2 |
* Linux distributions tested with the IPC. |
Codici di ordinazione
IPC | |||
MODEL NAME | PART NUMBER | CONFIGURATION CODE | DESCRIPTION |
AINOX P240 – i5 8265UE | 10005376 | B04-23C-BACH-I58365U-R08-M2D256 | IPC + 8GB RAM + M2 256GB SSD + WIFI6 |
ACCESSORIES | |||
MODEL NAME | PART NUMBER | DESCRIPTION | |
HDMI to VGA converter | 10003577 | HDMI to VGA converter |
File scaricabili
DATASHEET | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
AINOX P240 – i5 8265UE | TBD | TBD | TBD |
DRIVERS | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
AINOX P240 – i5 8265UE drivers | TBD | TBD | TBD |
MANUAL | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
AINOX P240 – i5 8265UE manual | TBD | TBD | TBD |
HARDWARE INSTALLATION GUIDE | ||||
NAME | VERSION | TIME | SIZE | DOWNLOAD |
AINOX P240 – i5 8265UE HIG | TBD | TBD | TBD |
